US-16-XG Quick Start Guide
https://dl.ui.com/qsg/US-16-XG/US-16-XG_EN.html
1/12
UniFi Switch Power Cord Rack-Mount Brackets (Qty.
2)
Bracket Screws (Qty. 8) Mounting Screws (Qty. 4) Cage Nuts (Qty. 4)
Package Contents
Installation Requirements
Phillips screwdriver (for rack- or wall-mounting)
Standard-sized, 19” wide rack with a minimum of 1U height available (for rack-
mounting)
Use compatible fiber SFP+ modules with the appropriate fiber optic cabling.
For information about compatible fiber SFP+ modules, visit:
community.ubnt.com/unifi
For indoor applications, use Category 6A (or above) UTP cabling approved for
indoor use.
For outdoor applications, shielded Category 6A (or above) cabling should be
used for all wired Ethernet connections and should be grounded through the
AC ground of the power supply.
We recommend that you protect your networks from harmful outdoor
environments and destructive ESD events with industrial-grade, shielded
Ethernet cable from Ubiquiti. For more details, visit: ui.com/toughcable
Note: Although the cabling can be located outdoors, the UniFi Switch itself
should be housed inside a protective enclosure.
US-16-XG Quick Start Guide
×
Click for
Table of Contents
2022/09/02 0:05
US-16-XG Quick Start Guide
https://dl.ui.com/qsg/US-16-XG/US-16-XG_EN.html
2/12
System LED
SFP+ Speed/Link/Act LED (Ports 1 - 12)
RJ45 Speed/Link/Act LED (Ports 13 - 16)
SFP+ (Ports 1 - 12)
System Requirements
Linux, Mac OS X, or Microsoft Windows 7/8/10
Java Runtime Environment 1.6 (1.8 or newer recommended)
Web Browser: Google Chrome (Other browsers may have limited functionality.)
UniFi Network Application v5.4 or newer, available at: ui.com/download/unifi
Hardware Overview
Click here for detailed descriptions.
Off No Link
Green
Solid: 1 Gbps Link Established
Flashing: Activity
White
Solid: 10 Gbps Link Established
Flashing: Activity
Off No Link
Green
Solid: 1 Gbps Link Established
Flashing: Activity
White
Solid: 10 Gbps Link Established
Flashing: Activity
Hot-swappable SFP+ ports support 1 Gbps and 10 Gbps connections.
US-16-XG Quick Start Guide
×
Click for
Table of Contents
2022/09/02 0:05
US-16-XG Quick Start Guide
https://dl.ui.com/qsg/US-16-XG/US-16-XG_EN.html
3/12
RJ45 (Ports 13 - 16)
Reset Button
Console Port
DC Input
Power Port
RJ45 ports support 1 Gbps and 10 Gbps Ethernet connections.
This button serves two functions for the UniFi Switch:
Restart Press and release the Reset button quickly.
Restore to Factory Default Settings Press and hold the Reset button for
more than five seconds.
Console Port
RJ45 serial console port for Command Line Interface (CLI) management. Use
an RJ45-to-DB9, serial console cable, also known as a rollover cable, to
connect the Console port to your computer. Then configure the following
settings as needed:
Baud rate 115200
Data bits 8
Parity NONE
Stop bits 1
Flow control NONE
The 48/24VDC input can connect a redundant or stand-alone DC power
source (not included) with minimum power: 56W, 57 to 20V.
Note: You can use the redundant DC power source as a hot spare; if
the internal AC/DC power supply no longer provides power, the UniFi
Switch will switch to the DC power source without interrupting its
operation.
Connect the included Power Cord to the Power port.
Hardware Installation
US-16-XG Quick Start Guide
×
Click for
Table of Contents
2022/09/02 0:05
US-16-XG Quick Start Guide
https://dl.ui.com/qsg/US-16-XG/US-16-XG_EN.html
4/12

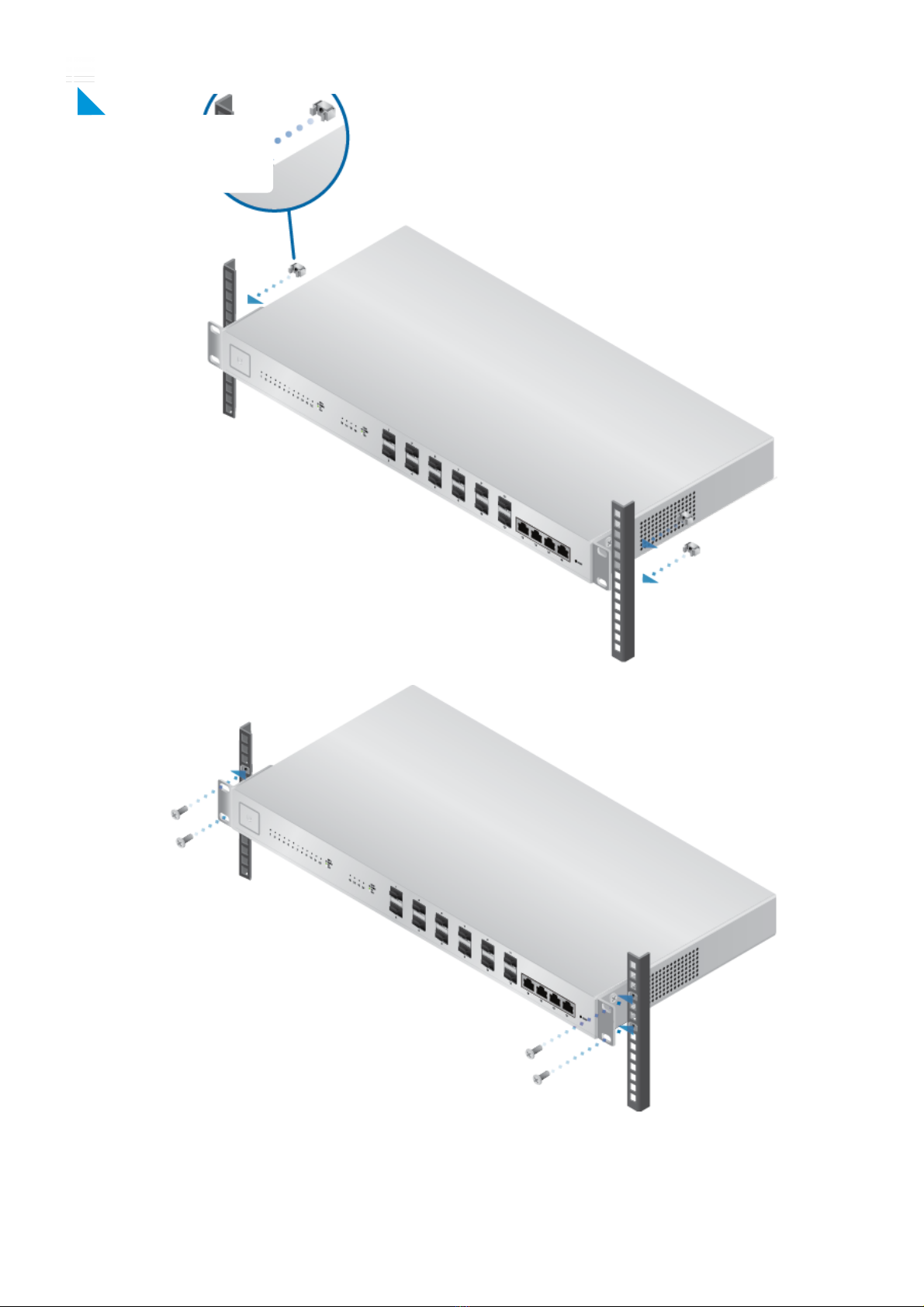

Mounting in a Rack (Optional)
1.
2.
OR
US-16-XG Quick Start Guide
×
Click for
Table of Contents
2022/09/02 0:05
US-16-XG Quick Start Guide
https://dl.ui.com/qsg/US-16-XG/US-16-XG_EN.html
5/12
Connecting Power
1.
US-16-XG Quick Start Guide
×
Click for
Table of Contents
2022/09/02 0:05
US-16-XG Quick Start Guide
https://dl.ui.com/qsg/US-16-XG/US-16-XG_EN.html
6/12
2.
Connecting SFP+
1.
US-16-XG Quick Start Guide
×
Click for
Table of Contents
2022/09/02 0:05
US-16-XG Quick Start Guide
https://dl.ui.com/qsg/US-16-XG/US-16-XG_EN.html
7/12
2.
3.
US-16-XG Quick Start Guide
×
Click for
Table of Contents
2022/09/02 0:05
US-16-XG Quick Start Guide
https://dl.ui.com/qsg/US-16-XG/US-16-XG_EN.html
9/12
Specifications
US-16-XG
Dimensions 443 x 221 x 43 mm (17.44 x 8.70 x 1.69")
Weight 2.67 kg (5.89 lb)
With Mount Brackets 2.76 kg (6.04 lb)
Total Non-Blocking Line Rate 160 Gbps
Max. DC Power Consumption 36W
(excludes SFP/SFP+ modules)
Power Method
AC 100-240VAC/50-60 Hz, Universal Input
DC 48VDC/24VDC
Power Supply AC/DC, Internal, 56W DC
Supported Voltage Range 100 to 240VAC
57 to 20VDC
Rack-Mount Yes, 1U High
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Shock and Vibration ETSI300-019-1.4 Standard
LEDs Per Port
SFP+ Data Ports Speed/Link/Activity
RJ45 Data Ports Speed/Link/Activity
Interfaces
US-16-XG Quick Start Guide
×
Click for
Table of Contents
2022/09/02 0:05
US-16-XG Quick Start Guide
https://dl.ui.com/qsg/US-16-XG/US-16-XG_EN.html
10/12
US-16-XG
Networking Interfaces (12) 1/10 Gbps SFP+ Ethernet Ports
(4) 1/10 Gbps RJ45 Ethernet Ports
Management Interface (1) RJ45 Serial Port, Ethernet In-Band
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at
least 20 mm of clearance next to the ventilation holes for adequate airflow.
WARNING: To reduce the risk of fire or electric shock, do not expose this product to
rain or moisture.
WARNING: Do not use this product in location that can be submerged by water.
WARNING: Avoid using this product during an electrical storm. There may be a
remote risk of electric shock from lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current requirements
indicated on the manufacturer’s label. Connection to a different power source than those
specified may result in improper operation, damage to the equipment or pose a fire
hazard if the limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service should be
provided only by a qualified service technician.
3. This equipment is provided with a detachable power cord which has an integral safety
ground wire intended for connection to a grounded safety outlet.
a. Do not substitute the power cord with one that is not the provided approved type.
Never use an adapter plug to connect to a 2-wire outlet as this will defeat the continuity
of the grounding wire.
b. The equipment requires the use of the ground wire as a part of the safety certification,
modification or misuse can provide a shock hazard that can result in serious injury or
death.
c. Contact a qualified electrician or the manufacturer if there are questions about the
installation prior to connecting the equipment.
d. Protective earthing is provided by Listed AC adapter. Building installation shall provide
appropriate short-circuit backup protection.
e. Protective bonding must be installed in accordance with local national wiring rules and
regulations.
