Ubiquiti EdgeRouter ER-10X Manual de usuario

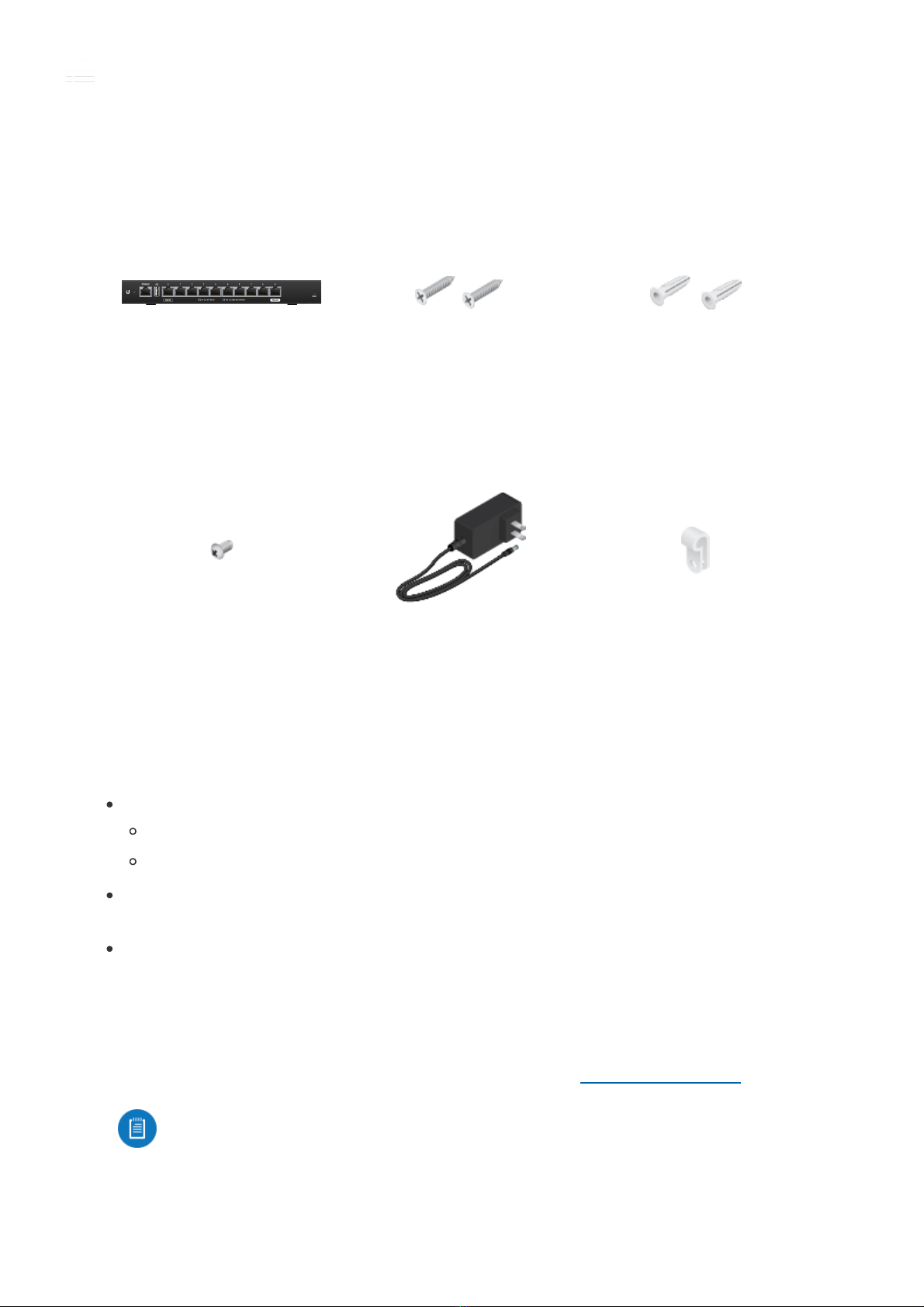

EdgeRouter ER-10X Wall Mount Screws (Qty. 2) Wall Mount Anchors (Qty. 2)

Ground Screw Power Adapter (24V, 1A) Cable Clip

Package Contents

Installation Requirements

Wall-mounting (optional)

Drill with 6 mm drill bit

Phillips screwdriver

For indoor applications, use Category 5 (or above) UTP cabling approved for

indoor use.

For outdoor applications, shielded Category 5 (or above) cabling should be

used for all wired Ethernet connections and should be grounded through the

AC ground of the power supply.

We recommend that you protect your networks from harmful outdoor

environments and destructive ESD events with industrial-grade, shielded

Ethernet cable from Ubiquiti. For more details, visit: ui.com/toughcable

Note: Although the cabling can be located outdoors, the EdgeRouter itself

should be housed inside a protective enclosure.

Hardware Overview

ER-10X Quick Start Guide

System LED

RJ45 PoE LED (Port 0)

RJ45 Speed/Link/Activity LED (Ports 0 - 9)

Flashing White Bootup in Progress

White

Ready for Use

Not Connected to Ubiquiti® Network Management

System (UNMS™)

Blue

Ready for Use

Connected to UNMS

Steady Blue with

Occasional Flashing

Ready for Use

Unable to Connect to UNMS

Quickly Flashing Blue Used to Locate a Device in UNMS

Alternating Blue/White Firmware Upgrade in Progress

Off No PoE

Green 24V Passive PoE Input

Off No Link

ER-10X Quick Start Guide

RJ45 PoE LED (Port 9)

Console

USB

RJ45 (Ports 0 - 9)

Reset Button

Power

Grounding Point

Green Link Established

Flashing Indicates Activity

Off No PoE

Green 24V 2-Pair Passive PoE Output

RJ45 serial console port for Command Line Interface (CLI) management.

Reserved for future use.

All RJ45 ports can be used for routing and support 10/100/1000 Mbps Ethernet

connections. Ports 0 - 9 can be configured for switching functions using the

EdgeOS® Configuration Interface.

PoE In (Port 0) Supports 24V Passive PoE input.

PoE Out (Port 9) Supports optional 24V Passive PoE passthrough (disabled

by default).

Click here to learn how to reset an EdgeRouter to factory defaults.

Connect the included Power Adapter to the Power port.

Ground bonding point for an optional ground wire.

Hardware Installation

Wall Mounting

ER-10X Quick Start Guide

Grounding the EdgeRouter (Recommended)

ER-10X Quick Start Guide

The Power Adapter grounds the device; however, you can add optional ESD

grounding for enhanced ESD protection (ground wire not included).

Optional

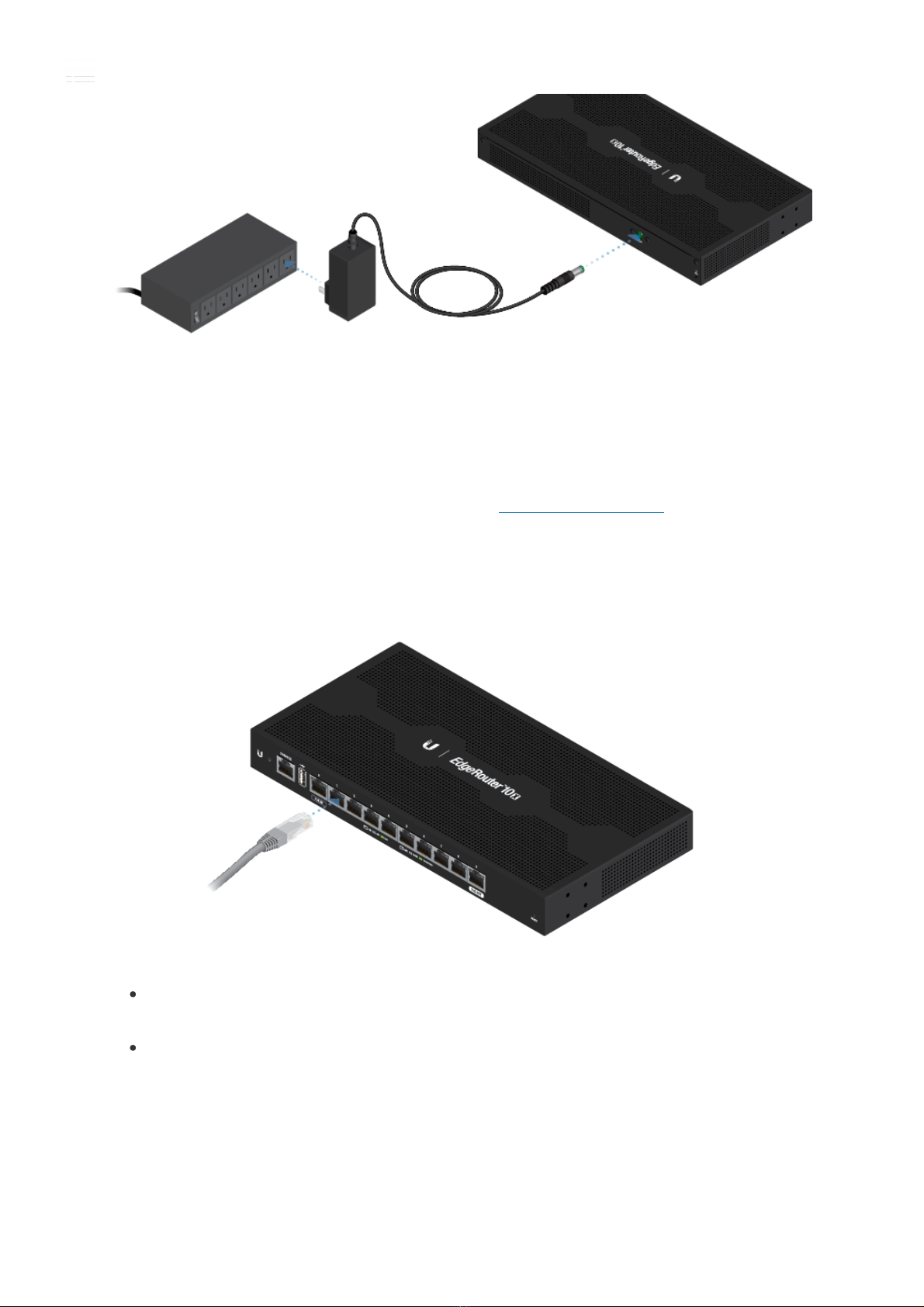

Connecting Power

ER-10X Quick Start Guide

Accessing the EdgeOS Configuration Interface

The EdgeOS® configuration interface can be accessed via DHCP or static IP

address assignment. By default, eth1 is set up as a DHCP client, while eth0 is

assigned a static IP address of 192.168.1.1. To configure the EdgeRouter,

proceed to the appropriate section: DHCP or “Static IP Address”.

DHCP

1. Connect an Ethernet cable from eth1 on the EdgeRouter to a LAN segment

that has an existing DHCP server.

2. To check the IP address of the EdgeRouter, use one of the following methods:

Set up the DHCP server to provide a specific IP address to the EdgeRouter

based on its MAC address (on the label).

Let the EdgeRouter obtain an IP address and then check the DHCP server

to see which IP address was assigned.

3. Launch your web browser. Enter the appropriate IP address in the address

field. Press enter (PC) or return (Mac).

4. Enter ubnt in the Username and Password fields. Read the Ubiquiti License

Agreement, and check the box next to I agree to the terms of this License

Agreement to accept it. Click Login.

ER-10X Quick Start Guide

The EdgeOS Configuration Interface will appear, allowing you to customize your

settings as needed. For more information, refer to the EdgeOS User Guide, which

is available at ui.com/download/edgemax

For more information on PoE configuration, refer to “Configuring PoE Settings”.

Static IP Address

1. Connect an Ethernet cable from the Ethernet port on your computer to the port

labeled eth0 on the EdgeRouter.

2. Configure the Ethernet adapter on your host system with a static IP address on

the 192.168.1.x subnet.

3. Launch your web browser. Type https://192.168.1.1 in the address field. Press

enter (PC) or return (Mac).

4. Enter ubnt in the Username and Password fields. Read the Ubiquiti License

Agreement, and check the box next to I agree to the terms of this License

Agreement to accept it. Click Login.

ER-10X Quick Start Guide

The EdgeOS Configuration Interface will appear, allowing you to customize your

settings as needed. For more information, refer to the EdgeOS User Guide, which

is available at ui.com/download/edgemax

For more information on PoE configuration, refer to “Configuring PoE Settings”.

UNMS Management

You can manage your device using UNMS, which lets you configure, monitor,

upgrade, and back up your devices using a single application. Get started at

www.unms.com

Configuring PoE Settings

The PoE setting for port 9 is set to Off by default.

WARNING: Before activating PoE, ensure that the connected device

supports passive PoE and the supplied voltage.

1. In the Dashboard tab, click Actions > PoE of the Ethernet port you want to

configure.

ER-10X Quick Start Guide

2. The Interface Configuration window will appear. Select the appropriate PoE

setting, and click Save.

3. The Ethernet port’s PoE LED will confirm the PoE setting.

For detailed instructions on configuring other features, please refer to the

EdgeOS User Guide. The User Guide is available at ui.com/download/edgemax

Specifications

ER-10X

Dimensions 268.1 x 136.5 x 31.1 mm

(10.55 x 5.37 x 1.22")

Weight 600 g (1.32 lb)

Enclosure Characteristics Metal Housing

Max. Power Consumption 8W (Excludes PoE Output)

Power Method External AC/DC Power Adapter, 24W (24V, 1A)

(Included)

24V Passive PoE

Power Supply External AC/DC Adapter

ER-10X Quick Start Guide
