U-Line H-5817 Manual de usuario

PAGE 1 OF 3 0816 IH-5817

πH-5817

PIPE CLOTHING

RACK – DOUBLE RAIL

1-800-295-5510

uline.com

PARTS

TOOLS INCLUDED

Allen Wrench Wrench

Caster x 4 Adjustable Connector x 4 Set Screw x 4

Bottom Upright x 4

Base x 1

Top Upright x 4

Hangbar x 2

PAGE 2 OF 3 0816 IH-5817

ASSEMBLY

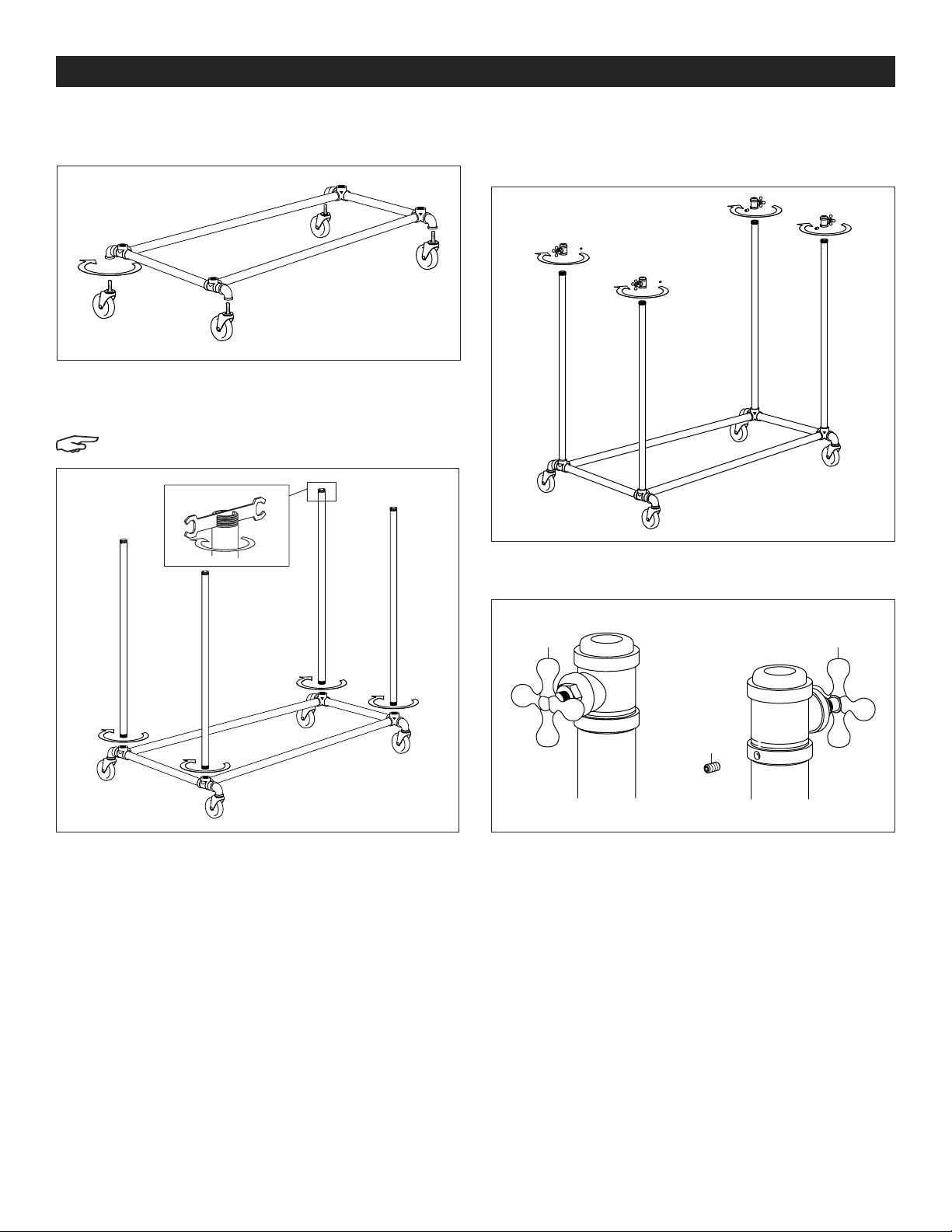

1. Screw the four casters into the base using provided

wrench. (See Figure 1)

2. Thread each bottom upright into the base.

(See Figure 2) To fully secure uprights, place included

wrench into pipe slots and tighten fully. (See Figure 2a)

NOTE: Ends with slots should be facing up.

3. Screw an adjustable connector to the top of each

bottom upright. Make sure connectors are facing

out. (See Figure 3)

4. Tighten set screws using Allen wrench to lock

adjustable connectors in place. (See Figure 4)

Figure 1

Figure 4

Figure 2a

Facing

Out

Facing

Out

Set

Screw

Figure 2

Figure 3

PAGE 3 OF 3 0816 IH-5817

ASSEMBLY CONTINUED

5. Twist two top uprights into each hangbar. (See Figure 5)

NOTE: Ends with slots should be facing down.

6. Loosen adjustable connectors and insert hangbars

with top uprights from step 5. Drop to desired height

and lock into position by retightening connectors.

(See Figure 6)

Figure 5

Figure 6

πCHICAGO • ATLANTA • DALLAS • LOS ANGELES • MINNEAPOLIS • NYC/PHILA • SEATTLE • MEXICO • CANADA

1-800-295-5510

uline.com
