TS-1800 User Guide
Page 4
Introduction
1. Introduction
1.1 About the TS-1800
Twine’s TS-1800 is a unique and revolutionary textile dyeing machine offering on-
demand Digital Thread Dyeing capabilities. You can set the TS-1800 to dye a
single color, multiple colors, or gradient colors, as needed for your particular
dyeing job. The TS-1800 supports various types of raw or standard white polyester
thread and yarn for the sewing, knitting, embroidery and other sectors of the
textile industry.

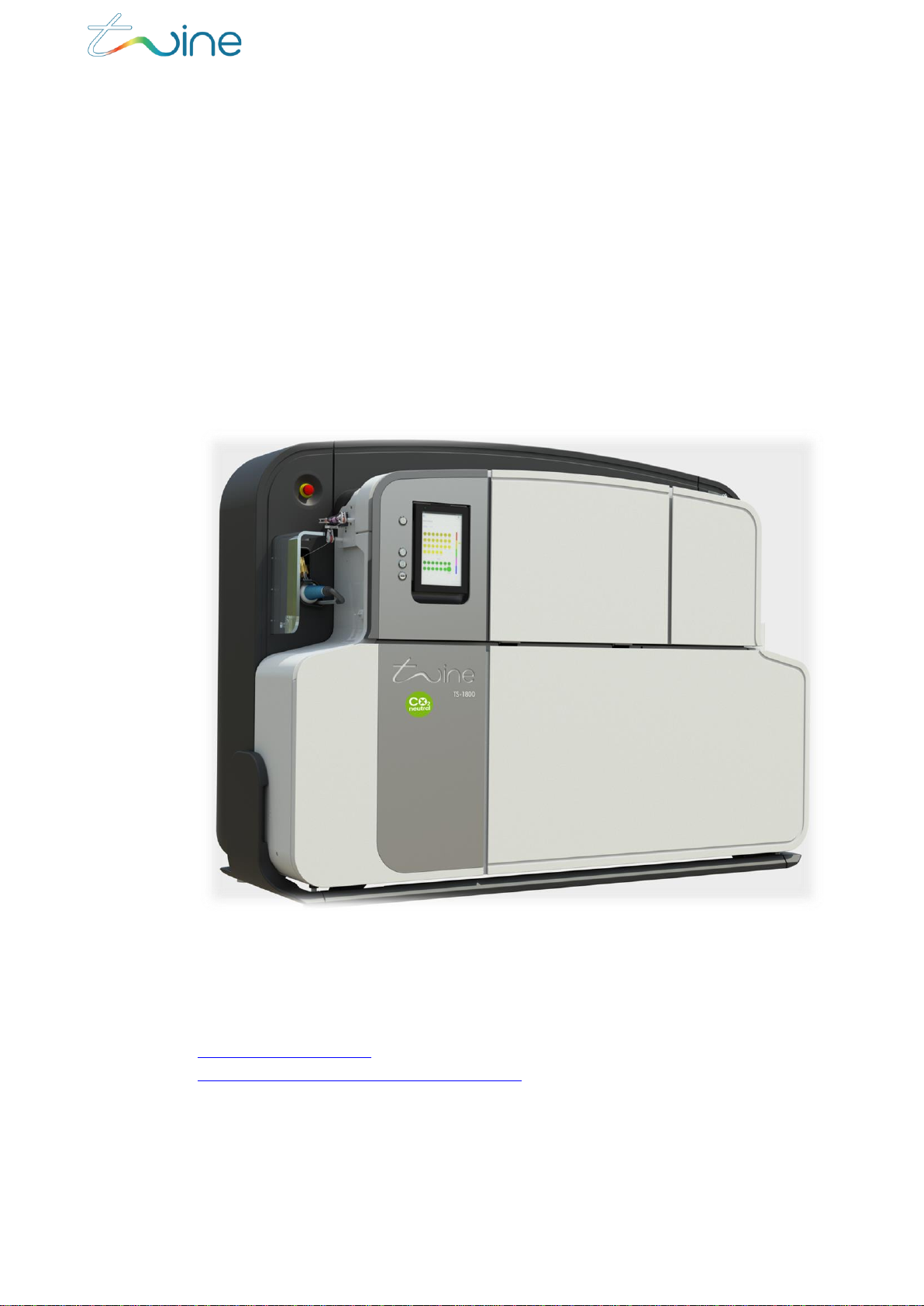

Figure 1: The TS-1800 thread and yarn dyeing machine
1.2 Contacting Twine Support
In case of any technical question or problem, contact Twine Customer care at
Support@twine-s.com / your Twine representative (contact details at
https://twine-s.com/contact/contact-us/).
TS-1800 User Guide
Page 5
Introduction
1.3 System Specifications
The following are the System Specifications for the TS-1800:
Parameter
Specification
Definition
Digital Thread and yarn Dyeing System
Dye Technology
DST™
Ink
Twine Digital Ink™(TDI)
Certification
CE, ZDHC and Intertek
Pre & Post Treatment
Integrated
Yarn Loading System
Automatic loading system
Yarn Winding System
Integrated winder
Yarn Fiber Type
Polyester
Operator Interfaces
Industrial grade touch screen
Network
Wi-Fi
Remote Support
Secured connection
1.4 Terms and Abbreviations
The following terms and abbreviations are used throughout this document:
Term /
Abbreviation
Definition
BIT
Built-In Test
Coats
The Coats catalog colors
Color space
System for defining colors
EMO
Emergency off button
GUI
Graphical User Interface
LAB
The “CIELAB” color space
MSDS
Material Safety Data Sheets
N/A
Not Applicable
PPC
Panel PC
RFID
Radio Frequency Identification
RGB
The “Red, Green, Blue” color model
RML
Recommended Media List
TGU
Thread Guiding Unit
Job Factor
Percentage of thread added to a job to allow for a certain amount
of spare thread
TS-1800 User Guide
Page 6
Introduction
Term /
Abbreviation
Definition
Color Proofing
Method of checking and approving colors by dyeing a small
sample of each color before dyeing the whole job
Unit
The amount of thread needed to make one complete item
1.5 Supported Color Spaces
Use Twine’s Digital dye-to-match technology to select from an almost unlimited
color gamut. You can dye a solid color or color gradients in single or multiple
segments. The TS-1800 enables you to easily program thread length, sequence,
and more.
TS-1800 currently supports colors from the following color spaces:
Twine
Coats
LAB
RGB
1.6 Supported Ink
The TS-1800 supports Twine’s proprietary TDITM ink cartridges only. It automatically
checks that the ink cartridge inserted is authentic. If the cartridge is not authentic,
it will not proceed with the dyeing process.
USE ONLY TWINE TDITM INK CARTRIDGES. ATTEMPTING TO USE A NON-TWINE
TDITM INK CARTRIDGE MIGHT CAUSE DAMAGE TO THE MACHINE AND COULD
RESULT IN DEGRADED PERFORMANCE.
1.7 Supported Thread Types
Since the TS-1800 supports many types of threads and thread thicknesses, it can
be used to dye thread for sewing, embroidery, and knitting applications. A list of
supported threads can be found in the Recommended Media List (RML).
TS-1800 User Guide
Page 7
Introduction
1.8 TS-1800 Parts Overview
The following tables describe the different parts of the TS-1800, as shown in the
diagrams.
Figure 2: TS-1800 parts front view
Part
Description
1
PPC
2
Dryer Cover
3
Cartridge Cover
4
Thread Feeding Unit
5
Front Service Cover
6
Electrical cabinet Cover
7
Thread Winding Unit
8
Emergency Button
9
Thread Groove
10
TS-1800 Operating Panel (Power / Thread jogging / Thread loading / USB port)
11
Operating Panel Cover
TS-1800 User Guide
Page 8
Introduction
Figure 3: TS-1800 parts rear view
Part
Description
12
AC Power Socket
13
AC Power Switch
14
AC Power Cable with Plug
1.9 Safety Considerations
Do not start using the TS-1800 or attempt to perform any service or
maintenance action before carefully reading through this section.
1.9.1 Disclaimer
It is the customer’s responsibility:
To ensure that the TS-1800 is used for the purpose it was intended (see section
1.9.2 “Designated Purpose”)
To ensure that all Twine instructions and guides are carefully and accurately
followed
Twine assumes no responsibility:
If the TS-1800 is used for any purpose other than that for which it is
intended
If Twine instructions and guidelines are not carefully and accurately
followed
TS-1800 User Guide
Page 9
Introduction
1.9.2 Designated Purpose
The TS-1800 is deemed to be used for its designated purpose if it is used in
accordance with its product documentation and within its performance limits.
It is essential that only trained personnel be allowed to use this system because of
the technical skills and fair level of English comprehension required.
1.9.3 Regulations
To prevent accidents while operating the system, observe all applicable local and
national safety rules and regulations.
1.9.4 Safety Notice Definitions
The following table describes the safety labels used throughout the TS-1800
documentation.
Notice
Definition
Indicates a hazardous situation which will result in death
or serious injury.
Indicates a hazardous situation which might result in
death or serious injury.
Indicates a hazardous situation which can result in minor
or moderate injury.
Indicates a situation where incorrect operation of the
system can result in damage to the product. The label
ATTENTION is used synonymously.
Indicates information related to proper use of the system.
NOTE:
A description of specific product hazards can be found in Appendix A-
Technical Specification
DANGER
WARNING
TS-1800 User Guide
Page 10
Operating the TS-1800
2.Operating the TS-1800
Operating the TS-1800 and preparing it for dyeing involves the following main
steps:
1. Powering it up and down. (Section 2.2 “Powering Up and Down”)
2. Loading ink. (Section 2.3 “Loading the TS-1800 with Ink or Lubricant”).
3. Handling the waste. (Section 2.4 “Handling Waste”)
4. Filling the Lubricant (Section 2.5 “Lubricant Filling”)
5. Loading the thread (Section 2.6 “Thread Loading Steps”)
6. Replacing a cone (Section 2.7 “Inserting an Empty Cone”)
2.1 TS-1800 Operating Panel Button Definition and
Functionality
2.1.1 Definition
The TS-1800 panel buttons are defined in Figure 4.
Figure 4: TS-1800 panel buttons
Not
active
Otros manuales para TS-1800
3
Tabla de contenidos
Otros manuales de Impresora 3D de Twine
