Assembly Instructions VERA GSK36
2
Introduction
Instructions in this setup manual
The VERA GSK36 groundstack-kit is an accessory for the VERA36 loudspeaker and the
VERA RF900 rigging frame.
It is characterized by a subtle look, a remarkable size to weight ratio and ease of use.
Thank you for choosing a high-quality product “MADE IN GERMANY” from the brand
TW AUDiO.
If you lend your product to another party, inform that party of the safety-related operating pro-
cedures and hand over this assembly guide. If you require additional copies of this manual,
you can obtain them free of charge from TWAUDiO or download them from www.twaudio.de
WARNING
WARNING
CAUTION
NOTE
TIP
Strictly adhere to the instructions contained in this operating manual that are marked as
follows:
This symbol in combination with the signal word “Warning” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to serious injury or even death.
This symbol in combination with the signal word “Caution” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to light or moderate injury.
This symbol in combination with the signal word “Note” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to product damage.
This symbol in combination with the signal word “Tip” identifies additional information or
notes that will simplify working with TWAUDiO products on the basis of practical experience.
This symbol in combination with the signal word “Warning” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to serious injury or even death.
Assembly Instructions VERA GSK36
3
Notes on the products
Read manual
before use!
General Information
Before using the groundstack-kit, carefully read the assembly instructions and keep the inst-
ructions in a safe place together with the VERA GSK36 groundstack-kit.
Assembly Guide: OM-VERA GSK36
Version 2.0 d, 02/2023
© by TWAMBO 2023; all rights reserved.
All information contained in this operating manual was correct to the best of our knowledge
at the time of printing.
Quality warranties or assurance of suitability for a certain type of use based on the technical
specifications, dimensions and weights are not granted by TWAMBO.
TWAMBO also shall not assume liability for any secondary damage (property damage and/or
personal injury) nor for the failure to comply with this operating manual!
TWAMBO reserves the right to update this document based on recent developments.
TWAMBO GmbH
Karl-Hofer-Str. 42
14163 Berlin
Germany
Phone : + 49 (0) 71 41-48 89 89 0
Fax: + 49 (0) 71 41-48 89 89 99
WWW: www.twaudio.de
Assembly Instructions VERA GSK36
4
Content
1. Safety | Intended use...................................................................................................... 5
2. Overview ........................................................................................................................ 6
2.1 Scope of delivery..................................................................................................... 6
2.2 Placement the VERA GSK36 for storage at the VERA RF900 ................................... 7
3. Technical Data ................................................................................................................ 8
3.1 Data sheet............................................................................................................... 8
4. Commissioning............................................................................................................... 9
4.1 Setup ...................................................................................................................... 9
4.2 Wind load ................................................................................................................ 9
4.3 Pitfalls...................................................................................................................... 9
4.4 Danger of tipping over ........................................................................................... 10
4.5 System setup VERA RF900 with VERA GSK36 on the ground................................ 11
4.6 System setup VERA RF900 with VERA GSK36 on VERA S33 loudspeaker ............. 11
4.7 Groundstack VERA36 loudspeaker on VERAGSK36 ............................................. 12
5. Transport and Storage.................................................................................................. 20
6. CE Declaration of Conformity........................................................................................ 21
7. Disposal ....................................................................................................................... 21
Assembly Instructions VERA GSK36
5
1. Safety | Intended use
WARNING
CAUTION
The VERA GSK36 groundstack-kit was developed for use in professional sound systems.
The groundstack-kit may only be used by trained and qualified personnel.
Please adhere to the following safety instructions to avoid risks when using accessories.
Note the operating modes described in this assembly instructions. Other uses are not per-
missible.
Damage caused by improper use is not covered by TWAMBO.
Before every operation, check the scope of delivery of the VERAGSK36 groundstack-kit for
its completeness and ensure that all parts are in perfect condition.
The scope of delivery includes specified components. Only use the recommended and cer-
tified components.
WARNING
The VERA GSK36 groundstack-kit may only used with the VERA36 loudspeaker and the
VERA RF900 rigging frame.
This rigging manual describes how to use the VERAGSK36 groundstack-kit correctly. Any
other use shall be deemed improper and may result in damage or even injury.
Modifications or alterations to individual parts of the VERAGSK36 groundstack-kit are not
permitted! Danger to life!
WARNING
During and after each system setup, check that all quick-locking pins are always completely
inserted! All quick-locking pins must always be used!
The VERA GSK36 groundstack-kit is an accessory designed both for indoor and outdoor use.
WARNING
The VERA GSK36 groundstack-kit set may only be used by trained and qualified personnel.
Personnel must check the VERA GSK36 for its full suitability before each use.
WARNING
When visible damage to any part of the VERA GSK36 groundstack-kit set is detected, it must
be decommissioned immediately.
Assembly Instructions VERA GSK36
6
2. Overview
2.1 Scope of delivery
1. Rear-adapter
2. Boxlink connector A
3. Boxlink connector B
The VERA GSK36 consists of a rear-adapter with quick-locking pins as well as a
boxlink connector A and a boxlink connector B with two quick-locking pins each.
Figure 2.1 - Groundstack-kit VERA GSK36
1
2
3
NOTE
Assembly Instructions VERA GSK36
7

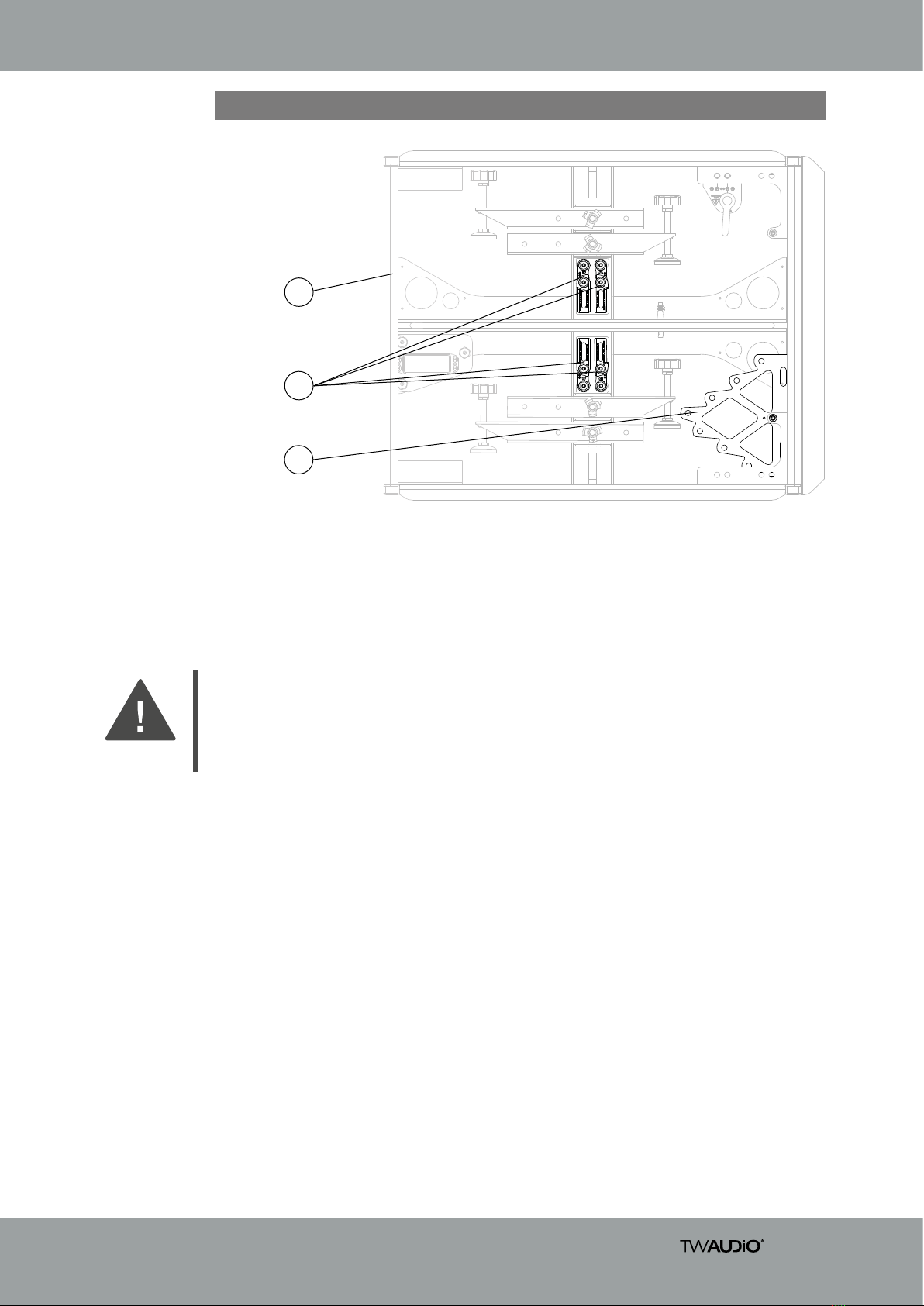

2.2 Placement the VERA GSK36 for storage at the VERA RF900
1. Rigging frame VERA RF900
2. Possible positions: boxlink connector A and B VERA GSK36
3. Possible position: rear-adapter VERA GSK36
Figure 2.2 - Overview VERARF900 with VERA GSK36
1
2
3
WARNING
For storage, first insert all quick-locking pins through the mounting holes of the
VERA GSK36 groundstack-kit and then through the mounting holes on the VERARF900 rig-
ging frame.
Make sure that the groundstack-kit is securely attached to the VERARF900 rigging frame.
Assembly Instructions VERA GSK36
8
3. Technical Data
3.1 Data sheet
maximum load capacity 12x VERA36
Weight 1.0 kg [2,20 lbs]
Surface Powder coated
Assembly Instructions VERA GSK36
9
4. Commissioning
4.1 Setup
The VERA GSK36 groundstack-kit is designed for groundstack operation.
4.2 Wind load
4.3 Pitfalls
WARNING
NOTE
WARNING
TW AUDiO recommends using only the accessories specified by TWAUDiO for securing and
mounting the groundstack-kit.
Please note that setting up the system setups always requires two persons!
Make sure that all system structures are located on a firm, level surface and that the surface
can bear the total weight!
WARNING
WARNING
Before setting up the system outdoors, consider unforeseeable wind conditions at the ope-
ration site!
In the event of imminent danger, dismantle your system structures immediately!
Make sure that no one can trip over your system structures, or over individual components!
This is especially true for all pressure-resistant shims, tripod legs and bracing ropes!
Assembly Instructions VERA GSK36
10
Figure 4.4 - System structure - Danger of tipping
WARNING
4.4 Danger of tipping over
The center of gravity of the configuration can be used as a guide to the stability of the
groundstack system design. This can be determined by simulating the system structure in
the EASE Focus simulation software. It should always be plumb above the VERA RF900 rig-
ging frame.
Secure every system setup against falling over!
WARNING
WARNING
WARNING
Make sure that no unauthorized persons can access the system structures!
Cordon off the area professionally!
Any influences on your system setup, such as leaning against objects (or people) and flying
objects around, be refrained from!
