TW Audio CBL Manual de usuario
Assembly
Instructions
CBL
Assembly Instructions CBL
2
Introduction
The cluster plate CBL is an accessory for the M6 and M8 loudspeaker.
It is characterized by a subtle look, a remarkable size to weight ratio and ease of use.
Instructions in this user manual
NOTE
TIP
CAUTION
WARNING
Thank you for choosing a high-quality product “MADE IN GERMANY” from the brand
TW AUDiO.
If you lend your product to another party, inform that party of the safety-related operating pro-
cedures and hand over this assembly guide. If you require additional copies of this manual,
you can obtain them free of charge from TWAUDiO or download them from www.twaudio.de
Strictly adhere to the instructions contained in this operating manual that are marked as
follows:
This symbol in combination with the signal word “Warning” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to serious injury or even death.
This symbol in combination with the signal word “Caution” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to light or moderate injury.
This symbol in combination with the signal word “Note” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to product damage.
This symbol in combination with the signal word “Tip” identifies additional information or
notes that will simplify working with TWAUDiO products on the basis of practical experience.
Assembly Instructions CBL
3
Notes on the products
Read manual
before use!
Before using the device, carefully read the assembly instructions and keep it with the
CBL cluster plate.
General information
Assembly instructions: OM-CBL
Version 2.0 en, 05/2022
© by TWAMBO 2022; all rights reserved.
All information contained in this operating manual was correct to the best of our knowledge
at the time of printing.
Quality warranties or assurance of suitability for a certain type of use based on the technical
specifications, dimensions and weights are not granted by TWAMBO.
TWAMBO also shall not assume liability for any secondary damage (property damage and/or
personal injury) nor for the failure to comply with this operating manual!
TWAMBO reserves the right to update this document based on recent developments.
TWAMBO GmbH
Karl-Hofer-Str. 42
14163 Berlin
Germany
Phone : + 49 (0) 71 41-48 89 89 0
Fax: + 49 (0) 71 41-48 89 89 99
WWW: www.twaudio.de
Assembly Instructions CBL
4
Content
1. Safety | Intended use...................................................................................................... 5
2. Overview ........................................................................................................................ 7
2.1 Components ........................................................................................................... 7
3. Technical data ................................................................................................................ 8
3.1 Data sheet............................................................................................................... 8
4. Commissioning............................................................................................................... 9
4.1 Setup ...................................................................................................................... 9
4.2 Needed tools for setup ............................................................................................ 9
4.3 Wind load ................................................................................................................ 9
4.4 Assembly CBL to M6 loudspeaker on HSF............................................................ 10
4.5 Assembly CBL to M6 or M8 loudspeaker on HSA.................................................. 11
4.6 Assembly CBL to M6 or M8 loudspeakers at DHST............................................... 13
5. Transport and storage .................................................................................................. 14
6. CE Conformity Declaration............................................................................................ 15
7. Disposal ....................................................................................................................... 15
Assembly Instructions CBL
5
1. Safety | Intended use
The CBL cluster plate was developed for use in professional sound systems. The cluster plate
may only be used by trained and qualified personnel.
The CBL cluster plate may only used with the M6 or M8 loudspeaker.
This rigging manual describes how to use the CBL cluster plate correctly. Any other use shall
be deemed improper and may result in damage or even injury.
Modifications or alterations to individual parts of the CBL cluster plate are not permitted!
Danger to life!
WARNING
Before every operation, check the scope of delivery of the CBL cluster plate for its complete-
ness and ensure that all parts are in perfect condition.
The scope of delivery includes specified components. Only use the recommended and cer-
tified components.
WARNING
The CBL cluster plate is designed both for indoor and outdoor use.
CAUTION
The CBL cluster plate may only be used by trained and qualified personnel. Personnel must
check the CBL cluster plate for suitability before each use.
WARNING
The CBL cluster plate must be taken out of operation immediately as soon as visible damage
to the parts can be seen.
WARNING
Please keep all elements of the CBL cluster plate away from children! The small parts can
easily be swallowed and lead to suffocation!
WARNING
Please adhere to the following safety instructions to avoid risks when using accessories.
Note the operating modes described in this assembly instructions. Other uses are not per-
missible.
Damage caused by improper use is not covered by TWAMBO.
Assembly Instructions CBL
6
The payload of the CBL cluster plate is designed of two M6 or two M8 loudspeaker. Do not
exceed this payload.
WARNING
When moving (assembling, dismantling, maintaining) the CBL cluster plate with
M6 or M8 loudspeaker, ensure sufficient space to prevent collisions with other objects.
WARNING
Do not squeeze or twist the electrical cables of the M6 or M8 loudspeaker during the instal-
lation of the CBL cluster plate! The respective national electrotechnical rules and regulations
are applicable.
CAUTION
All screw connections should be checked each time the CBL cluster plate are installed.
Tighten all loose screws. If this is no longer possible, the screws must be replaced.
WARNING
Before mounting the CBL cluster plate check that e.g. tripods and trussus are capable to
carrying the payload of the components.
WARNING
WARNING
WARNING
Make sure that no water pipes, electrical lines or any other lines are behind the intended place
of mounting.
Only use wall plugs and screws which are suitable for the intended mounting and structural
fabric. All screws must be set and tightened properly. Ensure that the fixing holes have the
correct depth and diameter. Always use all fixing holes.
Assembly Instructions CBL
7
2. Overview
2.1 Components
1. Hexagon screw M10 x 20................................................................................ 2 pieces
2. Cluster plate CBL .............................................................................................. 1 piece
Figure 2.1 - Overview
1 2
Assembly Instructions CBL
8
3. Technical data
Maximum load capacity 2x M6 or 2x M8
Dimensions (h x w x d) 42 x 180 x 6 mm [1.65 x 7.09 x 0,24 in]
Weight 0,4 kg [0.9 lbs]
Surface Powder-coated
3.1 Data sheet
Assembly Instructions CBL
9
4.1 Setup
The CBL cluster plate is designed for the hanging and stacking operation. TW AUDiO provi-
des a wide range of accessories to securely attach the swivel bracket.
NOTE
4. Commissioning
4.3 Wind load
WARNING
WARNING
4.2 Needed tools for setup
• Open-end wrench SW17
Have the following tools ready for each setup:
TW AUDiO recommends using only the accessories specified by TWAUDiO for securing and
mounting loudspeakers.
Before setting up the system outdoors, consider unexpected wind conditions at the opera-
tion site!
Disassemble your system immediately when wind speeds exceed 8 bft (34 to 40 kn / 62 to
74 kph / 38.5 to 46 mph) and secure the system components!
Make sure that there are no persons in the immediate vicinity of the system structure!
Make sure that the system structures are not operated over the audience at wind speeds in
excess of 6 bft (22 to 27kn / 39 to 49kph / 24.2 to 30.45mph) and that there are no persons
in the immediate vicinity of the system structure!
WARNING
Make sure that all system structures are located on a firm, level surface and that the surface
can bear the total weight!
Please note that setting up the system structures always requires two persons!
WARNING
Assembly Instructions CBL
10

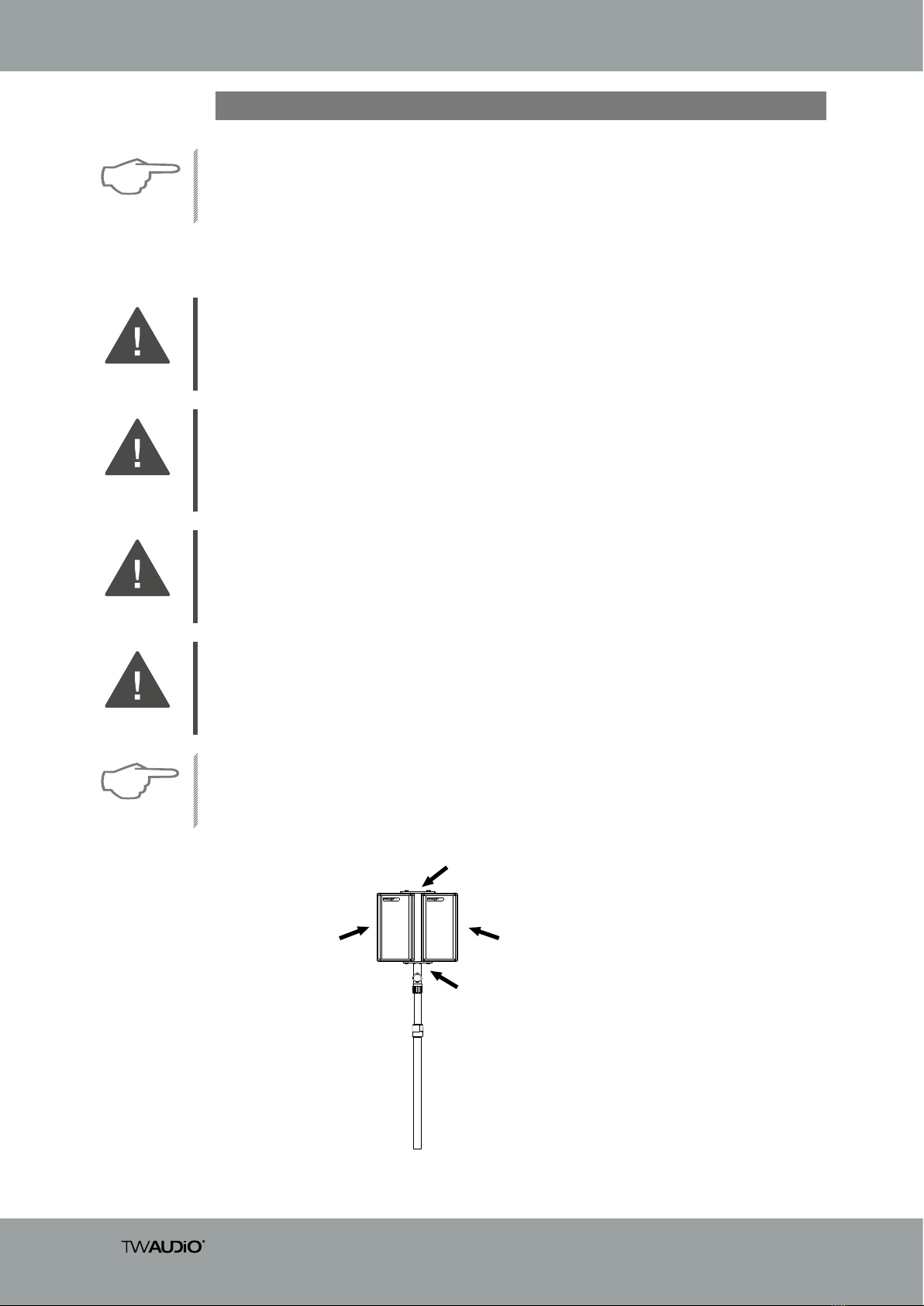

4.4 Assembly CBL to M6 loudspeaker on HSF
Figure 4.4.1 - Assembly CBL to M6 loudspeaker
Mount positions 1 and 2 (see figure 2.1) on top of the M6 loudspeakers as shown in
figure 4.4.1 and 4.4.2.
NOTE
Mount two M6 loudspeaker with CBL cluster plate and the HSF pole mount flange on the
tripod. Make sure that you use suitable fastening material and that the connections are set
firmly and correctly!
NOTE
WARNING
WARNING
WARNING
WARNING
General safety instructions for setting up on a tripod:
For every system setup on a tripod, use a tripod that is designed according to the total weight.
When setting up a system on uneven surfaces, such as gravel or grass, always put a pressu-
re-resistant surface under all four spindle feet! Make sure that all four spindle feet rest comple-
tely on the pressure-resistant shims and that the surface can withstand the total weight! Note
that depending on the system design, either the front or rear spindle feet may be able to carry
more weight!
Make sure that no one can trip over your system structures, or over individual components!
This is especially true for all pressure-resistant shims, tripod legs and guy ropes!
Any influences on your system setup, such as leaning against objects (or people) and flying
objects around, be refrained from!
CBL
M6
HSF
M6
