Owner’s Manual

1111 W. 35th Street Chicago, IL 60609 USA

Customer Support: (773) 869-1234 • www.tripplite.com

Important Safety Instructions 2

Mounting 3

Quick Installation 5

Basic Operation 7

Storage and Service 11

Español

SmartPro®

Intelligent, Line-Interactive UPS System

• 220/230/240V Sine Wave Input/Output • Extended Runtime Capability

Model: SMX2200XLRT2U

Not suitable for mobile applications

Battery Replacement 12

Français 25

Optional Installation 6

Deutsch 37

PyccŞèé 49

200510005 93-2445 SmartOnline 1phase OM.qxd 4/14/2006 4:05 PM Page 1

Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains important instructions that should be followed during the installation, operation

and storage of all Tripp Lite UPS Systems. Failure to heed these warnings will void your warranty.

UPS Location Warnings

• Use caution when lifting UPS. Because of the considerable weight of all Rackmount UPS

systems, at least two people should assist in lifting and installing them.

• Install your UPS indoors, away from excess moisture or heat, dust or direct sunlight.

• For best performance, the ambient temperature near your UPS should be between 0° C and

40° C (between 32° F and 104° F).

• Leave adequate space around all sides of the UPS for proper ventilation. Do not obstruct its

vents or fan openings.

UPS Connection Warnings

• The UPS contains its own energy source (battery). The output terminals may be live even

when the UPS is not connected to an AC supply.

• Connect your UPS to a properly grounded AC power outlet. Do not modify the UPS’s plug

in a way that would eliminate the UPS’s connection to ground. Do not use adapters that

eliminate the UPS’s connection to ground.

• Do not plug your UPS into itself; this will damage the UPS and void your warranty.

• If you are connecting your UPS to a motor-powered AC generator, the generator must provide

filtered, frequency-regulated computer-grade output. Connecting your UPS to a generator will

void its Ultimate Lifetime Insurance.

Equipment Connection Warnings

• Do not use Tripp Lite UPS Systems for life support applications in which a malfunction or

failure of a Tripp Lite UPS System could cause failure or significantly alter the performance

of a life-support device.

• Do not connect surge suppressors or extension cords to the output of your UPS. This might

overload the UPS and will void the surge suppressor and UPS warranties.

Battery Warnings

• Batteries can present a risk of electrical shock and burn from high short-circuit current.

Observe proper precautions. Do not dispose of the batteries in a fire. Do not open the UPS or

batteries. Do not short or bridge the battery terminals with any object. Unplug and turn off the

UPS before performing battery replacement. Use tools with insulated handles. There are no

user-serviceable parts inside the UPS. Battery replacement should be performed only by

authorized service personnel using the same number and type of batteries (sealed Lead-Acid).

The batteries are recyclable. Refer to your local codes for disposal requirements. Tripp Lite

offers a complete line of UPS System Replacement Battery Cartridges (R.B.C.). Visit Tripp

Lite on the Web at www.tripplite.com to locate the specific replacement battery for your UPS.

• During hot-swap battery replacement, the UPS will not provide backup power in the event of

a blackout or other power interruptions.

• Do not operate UPS without batteries.

• When adding external battery packs to select models with external battery pack connectors,

connect only Tripp Lite-recommended battery packs of the correct voltage and type. Do not

connect or disconnect battery packs when the UPS is operating on battery power.

200510005 93-2445 SmartOnline 1phase OM.qxd 4/14/2006 4:05 PM Page 2

Mounting (Rack)

Mount your equipment in either a 4-post or 2-post rack or rack enclosure. The user must determine

the fitness of hardware and procedures before mounting. If hardware and procedures are not suit-

able for your application, contact the manufacturer of your rack or rack enclosure. The procedures

described in this manual are for common rack and rack enclosure types and may not be appropriate

for all applications.

4-Post Mounting

All UPS models include hardware required to mount in a 4-post rack. Select models include an

adjustable rackmount shelf kit to provide additional support. If your UPS model does not include

an adjustable rackmount shelf kit, skip steps 1 and 2.

Connect the two segments of each shelf using the

included screws and nuts . Leave the screws slightly

loose so that the shelves can be adjusted in the next step.

Adjust each shelf to fit your rack, then mount them in

the lowest available space of your rack with the

screws, nuts and washers provided . Note that the

support ledges should face inward. Tighten the screws

that connect the shelf segments .

Attach mounting ears to the front mounting holes

of your equipment using the screws provided .

The ears should face forward.

Using an assistant if necessary, lift your equipment

and slide it onto the mounting shelves. Attach your

equipment to the rack by using the appropriate

hardware through its mounting ears and into the

rack rails.

2-Post (Telecom) Mounting

Two-post mounting will require a Tripp Lite 2-Post Rackmount Installation Kit (Model

2POSTRMKITWM, sold separately). For detailed installation procedures, see the 2POSTRMK-

ITWM Owner's Manual.

200510005 93-2445 SmartOnline 1phase OM.qxd 4/14/2006 4:05 PM Page 3

Mounting (Tower)

Mount all UPS models in an upright, tower position using included hardware. The user must deter-

mine the fitness of hardware and procedures before mounting.

Stand your UPS on its side with the LED/Control panel

at the top. Attach one rack mounting ear to each side

of the UPS using included screws . Attach the rack

mounting ears to the floor with user-supplied

hardware.

Rotate the LED/Control panel to view it easier while

the UPS is tower mounted. Insert a small screwdriver,

or other tool, in the slots on either side of the panel.

Pop the panel out; rotate it; and pop the panel back in

place.

200510005 93-2445 SmartOnline 1phase OM.qxd 4/14/2006 4:05 PM Page 4

BATTERIES

Quick Installation

With the UPS disconnected from

utility power, use a small tool to

set the Voltage Dip Switches to

match your input voltage. (All

models are preset to the 230V

setting.)

Insert a user-supplied power cord

(with country-specific plug) into

the UPS System's IEC-320-C20

AC input receptacle. Plug the

cord into an AC wall outlet.*

NOTE! after you plug the UPS into a live AC outlet,

the UPS (in “Standby” mode) will automatically

charge its batteries,** but will not supply power to

its outlets until it is turned ON (see Step 3 below).

* See Specifications for circuit amperage requirements.

** The BATTERY CHARGE LED will be the only LED illuminated.

Find one of the power cords that

came with the UPS. Insert the

cord’s female plug into

computer’s AC input. Insert the

cord’s male plug into any UPS

female output receptacle.

Plug your equipment into the UPS.*

Plug your equipment into the UPS. Repeat Step 3

above using the additional power cord(s) that came

with the UPS.

Note: Additional interconnection cords (C13 to

C14) are available from Tripp Lite. Call 773-869-

1234 (Part # P004-006).

* Your UPS is designed to support computer equipment only. You will

overload the UPS if the total VA ratings for all the equipment you

connect exceeds UPS output capacity. To find your equipment’s VA

ratings, look on their nameplates. If the equipment is listed in amps,

multiply the number of amps by 240 to determine VA. (Example:

1 amp × 240 = 240 VA). If you are unsure if you have overloaded your

UPS's outlets, see “OUTPUT LOAD LEVEL” LED description.

Turn the UPS ON.

Press and hold the “ON/OFF/STANDBY” button for

one second. The alarm will beep once briefly after one

second has passed. Release the button.

200510005 93-2445 SmartOnline 1phase OM.qxd 4/14/2006 4:05 PM Page 5

Optional Installation

These connections are optional. Your UPS will function

properly without these connections.

USB and RS-232 Serial

Communications

Use the included USB cable (see ) and/or DB9 serial

cable (see ) to connect the communication port on

your computer to the communication port of your

UPS. Install on your computer the Tripp Lite

PowerAlert Software appropriate to your computer’s

operating system.

EPO Port Connection

This optional feature is only for those applications

which require connection to a facility’s Emergency

Power Off (EPO) circuit. When the UPS is connected

to this circuit, it enables emergency shutdown of the

UPS’s inverter.

Using the cable provided, connect the EPO port of

your UPS (see ) to a user-supplied normally closed or

normally open switch according to the circuit diagram

(see ). The EPO port is not a phone line surge sup-

pressor; do not connect a phone line to this port.

External Battery Connection

Your UPS comes with a robust internal battery sys-

tem; external batteries are needed only to extend run-

time. Adding external batteries will increase recharge

time as well as runtime.

The illustration (see ) shows the location of your

UPS’s External Battery Connector, where you will

insert the battery pack cable. Complete installation

instructions for your battery pack appear in the battery

pack owner’s manual. Make sure that cables are fully

inserted into their connectors. Small sparks may result

during battery connection; this is normal.

Do not connect or disconnect battery packs when the

UPS is running on battery power.

If you connect any external batteries, set the Battery

Charge Level Switches (see ) to the down

position. This will increase your UPS’s charger output so

that the additional batteries charge faster.

Caution! DO NOT set the Battery Charge Level

Switches to the down position without an external

battery connected. There is a risk of damaging the

UPS’s internal battery system.

4-5

EXTERNAL

BATTERIES

200510005 93-2445 SmartOnline 1phase OM.qxd 4/14/2006 4:05 PM Page 6

“ON/OFF/STANDBY” Button

• To turn the UPS ON: with the UPS plugged into a live AC wall outlet*, press

and hold the “ON/OFF/STANDBY” button for one second.** Release the

button. If utility power is absent, you can “cold-start” the UPS (i.e.: turn it ON

and supply power for a limited time from its batteries***) by pressing and

holding the “ON/OFF/STANDBY” button for one second.**

• To turn the UPS OFF: with the UPS ON and receiving utility power, press

and hold the “ON/OFF/STANDBY” button for one second.** Then unplug

the UPS from the wall outlet. The UPS will be completely OFF.

* After you plug the UPS into a live AC outlet, the UPS (in ”Standby” mode) will automatically charge

its batteries, but will not supply power to its outlets until it is turned ON. ** The alarm will beep once

briefly after the indicated interval has passed. *** If fully charged.

“MUTE/TEST” Button

To Silence (or “Mute”) UPS Alarms: briefly press and release the

MUTE/TEST button.*

To Run a Self-Test: with your UPS plugged in and turned ON, press and hold

the MUTE/TEST button. Continue holding the button until the alarm beeps sev-

eral times and the UPS performs a self test. See “Results of a Self-Test” below.

Note: you can leave connected equipment on during a self-test. Your UPS, how-

ever, will not perform a self-test if the UPS is not turned on (see

“ON/OFF/STANDBY” Button description).

CAUTION! Do not unplug your UPS to test its batteries. This will remove

safe electrical grounding and may introduce a damaging surge into your

network connections.

Results of a Self-Test: The test will last approximately 10 seconds as the

UPS switches to battery to test its load capacity and battery charge.

• If the “OUTPUT LOAD LEVEL” LED remains lit red and the alarm

continues to sound after the test, the UPS’s outlets are overloaded. To

clear the overload, unplug some of your equipment and run the self-test

repeatedly until the “OUTPUT LOAD LEVEL” LED is no longer lit red

and the alarm is no longer sounding.

CAUTION! Any overload that is not corrected by the user immedi-

ately following a self-test may cause the UPS to shut down and cease

supplying output power in the event of a blackout or brownout.

• If the “BATTERY WARNING” LED remains lit and the alarm continues

to sound after the test, the UPS batteries need to be recharged or

replaced. Allow the UPS to recharge continuously for 12 hours, and

repeat the self-test. If the LED remains lit, contact Tripp Lite for service.

If your UPS requires battery replacement, visit www.tripplite.com to

locate the specific Tripp Lite replacement battery for your UPS.

Basic Operation

Buttons (Front Panel)

200510005 93-2445 SmartOnline 1phase OM.qxd 4/14/2006 4:05 PM Page 7

Basic Operation

continued

Indicator Lights (Front Panel)

All Indicator Light descriptions apply when the UPS is plugged into a wall

outlet and turned ON.

“POWER” LED: this green LED lights continuously when the UPS is ON and

supplying connected equipment with AC power from a utility source. The LED

flashes and an alarm sounds (4 short beeps followed by a pause) to indicate the

UPS is operating from its internal batteries during a blackout or severe

brownout. If the blackout or severe brownout is prolonged, you should save

files and shut down your equipment since internal battery power will eventual-

ly be depleted. See “BATTERY CHARGE” LED description below.

“VOLTAGE CORRECTION” LED: this green LED lights continuously

whenever the UPS is automatically correcting high or low AC voltage on the

utility line without the assistance of battery power. The UPS will also emit a

slight clicking noise. These are normal, automatic operations of the UPS, no

action is required on your part.

“OUTPUT LOAD LEVEL” LED: this multicolored LED indicates the

approximate electrical load of equipment connected to the UPS's AC outlets. It

will turn from green (light load) to yellow (medium load) to red (overload). If

the LED is red (either illuminated continuously or flashing), clear the overload

immediately by unplugging some of your equipment from the outlets until the

LED changes from red to yellow (or green). CAUTION! Any overload that is

not corrected by the user immediately may cause the UPS to shut down and

cease supplying output power in the event of a blackout or brownout.

“BATTERY CHARGE” LED: when the UPS is operating from utility power,

this LED indicates the approximate charge state of the UPS's internal batteries:

red indicates the batteries are beginning to charge; yellow indicates the batter-

ies are roughly midway through charging; and green indicates the batteries are

fully charged. When the UPS is operating from battery power during a blackout

or severe brownout, this LED indicates the approximate amount of energy

(ultimately affecting runtime) which the UPS’s batteries will provide: red indi-

cates a low level of energy; yellow indicates a medium level of energy; and

green indicates a high level of energy. Since the runtime performance of all UPS

batteries will gradually deplete over time, it is recommended that you periodi-

cally perform a self-test (see MUTE/TEST Button description) to determine the

energy level of your UPS batteries BEFORE a blackout or severe brownout

occurs. During a prolonged blackout or severe brownout, you should save files

and shut down your equipment since battery power will eventually be depleted.

When the LED turns red and an alarm sounds continuously, it indicates the

UPS's batteries are nearly out of power and UPS shut down is imminent.

“BATTERY WARNING” LED: this LED lights red and an alarm sounds

intermittently after you initiate a self test (See “MUTE/TEST” Button descrip-

tion) to indicate the UPS batteries need to be recharged or replaced. Allow the

UPS to recharge continuously for 12 hours, and repeat the self-test. If the LED

continues to light, contact Tripp Lite for service. If your UPS requires battery

replacement, visit www.tripplite.com to locate the specific Tripp Lite replace-

ment battery for your UPS.

200510005 93-2445 SmartOnline 1phase OM.qxd 4/14/2006 4:05 PM Page 8

Basic Operation

continued

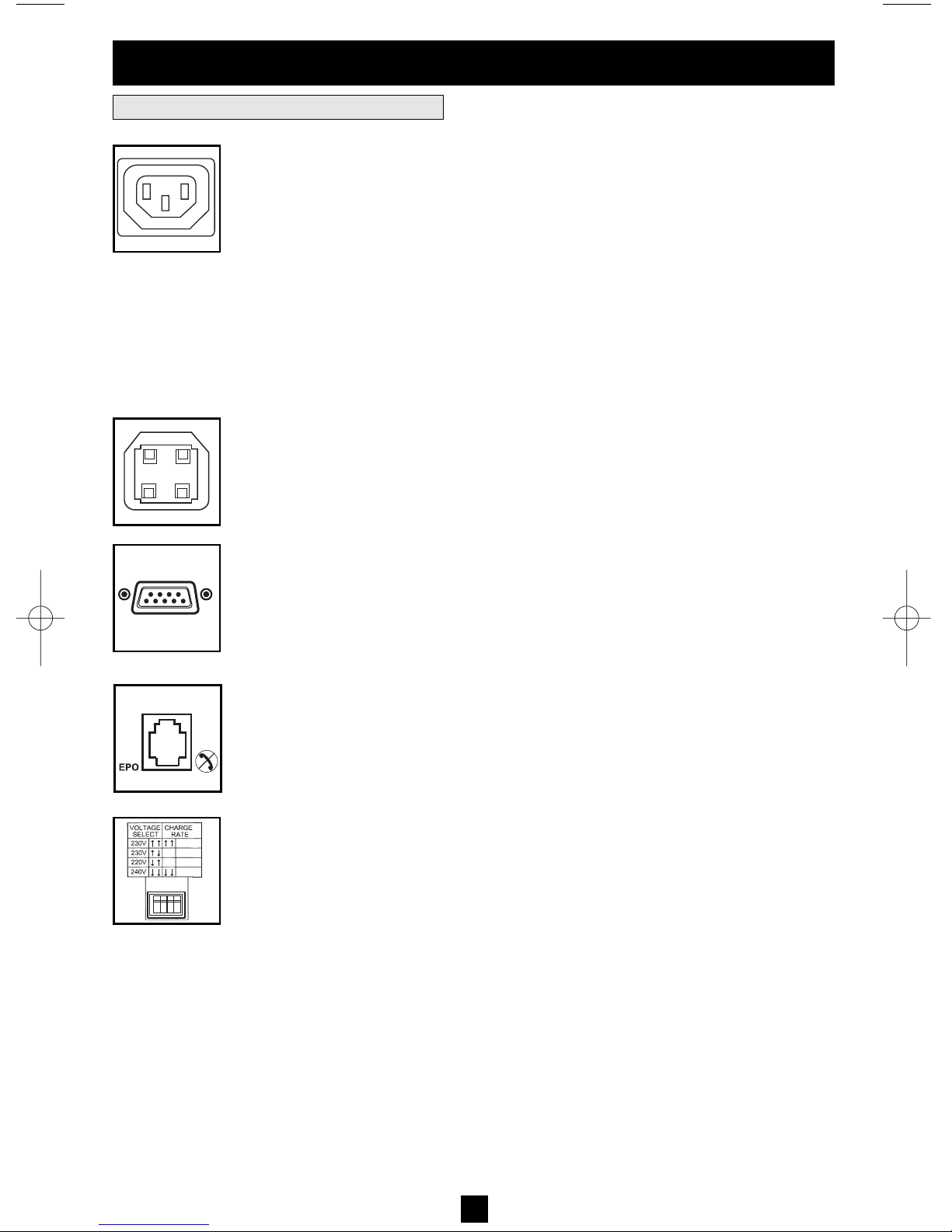

Other UPS Features (Rear Panel)

AC Receptacles: Your UPS features IEC320-C13 outlets. These output

receptacles provide your connected equipment with AC line power during

normal operation and battery power during blackouts and brownouts. The UPS

protects equipment connected to these receptacles against damaging surges and

line noise. If you have a serial or USB connection to your UPS, you can remote-

ly reboot connected equipment by turning individually controllable receptacles

OFF and ON using Tripp Lite's PowerAlert Software. Three receptacles,

labeled LOAD 1, LOAD 2 and LOAD 3, are individually controllable and may

be remotely switched OFF and ON using PowerAlert Software without

interrupting power to equipment connected to other outlets. Outlets labeled

UNSWITCHED may not be remotely turned off. Unswitched outlets can only

be turned off by turning off all output receptacles. See software instructions for

details.

Communications Ports (USB or RS-232): These ports connect your UPS to

any workstation or server. Use with Tripp Lite’s PowerAlert Software and

included cables to enable your computer to automatically save open files and

shut down equipment during a blackout. Also use PowerAlert Software to mon-

itor a wide variety of AC line power and UPS operating conditions. Consult

your PowerAlert Software manual or contact Tripp Lite Customer Support for

more information. See “USB and RS-232 Serial Communications” in the

“Optional Installation” section for installation instructions.

EPO (Emergency Power Off) Port: Your UPS features a EPO port that may

be used to connect the UPS to a contact closure switch to enable emergency

inverter shutdown. See Optional Installation.

Voltage DIP Switches: These switches enable the UPS to be set to match

actual input voltage. If the Voltage DIP Switches are set above or below input

voltage, the UPS will treat the input as a continuous overvoltage or undervolt-

age condition, and will automatically adjust input voltage to match the Voltage

DIP Switch setting. This will cause constant, unnecessary wear on the UPS.

Note: The Voltage DIP Switches must be set with the UPS turned OFF and

disconnected from utility power. If the switches are set while the UPS is

connected to utility power, the setting will not take effect.

IEC320-

C13/230V

NO EXTERNAL

BATTERIES

EXTERNAL

BATTERIES

200510005 93-2445 SmartOnline 1phase OM.qxd 4/14/2006 4:05 PM Page 9

Basic Operation

continued

Accessory Slot: Remove the small cover panel from this slot to install option-

al accessories to remotely monitor and control your UPS. Refer to your acces-

sory’s manual for installation instructions. Contact Tripp Lite Customer Support

at (773) 869-1234 for more information, including a list of available SNMP,

network management and connectivity products.

Power Sensitivity Adjustment: This dial is normally set fully counter-clock-

wise, which enables the UPS to provide maximum protection against waveform

distortions in its AC input. When such distortion occurs, the UPS will normal-

ly switch to providing sine wave power from its battery reserves for as long as

the distortion is present. In areas with poor utility power or where the UPS’s

input power comes from a backup generator, chronic waveform distortion could

cause the UPS to switch to battery too frequently, draining its battery reserves.

You may be able to reduce how often your UPS switches to battery due to mod-

erate waveform distortion by experimenting with different settings for this dial.

As the dial is turned clockwise, the UPS becomes more tolerant of variations in

its input power’s AC waveform. NOTE: The further the dial is adjusted clock-

wise, the greater the degree of waveform distortion the UPS will allow to pass

to connected equipment. When experimenting with different settings for this

dial, operate connected equipment in a safe test mode so that the effect on the

equipment of any waveform distortions in the UPS’s output can be evaluated

without disrupting critical operations.

External Battery Connector (Select Models Only): Use to connect Tripp Lite

external battery packs for additional runtime. Refer to instructions available

with the battery pack for complete connection information and safety warnings.

Battery Charge Level Switches (Select Models Only): Controls the UPS

system’s battery charge rate. If you connect any external batteries, set the Battery

Charge Level Switch to the down position. This will increase your UPS's charger

output so the additional batteries charge faster.

CAUTION! DO NOT set the Battery Charge Level Switches to the down

position without an external battery connected. There is a risk of damaging the

UPS’s internal battery system.

Input Breaker(s) (all models): Protect your electrical circuit from overcurrent

draw from the UPS load. If these breakers trip, remove some of the load, then

reset them by pressing the breaker(s) in.

Ground Screw: Use this to connect any equipment that requires a chassis ground.

Charge Rate Setting

(when External

Batteries arecon-

nected)

Charge Rate Setting

(when External

Batteries are not

connected)

200510005 93-2445 SmartOnline 1phase OM.qxd 4/14/2006 4:05 PM Page 10

Otros manuales para SmartPro SMX2200XLRT2U

Tabla de contenidos

Idiomas:

Otros manuales de Unión Postal Universal de Tripp Lite

Tripp Lite

Tripp Lite SmartOnline SU10KRT3UHV Manual de usuario

Tripp Lite

Tripp Lite INTERNET550U Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU10KRT3/1X Manual de usuario

Tripp Lite

Tripp Lite SU2200RTXL2UN Manual de instalación y operación

Tripp Lite

Tripp Lite OmniSmart OMNI650LCD Manual de usuario

Tripp Lite

Tripp Lite RBC36-SLT Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU30K3/3 Manual de usuario

Tripp Lite

Tripp Lite OmniPro INT 300 Instrucciones de instalación y funcionamiento

Tripp Lite

Tripp Lite OmniPro 300VA Manual de usuario

Tripp Lite

Tripp Lite BCPRO1050 Manual de usuario

Tripp Lite

Tripp Lite SMART1050SLTAA Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SUINT1500LCD1U Manual de usuario

Tripp Lite

Tripp Lite ECO550UPSTAA Manual de usuario

Tripp Lite

Tripp Lite SmartPro 3U Manual de usuario

Tripp Lite

Tripp Lite OMNI750ISO Manual de usuario

Tripp Lite

Tripp Lite 2POSTRMKITWM Manual de usuario

Tripp Lite

Tripp Lite ECO-UPS ECO850LCD Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU12000RT4UHW Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU60K Manual de usuario

Tripp Lite

Tripp Lite SmartOnline Single-Phase 10kVA Manual de usuario

Tripp Lite

Tripp Lite SMX1000LCD Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU8000RT3UN50TF Manual de usuario

Tripp Lite

Tripp Lite SMART550USBTAA Manual de instalación y operación

Tripp Lite

Tripp Lite VoIP and Internet Telephony Applications Manual de instrucciones

Manuales populares de Unión Postal Universal de otras marcas

Pylontech

Pylontech Victron & Pylontech US5000 Manual de usuario

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manual de usuario

Mecer

Mecer ME-1000-WTU Manual de usuario

Mustek

Mustek PowerMust 530(B) Plus Manual de instalación y operación

Emerson

Emerson Liebert NXL series Manual de usuario

MAKELSAN

MAKELSAN BOXER SERIES Manual de usuario

Block

Block PC-0524-400-0 Manual de usuario

CyberPower

CyberPower CP585LCD Manual de usuario

Eaton

Eaton 3S Instrucciones de montaje

CyberPower

CyberPower Office Tower Series UPS 1000 Manual de usuario

CyberPower

CyberPower BM100 Manual de usuario

Best Power

Best Power 610 Manual de usuario

Best Power

Best Power Unity/I UT3K Manual de usuario

Mustek

Mustek PowerMust 400 Offline Manual de usuario

Xantrex

Xantrex Trace 512 UR-UPS Manual de usuario

Forza

Forza SL-1501UL Manual de usuario

LEGRAND

LEGRAND keor 310081 Manual de usuario

ABB

ABB Conceptpower DPA 500 Manual de usuario
