Owner’s Manual

SmartPro®SLT

Intelligent, Line-Interactive UPS Systems

100/110/120V Input/Output • Sine Wave Output

Models:

Not suitable for mobile applications.

Important Safety Instructions 2

Quick Installation 3

Optional Installation 4

Basic Operation 4

Battery Replacement 9

Specifications 10

Storage & Service 11

Product Registration 11

Español 13

Français 25

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com

SMART1050SLT,

SMART1050SLTAA

(Series No. AGSM5384)

SMART1500SLT

(Series No. AGSM7136)

WARRANTY REGISTRATION

automatically entered to win an ISOBAR®

surge protector in our monthly drawing!

tripplite.com/warranty

21-10-010-932442-Book.indb 121-10-010-932442-Book.indb 1 10/14/2021 3:57:26 PM10/14/2021 3:57:26 PM

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that should be followed during the

installation, operation and storage of all Tripp Lite UPS Systems. Failure to heed these

warnings may affect your warranty.

UPS Location Warnings

• Install your UPS indoors, away from excess moisture or heat, conductive contaminants,

dust or direct sunlight.

• For best performance, keep the indoor temperature between between 32º F and

104º F (0º C and 40º C).

• Leave adequate space around all sides of the UPS for proper ventilation.

UPS Connection Warnings

• Connect your UPS directly to a properly grounded AC power outlet. Do not plug the UPS

into itself; this will damage the UPS.

• Be sure to use the proper overcurrent protection for the installation, in accordance with

the plug/equipment rating.

• Do not modify the UPS's plug, and do not use an adapter that would eliminate the

UPS’s ground connection.

• Do not use extension cords to connect the UPS to an AC outlet.

• The electrical outlets supplying power to the equipment should be installed near the

equipment and easily accessible.

• If the UPS receives power from a motor-powered AC generator, the generator must

provide clean, filtered, computer-grade output.

Equipment Connection Warnings

• Use of this equipment in life support applications where failure of this equipment can

reasonably be expected to cause the failure of the life support equipment or to

significantly affect its safety or effectiveness is not recommended. Do not use this

equipment in the presence of a flammable anesthetic mixture with air, oxygen or

nitrous oxide.

• Do not connect surge protectors or extension cords to the output of your UPS.

This might damage the UPS and will void the surge suppressor and UPS warranties.

Battery Warnings

• Batteries can present a risk of electrical shock and burn from high short-circuit current.

Observe proper precautions. There are no user-serviceable parts inside the UPS. Do not

open the UPS except to perform battery replacement. Do not open batteries. Do not

short or bridge the battery terminals with any object. Unplug and turn off the UPS before

performing battery replacement. Use tools with insulated handles. Battery replacement

should be performed only by authorized service personnel using the same number and

type of batteries (Sealed Lead-Acid). Do not dispose of the batteries in a fire. The

batteries are recyclable. Refer to your local codes for disposal requirements or visit

tripplite.com/support/recycling-program for recycling information. Tripp Lite offers a

complete line of UPS System Replacement Battery Cartridges (R.B.C.).Visit Tripp Lite on

the Web at tripplite.com/support/battery/index.cfm to locate the specific replacement

battery for your UPS.

Important Safety Instructions

21-10-010-932442-Book.indb 221-10-010-932442-Book.indb 2 10/14/2021 3:57:26 PM10/14/2021 3:57:26 PM

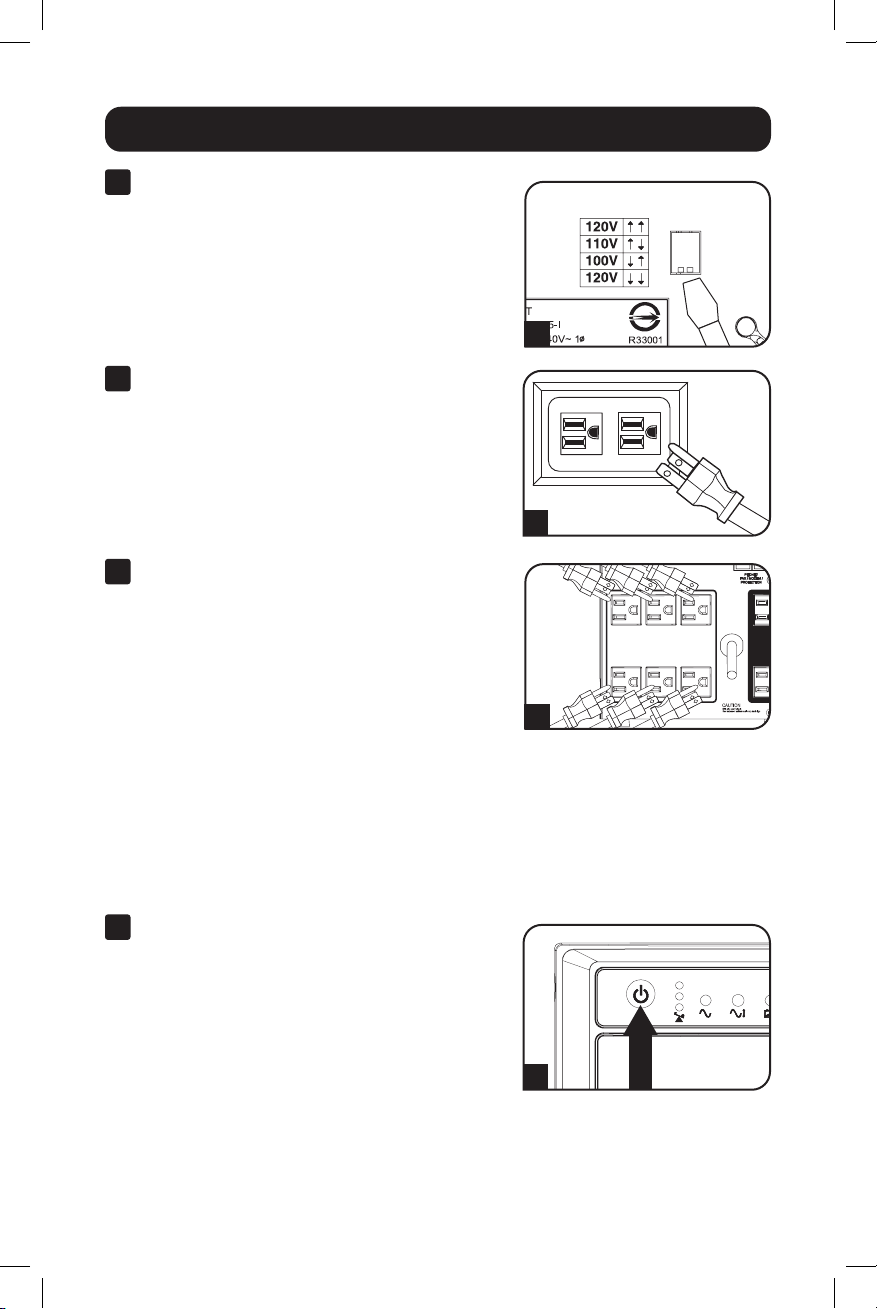

1With the UPS disconnected from utility

power, use a small tool to set the

Voltage Dip Switch to match your input

voltage. (All models are preset to the

120V setting.)

2Plug the UPS into an outlet on a

dedicated circuit.

NOTE! after you plug the UPS into a live AC

outlet, the UPS will automatically charge its

batteries,* but will not supply power to its

outlets until it is turned ON.

* The BATTERY CHARGE LED will be the only LED

illuminated

3Plug your equipment into the UPS.

All outlets provide battery backup and surge

protection for computers, monitors and other

critical devices.

Do not plug high-draw equipment such as

laser printers into the battery backup/

surge protection outlets.

Note: Your UPS is designed to support electronic

equipment only. You will overload the UPS if the total VA

rating for all equipment connected through the battery

backup/surge protection outlets exceeds the UPS's

Output Capacity. To find your equipment's VA ratings, look

on their nameplates. If the equipment is listed in amps,

multiply the number of amps by 120 to determine VA.

(Example: 1 amp × 120 = 120 VA). If you are unsure if

you have overloaded the UPS's outlets, see “OUTPUT

LOAD LEVEL” LED description.

4Turn the UPS ON.

Press and hold the “STANDBY” button for one

second. The alarm will beep once briefly after

one second has passed. Release the button.

Quick Installation

21-10-010-932442-Book.indb 321-10-010-932442-Book.indb 3 10/14/2021 3:57:27 PM10/14/2021 3:57:27 PM

1USB and RS-232 Serial

Communications

Use the included USB cable 1a and/or DB9

serial cable 1b to connect the

communication port on your computer to the

communication port of your UPS. Install on

your computer the Tripp Lite PowerAlert

Software appropriate to your computer’s

operating system. Consult your PowerAlert

manual for more information.

2Telephone/Network Protection Jacks

Your UPS has jacks that protect against surges

over a telephone line or a network dataline.

Using telephone network data cables, connect

your wall jack to the UPS jack marked “IN.”

Connect your equipment to the UPS jack

marked “OUT.” Make sure the equipment you

connect to the UPS's jacks is also protected

against surges on the AC line.

Not compatible with PoE (Power Over Ethernet)

applications.

Buttons

Optional Installation

Basic Operation

“STANDBY” Button

• To turn the UPS ON: with the UPS plugged into a live AC wall outlet,*

press and hold the STANDBY button for about one second.** Release

the button. If utility power is absent, you can "cold-start" the UPS (i.e.:

turn it ON and supply power for a limited time from its batteries***)

by pressing and holding the STANDBY button for about two seconds.**

• To turn the UPS OFF: with the UPS ON and receiving utility power,

press and hold the STANDBY button for one second.** Then unplug

the UPS from the wall outlet. The UPS will be completely OFF.

* After you plug the UPS into a live AC outlet, the UPS will automatically charge its

batteries, but will not supply power to its outlets until it is turned ON. ** The alarm

will beep once briefly after the indicated interval has passed. *** If fully charged.

21-10-010-932442-Book.indb 421-10-010-932442-Book.indb 4 10/14/2021 3:57:28 PM10/14/2021 3:57:28 PM

Basic Operation

“MUTE/TEST” Button

• To Silence (or “Mute”) UPS Alarms: briefly press and release the

MUTE/TEST button.*

Note: continuous alarms (warning you to immediately shut down connected

equipment) cannot be silenced.

• To Run a Self-Test: with your UPS plugged in and turned ON, press

and hold the MUTE/TEST button for two seconds.* Continue holding

the button until the alarm beeps several times and the UPS performs

a self test. See “Results of a Self-Test” below.

Note: you can leave connected equipment on during a self-test. Your UPS,

however, will not perform a self-test if it is not turned ON (see “STANDBY”

Button description).

CAUTION! Do not unplug your UPS to test its batteries. this will

remove safe electrical grounding and may introduce a damaging

surge into your network connections.

Results of a Self-Test: The test will last approximately 10 seconds

as the UPS switches to battery to test its load capacity and battery

charge. The “POWER” LED will be flashing and the “OUTPUT LOAD

LEVEL” and “BATTERY CHARGE” LEDs will be lit and the UPS alarm

will sound.

• If the “OUTPUT LOAD LEVEL” LED remains lit red and the alarm

continues to sound after the test, the UPS's outlets are overloaded.

To clear the overload, unplug some of your equipment and run the

self test repeatedly until the “OUTPUT LOAD LEVEL” LED is no longer

lit red and the alarm is no longer sounding.

CAUTION! Any overload that is not corrected by the user

immediately following a self-test may cause the UPS to shut

down and cease supplying output power in the event of a

blackout or severe brownout.

• If the “BATTERY WARNING” LED remains lit and the alarm continues

to sound after the test, the UPS batteries need to be recharged or

replaced. Allow the UPS to recharge continuously for 12 hours, and

repeat the self-test. If the LED remains lit, contact Tripp Lite for

service. If your UPS requires battery replacement, visit

tripplite.com/support/battery/ index.cfm to locate the specific Tripp Lite

replacement battery for your UPS.

* The alarm will beep once briefly after the indicated interval has passed.

21-10-010-932442-Book.indb 521-10-010-932442-Book.indb 5 10/14/2021 3:57:28 PM10/14/2021 3:57:28 PM

Indicator Lights

All Indicator Light descriptions apply when the UPS is plugged into a wall outlet and

turned ON.

Basic Operation

“POWER” LED: this green LED lights continuously when the UPS is ON

and supplying connected equipment with AC power from a utility source.

The LED flashes and an alarm sounds (4 short beeps followed by a

pause) to indicate the UPS is operating from its internal batteries during

a blackout or severe brownout. If the blackout or severe brownout is

prolonged, you should save files and shut down your equipment since

internal battery power will eventually be depleted. See “BATTERY

CHARGE” LED description below.

“VOLTAGE CORRECTION” LED: this green LED lights continuously

whenever the UPS is automatically correcting high or low AC voltage on

the utility line without the assistance of battery power. The UPS will also

emit a slight clicking noise. These are normal, automatic operations of

the UPS, no action is required on your part.

“OUTPUT LOAD LEVEL” LEDs: These multicolored LEDs indicate the

approximate electrical load of equipment connected to the UPS's AC

outlets: green (light load), yellow (medium load) and red (overload). If

the red LED is either illuminated continuously or flashing, clear the

overload immediately by unplugging some of your equipment from the

outlets until the yellow or green LED illuminates. CAUTION! Any overload

that is not corrected by the user immediately may cause the UPS to

shut down and cease supplying output power in the event of a blackout

or severe brownout.

“BATTERY CHARGE” LEDs: When the UPS is operating from utility

power, these LEDs indicates the approximate charge state of the UPS's

internal batteries: red indicates the batteries are beginning to charge;

yellow indicates the batteries are roughly midway through charging; and

green indicates the batteries are fully charged. When the UPS is

operating from battery power during a blackout or severe brownout,

these multicolor LEDs indicate the approximate amount of energy

(ultimately affecting runtime) that the UPS's batteries will provide: red

indicates a low level of energy; yellow indicates a medium level of

energy; and green indicates a high level of energy. Since the runtime

performance of all UPS batteries will gradually deplete over time, it is

recommended that you periodically perform a self-test (see “MUTE/TEST”

Button description) to determine the energy level of your UPS batteries

BEFORE a blackout or severe brownout occurs. During a prolonged

blackout or severe brownout, you should save files and shut down your

equipment since battery power will eventually be depleted. When the red

LED illuminates and an alarm sounds continuously, this indicates that

the UPS's batteries are nearly out of power and UPS shutdown is

imminent.

21-10-010-932442-Book.indb 621-10-010-932442-Book.indb 6 10/14/2021 3:57:28 PM10/14/2021 3:57:28 PM

USB Port

RS-232

(DB9 port)

Basic Operation

“BATTERY WARNING” LED: this LED lights yellow and an alarm sounds

intermittently after you initiate a self test (See “MUTE/TEST” Button

description) to indicate the UPS batteries need to be recharged or

replaced. Allow the UPS to recharge continuously for 12 hours, and

repeat the self-test. If the LED continues to light, contact Tripp Lite for

service. If your UPS requires battery replacement, visit tripplite.com.

“SITE WIRING FAULT” LED: This yellow LED will be lit if the UPS detects

a problem with the wiring of the AC outlet you connect it to. If this

occurs, have the outlet inspected by a qualified electrician. Note that

while the UPS will detect many common wiring faults, including a

missing ground, reversed polarity and overloaded neutral circuits, it

cannot detect every conceivable wiring problem.

Other UPS Features

Voltage DIP Switch: This switch enables you to set the UPS to match

actual input voltage. If the Voltage DIP Switch is set above or below

input voltage, the UPS will treat the input as a continuous overvoltage or

undervoltage condition, and will automatically adjust input voltage to

match the Voltage Dip Switch setting. This will cause constant,

unnecessary wear on the UPS system. Note: The Voltage DIP Switch

must be set with the UPS turned OFF and disconnected from

utility power. If the switch is set while the UPS is connected to

utility power, the setting will not take effect.

AC Receptacles: These output receptacles provide your connected

equipment with AC line power during normal operation and battery power

during power outages. The UPS protects equipment connected to these

receptacles against damaging surges and line noise. Select outlets

provide both battery backup and surge protection for computers,

monitors and other critical devices into these outlets. Select outlets

provide surge protection only for printers and other non-essential devices

that draw large amounts of power.

Communication Ports (USB and RS-232): These ports connect your

UPS to any workstation or server. Use with Tripp Lite's PowerAlert

Software and included cables to enable your computer to automatically

save open files and shut down equipment during a blackout. Also use

PowerAlert Software to monitor a wide variety of AC line power and UPS

operating conditions. Consult your PowerAlert Software manual or

contact Tripp Lite Customer Support for more information. See “USB

Communications” and “RS-232 Serial Communications” in the “Optional

Installation” section for installation instructions.

21-10-010-932442-Book.indb 721-10-010-932442-Book.indb 7 10/14/2021 3:57:29 PM10/14/2021 3:57:29 PM

Basic Operation

Telephone/Network Protection Jacks: These jacks protect your

equipment against surges over a telephone/network data line.

Connecting your equipment to these jacks is optional. Your UPS will work

properly without this connection.

Not compatible with PoE (Power Over Ethernet) applications.

Accessory Slot: Remove the small cover panel from this slot to install

optional accessories to remotely monitor and control your UPS. Refer to

your accessory’s manual for installation instructions. Visit tripplite.com

for more information, including a list of available SNMP, networking

management and connectivity products.

Fan: The fan runs continuously to cool the UPS system’s internal

components. It will operate at a higher speed when the UPS is in battery

backup mode, charge mode, carrying a heavy electrical load or an over-

temperature condition.

Input Breaker: Protect your electrical equipment from overcurrent draw

from the UPS load. If this breaker trips, remove some of the load, then

reset it by pressing the breaker in.

21-10-010-932442-Book.indb 821-10-010-932442-Book.indb 8 10/14/2021 3:57:29 PM10/14/2021 3:57:29 PM

Battery Replacement Door: Under normal conditions, the original battery in your UPS will

last several years. Battery replacement should be performed only by qualified service

personnel. Refer to “Battery Warnings” in the Safety section. Should your UPS require

battery replacement, visit Tripp Lite on the Web at tripplite.com/support/ battery/index.cfm

to locate the specific replacement battery for your UPS.

Battery Replacement

1Carefully pull the front panel away from the UPS.

Place front panel on top of the unit. Remove the battery support

bar.

2Remove old batteries.

Carefully pull the batteries from the UPS and disconnect them.

3Connect new batteries.

Connect the new batteries in exactly the same manner as the old

ones: positive (red) connectors together and negative (black)

connectors together. Carefully push batteries back into the UPS.

4Reassemble UPS.

Reinstall the battery support bar and replace the front panel.

UPS and Battery Recycling

Please recycle Tripp Lite Products. The batteries used in Tripp Lite

products are sealed Lead-Acid batteries. These batteries are highly

recyclable. Please refer to your local codes for disposal requirements.

You can call Tripp Lite for recycling info at 1-773-869-1234.

You can go the Tripp Lite Website for up-to-date information on recycling

the batteries or any Tripp Lite product. Please follow this link: tripplite.

com/support/recycling-program/

21-10-010-932442-Book.indb 921-10-010-932442-Book.indb 9 10/14/2021 3:57:35 PM10/14/2021 3:57:35 PM

Specifications

Model SMART1050SLT SMART1050SLTAA SMART1500SLT

Nominal voltage

and input range

120V~ 95-145V

(default), 110V~, 100V~

120V~ 95-145V

(default), 110V~, 100V~

120V~ 95-145V

(default), 110V~, 100V~

Nominal input

frequency and

tolerance

50/60 Hz (+/-5%) 50/60 Hz (+/-5%) 50/60 Hz (+/-5%)

Nominal output

voltage

120V~ Sinusoidal in

Line Mode and 120V~

Sinusoidal in Battery

Mode

120V~ Sinusoidal in

Line Mode and 120V~

Sinusoidal in Battery

Mode

120V~ Sinusoidal in

Line Mode and 120V~

Sinusoidal in Battery

Mode

Nominal Output

Frequency

50/60 Hz (+/-0.5 Hz) 50/60 Hz (+/-0.5 Hz) 50/60 Hz (+/-0.5 Hz)

Output Voltage

Regulation in

Line Mode

120V~ (+15% / -13%) 120V~ (+15% / -13%) 120V~ (+15% / -13%)

Output Voltage

Regulation in

Battery Mode

120V~ (+/- 5%) 120V~ (+/- 5%) 120V~ (+/- 5%)

Nominal Output

Power in W / VA

650W / 1050VA 650W / 1050VA 950W / 1500VA

Output Voltage

Waveform

Sinusoidal in Line

Mode and Sinusoidal

in Battery Mode

Sinusoidal in Line

Mode and Sinusoidal

in Battery Mode

Sinusoidal in Line

Mode and Sinusoidal

in Battery Mode

Maximum Output

Current @ Power

Factor (P. F.)

5.4A @ 120V~

(default), 5.9A @

110V~, 6.5A @ 100V~

5.4A @ 120V~

(default), 5.9A @

110V~, 6.5A @ 100V~

7.5A @ 120V~

(default), 8.2A @

110V~, 9A @ 100V~

P.F. = 0.62 P.F. = 0.62 P.F. = 0.63

Maximum Harmonic

Distortion of Output

Voltage at Full

Resistive Load

3% 3% 3%

Efﬁciency with

Nominal Load

95% 95% 95%

Maximum Operating

Altitude at 100%

of Nominal Power

6562 ft.

(2000 m)

6562 ft.

(2000 m)

6562 ft.

(2000 m)

Online Overload

Capability

125% @ 10 minutes 125% @ 10 minutes 125% @ 10 minutes

Overload Capacity

in Battery Mode

105% @ 0.5 Seconds 105% @ 0.5 Seconds 105% @ 0.5 Seconds

Current Limitation – – Input 15A

Autonomy Time

at Full Load

7 Minutes @ 650 W 7 Minutes @ 650 W 8 Minutes @ 900 W

Battery Recharge

Time

6 Hours 6 Hours 6 Hours

Transfer Time 4 Milliseconds Typical

(6 Milliseconds Max.)

4 Milliseconds Typical

(6 Milliseconds Max.)

4 Milliseconds Typical

(6 Milliseconds Max.)

Outlets 8 x 5-15R Outlets

with Battery Backup,

Regulation and Surge

Protection

8 x 5-15R Outlets

with Battery Backup,

Regulation and Surge

Protection

8 x 5-15R Outlets

with Battery Backup,

Regulation and Surge

Protection

Maximum Input

Current

6.1A / 6.6A / 7.2A 6.1A / 6.6A / 7.2A 8.6A / 9.3A / 10.1A

21-10-010-932442-Book.indb 1021-10-010-932442-Book.indb 10 10/14/2021 3:57:35 PM10/14/2021 3:57:35 PM

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Unión Postal Universal de Tripp Lite

Tripp Lite

Tripp Lite AVRX750UTAA Manual de usuario

Tripp Lite

Tripp Lite SmartOnline AG-0358 Series Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU750XL Manual de usuario

Tripp Lite

Tripp Lite SmartPro RMX RMX 1000-2000 VA Manual de usuario

Tripp Lite

Tripp Lite SmartPro Rackmount Manual de usuario

Tripp Lite

Tripp Lite Internet Office 700 Manual de usuario

Tripp Lite

Tripp Lite SmartPro SMART700 Manual de usuario

Tripp Lite

Tripp Lite SmartPro AG-03AD Series Manual de usuario

Tripp Lite

Tripp Lite SmartOnLine SU2200RT2U-L520 Instrucciones de instalación y funcionamiento

Tripp Lite

Tripp Lite ECO-UPS ECO650LCD Manual de usuario

Tripp Lite

Tripp Lite AGSM8268 Manual de usuario

Tripp Lite

Tripp Lite AVRX750UF Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SUINT3000RTXL2U Manual de usuario

Tripp Lite

Tripp Lite BC Pro BCPRO600 Manual de usuario

Tripp Lite

Tripp Lite OmniSmart OMNISMART1400 Manual de usuario

Tripp Lite

Tripp Lite SMX1000LCD Manual de usuario

Tripp Lite

Tripp Lite SU2200RTXL2UN Manual de instalación y operación

Tripp Lite

Tripp Lite SmartPro Series Manual de usuario

Tripp Lite

Tripp Lite SU7500RT3U1TF Manual de usuario

Tripp Lite

Tripp Lite SMART1500LCDT Manual de usuario

Tripp Lite

Tripp Lite SmartPro SMARTINT2200VS Manual de usuario

Tripp Lite

Tripp Lite SMART1200LCD Manual de usuario

Tripp Lite

Tripp Lite TMU Series Manual de usuario

Tripp Lite

Tripp Lite ECO550UPS Manual de usuario

Manuales populares de Unión Postal Universal de otras marcas

Pylontech

Pylontech Victron & Pylontech US5000 Manual de usuario

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manual de usuario

Mecer

Mecer ME-1000-WTU Manual de usuario

Mustek

Mustek PowerMust 530(B) Plus Manual de instalación y operación

Emerson

Emerson Liebert NXL series Manual de usuario

MAKELSAN

MAKELSAN BOXER SERIES Manual de usuario

Block

Block PC-0524-400-0 Manual de usuario

CyberPower

CyberPower CP585LCD Manual de usuario

Eaton

Eaton 3S Instrucciones de montaje

CyberPower

CyberPower Office Tower Series UPS 1000 Manual de usuario

CyberPower

CyberPower BM100 Manual de usuario

Best Power

Best Power 610 Manual de usuario

Best Power

Best Power Unity/I UT3K Manual de usuario

Mustek

Mustek PowerMust 400 Offline Manual de usuario

Xantrex

Xantrex Trace 512 UR-UPS Manual de usuario

Forza

Forza SL-1501UL Manual de usuario

LEGRAND

LEGRAND keor 310081 Manual de usuario

ABB

ABB Conceptpower DPA 500 Manual de usuario
