Smart 216 / 232 – Quick Start Guide

1. Introduction

To take advantage of the Smart 216 / 232 full range of features, we recommend

you read the softcopy User Guide after performing the Quick Start procedure. It’s

in PDF format on the supplied CD or on our website www.minicom.com in the

Support section.

All references throughout this guide to the Smart 216 refer equally to the Smart

232. The two units are functionally the same. The Smart 216 has 16 Server ports

and the Smart 232 has 32 Server ports.

The Smart 216 extends your KVM (keyboard, video, and mouse) from servers with

PS/2 or USB interfaces up to 30m/100ft away. 2 users can control, monitor and

manage up to 16 servers simultaneously. You can connect a Power Distribution

Unit (PDU) for power management.

2. System components

The system consists of:

1 Smart 216 (p/n 1SU22090) or 1 Smart 232 (p/n 1SU22091)

Rack mounting set (p/n 5AC20247)

ROCs - PS/2, USB

3. The Smart 216 unit

Figure 1 illustrates the front panel of the Smart 216.

Figure 1 Smart 216 ports – side 1

MINICOM

Power RemoteLink

SMART 216 A

1111 W. 35th Street, Chicago, IL 60609 USA

www.tripplite.com/support

SMART 216 / 232

3.1 LED and button table

LED Function

Power Power Indicator

Link Unit is connected to the network

Remote 1 and 2 Illuminates when the respective user connects to a server

Figure 2 Smart 216 ports – side 2

3.2 Connector table

Connector Function

User 1 and User 2

KVM consoles Connect 2 KVM consoles for two users to operate the Smart 216

RPS Connect Minicom’s Serial Remote Power Switch

LAN To configure and update the unit, connect to 10/100 Mbit

Ethernet.

Server ports Connect to servers via ROCs

4. Pre-installation guidelines

Place cables away from fluorescent lights, air conditioners, and machines that

are likely to generate electrical noise

Place the Smart 216 on a flat, clean and dry surface or install in a rack

Ensure that the maximum distance between each computer and the Smart 216,

does not exceed 30m/100ft.

5. Connecting the system

Figure 3 illustrates the Smart 216 system overview.

Power

POWER

100-240 VAC 50/60 Hz

Server ports

12345678

Keyboard

Mouse

Monitor

USER 1

LAN (Ethernet)

port

LAN

RPS

Remote Power

Switch (RPS)

port

10 11 12 13 14 15 169

SERVER

Keyboard

Mouse

Monitor

USER 2

QUICK START GUIDE

Figure 3 Smart 216 system overview

5.1 The ROCs

Each computer/ server is directly connected to the Smart 216 via the appropriate

RoC using CAT5 cable in a star configuration. No external power is needed at the

ROCs. The ROCs draw their power from the computer’s keyboard port (ROC

PS/2) or from the USB port (ROC USB). The figures below illustrate the ROC

PS/2 and ROC USB.

To servers

ROCs

User 1

PDU

POWER

100-240 VAC 50/60 Hz

12345678

USER 1

LAN

RPS

10 11 12 13 14 15 169

SERVER

USER 2

User 2

Keyboard, monitor and

mouse connected to

KVM User 1 ports

Keyboard, monitor and

mouse connected to

KVM User 2 ports

PDU connected to RPS

port

SMART 216 / 232

Figure 4 ROC PS/2

Figure 5 ROC USB

5.1.1 Connecting a ROC PS/2

1. Switch off the server.

2. Connect the ROC PS/2. Figure 6 illustrates the ROC PS/2 connections.

3. Power on the server.

You can connect the ROC PS/2 to a powered on computer, but it must be in the

following order:

1. Connect the Mouse connector to the computer’s Mouse port.

2. Connect the Keyboard connector to the computer’s Keyboard port.

3. Connect the Screen connector to the computer’s Video port.

Failure to connect in the above order while the server is running, may lead to the

mouse malfunctioning until the server is rebooted.

To computer’s

keyboard port

To computer’s

mouse port

To computer’s

Video card

To computer’s

USB Port

To computer’s

Video Card

QUICK START GUIDE

Figure 6 ROC PS/2 connections

5.1.2 Connecting a ROC USB

The ROC USB supports Windows 98 SE and later, MAC, SUN and SGI, and all

modern Linux distributions. Figure 7 illustrates the ROC USB and its connections.

To connect the ROC USB:

1. Connect the Screen connector to the computer’s Video port.

2. Connect the USB connector to the computer’s USB port.

Figure 7 ROC USB

5.2 Connecting the CAT5 cables

1. Connect one connector to the ROCs RJ45 port.

2. Connect the other connector to one of the Smart 216’s Server ports.

3. Follow the above 2 steps for each computer.

To Keyboard port

CAT5 cable to switch

Server port

To Mouse port

To Video port

ROC PS/2

Keybd

Mouse 100T

VideoSerial A

Parallel

PCI 33Mx32b

Serial B

SCSI

To USB port

To Video port

ROC USB

CAT5 cable to switch

Server port

SMART 216 / 232

5.3 Connecting the two KVM consoles

Connect a keyboard, monitor and mouse to each of the User 1 and User 2 ports as

follows:

1. Connect the monitor connectors to the Monitor ports.

2. Connect the USB keyboard connectors to the USB Keyboard ports.

3. Connect the USB mouse connectors to the USB Mouse ports.

5.4 Connecting to the power supply

1. Using the Power cord provided, connect the Smart 216 to a socket outlet with

grounding connection. Only use the power cord supplied with the unit.

2. Switch on the Smart 216.

6. Connecting to the Local Area Network (LAN)

Configuration is done mainly via a web interface. For this purpose connect a

network cable to the LAN port of the Smart 216. This must be done before

powering on the Smart 216.

7. Setting network parameters via the OSD

By default, Smart 216 boots with an automatically assigned IP address from a

DHCP (Dynamic Host Configuration Protocol) server on the network. The DHCP

server provides a valid IP address, gateway address and subnet mask.

You can identify the IP address from the OSD. Also where there is no DHCP

server set the IP address via the OSD as follows:

1. From the local keyboard, press left Shift twice. The OSD Main window

appears.

2. Press F2. The Settings window appears see Figure 8.

Figure 8 Settings window

QUICK START GUIDE

In the Settings window you navigate downwards using the Tab key. At the bottom

of the window, press tab to go to the top of the window. Change settings by typing

in the selected area or by pressing the spacebar – whichever is relevant.

8. Logging into the web configuration

1. Open your web browser.

2. Type the Smart 216 system IP address – http or https://IP address/ - and press

Enter. The login page appears.

3. Type the default Administrator user name - admin - and password - access -

(both lower case).

4. Press Enter. The web interface opens at the Targets page. See Figure 9.

Figure 9 Targets page

Columns:

Server name - The server name can be changed in the configuration settings to

give the server an identifiable name.

Server Status - Server Status can be on, off or busy (i.e. a user is accessing the

server).

User – The current user (if any) accessing the server.

From the Targets page menu - see Figure 9 - an Administrator can:

Change the password

Reach the configuration pages

See an event log

SMART 216 / 232

9. Operating the system via the OSD

To display the OSD:

1. From the local keyboard, press the left Shift key twice. The OSD Main window

appears. See Figure 10.

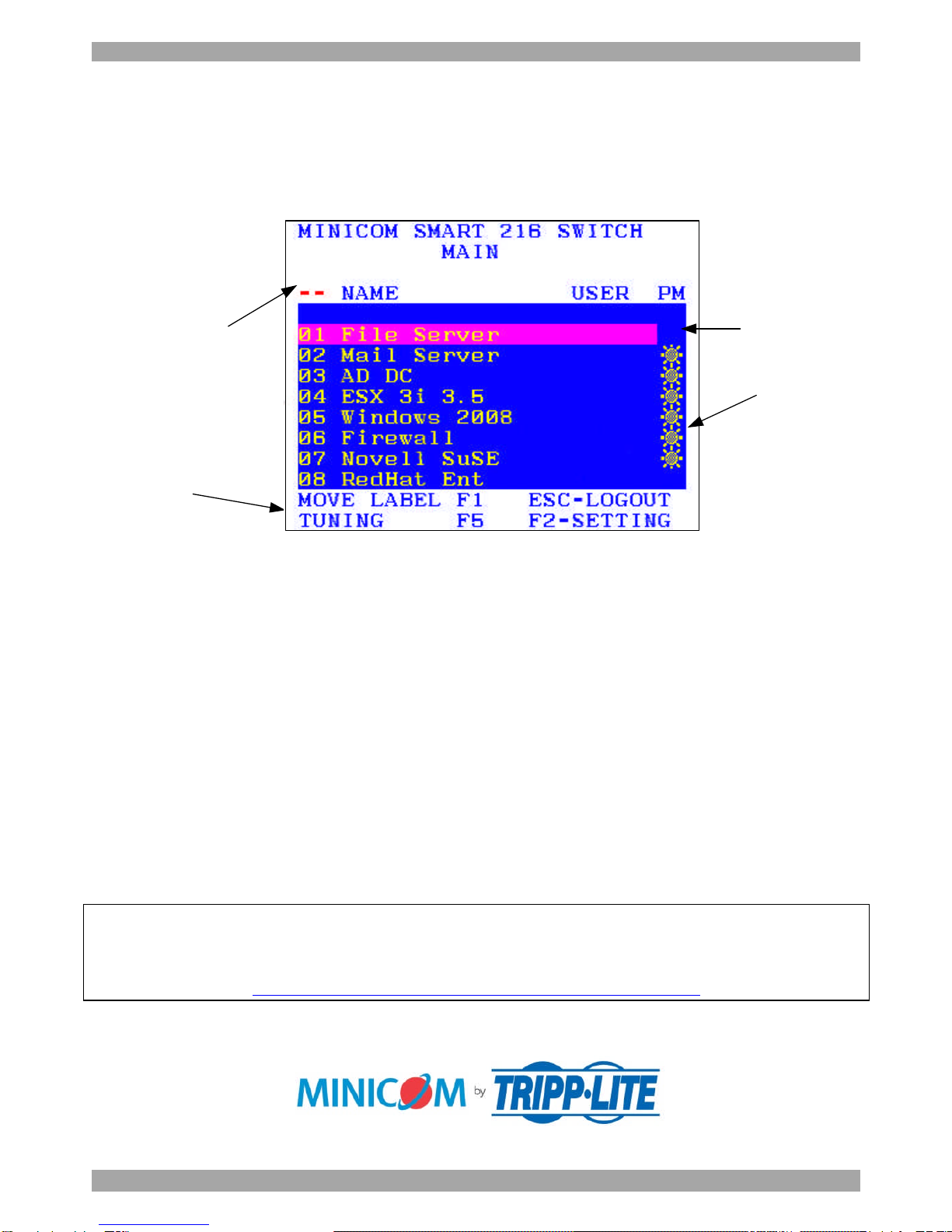

Figure 10 OSD Main window

9.1 Navigating the OSD Main window

To navigate up and down use the Up and Down arrow keys.

To exit the OSD press Esc.

9.2 Selecting a computer

To select a computer:

1. Navigate to the desired computer line.

Or, type the two-digit port number of the desired computer.

2. Press Enter. The selected computer is accessed. A Confirmation label appears

showing which computer is accessed.

For the full configuration and operation instructions see the full softcopy User

Guide on our website:

http://www.minicom.com/supportuserguides.htm
