CAT5 Smart KVM Extender

User Guide

CAT5 SMART KVM EXTENDER

Table of Contents

1. Welcome ......................................................................... 2

2. Introduction ....................................................................3

3. The system components................................................ 3

4. The KVM Extender units ................................................4

5. Pre-installation instructions ..........................................5

6. The KVM Extender cables..............................................6

7. Power supply..................................................................6

8. Using the KVM Extender as an extender ...................... 7

9. Giving 2 users access to 1 computer............................ 8

10. The KVM Extender as a 2-port KVM Switch.................. 9

11. Operating the KVM Extender....................................... 10

12. KVM Extender Settings mode...................................... 11

13. Cascading Smart Extenders........................................ 16

14. Technical specifications.............................................. 19

15. KVM Extender configuration........................................ 20

USER GUIDE

1. Welcome

Thank you for buying the CAT5 Smart KVM Extender system. The

system is produced by Minicom Advanced Systems Limited.

Technical precautions

This equipment generates radio frequency energy and if not installed in

accordance with the manufacturer’s instructions, may cause radio

frequency interference.

This equipment complies with Part 15, Subpart J of the FCC rules for a

Class A computing device. This equipment also complies with the

Class A limits for radio noise emission from digital apparatus set out in

the Radio Interference Regulation of the Canadian Department of

Communications. These above rules are designed to provide

reasonable protection against such interference when operating the

equipment in a commercial environment. If operation of this equipment

in a residential area causes radio frequency interference, the user, and

not Minicom Advanced Systems Limited, will be responsible.

Changes or modifications made to this equipment not expressly

approved by Minicom Advanced Systems Limited could void the

user’s authority to operate the equipment.

Minicom Advanced Systems Limited assumes no responsibility for any

errors that appear in this document. Information in this document is

subject to change without notice.

No part of this document may be reproduced or transmitted in any form

or by any means, electronic or mechanical, for any purpose, without

the express written permission of Minicom Advanced Systems

Limited.

Trademarks

All trademarks and registered trademarks are the property of their

respective owners.

CAT5 SMART KVM EXTENDER

2. Introduction

The CAT5 Smart KVM Extender (KVM Extender) system from

Minicom is an advanced KVM switch that performs the

following functions:

Extends KVM control over a computer* up to a

distance of 110m / 360ft

Gives 2 users at 2 workstations control of 1 computer*

A 2-port KVM switch for 1 or 2 users

* Throughout this guide ‘computer’ also means a KVM switch

3. The system components

The KVM Extender system consists of:

Transmitter

Receiver

3 in 1 CPU cable

1 Power adapter for the Receiver

A Shielded CAT5 FTP (Foil Twisted Pair) Solid Wire 2x4x24

AWG cable with RJ-45M connectors connects the KVM

Extender system.

The Receiver can be up to 110m/360ft away from the

Transmitter.

USER GUIDE

4. The KVM Extender units

The figures below illustrate the Transmitter and Receiver units.

Figure 1 Transmitter side panels

Figure 2 Receiver front panel

SYSTEM

CPU

Built-in KVM

cables

System cable

6VDC

Green

Control LED

MouseMonitor

Keyboard

Side A Side B

Yellow

Power LED

Power

connector

SELECT

POWER

CONTROL

Select

button LEDs

CAT5 SMART KVM EXTENDER

Figure 3 Receiver rear panel

Figure 4 Receiver side panel

5. Pre-installation instructions

Disconnect all computers from the power supply.

Place cables away from fluorescent lights, air conditioners,

and machines that are likely to generate electrical noise.

COMPUTER USER

Keyboard

Mouse

Monitor

Computer

Mouse port

Computer Keyboard

port Computer

Monitor port

6VDC

SYSTEMPICTURE


adjuster

System

cable

Power

connector

USER GUIDE

6. The KVM Extender cables

The Transmitter comes with built-in KVM cables that connect

to the computer’s Video card, Mouse and Keyboard ports.

The 3 in 1 CPU cable

The 3 in 1 CPU cable –illustrated below – is only used when

the Receiver connects to a computer. The cable connects to the

Computer section of the Receiver rear panel.

Figure 5 3 in 1 CPU cable

7. Power supply

Connect the Receiver to the power supply with the Power

adapter and cord provided.

The Transmitter receives its power from the connected

computer and does not generally need an external power supply.

However, when cascading Smart Extenders, some of the

Transmitters need an external power supply. Use a Minicom

Power adapter p/n 5PS20025. The power supply specifications

are: Regulated 6VDC 2 Amp, minus on internal pin .

Cascading is discussed on page 16.

CAT5 SMART KVM EXTENDER

8. Using the KVM Extender as an extender

Extend the KVM workstation from the computer up to a

distance of 110m/360ft.

1. Connect the Transmitter to a computer.

2. Connect a KVM workstation to the Receiver.

3. Connect a CAT5 FTP cable to the System ports of the

Transmitter and Receiver.

4. Connect a Power adapter to the Receiver.

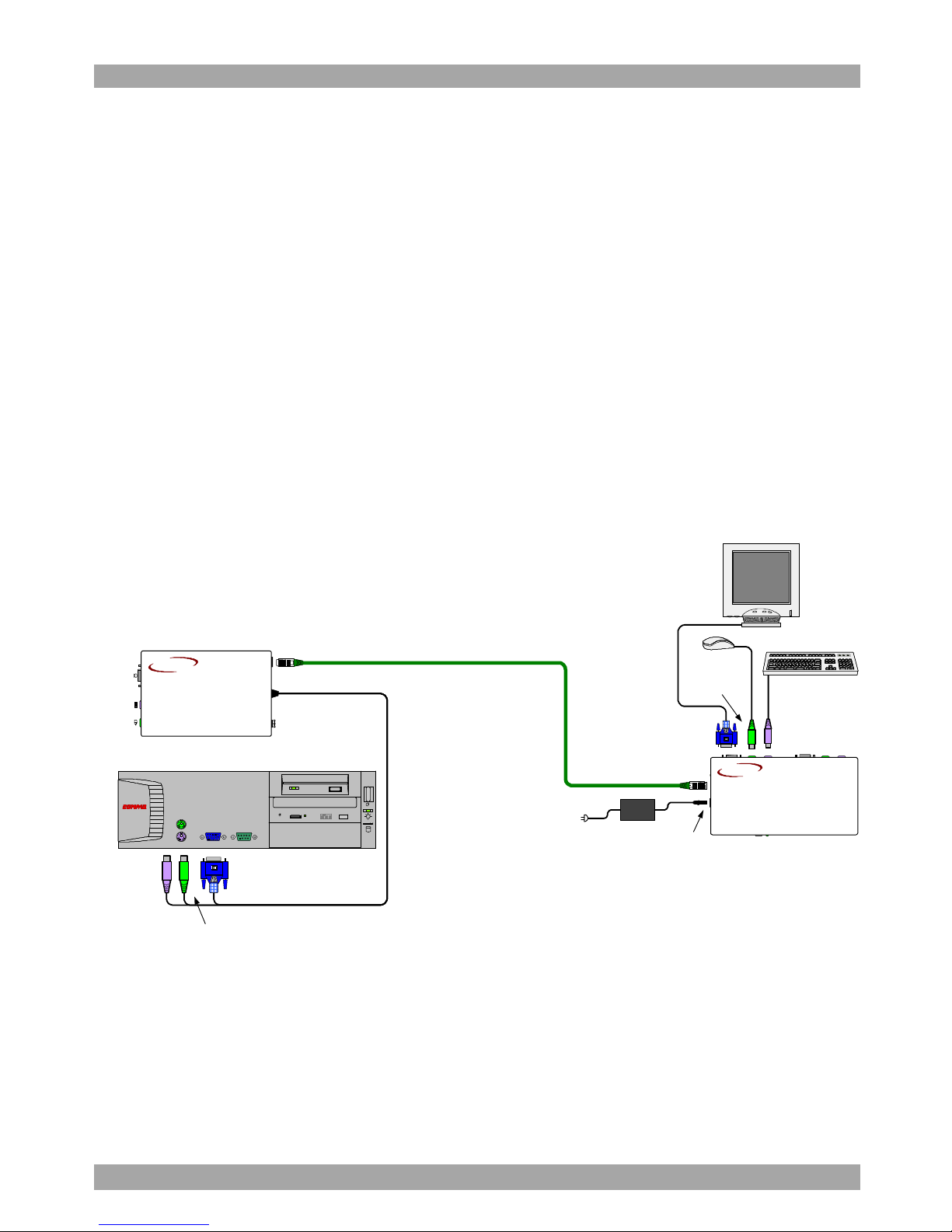

Figure 6 illustrates the connections.

Figure 6 KVM Extender as an extender

CAT5

S M AR T

Extender

RECEIVER MINICOM

www.minicom.com

CAT5

S M A R T

Extender

TRANSMITTER M INICOM

www.minicom.com

6VDC

To Video card

DESKPRO To wall

socket

P110

Computer

Keyboard

port

To Mouse port

Transmitter

Receiver

To System port

CAT5 FTP cable

Up to 110m / 360ft

Power

adapter To Power

connector

To User Monitor port To User

Keyboard port

To User

Mouse

port

To System port

USER GUIDE

9. Giving 2 users access to 1 computer

To give 2 users access to 1 computer, connect the system as in

Figure 7. The connections are the same as in Figure 6, with the

addition of a KVM workstation for user 2.

Access to the computer is on a first-come-first-served basis.

Figure 7 Giving 2 users access to 1 computer

CAT5

SM ART

Extender

RECEIVER MINICOM

www.minicom.com

CAT5

SM ART

Extender

TRANSMITTER MINICOM

www.minicom.com

6VDC

DESKPRO 

P110

Computer

Transmitter

Receiver

CAT5 FTP cable

Up to 110m / 360ft

To Monitor port

P110

To Keyboard

port

To Mouse

port

User 1

User 2

CAT5 SMART KVM EXTENDER

10. The KVM Extender as a 2-port KVM Switch

Figure 8 illustrates the system connected to 2 computers and 2

workstations. User 1 can access his local computer or the

remote computer. User 2 can only access his local computer.

The connections are the same as in Figure 7, with the addition

of the 3 in 1 CPU cable that connects a 2nd computer to the

Receiver.

Figure 8 2-port KVM Switch

The option in Figure 8 can also work with only 1 user

workstation connected at the Receiver.

There is another configuration diagram on the last page of this

Guide, and more on the Marketing & Documentation CD.

CAT5

SM ART

Extender

RECEIVER MINICOM

www.minicom.com

CAT5

SM ART

Extender

TRANSMITTER MINICOM

www.minicom.com

6VDC

DESKPRO 

P110

Computer

Transmitter

Receiver

CAT5 FTP cable

Up to 110m / 360ft

P110

User 1

User 2

3 in 1

CPU

cable

DESKPRO 

To Video card

Keyboard

port

To Mouse port

To Computer

Monitor port

To Computer

Keyboard port

To Computer

Mouse port

Computer
