TRENDnet TEW-653AP Manual de usuario

TEW-653AP

1.01

Quick Installation Guide

Table of Contents

English 1

1. Before You Start

2. Hardware Installation 2

3. Power-over-Ethnernet Installation 3

4. Configure the Access Point 5

5. Mounting 8

Troubleshooting 9

Version 11.16.2009

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

1. Before You Start

Package Contents

Note:

The TEW-653AP only works with Power over Ethernet (PoE) devices that follow the

IEEE 802.3af standard.

System Requirements

?Web Browser: Internet Explorer (6.0 or higher)

?A computer with a network adapter properly installed.

?A network Switch or Hub with an available network LAN port.

?Power over Ethernet (PoE) Switch (e.g. TPE-80WS) (Optional)

?Injector (e.g TPE-111GI ) (Optional)

?Multi-Language Quick Installation Guide

?CD-ROM User’s Guide

?Cat. 5 Ethernet Cable (1m / 3.3ft.)

?Power Adapter (12V DC, 1A)

?Mounting Kit

TEW-653AP

( )

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

2. Hardware Installation

Note: Locate an optimum location for the Access Point. The best place for the Access

Point is usually at the center of your wireless network. Please connect the computer

configuring the TEW-653AP to the same switch/hub.

1. Run a RJ-45 cable and the power adapter

through the cable clip on the TEW-653AP.

3. Connect the Power Adapter to the Access Point

and then to a power outlet.

2. Connect the RJ-45 cable from the Switch/Hub

to the LAN port on the Access Point.

4. Verify that the wireless, LAN and power LEDs

are on.

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

2. Verify that the wireless, LAN and power LEDs

are on. Please refer to step 4 in the Hardware

Installation section.

3. Power-over-Ethernet Installation

Using the TEW-653AP with a PoE switch

1. Connect a RJ-45 cable from the Power-Over-

Ethernet Switch (e.g. TRENDnet TPE-80WS) to

the LAN port on the Access Point.

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

Using the TEW-653AP with the TPE-111GI

1. Connect the Power Cord to the Power

Adapter.

2. Connect the Power Adapter to the DC 48V IN

connector on the TPE-111GI. Then connect

the Power Cord to an outlet.

4. Connect a CAT-5 cable from the TEW-653AP's

LAN port to the TPE-111GI's PoE Out port.

3. Connect a CAT-5 cable from a switch to the

TPE-111GI's DATA IN port.

5. Verify that the wireless, LAN and power LEDs

are on. Please refer to step 4 in the Hardware

Installation section.

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

4. Configure the Access Point

Note: It is recommended that you configure the Access Point from a wired computer.

Before the Access Point can be configured, a Static IP address must be assigned to

your computer's network adapter in the subnet of 192.168.10.X. Since the Access

Point's default IP address is 192.168.10.100, make sure no other network devices are

assigned an IP address of 192.168.10.100. (Refer to Troubleshooting section on how to

configure TCP/IP settings on your PC.)

1. Open your web browser, type

http://192.168.10.100 in the Address bar, and

then press Enter.

2. Enter the User name and Password, and then

click OK. By default:

User Name: admin

Password: admin

3. Click Wizard.

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

Note:

1. To protect your network from any unauthorized access it is recommended to enable

wireless encryption.

2. The examples below are for WPA2-PSK security. If you select WPA-PSK or

WPA2-PSK, make sure your wireless adapters support WPA or WPA2. If your

wireless adapters do not support WPA or WPA2, then select WEP.

4. Click Next.

5. Select AP Mode and then click Next.

6. Use your mouse to select the desired security

level (lowest for no encryption, highest for

WPA2-PSK).

7. Enter the desired SSID and Key. Then click

Next. By default, the SSID is TRENDnet653.

8. Setup is successful. Click Reboot.

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

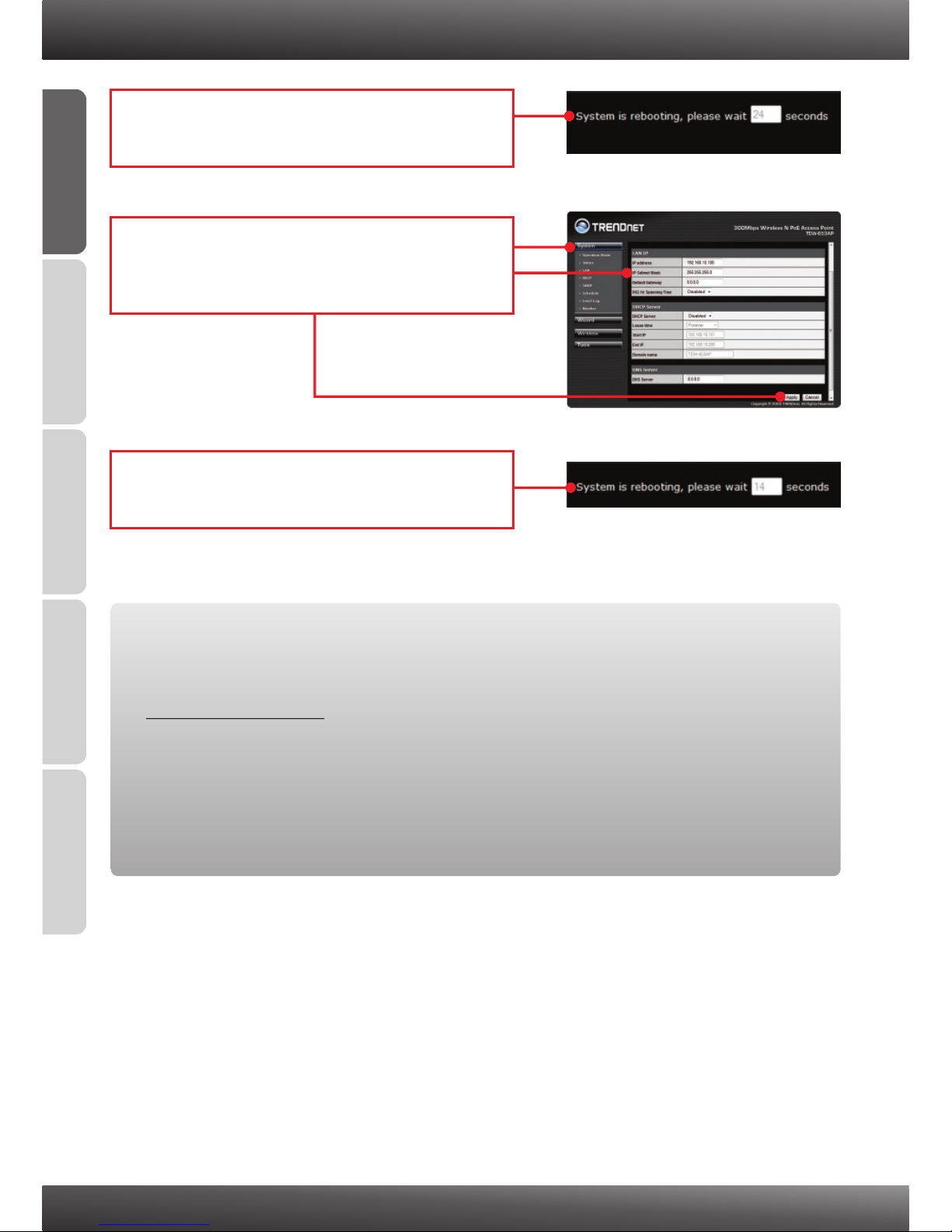

9. Wait 24 seconds while the Access Point

reboots.

Your configuration is complete

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

For detailed information regarding the TEW-653AP’s configuration and advanced settings,

please refer to the Troubleshooting section, User's Guide CD-ROM, or TRENDnet's website

at http://www.trendnet.com.

10. Click System -> LAN. Configure the LAN

settings to match your network settings and

then click Apply.

11. Wait 14 seconds while the Access Point

reboots.

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

1. Use the mounting plate as a template and mark

the wall for the correct screw position.

2. Drill holes for the screws at the marked

positions on the wall.

5. Mounting

3. Use the provided wood screws to secure the

mounting plate to the wall.

5. Follow the arrow to secure the TEW-653AP to

the mounting plate.

4. Align the TEW-653AP with the mounting plate
