TRENDnet TEW-690AP Manual de usuario

High performance 450Mbps wireless n access point

1 x 10/100/1000Mbps Auto-MDIX Gigabit LAN port

1 x WPS button

1 x Reset button

On/off power switch (EU Version)

Diagnostic LEDs

Wi-Fi compliant with IEEE 802.11n standard

Backwards compatible with IEEE 802.11g/b devices

Features Wireless Distribution System (WDS) and Repeater modes for wireless network expansion

Supports 64/128-bit WEP, WPA/WPA2-PSK, and WPA/WPA2-RADIUS wireless security

Mac filter feature for added security

Wi-Fi Multimedia (WMM) Quality of Service (QoS) data prioritization

Multiple Input Multiple Output (MIMO) antenna technology

Define up to 3 additional SSIDs

One touch wireless connection using the WPS button

Maximum reliability, throughput, and connectivity with automatic data rate switching

 Easy user setup wizard and intuitive Web browser configuration

Coverage of up to 100 meters indoor (328ft.) and 300 meters outdoor (948ft.) *

3-year limited warranty

FEATURES

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary

depending on interference, network traffic, building materials and other conditions.

wireless

TEW-690AP

rev:12.09.2010

TRENDnet’s N450 Wireless Access Point, model TEW-690AP, supports

Access Point, Wireless Distribution System (WDS), and Repeater mode

functionality.

Advanced Multiple Input Multiple Output (MIMO) antenna technology with

three spatial streams per antenna, generates a maximum theoretical wireless

throughput of 450Mbps and exceptional wireless coverage.

A Gigabit Ethernet port maintains high performance wired connections. Wi-Fi

Protected Setup (WPS) integrates other WPS supported devices at the touch

of a button. Advanced features include 4 SSIDs per wireless band, different

encryption for each SSID, WMM Quality of Service data prioritization, WPA2-

RADIUS encryption, and a convenient on/off power switch.

TEW-690AP (V1.0R)

N450 Wireless Access Point

Buttons

Power

Humidity

Certifications

Frequency

Receiving Sensitivity

Encryption

• 1 x 10/100/1000Mbps Auto-MDIX Gigabit LAN port

• 12 V DC 0.5A power adapter

• 3.8 watts (max)

• 160 g (5.6 oz.)

• 802.11b: -84dBm (typical)

• 802.11b: 18dBm (typical) • 802.11g: 15dBm (typical) • 802.11n : 15dBm (typical)

• 2.4GHz: 2dBi (built-in on board) • 5GHz: 1dBi (built-in on board)

• 802.11b: up to 11Mbps • 802.11g:up to 54Mbps • 802.11n: up to 450Mbps

• 802.11n: -69dBm (typical)

Output Power

Wireless

Standards

Hardware

SPECIFICATIONS

• IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11g, and IEEE 802.11n

LED Indicator

• Reset button – restores factory default settings • WPS button- enables WPS function • On/off power (EU version)

• 64/128-bit WEP , WPA/WPA2-PSK, WPA/WPA2-RADIUS

• 802.11g: -72dBm (typical)

Antenna

• Wireless, LAN, WPS, Power

Interface

Data Rate (auto fallback)

Power Consumption

Weight

• 1~ 11 (FCC), 1~13 (ETSI)

Dimensions (LxWxH)

Temperature

• 120 x 84 x 24 mm (4.7 x 3.3 x 1.0 in.)

• Max. 90% non-condensing

• CE, FCC

• 2.412 ~ 2.472 GHz

• Operating: 0° ~ 40° C (32° ~ 104° F); Storage: -20° ~ 60° C (-4° ~ 140° F)

Channels

TEW-690AP (V1.0R)

N450 Wireless Access Point

RELATED PRODUCTS

PACKAGE CONTENTS

• TEW-690AP

• Multi-Language Quick Installation Guide

NETWORKING SOLUTIONS

TEW-640MB

TEW-624UB

TEW-691GR 450Mbps Wireless N Gigabit Router

300Mbps Wireless N 4-Port Media Bridge

300Mbps Wireless N USB Adapter

• CD-ROM (Utility and User’s Guide)

• 1 x Cat. 5 Ethernet cable (0.6 m / 2 ft.)

• Power adapter (12V DC, 0.5A)

ORDERING INFORMATION

To Order Please Call:

1-888-326-6061

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web:

Email: [email protected]

www.trendnet.com

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet

products and is subject to change at any time, without notice. For the most recent product information please visit

http://www.trendnet.com.

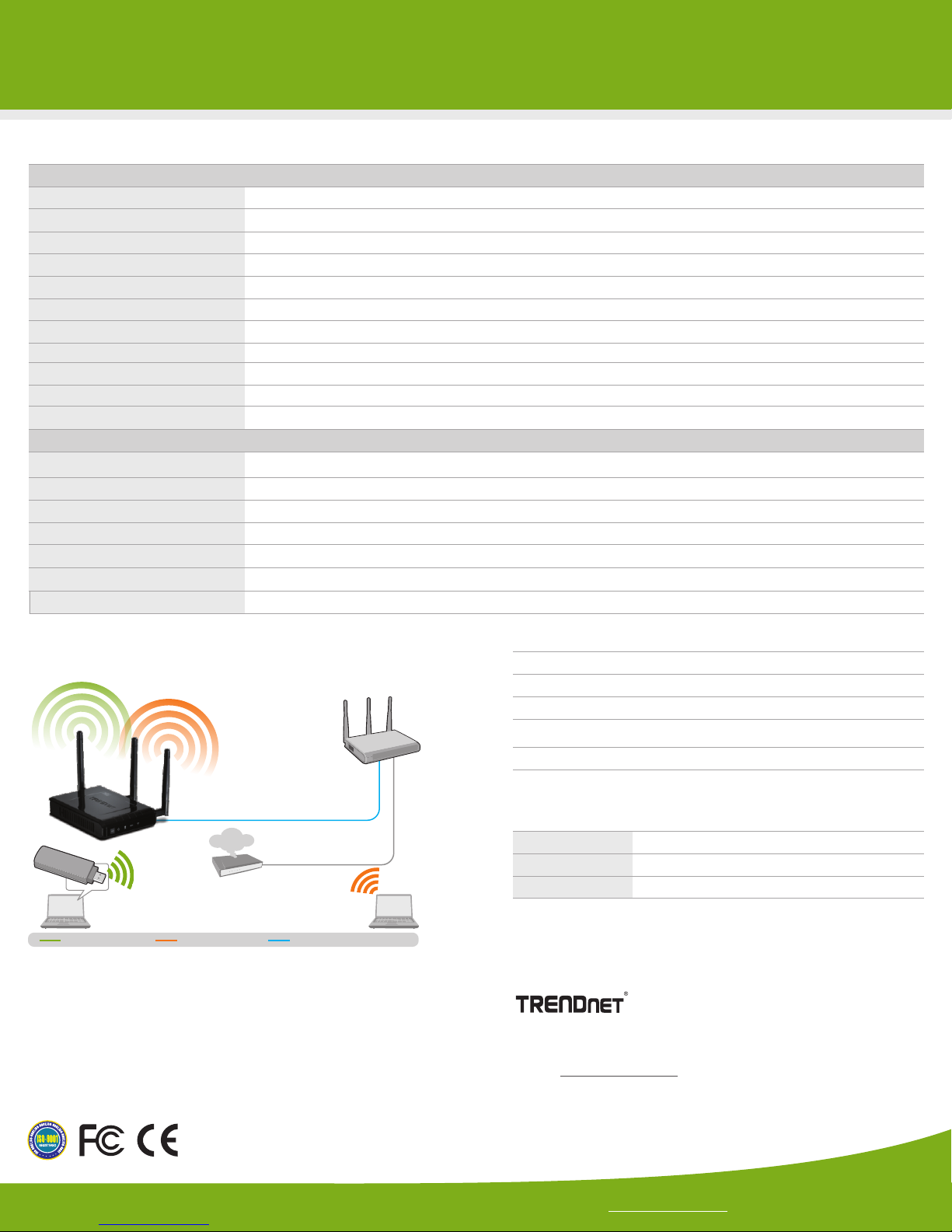

Wireless N 300Mbps Wireless N 450Mbps Gigabit

450Mbps Wireless N Access Point

(TEW-690AP)

Notebook with 300Mbps

Wireless N USB Adapter

(TEW-624UB)

450Mbps Wireless N

Gigabit Router

(TEW-691GR)

Notebook with build in

450Mbps Wireless Adapter

Internet
