TRENDnet TEW-610APB Manual de usuario

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one of the

following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

This publication, including all photographs, illustrations and software, is protected under interna-

tained herein, may be reproduced without written consent of the author.

Trademark recognition

All product names used in this manual are the properties of their respective owners and are

acknowledged.

Table of Contents

Getting Started with the TEW-610APB.................................4

Package Contents .............................................5

Minimum System Requirements ................................. 5

Introduction.....................................................6

Features.....................................................6

Hardware Overview ................................................7

Rear Panel....................................................7

LEDs.........................................................8

Installation Considerations ...................................9

Getting Started ...............................................9

Using the Configuration Menu.....................................10

Information.................................................11

Stations....................................................12

Wireless....................................................13

WDS........................................................ 15

Security....................................................16

Access......................................................18

Admin.......................................................19

Advanced....................................................21

Glossary........................................................23

Getting Started with the TEW-610APB

Congratulations on purchasing the TEW-610APB! This manual provides information for setting up

and configuring the TEW-610APB. This manual is intended for both home users and

professionals.

The following conventions are used in this manual:

THE NOTE SYMBOL INDICATES ADDITIONAL INFORMATION ON THE

TOPIC AT HAND.

THE TIP SYMBOL INDICATES HELPFULL INFORMATION AND TIPS TO

IMPROVE YOUR NETWORK EXPERIENCE.

THE CAUTION SYMBOL ALERTS YOU TO SITUATIONS THAT MAY

DEGRADE YOUR NETWORKING EXPERIENCE OR COMPROMISE

LIKE NOTES AND TIPS, THE IMPORTANT SYMBOL INDICATES

INFORMATION THAT CAN IMPROVE NETWORKING. THIS INFORMATION

SHOULD NOT BE OVERLOOKED.

Package Contents

zTEW-610APB 108Mbps 802.11g Wireless MIMO Access Point

zCAT-5 Ethernet Cable ( the TEW-610APB’s Ethernet ports is Auto-MDIX)

zPower Adapter (5V DC, 2A)

zCD-ROM with Manual

zMulti-Language Quick Installation Guide

Using a power supply with a different voltage than the one included with your

product will cause damage and void the warranty for this product.

Minimum System Requirements

zComputers with Windows, Macintosh, or Linux-based operating systems with an installed

Ethernet adapter and CD-ROM.

zInternet Explorer Version 6.0 or Netscape Navigator Version 7.0 and Above

Introduction

The TEW-610APB Super G Wireless MIMO AP is an 802.11g high-performance, wireless AP that

supports high-speed wireless networking at home, at work or in public places.

Unlike most APs, the TEW-610APB provides data transfers at up to 108 Mbps (compared to the

standard 54 Mbps) when used with other Super G MIMO products. The 802.11g standard is

backwards compatible with 802.11b products. This means that you do not need to change your entire

network to maintain connectivity. You may sacrifice some of 802.11g’s speed when you mix 802.11b

and 802.11g devices, but you will not lose the ability to communicate when you incorporate the

802.11g standard into your 802.11b network. You may choose to slowly change your network by

gradually replacing the 802.11b devices with 802.11g devices.

Features

¾Supports IEEE 11b/g 2.4GHz wireless Local Area Network (WLAN) application

¾802.11b/g 2.4GHz WLAN with 2.412 to 2.484GHz frequency band operation

¾Provide MIMO advantages

Receive combining to focus energy from the intended direction

Transmit beam forming to focus energy in the intended direction

¾Support OFDM, CCK, DBPSK, and DQPSK modulation

¾Data rates of 1,2,5.5,11,6,9,12,18,24,36,48,54Mbps and Turbo Mode offering up to 108Mbps.

¾Hardware encryption for the Wi-Fi Protected Access (WPA/WPA2) and Wired Equivalent Privacy

(WEP) without performance degradation

¾User-friendly configuration

¾Web-based interface for Managing and Configuring

¾Equipped with one 10/100 Ethernet port, Auto MDI/MDIX

Hardware Overview

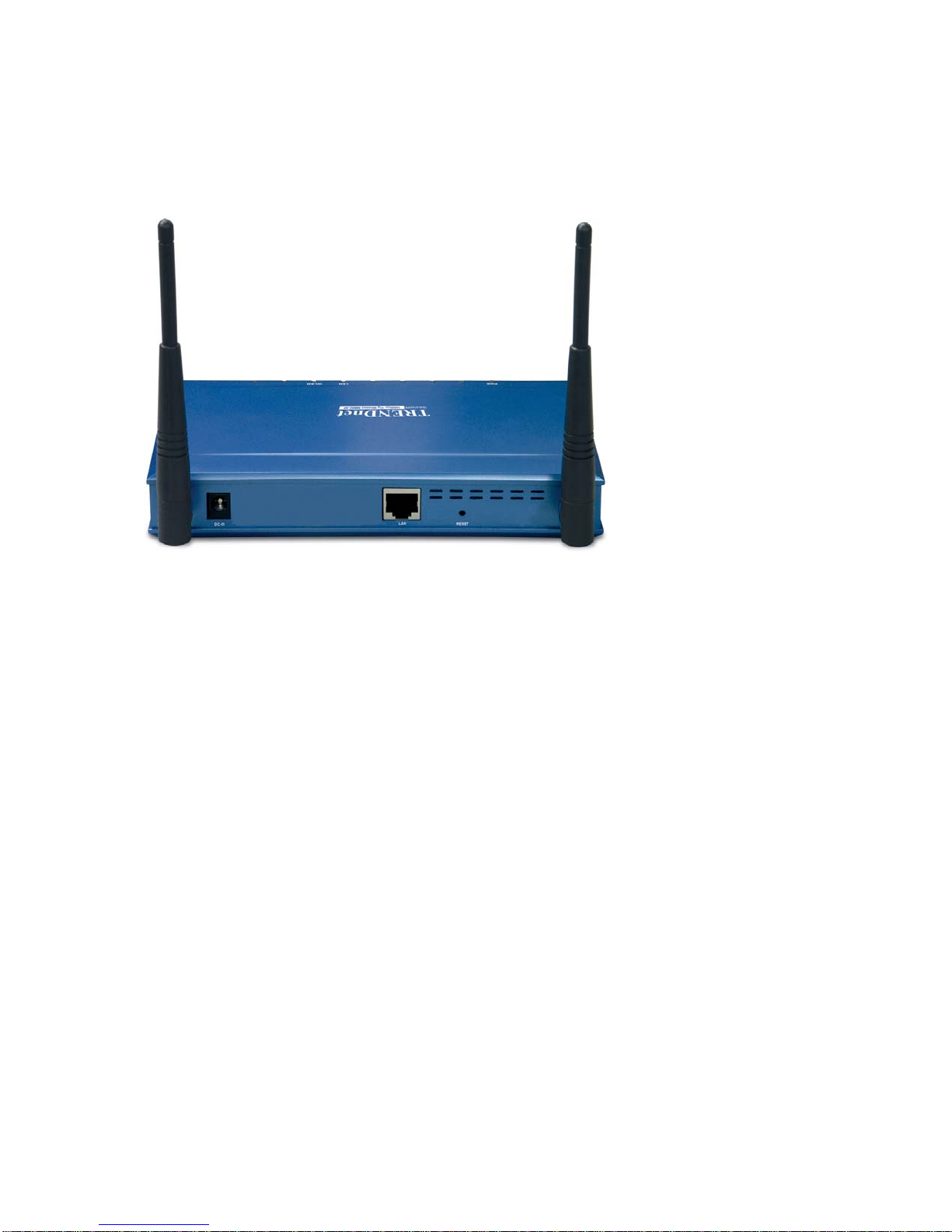

Real Panel

DC-IN

The DC power input connector is a single jack socket to supply power to the TEW-610APB.

Please use the Power Adapter provided on the TEW-610APB package.

Auto-MDIX LAN Ports

This port automatically senses the cable type and auto negotiating the speed when connecting to the

Router.

Reset Button

Pressing the reset button restores the AP to its original factory default settings.

LEDs

POWER LED

A solid light indicates a proper connection to the power supply.

LAN LED

A solid light indicates a connection to a Router on the LAN port. This LED blinks during data

transmission.

WLAN LED

A solid light indicates that the wireless segment is ready. This LED blinks during wireless data

transmission.

Installation Considerations

The TEW-610APB Super G Wireless MIMO AP lets you access your network, using a wireless

connection, from virtually anywhere within its operating range. Keep in mind, however, that the

number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass

through, may limit the range. Typical ranges vary depending on the types of materials and background

RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to

follow these basic guidelines:

1 Keep the number of walls and ceilings between the TEW-610APB and other network devices

to a minimum - each wall or ceiling can reduce your wireless product’s range from 3-90 feet

(1-30 meters.) Position your devices so that the number of walls or ceilings is minimized.

2 Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at

a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks

over 42 feet (14 meters) thick! Position devices so that the signal will travel straight through a

wall or ceiling (instead of at an angle) for better reception.

3 Building Materials can impede the wireless signal - a solid metal door or aluminum studs may

have a negative effect on range. Try to position wireless devices and computers with wireless

adapters so that the signal passes through drywall or open doorways and not other materials.

4 Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances

that generate extreme RF noise.

Getting Started

For a typical wireless setup at home, please do the following:

1. Plug the power adapter to outlay, and connect the power jack to the TEW-610APB.

2. Connect the Ethernet LAN port of the TEW-610APB to your PC.

3. Open your web browser, and type http://192.168.0.100 to login TEW-610APB.

4. When the authentication window is popped up, type the admin for the username and password,

then type enter to login the web page of the TEW-610APB.

5. Configure the desired wireless setting.

6. Connect the Ethernet port of the TEW-610APB to your router.

Using the Configuration Menu

Whenever you want to configure your TEW-610APB, you can access the Configuration Menu by

opening the Web-browser and typing in the IP Address of the TEW-610APB. The TEW-610APB’s

default IP Address is http://192.168.0.100 .

¾Open the Web browser.

¾Type in the IP Address of the AP (http://192.168.0.100 ).

If you have changed the default IP Address assigned to the TEW-610APB, make sure to

enter the correct IP Address.

¾Type admin in the User Name field.

¾Type admin in the Password field.

¾Click Login In.
