1
Introduction
The TRENDNET TPL-110AP Home Plug + Wireless 11g Access Point is like 2 devices in one
box! The Home-Plug Wireless AP functions lets you to securely expand the range of your local
area network, while Home-Plug utilizes the electric cord as the transfer media, the 11G utilizes
the electric wave.
The TRENDNET TPL-110AP Home Plug + Wireless 11g Access Point offers a convenient way
to create a simple network through the existing power line of a home or office with the additional
ability to provide you with access to your network without wires. Offering several levels of
security, the TPL-110AP is built with 128-bit WEP encryption and 802.11i (WPA / TKIP, AES,
PSK) for the wireless pass-through and 56-bit DES encryption for the Power line pass-through
There are also some Enhanced Security Management Functions: Wireless/Wired 802.1x, and
Embedded RADIUS Server so your data will always be secured—guaranteed.
The TRENDNET TPL-110AP Home Plug + Wireless 11g Access Point has the latest IEEE
802.11g spec, which provide data rate at 54Mbps. Because of the high data rate and power line
around everywhere, you can enjoy the high quality video or any service in any place.
For the latest product information, please visit us on the web at
http://www.TRENDnet.com
** FCC, CE, UL certificated **
2
Important Safety Information
This product is intended for connection to the AC power. The following
precautions should be taken when using this product.
- Read all instructions before installing and operating this product.
- Follow all warnings and instructions marked on the product.
- Do not operate this product near water.
- This product relies on a building’s electrical installation for short-circuit
(over current) protection.
- Do not allow anything to rest on the product.
- The HomePlug Wireless Access Point should be plugged directly into an
AC wall outlet.
- Only a qualified technician should service this product. Opening or
removing covers may result in exposure to dangerous voltage points or
other risks. (Note: Opening or removing the covers will void your product
warranty).
- Unplug the HomePlug Wireless Access Point from the AC wall outlet and
refer the product to a qualified service representative for the following
conditions:
- If liquid has been spilled onto the product.
- If the product has been exposed to rain or water.
- If the product does not operate normally when the operating
instructions have been followed.
- If the product exhibits a distinct change in performance.
3
Getting start with your Powerline Device
Before installing your Powerline networking device, please examine and familiarize yourself with
it. Below is a diagram of the TPL-110AP along with a brief description of what each LED
and slot represent.
Collisions
Activity Power
WLANCollisions
Activity Power
WLAN
LED LED STATUS INDICATION
Collisions (COL) Blinking CollisionsDetected
OFF NoCollisionsDetected
Activity (ACT) Blinking Looking for Powerline Devices
FastBlinking Transmit/receivedata
OFF NoNetworkTraffic
Power ON PowerOn
Off Power Off
WLAN ON Wireless Connection
Blinking Transmitting/Receiving wireless data traffic
What This Package Contains?
Upon you receive your wireless access point, please check that
the following contents are packaged:
- HomePlug Wireless Access Point (TPL-110AP)
- CD-Rom (User’s Guide)
- Multi-Language Quick Install Guide
Necessary Equipment?
- One or more computers with wireless device, and it's software already installed
- Microsoft TCP/IP networking protocol installed on each PC
- Web browser installed on each PC
4
Equipment that can be used with the TPL-110AP?
- Broadband modem
- Powerline Router
- Additional PCs with a wireless or Powerline Device
Important: After receiving the wireless access point, please check for
any shipping damages to the carton and camera before proceeding
with any installations.
PC or Laptop Setup Guide
Note: If you have not installed your Wireless device to your laptop
So far, please do so. For instructions on how to install your
Wireless device, please contact the manufacturer of that wireless
device.
To configure the Wireless device to work with your TPL-110AP,
please follow the following steps:
1. Plug TPL-110AP into an outlet.
2. Go to the wireless card's configuration screen or window. It
should resemble figure 1 or others.
5
PC or Laptop Setup Guide
Note: If you have not installed your Wireless device to your laptop
So far, please do so. For instructions on how to install your
Wireless device, please contact the manufacturer of that wireless
device.
To configure the Wireless device to work with your TPL-110AP,
please follow the following steps:
1. Plug TPL-110AP into an outlet.

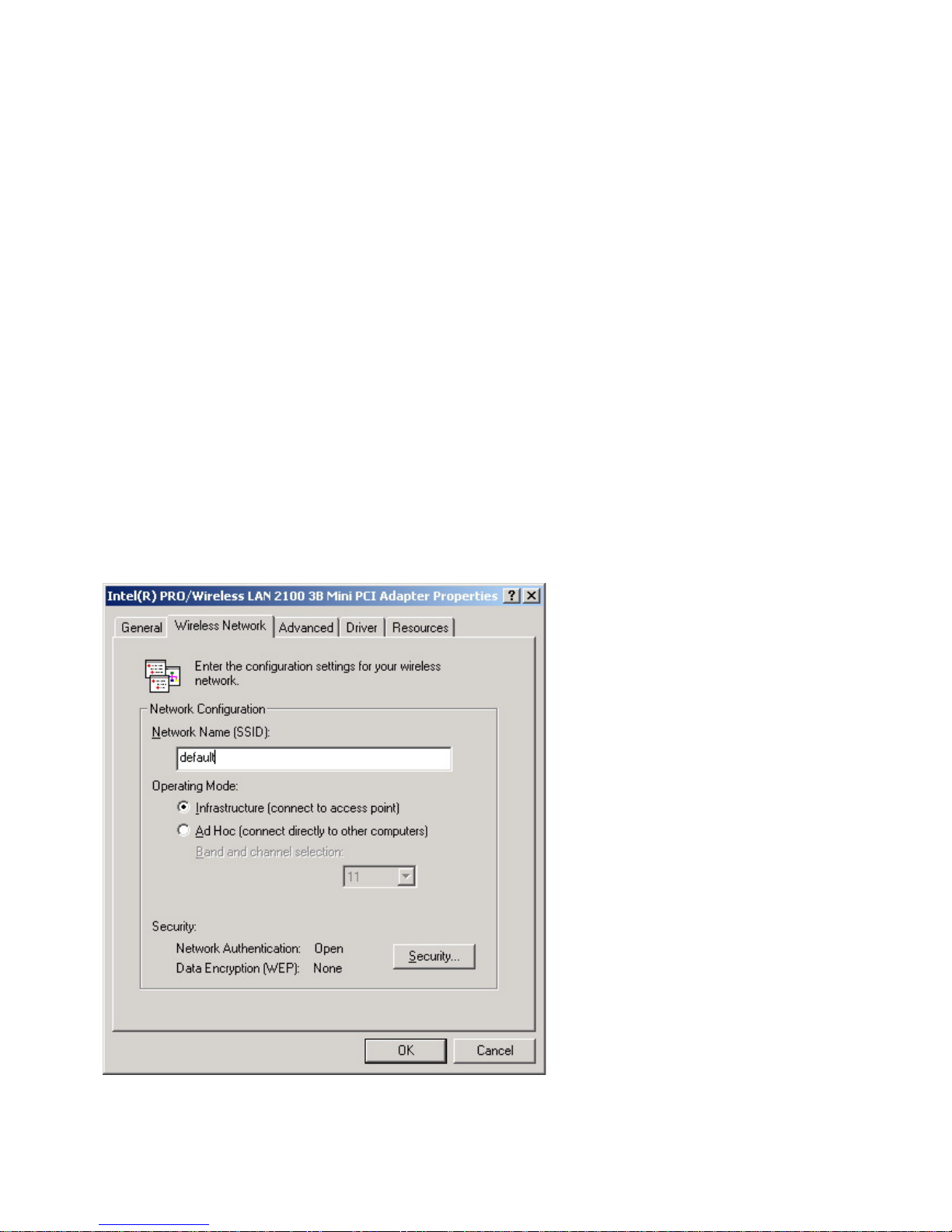

2. Go to the wireless card's configuration screen or window. It
should resemble figure 1 or others.
3. Make sure Infrastructure is selected.
4. In the SSID field, type in the following: default (This is case
sensitive)
5. Make sure Fully Automatic is selected.
6. Click OK to exit the configuration window.
Note: If you are using Windows XP you will not need to configure the PCMCIA
card because Windows XP has an auto sense function included in the operating
system.
TPL-110AP Setup Guide
You will need to temporarily change the IP address of your PC/laptop
to setup your TPL-110AP. Follow these steps
depending on your operating system.
Note: If you have not changed the default Powerline password
(HomePlug) or you get the same subnet (10.0.0.1/16) on your network then
there is no need to continue this setup.
Windows 98 SE / ME
1. Click on Start, then Settings, and then Control Panel.
2. Double click on the Network icon.
3. Select the TCP/IP Protocol entry.
4. Click on the Properties button.
5. Select the IP Address tab.
6. Select Specify an IP address.
7. Type in the following address: 10.0.0.10.
8. For the Subnet Mask, type: 255.255.255.0.
9. Click OK to close the TCP/IP properties panel.
10. Click OK to close the Network panel.
11. Restart the PC
6
Windows 2000 / XP

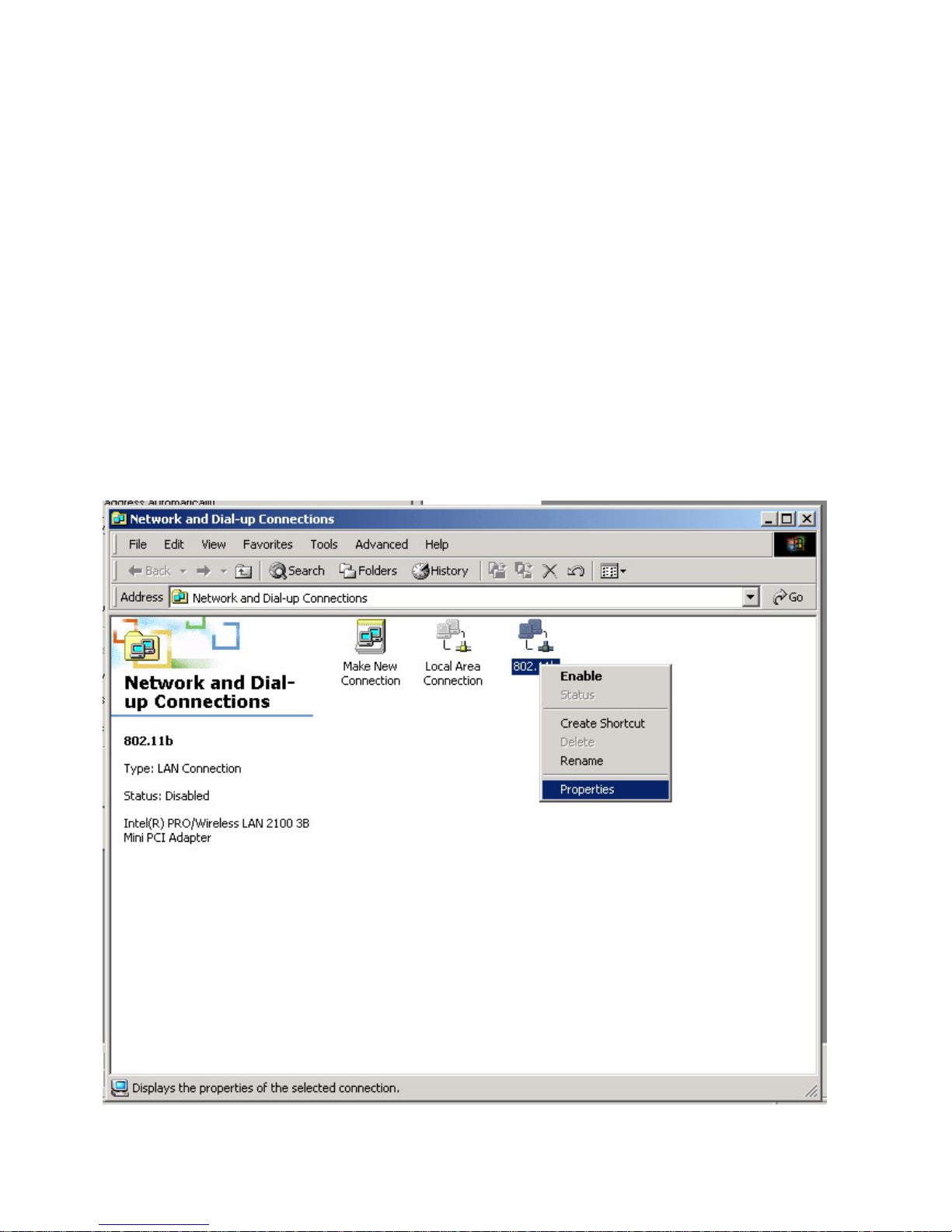

1. Open Network Connections.
- Win 2000: Click on Start, Settings, then Network, and Dial-up Connections.
- Win XP: Click on Start, Connect To, then Show All Connections.
2. Right click on Local Area Connection and then select Properties.

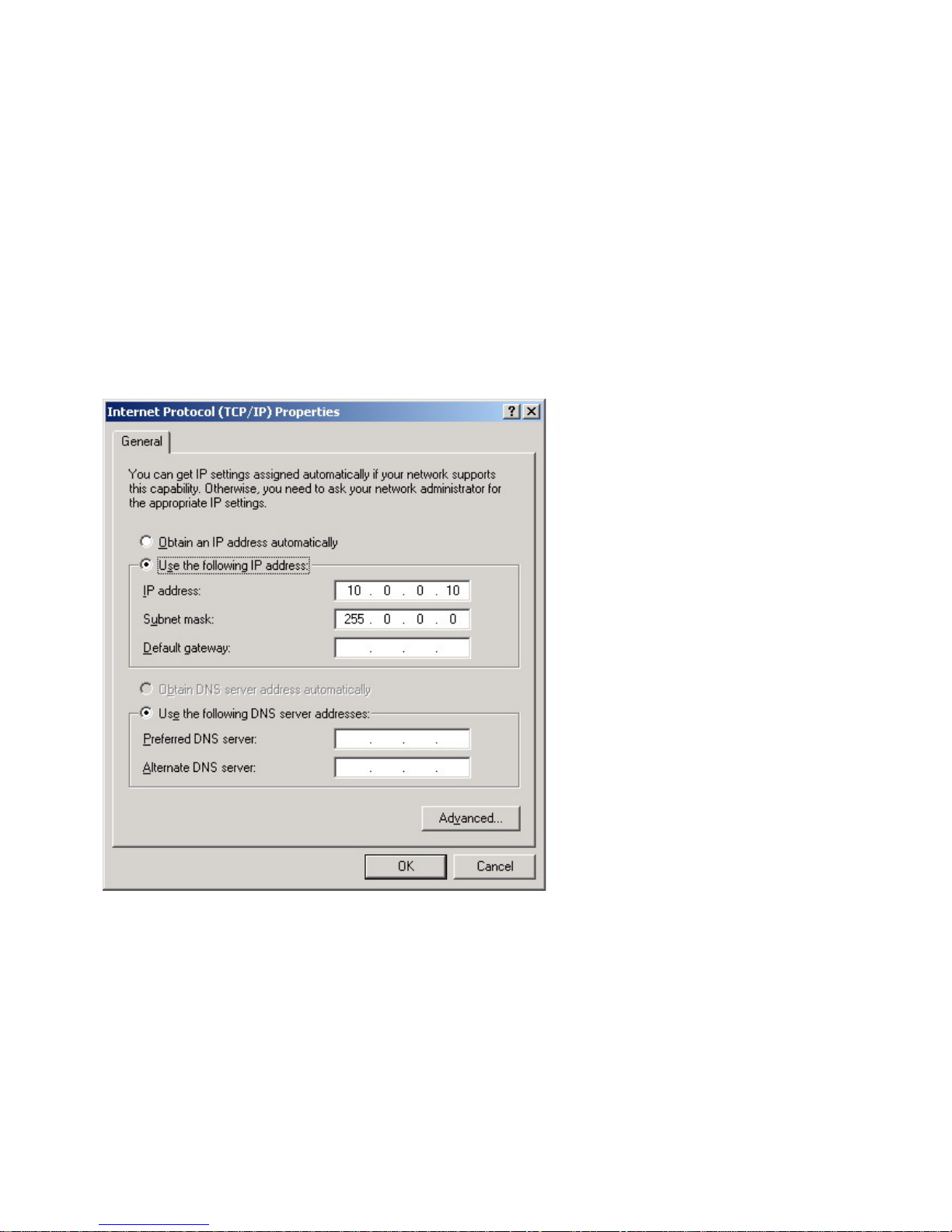

3. Select Internet Protocol (TCP/IP) and then click on Properties.
4. Click on Use the following IP address.
5. Type in the following IP address: 10.0.0.10.
6. For the Subnet Mask, type: 255.255.255.0.
7. Click OK to close the TCP/IP properties panel.
8. Click OK to close the Network panel and the changes will take
effect when this panel is closed.

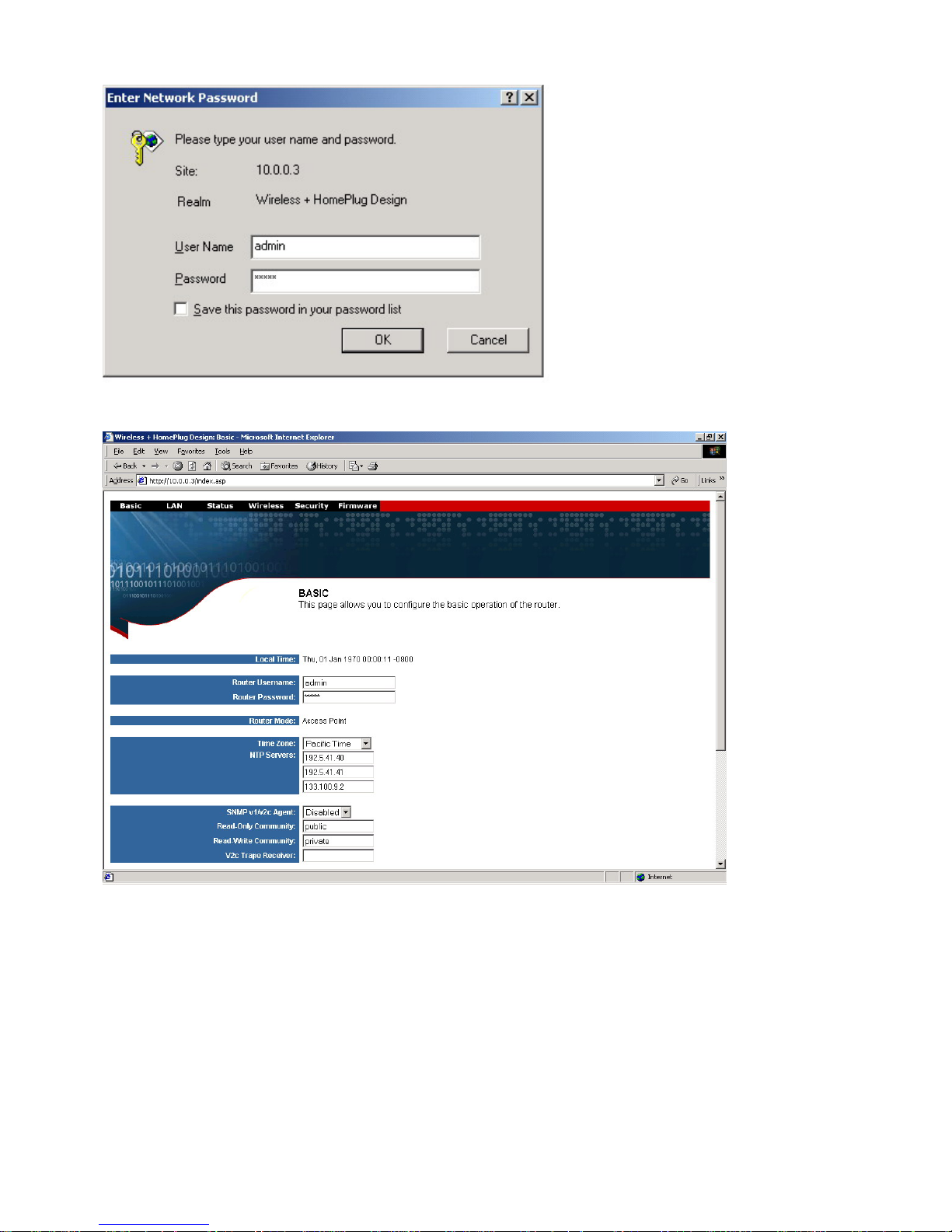

1. Open a web browser and type in the following address: 10.0.0.1.
2. A login screen should appear. Type the login name: admin and the password: admin.
7
3. The basic information screen should now appear in the browser window.
4. The default HomePlug password is HomePlug. If your existing HomePlug password is
different, change this password accordingly.
Setting up the IP address on the TPL-110AP
1. Click on the LAN Tab.
2. The default IP address of TPL-110AP is 10.0.0.1. You can change this IP address to matches
your network configuration (Example: 192.168.1.10)
3. You can change the Subnet mask and Gateway values as well.
At this point, you will need to change the PCs IP address back to it's original settings. Follow
8
these steps depending on your operating system. Windows 98 SE / ME
1. Click on Start, then Settings, and then Control Panel.
2. Double click on the Network icon.
3. Select the TCP/IP Protocol entry.
4. Click on the Properties button.
5. Select the IP Address tab.
6. Select Obtain an IP Address Automatically.
7. Click OK to close the TCP/IP properties panel.
8. Click OK to close the Network panel.
9. Restart the PC.
Windows 2000 / XP
1. Open Network Connections.
- Win 2000: Click on Start, Settings, then Network and Dial-up
Connections.
- Win XP: Click on Start, Connect To, then Show All Connections.
2. Right click on Local Area Connection and then select Properties.
3. Select Internet Protocol (TCP/IP) and then click on Properties.
9
4. Select Obtain an IP Address Automatically and Obtain a DNS server automatically.
5. Click OK to close the TCP/IP properties panel.
6. Click OK to close the Network panel. The changes will take a few minutes. Open a new web
browser and type in the new IP address of TPL-110AP to ensure the changes worked.
Other Features
Wireless Tab
- Change the value for the SSID ( Note: If you change the value here, you will also need to
change the value on each PC.)
- Change the Country where you are
- Change the Band
- Change the Channel
- Change the transmission Mode
- Change the Transmission Mb rates
- Change the Multicast rates
- Enable XPress Technology
- Enable Afterburner Technology
- Change WDS Operation Mode (Note: It depend on you network environment)
- Enable MAC Restrict Mode (Note: Type the MAC address of devices you want to restrict here)
