TRENDnet TPE-S160 Manual de usuario

FEATURES

• 16 x 10/100/1000Mbps Auto-MDIX RJ-45 PoE portsOn/off power switch

• IEEE 802.3af Power over Ethernet (PoE) compliant

• Supports PoE Powered Device (PD) classiﬁ cation

• Provides 15.4 watts per PoE port

• 3.2Gbps switching fabric

• Full wire-speed non-blocking reception and transmission

• Store-and-forward switching method

• Back pressure Flow Control for half-duplex mode

• IEEE 802.3x Flow Control for full-duplex mode

• 1.5Mbits RAM Data Buffer

• 4K MAC address entries

• Diagnostic LEDs (Power, Link/Activity, PoE Act/Status)

• Plug and Play

• Sturdy 19” wide metal enclosure

• Rack mounting hardware included

• 3-year limited warranty

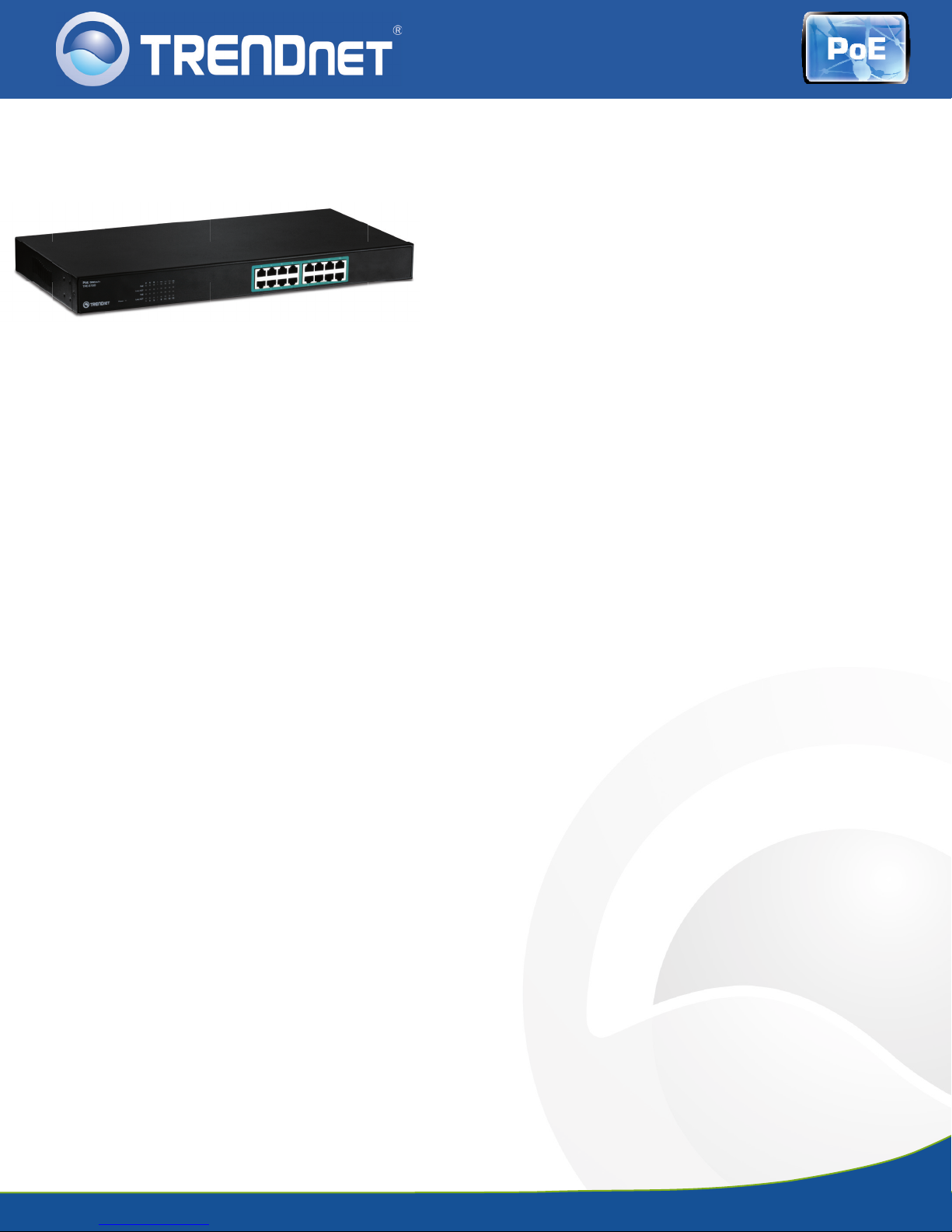

TPE-S160

rev: 04.20.2011

16-Port 10/100Mbps PoE Switch

TPE-S160(V1.0R)

The 16-Port 10/100Mbps PoE Switch, model TPE-S160, reduces

equipment and installation costs by delivering data and power over

existing Ethernet cables to Power over Ethernet (PoE) enabled

devices such as Access Points and IP Cameras. Boost ofﬁ ce

efﬁ ciency and reduce network congestion with a total switching

capacity of 3.2Gbps.

LED indicators display device status for easy power management and

troubleshooting. An internal power supply reduces clutter and delivers

15.4 Watts to each PoE port. A convenient on/off button is located on

the back of the switch. Non-PoE devices can connect to the

switch—auto-sensing PoE technology cuts power to non-PoE

connected devices. Use TRENDnet’s PoE Splitter to install non-PoE

devices in remote locations.

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet products and is subject to change at any time,

NETWORKING SOLUTIONS

16-Port 10/100Mbps PoE Switch

TPE-S160(V1.0R)

CONTACT INFORMATION

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web: www.trendnet.com

Email: [email protected]

1-888-326-6061

PACKAGE CONTENTS

TPE-S160

Multi-Language Quick Installation Guide

Rackmount hardware

Power cord (1.8 m / 6 ft.)

RELATED PRODUCTS

TV-IP512P ProView PoE Internet Camera

TPE-112GS Gigabit Power over Ethernet (PoE) Splitter

TPE-80WS 8-Port Gigabit Web Smart PoE Switch

SPECIFICATIONS

HARDWARE

Standards • IEEE 802.3 10Base-T • IEEE 802.3u 100Base-TX • IEEE 802.3af Power over Ethernet • IEEE 802.3x Flow Control;

Ports • 16 x 10/100Mbps Auto-MDIX PoE ports

Data Transfer Rate • Ethernet: 10/20Mbps (half/full duplex) • Fast Ethernet: 100/200Mbps (half/full duplex)

Data RAM Buffer • 1.5 Mbps

Address Table • 4K MAC entries

Power Switch • On / off power button

Switch Fabric • 3.2Gbps

Power • 100~240VAC 50/60Hz, internal universal switching power

Diagnostic LEDs • Power, Link/Activity, PoE Act/Status

Power Consumption • 6 Watts max. (no Powered Device (PD) connected)

• 260 Watts max. (16 PoE devices connected)

Temperature • Operating: 0° ~ 45°C (32° ~ 113°F) • Storage: -10° ~ 70°C (14° ~ 158°F)

Humidity • Max. 95% (non-condensing)

Dimensions • 440 x 220 x 44 mm (17.3 x 8.7 x 1.7 in.)

Weight • 3.1 kg (6.9 lbs.)

Certiﬁ cations • CE, FCC

PoE

Power over Ethernet • Up to 15.4 watts per port; PD classiﬁ cation • Polymer switch for short protection

• PoE: pin 3,6 for power+ and pin 1,2 for power-
