TRENDnet TPE-224WS - Web Smart PoE Switch Manual de usuario
Ÿ24-Port 10/100 Mbps Web Smart PoE+ Switch
TPE-224WS
ŸQuick Installation Guide (1)
TPE-224WS (C1) / 08.05.2015
Minimum Requirements
Optional Equipment
ŸTPE-224WS
ŸMulti-Language Quick Installation Guide
ŸCD-ROM (Utility and User's Guide)
ŸPower cord
ŸRack mount kit
ŸComputer with an Ethernet port and web browser
ŸNetwork cable
ŸEIA standard 19” rack
ŸSFP modules (e.g. TE100-MGBFX, TEG-MGBSX, TEG-MGBS10, TEG-MGBS40,
TEG-MGBS80, TEG-MGBS10D3, TEG-MGBS10D5, TEG-MGBS40D3, TEG-MGBS40D5)
Package Contents
1. Before You Start
1
2. Quick Reference
802.3at PoE+
802.3af PoE
Non-PoE
Network
2
5. Enter the User name and Password, and then click Login. By default:
User Name: admin
Password: admin
Note: User Name and Password are case sensitive.
6. Click System and then click IPv4 Setup.

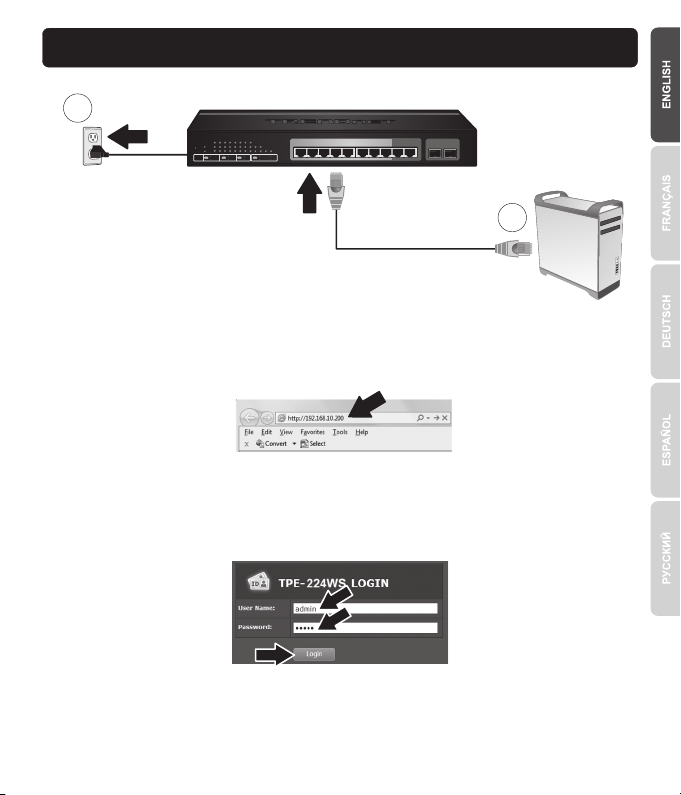

3. Hardware Installation and Configuration
3. Assign a Static IP address to your computer's network adapter in the subnet of 192.168.10.x
(e.g. 192.168.10.25) and a subnet mask of 255.255.255.0.
4. Open your web browser, type the IP address of the switch in the address bar, and then press Enter.
The default IP address is 192.168.10.200.
1
2
3
Note:
If you would like to easily discover all the Web Management Switches on the network, assign IP
Address, change the password, and upgrade new firmware, then install the Web Smart Switch
Management Utility. Follow the steps provided on the user's guide
For detailed information regarding the TPE-224WS’s configuration and advanced settings, please refer
to the User's Guide on the provided CD-ROM.
11. Click OK.
8. Click OK.
9. Click Save Settings to Flash (menubar).
10. Click Save Settings to Flash (button).
7. Configure the switch to match the requirements of your network. Then click Apply.
Directives:
Low Voltage Directive 2006/95/EC
EMC Directive 2004/108/EC
RoHS Directive 2011/65/EU
REACH Regulation (EC) No. 1907/2006
TRENDnet hereby declare that the product is in compliance with the essential requirements and
other relevant provisions under our sole responsibility.
This product is herewith confirmed to comply with the Directives.
Product Information:
Product Name:
Model Number: TPE-224WS
Trade Name: TRENDnet
24-Port 10/100 Mbps Web Smart PoE+ Switch
Safety EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011
EMC EN 55022: 2010 + AC: 2011 Class A
EN 55024: 2010
EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 Class A
EN 61000-3-3: 2013
Person responsible for this declaration.
Date: January 21, 2015
Title: Director of Technology
Place of Issue: Torrance, California, USA
Name: Sonny Su
Signature:
TRENDnet, Inc.
20675 Manhattan Place
Torrance, CA 90501 USA
Manufacturer’s Name and Address
Limited Warranty
TRENDnet warrants its products against defects in material and workmanship, under normal use and service. Specific
warranty periods are listed on each of the respective product pages on the TRENDnet website.
Garantie Limitée
TRENDnet garantit ses produits contre les problèmes de matériel ou de fabrication, dans des conditions normales
d'utilisation et de service. Les périodes de garanties précises sont mentionnées sur chacun des pages produits du site web
de TRENDnet.
Eingeschränkte Garantie
TRENDnet gewährt eine Garantie für seine Produkte im Falle von Material- und Bearbeitungsdefekten, bei normaler
Verwendung und Wartung. Spezielle Garantiezeiträume werden auf jeder Produktseite auf der Website von TRENDnet
genannt.
Garantía limitada
TRENDnet garantiza que sus productos carecen de defectos en el material y la fabricación, en condiciones de uso y
funcionamiento normales. Los periodos específicos de garantía figuran en cada una de las páginas de producto del sitio
web de TRENDnet.
Ограниченная гарантия
Компания TRENDnet предоставляет гарантию на свои изделия от дефектов материалов и сборки при нормальном
использовании и обслуживании. Конкретные гарантийные сроки указаны на странице каждого продукта на сайте
компании TRENDnet.
Garanzia limitata
TRENDnet garantisce i propri prodotti da difetti di materiali e manodopera, in condizioni di normale uso ed esercizio.
I periodi di garanzia specifici sono elencati sulle rispettive pagine di prodotto sul sito TRENDnet.
Garantia Limitada
A TRENDnet garante seus produtos contra defeitos de material e mão de obra sob condições normais de uso e serviço. Os
períodos de garantia específicos estão listados em cada uma das páginas dos respectivos produtos no site da TRENDnet.
Обмежена гарантія
TRENDnet надає гарантію на свою продукцію щодо відсутності дефектів матеріалів та роботи за умови її належного
використання та обслуговування. Конкретні гарантійні періоди перелічені на сторінці кожного виробу на сайті
компанії TRENDnet.
Piiratud garantii
TRENDneti garantii hõlmab materjali- ja koostamisdefekte, mis ilmnevad toote tavapärasel kasutamisel. Garantiiaja täpne
pikkus konkretse toote puhul on leitav TRENDneti kodulehelt vastava toote infolehelt.
TPE-224WS
TPE-224WS(C1) /08.05.2015
TPE-224WS
Product Warranty Registration
Please take a moment to register your
product online. Go to TRENDnet’s website at:
http://www.trendnet.com/register
TRENDnet
20675 Manhattan Place, Torrance, CA 90501. USA
Copyright © 2015. All Rights Reserved. TRENDnet.
Technical Support
If you have any questions regarding the product
installation, please contact our Technical Support.
Toll free US/Canada: 1-866-845-3673
Regional phone numbers available
at www.trendnet.com/support
Waste electrical an electronic products must not
be disposed of with household waste. Please
recycle where facilities exist. Check with your
Local Authority or Retailer for recycling advice.
Certifications
This device can be expected to comply with Part 15 of the
FCC Rules provided it is assembled in exact accordance
with the instructions provided with this kit.
Operation is subject to the following conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received
including interference that may cause undesired
operation.
Note
The Manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to this
equipment. Such modifications could void the user’s authority to
operate the equipment.
Advertencia
En todos nuestros equipos se mencionan claramente las
caracteristicas del adaptador de alimentacón necesario para su
funcionamiento. El uso de un adaptador distinto al mencionado
puede producir daños fisicos y/o daños al equipo conectado. El
adaptador de alimentación debe operar con voltaje y frecuencia de
la energia electrica domiciliaria exitente en el pais o zona de
instalación.
Applies to PoE Products Only: This product is to be connected
only to PoE networks without routing to the outside plant.
