TRENDnet TE100-S16 - DATA SHEETS Manual de usuario

TRENDnet’s TE100-S16 is a high performance auto-sensing

NWay switch that automatically negotiates between 10Base-

T and 100Base-TX network speeds. All ports support half- and

full-duplex that allows maximum network performance. It is

designed to eliminate unnecessary traffic and relieve

congestion on critical network paths. Designed and built to

increase network bandwidth, TRENDnet’s TE100-S16 is the

best solution for both corporate and small business network

environments.

TE100-S16

16-port 10/100Mbps NWay Switch (Rack Mount)

BENEFITSFEATURES

Easy Installation:

Flexibility:

Cost Effectiveness:

Performance:

Designed to link 10Mbps and

100Mbps networks.

All ports automatically negotiate

10/100Mbps network speed. All ports

are Auto-MDIX; connection can be

made with either a straight through or

a crossover cable.

Provide 10/100Mbps of Fast Ethernet

at an affordable rate.

Top performance at an affordable

price.

Compliant with IEEE 802.3 10Base-T, IEEE 802.3µ 100Base-TX

Support 16 UTP/STP RJ-45 10/100Mbps NWay auto-sensing

ports

Auto-MDIX on each port

Supports store and forward switching architecture with non-

blocking full wire-speed performance

Half- and full-duplex operation for each port

Supports aging function and 802.3x flow control for full-duplex

mode and back pressure flow control for half-duplex mode

operation

Auto-learning of network configuration

Built-in 8K entries per device for Filtering Address Table

512KB per device RAM buffer. Plug and Play

EIA-19 Rack Mountable

5-Year warranty

TE100-S16 (03-07-2005)

TRENDnet

TRENDware, USA

What's Next in Networking

RELATED PRODUCT

To Order Please Call:

1-888-326-6061

TE100-S16:

16-port 10/100Mbps NWay Switch (Rack Mount)

TE100-S24:

24-port 10/100Mbps NWay Switch (Rack Mount)

TE100-S16V:

16-port 10/100Mbps Smart Switch with Fiber Slot (Rack

Mount)

TE100-S24V:

24-port 10/100Mbps Smart Switch with Fiber Slot (Rack

Mount)

TE100-SFXM:

SC-type fiber slide-in module for TE100-S16V/S24V

NETWORKING SOLUTIONS

SPECIFICATIONS

Standards:

IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,

ANSI/IEEE 802.3 NWay auto-negotiation

Connectors:

16 10/100Mbps shielded RJ45 Auto-MDIX ports

Network Cables:

Ethernet: Cat. 3,4,5, UTP/STP, EIA.ITA-568 100 Ohm

Fast Ethernet: Cat. 5, UTP/STP, EIA/TIA-568 100 Ohm

Cable Length:

100 meters maximum

Protocols:

CSMA/CD

Data Transfer Rate:

Ethernet: 10Mbps (Half-Duplex), 20Mbps (Full-Duplex)

Fast Ethernet: 100Mbps (Half-Duplex), 200Mbps (Full-Duplex)

Data RAM Buffers:

512KB per device

•

Filtering Address Table:

• 8K entries per device

Internal Power Adapter:

• 100 ~ 240 VAC, 6 watts max.

Diagnostic LEDs:

• Power, Link/Activity, 100Mbps

Weight:

• approximately 2.0 Kg (4.4 lb.)

Dimensions:

• 440 x 140 x 44 mm (17.3 x 5.51 x 1.73 inches) (W x H x D)

Temperature:

• Operating: 0° ~ 40°C (32° ~ 104°F)

• Storage: -10° ~ 70°C (14° ~ 158°F)

Humidity:

• Operating:10% ~ 90% RH

• Storage: 5% ~ 90% RH

Certifications:

• FCC Class A, CE Mark A, VCCI-A

TE100-S16

16-port 10/100Mbps NWay Switch (Rack Mount)

TE100-S16

16-port 10/100Mbps NWay Switch (Rack Mount)

TRENDnet is a registered trademark of TRENDware International, Inc. Other Brands and product names are trademarks of their respective holders. Information provided in this

document pertain to TRENDware products and is subject to change at any time, without notice. For the most recent product information please visit

____________________

http://www.TRENDNET.com.

TRENDware International, Inc.

3135 Kashiwa Street

Torrance, CA. 90505. USA

Tel: 310-891-1100

Fax: 310-891-1111

Web:

Email: [email protected]

www.TRENDNET.com

ORDERING INFORMATION

TRENDnet

TRENDware, USA

Otros manuales para TE100-S16 - DATA SHEETS

Este manual sirve para los siguientes modelos

Otros manuales de Cambiar de TRENDnet

TRENDnet

TRENDnet TE100-S24D Manual de usuario

TRENDnet

TRENDnet TE100-H8E Manual de usuario

TRENDnet

TRENDnet TU-400 Manual de usuario

TRENDnet

TRENDnet TU2-700 - DATA SHEETS Manual de usuario

TRENDnet

TRENDnet TEG-S224M Manual de usuario

TRENDnet

TRENDnet TK-401R Manual de usuario

TRENDnet

TRENDnet TEG-082WS Manual de usuario

TRENDnet

TRENDnet TEG-2248WS - Gigabit Web Smart Switch Manual de usuario

TRENDnet

TRENDnet TE100-DX4PCI Manual de usuario

TRENDnet

TRENDnet TK-206i Manual de usuario

TRENDnet

TRENDnet TL2-G244 Manual de usuario

TRENDnet

TRENDnet TE100-S32plus Manual de usuario

TRENDnet

TRENDnet TEG-S4000i Manual de usuario

TRENDnet

TRENDnet TPE-224WS - Web Smart PoE Switch Instrucciones de funcionamiento

TRENDnet

TRENDnet TEG-S40TXD Manual de usuario

TRENDnet

TRENDnet TEG-S80g - Switch Manual de usuario

TRENDnet

TRENDnet TEG-S80TXD Manual de usuario

TRENDnet

TRENDnet TPE-T160H Manual de usuario

TRENDnet

TRENDnet TEG-S224TXA - 26PORT Gigabit Copper Switch 24-10/100... Manual de usuario

TRENDnet

TRENDnet TK-408K Manual de usuario

TRENDnet

TRENDnet TPE-P521ES Manual de usuario

TRENDnet

TRENDnet TE100-S24 - High Performance Auto-Sensing 10/100Mbps Fast Ethernet... Manual de usuario

TRENDnet

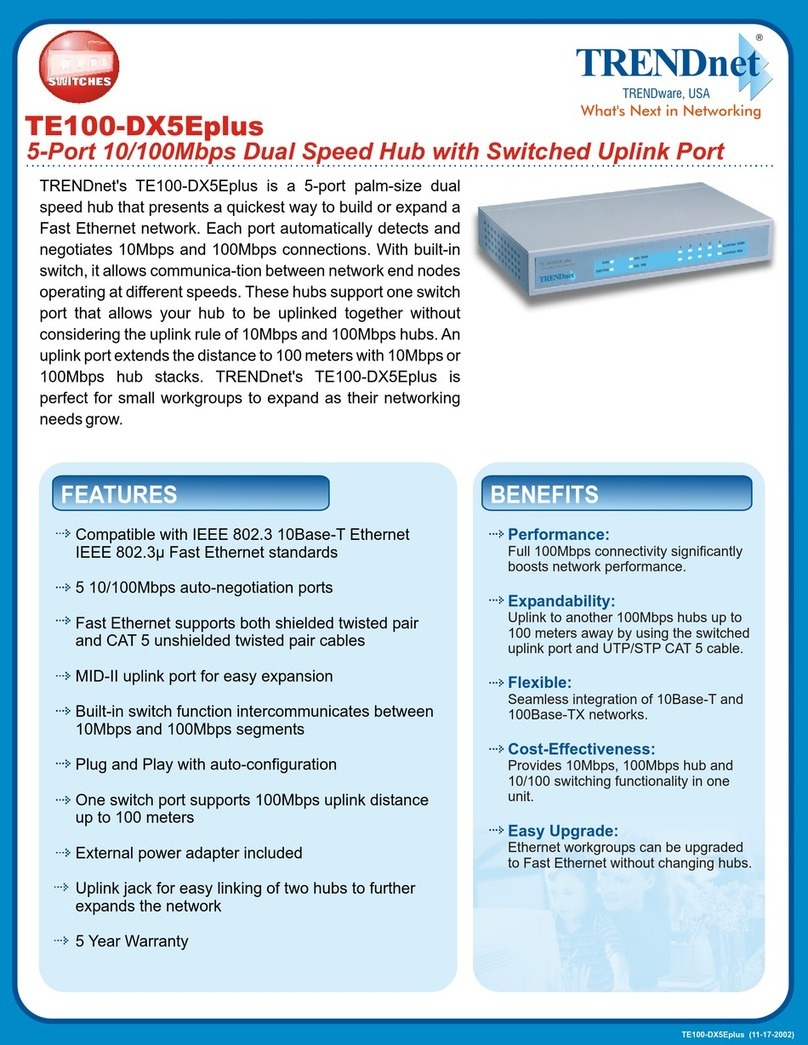

TRENDnet TE100-DX5Eplus Manual de usuario
