TRENDnet TE-500 Manual de usuario

The TE-500, 5-port Ethernet hub is a quick and easy solution

for connecting your workstations to a network. This walkman-

sized hub is ideal for small department or office, and can be

easily attached to larger networks by cascading to other hubs.

Compact and lightweight, TE-500 can be placed on top of any

flat surface. For troubleshooting, TE-500 is equipped with

LED indicators for power, collision, and link/receive status.

TE-500

5-Port 10Base-T Ethernet Hub

Compliant with IEEE 802.3 10Base-T Ethernet standards

5 UTP/STP ports

Auto-partitioning function to isolate network failure

A convenient MDI-X/MDI switch on 5th port for easy hub

cascading

Colored LED indicators (Power/Collision, and

Link/Activity/Partition)

AC adapter included

10Mbps transfer rate

5 Year Warranty

FEATURES

TE-500 (11-17-2002)

TRENDnet

TRENDware, USA

What's Next in Networking

SPECIFICATIONS

PRODUCT INFORMATION

To Order Please Call:

1-888-326-6061

TE-500: 5-Port 10Base-T Hub

AD-0730: 120V AC power adapter for TE-500

AD-0730B: 230V AC power adapter for TE-500

TE-800: 8 RJ45 ports Ethernet hub

TE-900: 10Base-T Ethernet Hub with 9 UTP

Ports

TE-910: 10Base-T Ethernet Hub with 8 UTP

and 1 BNC Ports

TE-910plus: 8 RJ45 ports + 1 BNC Ethernet

hub

TE-1710: 16 RJ45 ports + 1 BNC Ethernet hub

ORDERING INFORMATIONORDERING INFORMATION

TRENDnet

TRENDware, USA

TE-500

5-Port 10Base-T Ethernet Hub

TE-500

5-Port 10Base-T Ethernet Hub

Standards:

• IEEE 802.3 10Base-T

Media Supported:

• RJ-45

Weight:

• 0.353 lbs. (160 grams)

Dimensions:

• 4.1" x 3.5" x 1.2"

(105.4mm x 88mm x 120mm)

Emission Compliance:

• FCC Part 15 Class B

• EN 55022 Class B

• CISPR-22 Class B

Immunity Compliance:

• IEC 801-2 (Electrostatic Discharge)

• IEC 801-3 (Radiated Immunity)

• IEC 801-4 (Electrical Fast Transient/Burst)

Power Consumption:

• 300mA at 5V

Operating Temperature:

• 0° to 55° C

Operating Humidity:

• 10% to 90% non-condensing

TRENDnet is a registered treademark of TRENDware International, Inc. Other Brands and product names are trademarks of their respective holders. Information provided in this

document pertain to TRENDware products and is subject to change at any time, without notice. For the most recent product information please visit

____________________

http://www.TRENDNET.com.

TRENDware International, Inc.

3135 Kashiwa Street

Torrance, CA. 90505. USA

Tel: 310-891-1100

Fax: 310-891-1111

Web:

Email: [email protected]

www.TRENDNET.com

Tabla de contenidos

Otros manuales de Cambiar de TRENDnet

TRENDnet

TRENDnet TEG-2248WS - Gigabit Web Smart Switch Manual de usuario

TRENDnet

TRENDnet TEG-S81g Manual de usuario

TRENDnet

TRENDnet TPE-224WS - Web Smart PoE Switch Manual de usuario

TRENDnet

TRENDnet TK-801R Manual de usuario

TRENDnet

TRENDnet TE100-S24V Manual de usuario

TRENDnet

TRENDnet TU2-NU4 Manual de usuario

TRENDnet

TRENDnet TE100-S55E Manual de usuario

TRENDnet

TRENDnet TPE-224WS - Web Smart PoE Switch Manual de usuario

TRENDnet

TRENDnet TK-804R Manual de usuario

TRENDnet

TRENDnet TK-802R Manual de usuario

TRENDnet

TRENDnet TE100-S810Fi - Switch Manual de usuario

TRENDnet

TRENDnet TPE-TG44G Manual de usuario

TRENDnet

TRENDnet TK-200K Manual

TRENDnet

TRENDnet TEG-S18TX Manual de usuario

TRENDnet

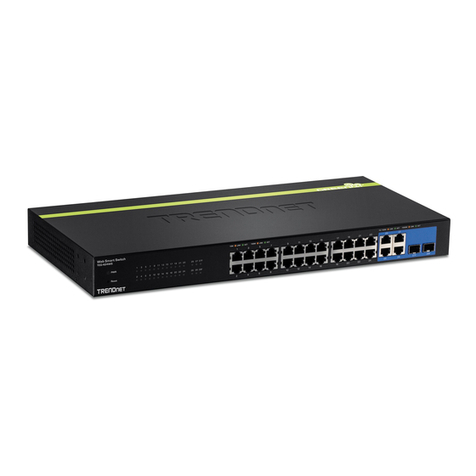

TRENDnet TEG-424WS Manual de usuario
