TRENDnet TE100-S8 Manual

TE100-S8

Quick Installation Guide

Standards

IEEE 802.3 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3x Full-Duplex Flow Control

Protocol CSMA/CD

Data Transfer Rates

Ethernet: 10Mbps (Half-Duplex),

20Mbps (Full-Duplex)

Fast Ethernet: 100Mbps (Half-Duplex),

200Mbps (Full-Duplex)

Network Cables Ethernet: UTP/STP CAT-3, 4, 5

Fast Ethernet: UTP/STP CAT-5, 5E , 6

Number of Ports 8 x 10/100Mbps Auto-negotiation,

Auto-MDIX ports

General

Topology Star

Technical Specifications

Transmission Method Store-and-Forward

MAC Address Table 10Mbps Ethernet: 14,880pps (packet per second)

100Mbps Fast Ethernet: 148,800pps

MAC Address Learning

Switch Fabric

Filtering Address Table

Automatic update

1.8Gbps Forwarding Capacity

1K entries per device

Performance

DC inputs Switching Power 5VDC, 800mA or Linear

Power 9VDC, 800mA

Temperature Operating: 0 ~ 50 C° °

Dimensions (L x W x H) mm154 x 110 x 33

Weight 225g

Physical and Environmental

Humidity

Certification

Operating: 10% ~ 90%, Storage:5% ~ 90%

FCC, CE

Power Consumption 2.8Watt. (Max.)

Troubleshooting

Q1:

A1:

Q2:

A2:

Q3:

A3:

Q4:

A4:

After connecting the Switch to a power outlet, the LEDs do not turn on.

Check the connection of the external power adapter to the

When I connect a computer to the Switch's port, the LINK/ACT LED turns on,

but the 100Mbps LED remains off.

When the 100Mbps LED remains off, the computer's connection speed is

After I connect my PCs to the Switch, I am unable to share files.

First, check the LEDs on the Switch. Make sure the LINK/ACT LED is on.

The Switch was not designed to share Internet between multiple computers.

You need to get an Internet router, such as the TW100-S4W1CA.

TE100-S8 and the

power outlet. Also check that the power outlet is receiving power.

10Mbps.

Second, check the network cable. The minimum length of the cable is 1.5 meters

and the maximum length of the cable is 100 meters. Third, disable any software

firewall program. Fourth, verify that you have file sharing enabled. Please contact

your operating system support for more information.

After I connect my PCs to the Switch, I can only get onto the Internet from one

computer.

If you still encounter problems or have any questions regarding the TE100-S8 please

contact Trendnet's Technical Support Department.

Limited Warranty

- 5 Years Warranty

TRENDnet warrants its products against defects in material and workmanship, under

normal use and service, for the following lengths of time from the date of purchase.

TE100-S8

If a product does not operate as warranted above during the applicable warranty period,

TRENDnet shall, at its option and expense, repair the defective product or deliver to

customer an equivalent product to replace the defective item. All products that are

replaced will become the property of TRENDnet. Replacement products may be new or

reconditioned.

TRENDnet shall not be responsible for any software, firmware, information, or memory

data of customer contained in, stored on, or integrated with any products returned to

TRENDnet pursuant to any warranty.

There are no user serviceable parts inside the product. Do not remove or attempt to

service the product through any unauthorized service center. This warranty is voided if

(i) the product has been modified or repaired by any unauthorized service center, (ii) the

product was subject to accident, abuse, or improper use (iii) the product was subject to

conditions more severe than those specified in the manual.

Warranty service may be obtained by contacting TRENDnet office within the applicable

warranty period for a Return Material Authorization (RMA) number, accompanied by a

copy of the dated proof of the purchase. Products returned to TRENDnet must be pre-

authorized by TRENDnet with RMA number marked on the outside of the package, and

sent prepaid, insured and packaged appropriately for safe shipment.

WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE

AS WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT

TRENDNET’S OPTION, REPAIR OR REPLACEMENT. THE FOREGOING

WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER

WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF

LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. TRENDNET

NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT

ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION,

MAINTENANCE OR USE OF TRENDNET’S PRODUCTS.

TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND

EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES

NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S

MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED

ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE

RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER

HAZARD.

LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET

ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER

BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL,

CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND,

OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF

INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN

CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE,

PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH

DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND

OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF

LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED

HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.

Governing Law: This Limited Warranty shall be governed by the laws of the state of

California.

Note: AC/DC Power Adapter, Cooling Fan, and Power Supply carry 1-Year Warranty

Certifications

This equipment has been tested and found to comply with FCC and CE Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received. Including interference that may

cause undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV

INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO

OPERATE THE EQUIPMENT.

Waste electrical and electronic products must not

be disposed of with household waste. Please

recycle where facilities exist. Check with you Local

Authority or Retailer for recycling advice.

ADVERTENCIA

En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de

alimentacón necesario para su funcionamiento. El uso de un adaptador distinto al

mencionado puede producir daños fisicos y/o daños al equipo conectado. El adaptador

de alimentación debe operar con voltaje y frecuencia de la energia electrica domiciliaria

existente en el pais o zona de instalación.

Otros manuales para TE100-S8

Tabla de contenidos

Otros manuales de Cambiar de TRENDnet

TRENDnet

TRENDnet TEG-S8 - Gigabit Switch Manual de usuario

TRENDnet

TRENDnet TK-209K Manual de usuario

TRENDnet

TRENDnet TEG-S224TXA - 26PORT Gigabit Copper Switch 24-10/100... Manual de usuario

TRENDnet

TRENDnet THA?101 Manual de usuario

TRENDnet

TRENDnet TU-700 Manual de usuario

TRENDnet

TRENDnet TE100-S5 Manual de usuario

TRENDnet

TRENDnet TE100-DX16Rplus Manual de usuario

TRENDnet

TRENDnet TU2-NU4 Manual de usuario

TRENDnet

TRENDnet TEG-S80g - Switch Manual de usuario

TRENDnet

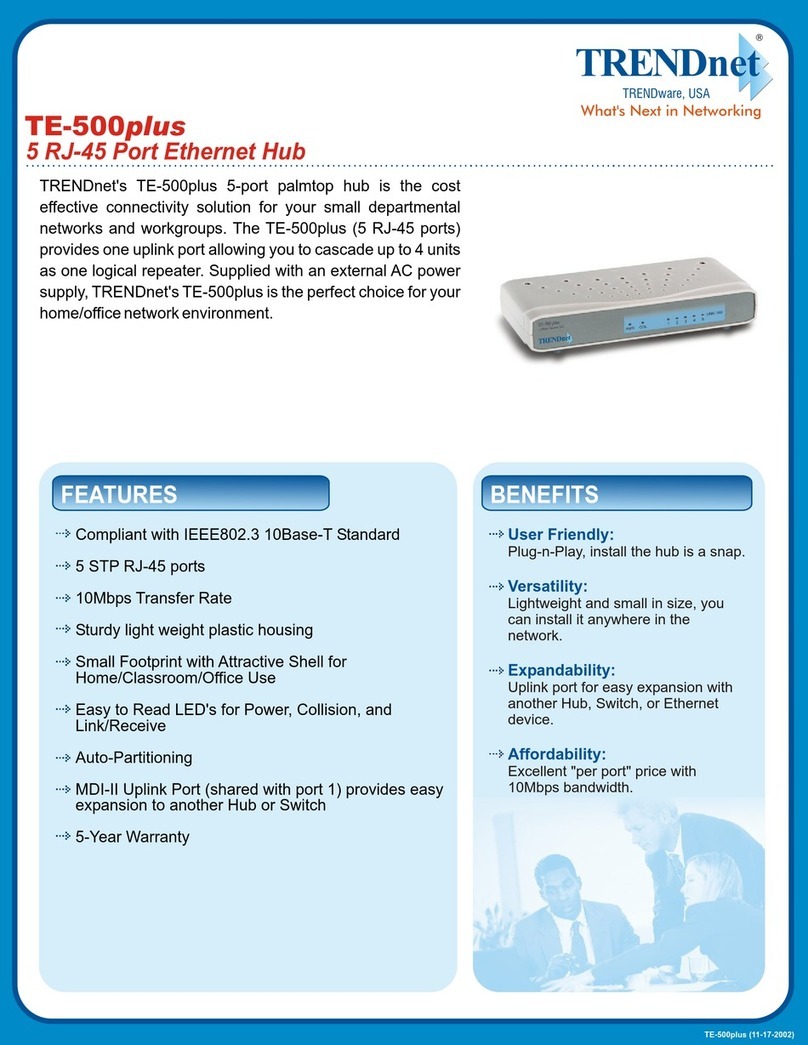

TRENDnet TE-500plus Manual de usuario

TRENDnet

TRENDnet TE100-SK1plus Manual del propietario

TRENDnet

TRENDnet TK-408K Manual de usuario

TRENDnet

TRENDnet TE100-DX4PCI Manual de usuario

TRENDnet

TRENDnet TI-PG541i Manual de usuario

TRENDnet

TRENDnet TEG-S50TXE SHEETS Manual de usuario

TRENDnet

TRENDnet TE100-S1212 Manual de usuario

TRENDnet

TRENDnet TI-PG162 Manual de usuario

TRENDnet

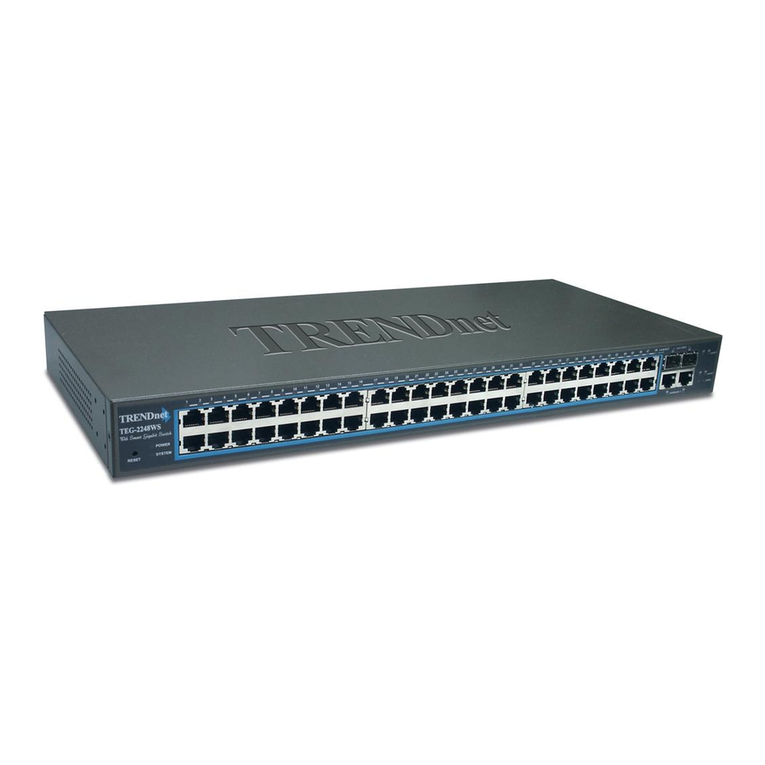

TRENDnet TEG-2248WS - Gigabit Web Smart Switch Manual de usuario
