TRENDnet TV?IP450PI Manual de usuario

TV-IP450PI

ŸOutdoor 1.3 MP HD PoE IR Speed Dome Network Camera

ŸQuick Installation Guide (1)

TV-IP450PI (V1) /06.03.2014

1. Before You Start

Package Contents

Minimum Requirements

Free Management Software: TRENDnetVIEW Pro Requirements

Supported Operating Systems

Android (version 2.3 or above)

iOS (version 6.1 or above)

Free Mobile App: TRENDnetVIEW Pro Requirements

ŸTV-IP450PI

ŸCD-ROM (Utility and User's Guide)

ŸProprietary PoE Injector

ŸMulti-Language Quick Installation Guide

ŸTV-HC400, TV-HW400, TV-HP400, or TV-HN400 mounting bracket (sold separately)

ŸA computer with an Ethernet port and web browser

ŸCD-ROM Drive

ŸWired Network

ŸNetwork cable

Supported Operating Systems 1-8 Cameras

CPU CPU

9-32 Cameras

Memory Memory

Windows 8.1 (32/64-bit) /

Windows 8 (32/64-bit) /

Windows 7 (32/64-bit) /

Windows Vista (32/64-bit) /

Windows XP (32/64-bit) /

Windows Server 2012 (32/64-bit) /

Windows Server 2008 (32/64-bit) /

Windows Server 2003 (32/64-bit)

2GHz 2GHz

2GB RAM

or above

4GB RAM

or above

2. Hardware Installation and Configuration

1. Do not install or mount the IP camera until you complete the installation steps below. Next to

your computer, temporarily place the IP camera in the provided protective foam insert with the

dome facing up.

2. Connect a network cable from your computer to a LAN port on your network.

3. Insert the Utility CD-ROM into your CD-ROM drive.

4. Select language from the drop down menu.

5. Click Install Camera.

6. Write down the MAC address of your camera. Then click Next.

Note: To download the latest version of the Setup Wizard utility, please go to

http://www.trendnet.com/support and select the TV-IP450PI within the Products Download

dropdown list.

7. Connect a network cable from your network switch to the included power injector's DATA/IN

port. Connect another cable from your camera to the power injector's PoE/DATA port. The

camera will begin the self checking sequencing. Allow 60 seconds for the camera to complete

calibration. Then click Next.

Note: The TV-IP450PI must be powered with the included proprietary PoE injector.

8. Select your camera. Click Next and follow the instructions.

9. Enter a new password, confirm the new password and then click Next.

10. Initial Setup is complete! Your camera is now connected to your network. Click the hyperlink

to confirm access to the management page. This will open up a web browser. You will need to

download and install a plug-in to view video. Please refer to the Install Web Browser Plug-in

for Camera Management Interface section for instructions. To resume installation, minimize

the web browser and then click Next.

11. Congratulations! Your camera is now ready to be installed in its final location. Scan the QR

code to download a free mobile app to view the camera from your mobile device. Click Finish

to exit the Setup Wizard.

Note

ŸSee User's Guide for advanced management functions.

ŸTwo User's Guides are included – one for the camera and one for TRENDnetVIEW Pro

software.

ŸWhen viewing live video rom a web browser you will be prompted to install plug-ins for full

functionality.

ŸIt is recommended that you setup a dynamic DNS service in order to view your cameras

remotely. See your router's manual and the camera product how-tos for instructions.

13. Install the camera in your desired location. For mounting instructions, please refer to the

mounting installation guide.

12. To manage and record multiple cameras, please install the TRENDnetVIEW Pro software.

Install the software by clicking Install TRENDnetVIEW Pro in the Setup Wizard window. For

detailed instructions on software setup please refer to the TRENDnetVIEW Pro User's Guide

on the bundled CD-ROM.

Install Web Browser Plug-in for Camera Management Interface

Windows

1. Access the camera management interface.

2. Enter your username and password. Then press Enter.

3. Click on the link to download the plug-in.

4. When prompted to, click Run.

5. Click Next.

6. Click Finish.

8. Refresh your browser to view the video.

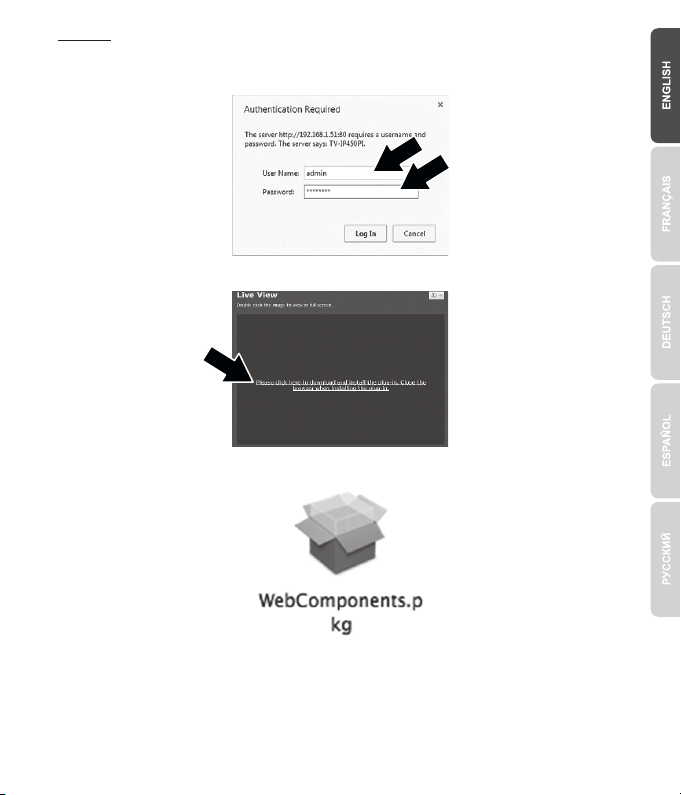

Mac OS X

1. Access the camera management interface.

2. Enter your username and password. Then press Enter.

3. Click on the link to download the plug-in.

4. Double click on the WebComponents.pkg file.

6. Click Install.

7. Click Continue.5. Click Continue.

9. Click Close.

8. Enter your computer's Username and

Password. Then click Install Software.
