TRENDnet TV-IP300 Manual de usuario

TABLE OF CONTENTS

ABOUT THIS GUIDE ...................................................4

INTRODUCTION............................................................5

FEATURES AND BENEFITS ..................................................6

UNPACKING THE PACKAGE................................................9

SYSTEM REQUIREMENT ...................................................10

PHYSICAL DESCRIPTION ..................................................11

HARDWARE INSTALLATION ................................17

TTACHING THE

AMERA TO THE

TAND

........................17

CONNECTING THE ETHERNET CABLE ...............................18

ATTACHING THE POWER SUPPLY.....................................18

REPLACE THE LENS ASSEMBLY .......................................19

SECURITY......................................................................20

APPLICATION OF THE CAMERA ......................21

APPLICATIONS .................................................................22

USING THE CAMERA ...............................................25

WEB CONFIGURATION UTILITY .......................................25

CLIENT SETTINGS ............................................................27

SYSTEM ADMINISTRATION...............................................28

CONTROLLING I/O OUTPUT TRIGGER ..............................50

IPVIEW SP.....................................................................51

AUTO-RUN INSTALLATION ..............................................51

INSTALLING IPVIEW SP MANUALLY ...............................53

UNINSTALLING IPVIEW SP..............................................58

IPVIEW SP –GETTING STARTED .....................................61

USING IPVIEW SP............................................................65

APPENDIX .....................................................................72

AIP UTILITY...............................................................72

BFREQUENTLY ASKED QUESTIONS ............................74

CPING YOUR IP ADDRESS ........................................76

DTROUBLESHOOTING.................................................77

ETIME ZONE TABLE...............................................81

FADJUSTING CAMERA FOCUS....................................83

GSPECIFICATION.........................................................85

HGLOSSARY OF TERMS ..............................................88

ABOUT THIS GUIDE

This manual provides instructions and illustrations on how to use

your Advanced Day/Night Internet Camera Server, includes:

zChapter 1, Introduction, provides the general information

on the camera.

zChapter 2, Hardware Installation, describes the hardware

installation procedure for the camera.

zChapter 3, Security, explains the security feature of the

camera.

zChapter 4, Application of the Camera, provides the

illustrations of the camera’s applications.

zChapter 5, Using the Camera, guides you through the

configuration using the web browser.

zChapter 6, IPView SP, helps you to install and use the

software.

zChapter 7, Appendix.

Please note that the illustrations or setting values in this manual

are FOR YOUR REFERENCE ONLY. The actual settings and

values depend on your system and network. If you are not sure

about the respective information, please ask your network

administrator or MIS staff for help.

INTRODUCTION

Thank you for purchasing the Advanced Day/Night Internet

Camera Server, a standalone system that can be connected

directly to an Ethernet or Fast Ethernet. With support for latest

MPEG4 technology, you can record streaming video that utilizes

high quality MPEG-4 images to your hard drive, enable motion

detection and setup automated email alerts for security. The

built-in microphone provides you with the audio function,

allowing you to “watch” and “listen” from the camera.

Compared to the conventional PC Camera, the camera features a

built-in CPU and web-based solutions that can provide a cost-

effective solution to transmit the real-time high-quality video

images and sounds synchronously for monitoring.

The camera can be managed remotely, so that you can use a web

browser to access and control it from any notebook/desktop PC

over the Intranet or Internet. The simple installation procedures

and web-based interface allow you to integrate it into your

network easily. With comprehensive applications supported, the

Internet camera is your best solution for remote monitor, high

quality, and high performance video images.

Features and Benefits

Simple To Use

The Advanced Day/Night Internet Camera Server is a

standalone system with built-in CPU, no special hardware (such

as a PC frame capture card) or software required. The camera

supports DirectX 9.0; therefore, the only requirement you need is

the web browser software such as Internet Explorer 5.0 or above.

Once you have a valid IP Address, just connect it and you can

view the picture and receive sound from your camera.

Support Variety of Platforms

Supporting TCP/IP networking, SMTP e-mail, HTTP and other

Internet related protocols, the camera can be utilized in a mixed

operating system environment, such as Windows. It can be

integrated easily into other www/Intranet applications.

Web Configuration

Using a standard web browser, the administrator can configure

and manage the camera directly from his own web page via the

Intranet or Internet. Up to 10 users name and password are

permitted with privilege setting controlled by the administrator.

Remote Utility

The powerful IPView SP application assigns the administrator

with a pre-defined user ID and password, allowing the

administrator to modify the camera’s settings from the remote site

via Intranet or Internet. When new firmware is available, you can

also upgrade remotely over the network for added convenience.

Users are also allowed to monitor the image and take snapshots.

Connection to External Devices

Supporting auxiliary Input/Output Connector, you can connect

the camera to a variety of external devices, such as IR-sensors,

switches and alarm relays. One can combine with programmable

alarming facilities to develop a variety of security applications

that are triggered on alarm-based events. The camera provides

one input/output connector to connect external devices.

Broad Range of Applications

With today’s high-speed Internet services, the camera can provide

the ideal solution for live video images and audio sounds over the

Intranet and Internet. The camera allows remote access from a

web browser for live image viewing, so that you can use it to

monitor various objects and places anytime and anywhere, such

as homes, offices, banks, hospitals, child-care centers, amusement

parks and other varieties of industrial and public monitoring. The

camera can be used for intruder detection; in addition, it can

capture still images for archiving and many other applications.

RS-485 Support

The pin 5 & 6 of the I/O connectors are used for RS-485 data

transmission. You can connect a special featured device (such as

an external camera stand with rotation function) to meet you

needs. When the external device is connected, you could

configure the settings and control the device from the RS485 Port

window of Web Configuration Utility.

Day & Night Feature

The camera is equipped with a high-resolution CCD lens,

including 12 infrared LEDs, to provide crystal clear images in

real time, even at night. In a dark low light situation, the camera

switches to deliver black & white images using its infrared LEDs,

making it the best choice for your outdoor application.

Unpacking the Package

Unpack the package and check all the items carefully. In addition

to this User’s Guide, be certain that you have:

One Advanced Day/Night Internet Camera Server or

Wireless Advanced Day/Night Internet Camera Server.

One Installation CD-ROM.

One Quick Installation Guide.

One AC power adapter suitable for your country’s electric

power.

One Camera Stand.

If any item contained is damaged or missing, please contact your

local dealer immediately. Also, keep the box and packing

materials in case you need to ship the unit in the future.

System Requirement

Networking

Local Area Network:

10Base-T Ethernet or 100Base-TX Fast Ethernet.

Accessing the Camera

For Web Browser Users

Operating System: Microsoft® Windows® 98SE/ME/

2000/XP

CPU: Intel Pentium III 350MHz or above

Memory Size: 128MB

Resolution: 800x600 or above

Microsoft® Internet Explorer 5.0 or above

For IPView SP Application Users

Operating System: Microsoft® Windows® 98SE/ME/

2000/XP.

CPU: Intel Pentium III 650MHz or above

Memory Size: 256MB

Resolution: 800x600 or above

NOTE: When you connect multiple cameras and monitor their

images synchronously, it is recommended to use a high

performance system, such as a Pentium 4 2.4GHz PC.

Physical Description

This section describes the externally visible features of the

camera.

Front Panel

1. Link LED

The Link LED is positioned on the right side of the camera’s lens

while facing the camera.

A steady Red light confirms that the camera has good connection

to LAN connectivity.

Dependent on the data traffic, the LED will begin to flash to

indicate the camera is receiving/sending data from/to the LAN or

network.

②Power LED

①Link LED

③Internal MIC

④Lens Assembly

2. Power LED

The Power LED is positioned on the far right side of the camera’s

lens while facing the camera. It is located on the right of the Link

LED.

A steady Blue light confirms that the camera is powered on.

NOTE: There are two settings for the Link/Power LED to

control the light illumination for monitoring purpose from

Normal/OFF. Please refer to the Web Configuration section for

detailed information and usage.

3. Internal MIC

The built-in omni-directional microphone allows the camera to

receive sound and voice.

4. Lens Assembly

The camera is equipped with a wide-angle lens with rotational

focus control, and provides an infrared function that allows your

camera to capture clear image in a dark environment. The lens

assembly of the camera can be removed and replaced with any

standard CS-mount lens. Inside the lens assembly is a CCD chip,

which is used to capture images. Please note that the lens

assembly and the CCD chip are very sensitive to dirt and dust.

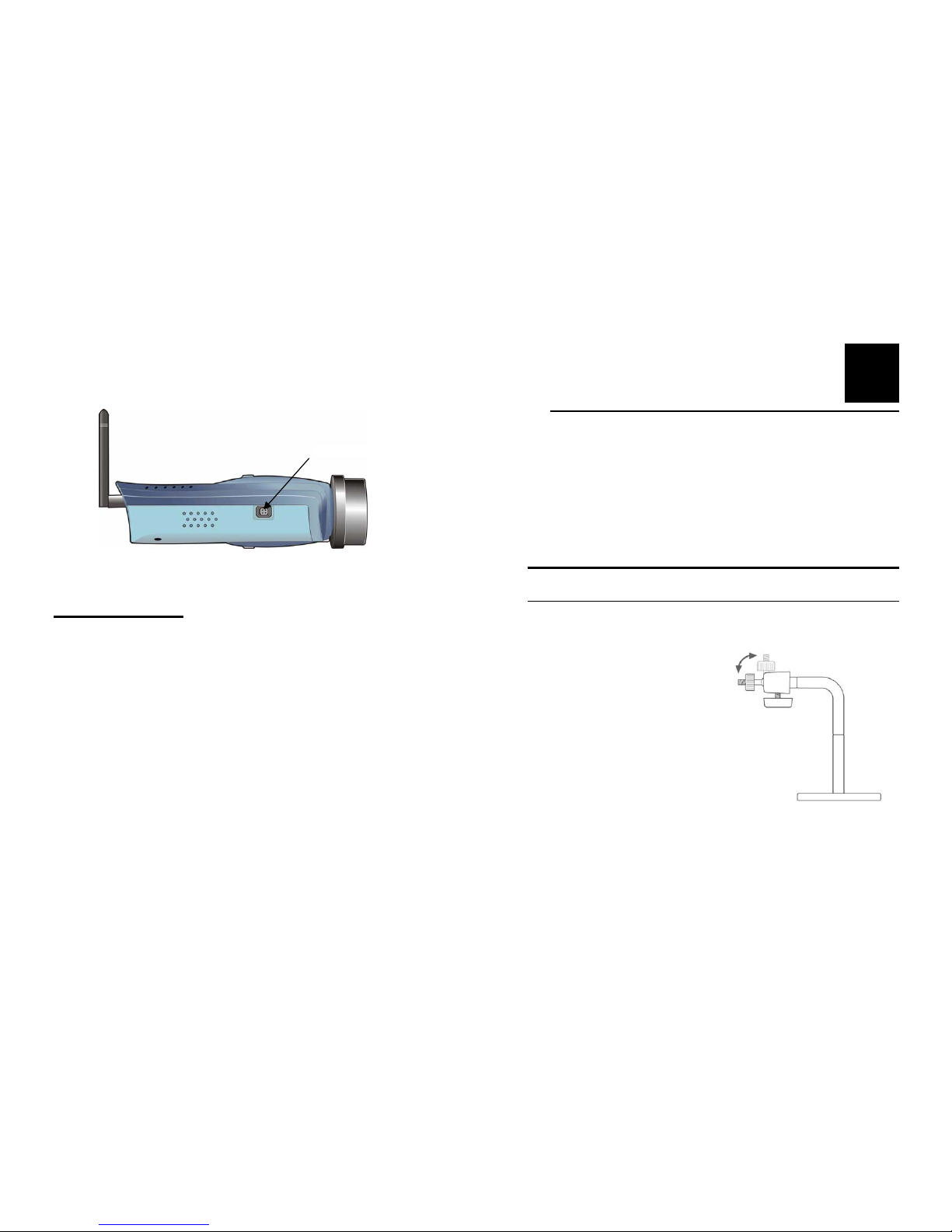

Rear Panel

1. External Antenna (for wireless model)

The adjustable external antenna allows you to adjust its position

to obtain the maximum signal.

2. Reset Button

This button is used to reload the default settings of the device:

1. Press and hold the Reset button and disconnect the AC

adapter.

2. Keep the button being pressed and re-connect the AC adapter.

3. Wait for 5 seconds.

4. Release the button to reload the default settings.

①External Antenna

(for wireless model)

③Network Cable

Connector

②Reset Button

⑦DC Power Connector

④I/O Connector

⑤Iris Level

⑥DIP Switch

3. Network Cable Connector

The camera’s rear panel features an RJ-45 connector for

connections to 10Base-T Ethernet cabling or 100Base-TX Fast

Ethernet cabling (which should be Category 5 twisted-pair cable).

4. I/O Connector

The camera provides the I/O connectors on the rear panel (pin 1/2

are for input, pin 3/4 are for output, pin 5/6 are for

RS-485), which provide the physical interface to send and receive

digital signals to a variety of external alarm devices.

5. Iris Level

This screw-knob is useful only when the DC-Iris lens is

connected to the camera. You can adjust the brightness of the

video images from the DC-Iris lens.

6. DIP Switch

AES/AI switch: When used the Auto Iris Lens, please

switch to AI position else should switch to AES position.

Flickless/Off: If the power frequency you used (in NTSC

area) is 50Hz, please switch to the Flickless position.

(Flicker Reduction)

7. DC Power Connector

The DC power input connector is located on the camera’s rear

panel, and is labeled DC 12V with a single jack socket to supply

power to the camera. Power will be generated when the power

supply is connected to a wall outlet.

Top/Bottom Panel

Top Panel

Bottom Panel

Screw Hole

Located on the top/bottom panel of the camera, the screw hole is

used to connect the camera stand onto the camera by attaching the

screw head on the camera stand into the screw hole of the camera.

Screw Hole

Side Panel

DC-Iris Connector

The camera supports additional DC-Iris lens, and provides the

power and control signal required for adjusting the lens through

this DC-Iris connector (4-pin). You can attach any standard DC-

Iris lens for specific purpose, such outdoor applications.

DC-Iris Connector

HARDWARE

INSTALLATION

Attaching the Camera to the Stand

The camera comes with a

camera stand (optional), which

has a swivel ball screw head that

can be attached to the camera 's

screw hole on the up (or bottom)

panel. Attach the camera to the

stand and station it for your

application. There are three

holes located in the base of the

camera stand, allowing the

camera to be mounted on the

ceiling or any wall securely.

Connecting the Ethernet cable

Connect an Ethernet cable to the

network cable connector located

on the camera’s rear panel, and

then attach it to the network.

Attaching the Power Supply

Attach the power supply’s plug

to the cable of the lens (n), and

then connect the cable’s plug to

the

ower connector located on

the camera’s rear panel labeled

DC 12V (o). Then, connect

the power supply to the wall

outlet (p).

TIP:

1. When you are connecting the camera, always connect the

Ethernet cable before connect the power supply.

2. You can confirm the power source is supplied from the

Power LED on the camera.

Replace the Lens Assembly

If required, you can replace the lens assembly with DC-Iris lens.

First, remove the original lens by turning it in an anti-clockwise

direction. (For detailed instructions, please refer to the section

Replacing the Lens of Appendix – Adjusting Camera Focus.)

1. Fit the additional lens onto the CS-mount ring and turn it in a

clockwise direction (n).

2. Then, plug the cable to the camera’s DC-Iris connector (o).

TIP: When you replace a DC-Iris lens, you could adjust the

brightness of the video images using the Iris Level screw-knob.

Otros manuales para TV-IP300

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara de seguridad de TRENDnet

TRENDnet

TRENDnet TV-IP400W - Wireless Advanced Pan Manual de usuario

TRENDnet

TRENDnet TV-IR500 Manual de usuario

TRENDnet

TRENDnet TV-IP110 - SecurView Internet Surveillance... Manual de usuario

TRENDnet

TRENDnet TV-IP262PI Manual de usuario

TRENDnet

TRENDnet TV-IP410 - Pan/Tilt Internet Camera Server... Manual de usuario

TRENDnet

TRENDnet TV-IP512WN - ProView Wireless N Internet Surveillance... Manual de usuario

TRENDnet

TRENDnet TV-IP1329PI Manual de usuario

TRENDnet

TRENDnet TVIP562 Manual de usuario

TRENDnet

TRENDnet TV-IP322P - V1.01 QUICK Manual de usuario

TRENDnet

TRENDnet TV-IP110 - SecurView Internet Surveillance... Manual de usuario

TRENDnet

TRENDnet SecurView TV-M7110WK Manual de usuario

TRENDnet

TRENDnet TV-IP312WN Manual de usuario

TRENDnet

TRENDnet TV-IP302PI Manual de usuario

TRENDnet

TRENDnet TV-IP612P Manual de usuario

TRENDnet

TRENDnet TV-IP751WIC Manual de usuario

TRENDnet

TRENDnet TV-H400 Manual de usuario

TRENDnet

TRENDnet TV-IP310PI Manual de usuario

TRENDnet

TRENDnet TV-IP343PI Manual de usuario

TRENDnet

TRENDnet TV-IP312PI Manual de usuario

TRENDnet

TRENDnet TV-IP512WN - ProView Wireless N Internet Surveillance... Manual de usuario

TRENDnet

TRENDnet TV-IP551WI Manual de usuario

TRENDnet

TRENDnet TV-IP410PI Manual de usuario

TRENDnet

TRENDnet TV-IP762IC Manual de usuario

TRENDnet

TRENDnet TV-IP662PI Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
