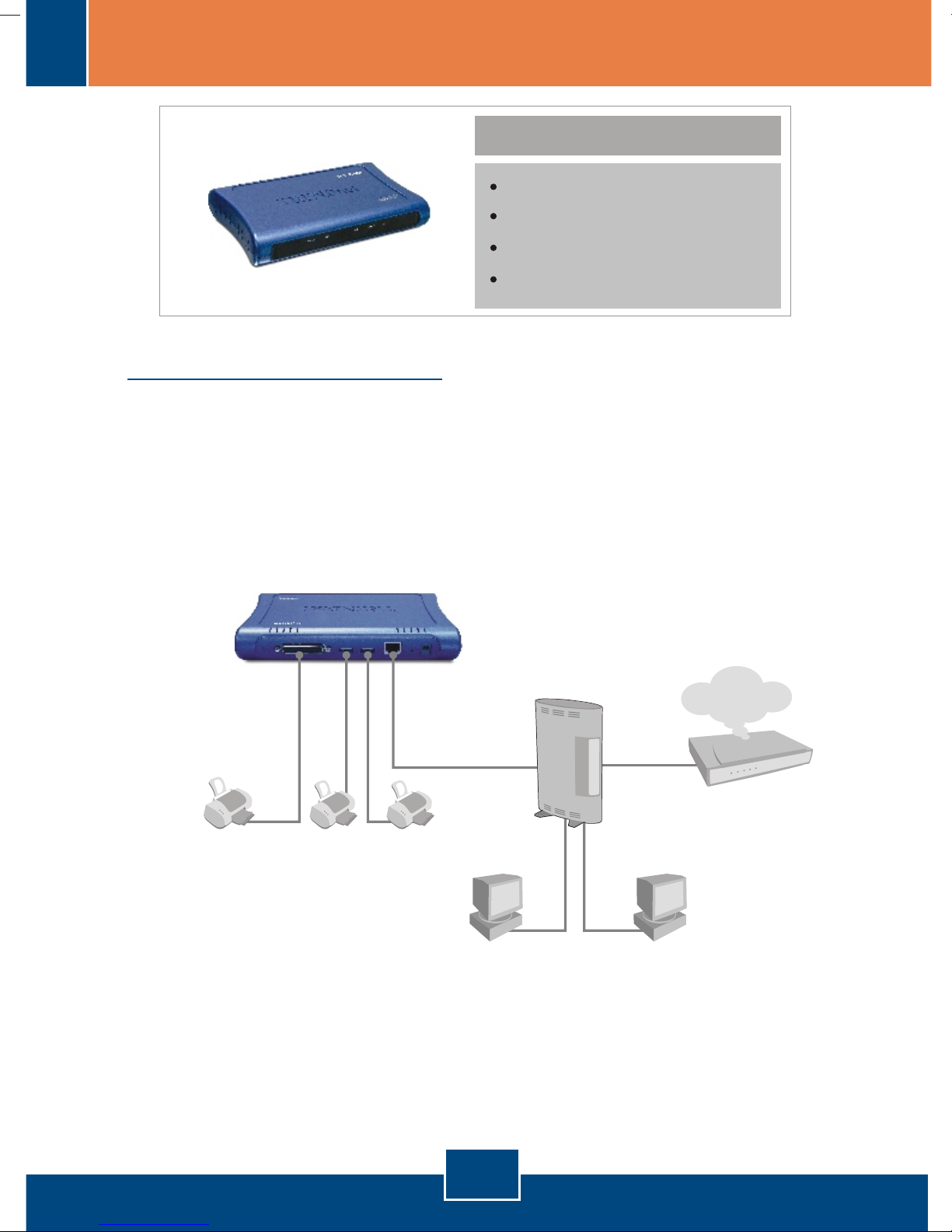

1. Before You Start
English
1
TE
Quick Installation Guide
Utility CD-ROM
Power Adapter (5V, 2.5A)
100-P21
Package Content
System Requirements
1. Pentium 100Mhz or faster processor
2. 8MB RAM or more
3. Windows, Linux, Mac OS X, or other OS
Cable/DSL Modem
10/100Mbps Multi-Port Print Server
(TE100-P21)
Workstations with Fast Ethernet adapter
(TE100-PCIWN)
USB 2.0 Printer
Parallel
Printer
Cable/DSL 4-Port Broadband Router
(TW100-S4W1CA) Internet
2. Connect the RJ45 cable to the LAN port and
to your network hub or switch.
1. Connect a Parallel or USB printer to the printer
ports.
3. Plug the AC power adapter into the Print
Server.
2. How to Connect
English
2
Note: Please power off all printers before connecting them to the print server.
Then turn on each printer after you make your hardware connections.
English
3
1. After inserting the installation CD,
click Install Utility.
2. Go through each installation step
and click Finish.
3. Using the Print Server
Note: For MAC Users, change your computer’s IP address to 192.168.0.X
(where X is an available number from 2-254), and enter 192.168.0.1 in your
web browser to access the Print Server's Web Utility.
For Windows Users
3. Double-click the PS-Utility icon.
PS-Utility
V3.00
6. Click Show Web Setup on PS-
Utility. Take note and write down
the Server Name and the Printer
Name.
5. Select Manually Assign and type
in an IP Address that matches
your current network segment.
Click OK. Another pop-up window
will appear to confirm the change.
Click OK.
4. Click Change IP Address.
English
4
English
5
Note: If you are using Windows 95/98(SE)/ME, then make sure that NETBEUI
is installed before you follow the instructions below. If you are using Windows
2000/XP, then you can simply add your printer using the instructions below. For
TCP/IP Printing instructions, please consult the User's Guide on the CD-ROM
for details.
7. Go into Control Panel and double-
click Printers and Faxes. Click
Add Printer.
8. Click Next on the Add Printer
Wizard, and select the network
printer option. Click Next.
12. Select Yes and click Next. Click
Finish to complete the
installation.
11. Select the appropriate driver for
your printer and click Next.
10. Click OK.
English
6
Note: For more detail on advanced features, please consult the User's Guide.
Your installation is now complete.
9. Select Connect to this printer
and type in the server name and
the printer name in the following
format:
\\server_name\printer_name
Click Next.
Q1.
A1.
Q2.
A2.
Q3.
A3.
Q4.
A4.
Q5.
A5.
I cannot add a network printer after I typed the server name and
printer name.
Please double check your hardware connections. Make sure that
your printer is connected properly to the print server and your power
adapter is connected properly to a power outlet.
I have double checked my hardware connections and have verified
that everything is connected properly, but I still cannot connect to my
printer after I typed in the server name and printer name.
Make sure that you are typing the correct printer name. If your USB
printer is connected to the USB2 slot, then use the Printer Name that
is by the USB2 heading in the web configuration utility. The following
examples will give you a better idea of how the print server maps
each physical port with a logical name:
LPT port = \\PS-567787\PS-567787-LP1
USB1 port = \\PS-567787\PS-567787-U1
USB2 port = \\PS-567787\PS-567787-U2
I verified that the hardware installation is correct and typed the
correct printer name, but I still cannot find the network printer.
Make sure that the server name and printer name is entered correctly.
There should be no spaces, and the back slashes that separate the
server name and printer name should be this “\\”, instead of this ”//”.
I typed in the server name and printer name correctly and
successfully installed the network printer. But I can't print a test page.
Make sure that the printer is online by turning the printer on. Make
sure the power adapter of your printer is properly connected to a
power outlet.
I successfully added a network printer to my computer, and my
printer is receiving power. I can also print a test page, but I cannot print
anything from Microsoft Word or other applications.
Make sure to set the newly installed network printer to your default
printer.
7
Troubleshooting
Q6.
A6.
Q7.
A7.
I configured my print server to automatically receive an IP Address
from a DHCP server, and now I cannot go into the print server's web
utility.
Press the Reset button at the back of the TE100-P21, hold the button
for 15 seconds, release the button, and enter http://192.168.0.1 in a
web browser to access the web utility feature.
I pressed the reset button and held it for 15 seconds. I also typed in
http://192.168.0.1 in a web browser, but I still cannot access my print
server.
Make sure to change your local IP address to 192.168.0.xxx where
xxx is an available number between 2 to 254. You can also use the
PS-Utility to locate the print server's IP address, or enable UPnP.
If you have any questions regarding the print server, please contact TRENDnet
Technical Support Department.
