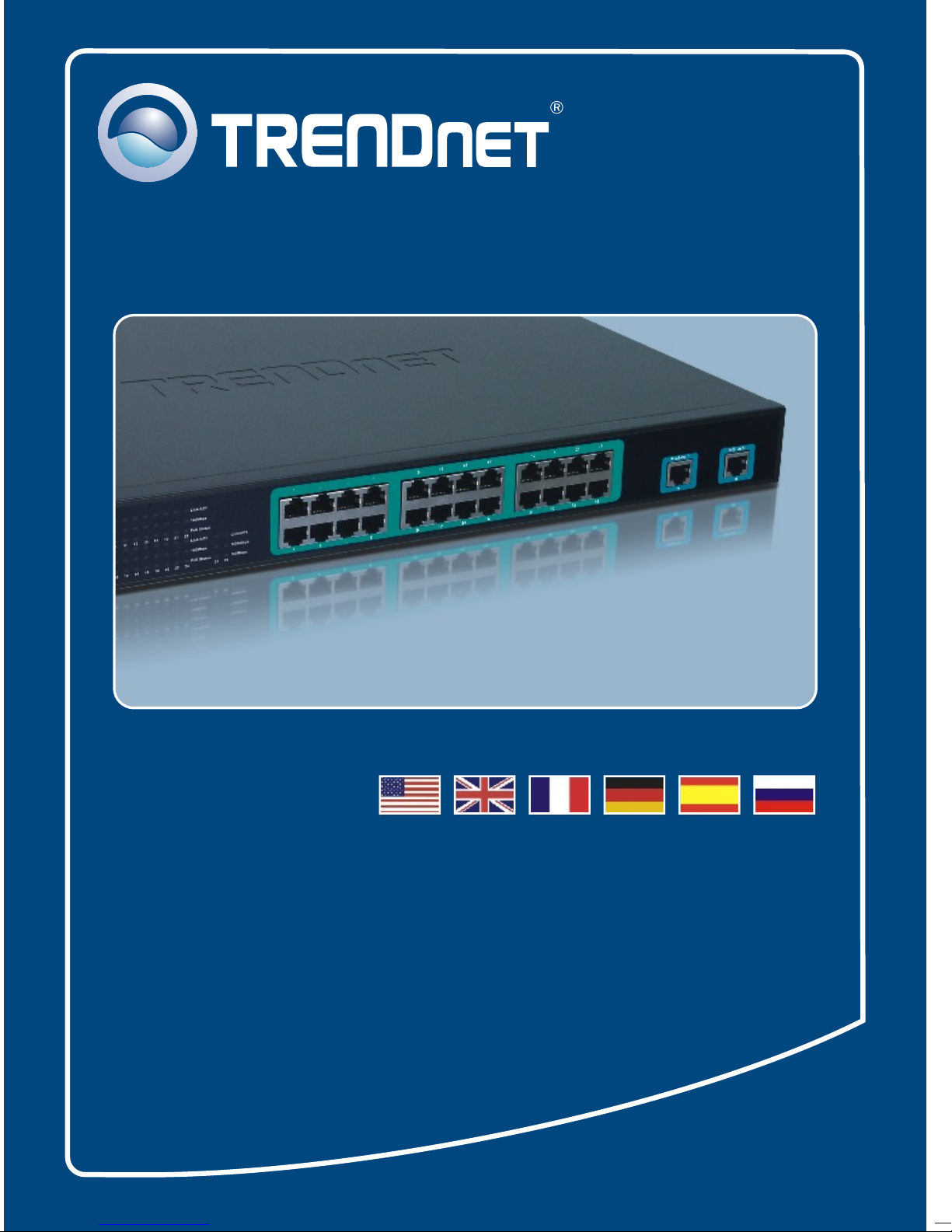

TRENDnet TPE-224WS - Web Smart PoE Switch Manual de usuario

TPE-224WS

Quick Installation Guide

Table of Contents

Español .....................................................................................................

Troubleshooting ........................................................................................

1. Antes de iniciar ..................................................................................

2. ...........................................

3. .........................................

Instalación del Hardware ........................

Herramienta de gestión Web ....................

Table of Contents

Version 03.13.2006

Español

1. Antes de iniciar

Requisitos del sistema

Aplicación

TPE-224WS

CD-ROM de la herramienta

2 abrazaderas para cable con tornillos

Cable de alimentación AC

Guía de instalación rápida

Navegador Web: Internet Explorer (5.0 ó superior) o Netscape

Navigator (6.0 ó superior)

Contenidos del paquete

PC con adaptador de red instalado

Power + Ethernet Data

26-Port 10/100/1000Mbps

Gigabit Web Smart

PoE Switch

(TPE-224WS)

Power over Ethernet

(PoE) Splitter

(TPE-102S)

108Mbps 802.11g

Hot-Spot Access Point

(TEW-453APB)

Advanced Wireless Day/Night

Internet Camera Server)

(TV-IP300W)

Advanced Wireless Pan & Tilt

Internet Camera Server

(TV-IP400W)

Power over Ethernet

(PoE) Splitter

(TPE-102S)

Power over Ethernet

(PoE) Splitter

(TPE-102S)

108Mbps 802.11g

Wireless Access Point

(TEW-450APB)

Advanced Day/Night

Internet Camera Server

(TV-IP300)

108Mbps 802.11g

Hot-Spot Access Point

(TEW-453APB)

Power over Ethernet

(PoE) Splitter

(TPE-102S)

2. Instalación del Hardware

Español

2. Conecte un cable de red CAT-5 del

PC a un puerto Ethernet disponible

del TPE-224WS.

1. Conecte el Power Cord (Cable de

alimentación) en la parte trasera

del TPE-224WS y después a la

toma corriente.

Español

Nota: Si desea descubrir con facilidad todos los Enrutadores de Gestión Web

en la red, asigne la dirección IP, cambie la contraseña, y actualice el nuevo

firmware, después instale la Web Management Utility (Herramienta de gestión

Web). Siga los pasos que aparecen a continuación.

3. Haga clic en Start (Inicio), después

en Programs (Programas), luego

en web_management_utility

(Herramienta de gestión Web) y

después haga clic en

web_management_utility

(Herramienta de gestión Web).

Para usuarios de Windows

1. Introduzca el CD-ROM del

controlador y de la herramienta

en la unidad de CD-ROM de su

PC y luego haga clic en Install

Utility (Instalar herramienta).

2. Siga las instrucciones del

Installation Wizard (Asistente de

instalación). Haga click OK.

3. Herramienta de gestión Web

Español

4. Haga clic en Discovery

(Descubrir) y después haga doble

clic en el Switch (Enrutador) que

aparece en la “Discovery List”.

5. Haga clic en el Switch

(conmutador) que aparece en la

Monitor List y después haga clic

en Configuration setting.

6. Establezca la configuración de la

IP Address (Dirección IP), Subnet

mask (Máscara de subred),

Gateway y Password

(Contraseña). Haga clic en Set

(Establecer).

Español

7. OK.Haga clic en

8. Haga clic en Web access (Acceso

Web).

9. Escriba su Password

(Contraseña) y después haga clic

en Login (Iniciar).

Para obtener información más detallada sobre la configuración así como de las

configuraciones avanzadas del TPE-224WS , por favor consulte la sección de

resolución de problemas, el CD-ROM de la Guía del Usuario, o el sitio Web de

Trendnet en http://www.trendnet.com.

Q1:

A1:

Q2:

A2:

Q3:

A3:

Q4:

A4:

Q5:

A5:

After connecting the TPE-224WS to a power outlet, the LEDs do not turn on.

Check the connection of the power cord to the TPE-224WS and the power outlet. Also

check that the power outlet is receiving power.

After installing the Web-Management Utility, I clicked Discovery and the Utility is unable to

discover the TPE-224WS. What should I do?

Make sure that the TPE-224WS is powered on and that all connections are secure. Also

check that your computer's IP Address is on the same network segment as the TPE-224WS.

The default IP Address of the TPE-224WS is and the default password is

"admin".

When I access the TPE-224WS using a web browser, I get a screen that tells me “only one

user can login”. What should I do?

Another computer is configuring the TPE-224WS. Please wait until the user logs off. If the

other user has already logged off and you still get the same screen, then disconnect the power

cord from the TPE-224WS, wait for 5 seconds, reconnect the power cord to the TPE-224WS,

allow 5 seconds for the switch to power on, and then attempt to access the web configuration

page to login.

When I connect a computer to the switch's port, the LINK/ACT LED turns on, but the

100Mbps LED remains off.

When the 100Mbps LED remains off, the computer's connection speed is 10Mbps.

I connected a Power-over-Ethernet (PoE) device into the switch's PoE port, but the PoE

Status LED remains off.

Check the connections between the PoE port and the PoE device. Make sure that the

CAT-5 cable is properly inserted into the PoE port and PoE device.

If you still encounter problems or have any questions regarding the TPE-224WS, please refer to the

User's Guide included on the Utility CD-ROM or contact Trendnet's Technical Support Department.

http://192.168.0.1

Certifications

This equipment has been tested and found to comply with FCC and CE Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received. Including interference that may cause

undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE

CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS

COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

Troubleshooting

Waste electrical and electronic products must not

be disposed of with household waste. Please

recycle where facilities exist. Check with you Local

Authority or Retailer for recycling advice.

Limited Warranty

- 5-Year Warranty

TRENDnet warrants its products against defects in material and workmanship, under

normal use and service, for the following lengths of time from the date of purchase.

TPE-224WS

If a product does not operate as warranted above during the applicable warranty period,

TRENDnet shall, at its option and expense, repair the defective product or deliver to

customer an equivalent product to replace the defective item. All products that are

replaced will become the property of TRENDnet. Replacement products may be new or

reconditioned.

TRENDnet shall not be responsible for any software, firmware, information, or memory

data of customer contained in, stored on, or integrated with any products returned to

TRENDnet pursuant to any warranty.

There are no user serviceable parts inside the product. Do not remove or attempt to

service the product through any unauthorized service center. This warranty is voided if

(i) the product has been modified or repaired by any unauthorized service center, (ii) the

product was subject to accident, abuse, or improper use (iii) the product was subject to

conditions more severe than those specified in the manual.

Warranty service may be obtained by contacting TRENDnet office within the applicable

warranty period for a Return Material Authorization (RMA) number, accompanied by a

copy of the dated proof of the purchase. Products returned to TRENDnet must be pre-

authorized by TRENDnet with RMA number marked on the outside of the package, and

sent prepaid, insured and packaged appropriately for safe shipment.

WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE

AS WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT

TRENDNET’S OPTION, REPAIR OR REPLACEMENT. THE FOREGOING

WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER

WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF

LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. TRENDNET

NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT

ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION,

MAINTENANCE OR USE OF TRENDNET’S PRODUCTS.

TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND

EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES

NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S

MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED

ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE

RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER

HAZARD.

LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET

ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER

BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL,

CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND,

OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF

INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN

CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE,

PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH

DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND

OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF

LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED

HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.

Governing Law: This Limited Warranty shall be governed by the laws of the state of

California.

Note: AC/DC Power Adapter, Cooling Fan, and Power Supply carry 1-Year Warranty
