TRENDnet TEG-160WS Manual de usuario
Quick Installation Guide
TEG-160WS
TEG-240WS
H/W: C1
Table of Contents
English ......................................................................................................
Troubleshooting ........................................................................................
1
1
3
2
6
1. Before You Start
2. Hardware Installation ........................................................................
3. Web Management Utility ....................................................................
................................................................................
Table of Contents
Version 07.29.2008

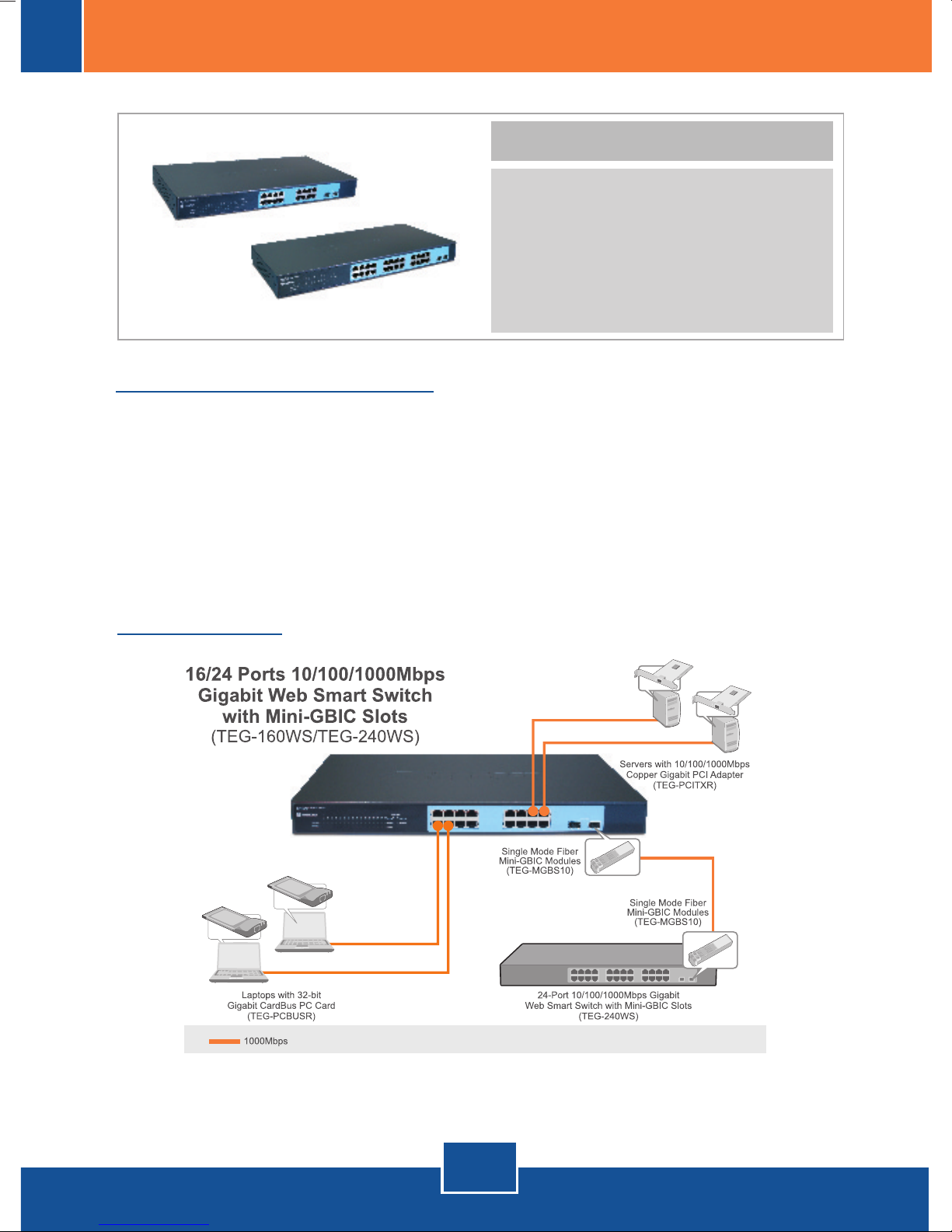

System Requirements
Application
?TEG-160WS/TEG-240WS
?Quick Installation Guide
?Utility & User Guide CD-ROM
?2 Mounting Brackets with Screws
?Power Cord
?Web Browser: Internet Explorer (5.0 or above), Netscape (6.0 or above)
?Computer with Network adapter installed
?Optional Mini-GBIC modules (e.g. TEG-MGBSX, TEG-MGBS10,
TEG-MGBS40, TEG-MGBS80, TEG-MGBS10D3_5, TEG-MGBS40D3_5)
for Mini-GBIC slots
Package Contents
1. Before You Start
English
1

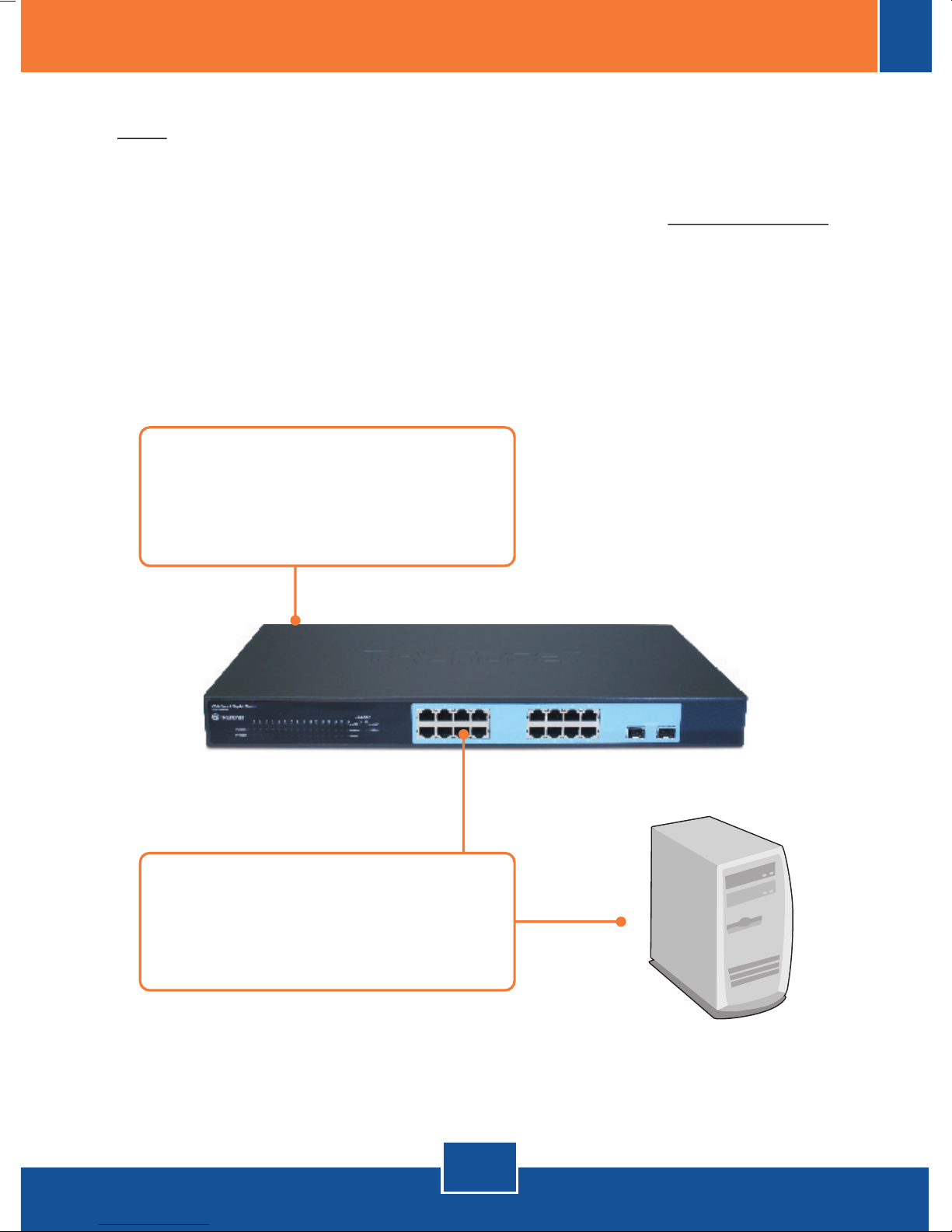

2. Hardware Installation
English
2
2. Connect a CAT-5e or 6 RJ-45
network cable from the computer to
an available Ethernet port of the
TEG-160WS/TEG-240WS.
1. Connect the Power Cord to the
rear of the TEG-160WS/
TEG-240WS and then to a power
outlet.
Note:
1. After hardware installation is complete, use the Web Browser to configure
the TEG-160WS/TEG-240WS. To access the Web Browser configuration,
open your web browser, and enter the default IP Address http://192.168.0.1
and default password "admin". Make sure your computer and the
TEG-160WS/TEG-240WS are configured to the same network segment.
2. The Mini-GBIC slots are shared with Port 15 and 16 (TEG-160WS) and port
23 and 24 (TEG-240WS) Gigabit Ethernet ports. When the Mini-GBIC slots
are in use, port 15 and 16 (TEG-160WS) and port 23 and 24 (TEG-240WS)
Gigabit Ethernet ports are disabled.
English
3
Note: If you would like to easily discover all the Web Management Switches on
the network, assign IP Address, change the password, and upgrade to new
firmware, then install the Web Management Utility. Follow the steps below.
3. Click Start > Programs >
web_management_utility, and
then click
web_management_utility.

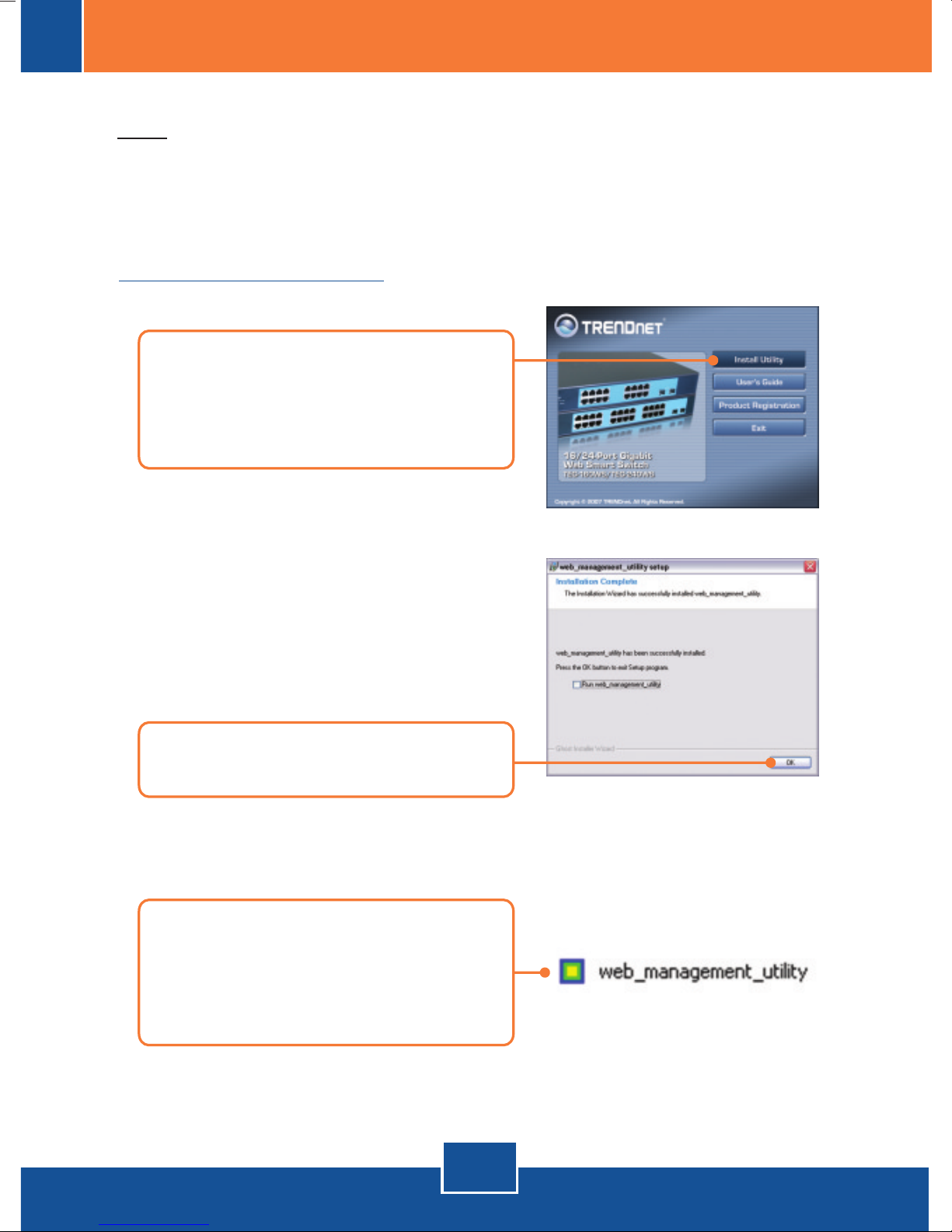

3. Web Management Utility
For Windows User
1. Insert the Utility & User’s Guide
CD-ROM into your computer's
CD-ROM Drive and then click
Install Utility.
2. Follow the Installation Wizard
instructions. Click OK.
English
4
4. Click Discovery, and then double-
click the Switch that appears in
the Discovery List.
5. Click the Switch in the Monitor
List and then click Configuration
setting.
6. Configure the IP Address, Subnet
mask, Gateway, and Password.
Click Set.
English
5

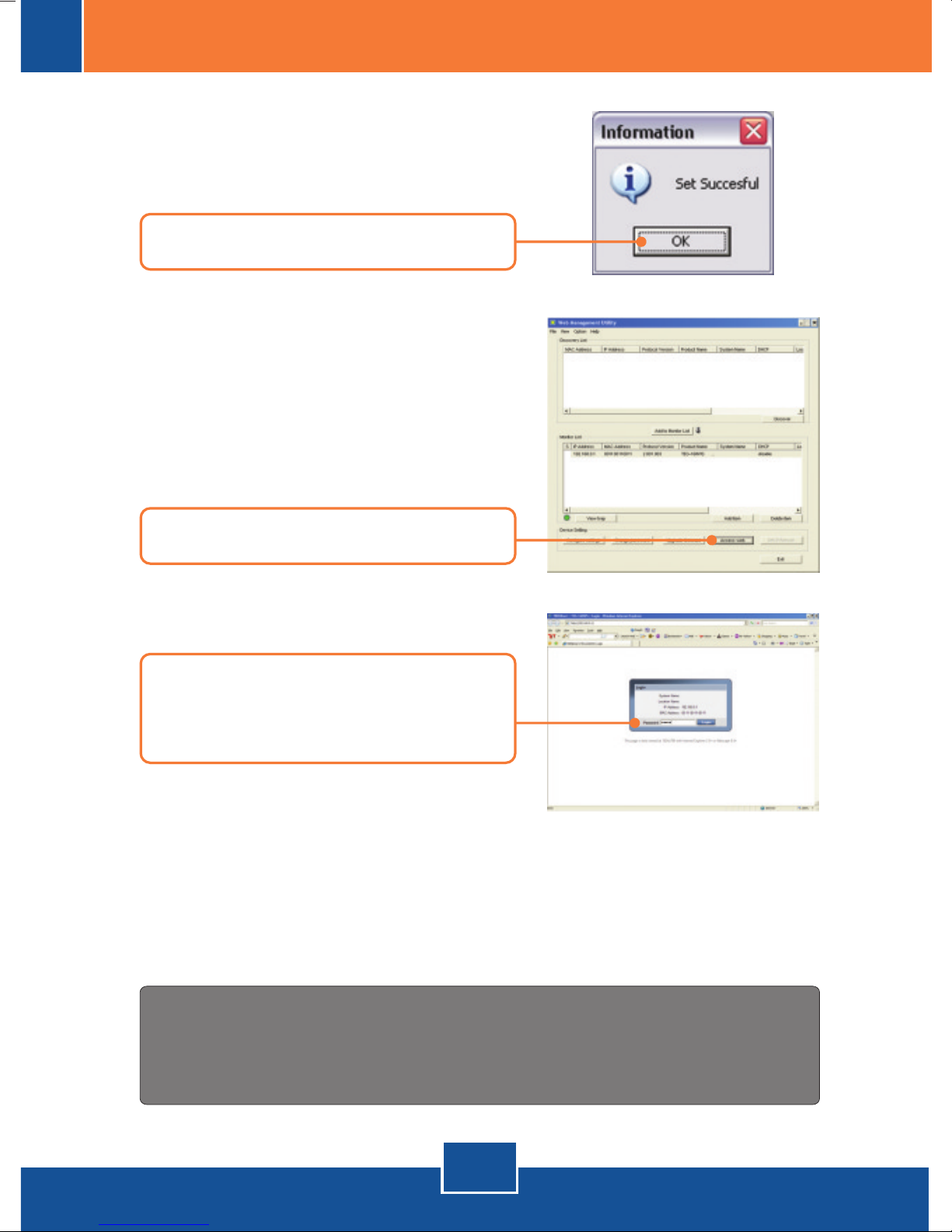

7. Click OK.
8. Click Access Web.
9. Type in your Password and then
click Login. By default, the
Password is admin.
For more information regarding the Web-based Smart Utility configuration and
advanced settings, please refer to the User's Guide included on the Utility &
Driver CD-ROM or TRENDnet's website at www.trendnet.com
Register Your Product
To ensure the highest level of customer service and support, please take a moment to
register your product Online at: www.TRENDnet.com/register
Thank you for choosing TRENDnet
Q1:
A1:
Q2:
A2:
Q3:
A3:
Q4:
A4:
Q5:
A5:
After connecting the TEG-160WS/TEG-240WS to a power outlet, the LEDs do not turn
on.
Check the connection of the power cord to the TEG-160WS/TEG-240WS and the power
outlet. Also check that the power outlet is receiving power.
After installing the Web-Management Utility, I clicked Discovery and the Utility is unable
to discover the TEG-160WS/TEG-240WS. What should I do?
Make sure that the TEG-160WS/TEG-240WS is powered on and that all connections are
secure. Also check that your computer's IP Address is on the same network segment as the
TEG-160WS/TEG-240WS. The default IP Address of the Switch is 192.168.0.1 and the
default password is admin.
When I access the TEG-160WS/TEG-240WS using a web browser, I get a screen that
tells me “only one user can login”. What should I do?
Another computer is configuring the TEG-160WS/TEG-240WS. Please wait until the
user logs off. If the other user has already logged off and you still get the same screen, then
disconnect the power cord from the TEG-160WS/TEG-240WS, wait for 5 seconds, reconnect
the power cord to theTEG-160WS/TEG-240WS, allow 5 seconds for the Switch to power on,
and then attempt to access the web configuration page to login.
I forgot the administration password. How do I reset my TEG-160WS/TEG-240WS?
Press on the reset button using a pen or paperclip for 10 seconds. The default
password is admin.
When I connect a computer to the Switch's gigabit port, the LINK/ACT LED turns on, but
the 100Mbps LED remains off.
For the TEG-160WS, when the 1000Mbps LED remains off, the computer's connection
speed is 10Mbps or 100Mbps (if the 100Mbps LED is on). For the TEG-240WS, if the
SPEED LED is off, the computer's connection speed is 10Mbps. When the SPEED LED is
yellow, the computer's connection speed is 100Mbps. Make sure that you have a Gigabit
Ethernet adapter installed. Also make sure to use a Cat-5e or Cat 6 Ethernet cable.
If you still encounter problems or have any questions regarding the TEG-160WS/TEG-240WS,
please refer to the User's Guide included on the Utility CD-ROM or contact Trendnet's Technical
Support Department.
6
Troubleshooting
Certifications
This equipment has been tested and found to comply with FCC and CE Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including interference that may
cause undesired operation.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
Waste electrical and electronic products must not
be disposed of with household waste. Please
recycle where facilities exist. Check with you Local
Authority or Retailer for recycling advice.
ADVERTENCIA
En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de alimentacón
necesario para su funcionamiento. El uso de un adaptador distinto al mencionado puede producir
daños fisicos y/o daños al equipo conectado. El adaptador de alimentación debe operar con voltaje y
frecuencia de la energia electrica domiciliaria existente en el pais o zona de instalación.
Copyright ©2008. All Rights Reserved. TRENDnet.
Product Warranty Registration
Please take a moment to register your product online.
Go to TRENDnet’s website at http://www.trendnet.com/register
20675 Manhattan Place
Torrance, CA 90501
USA
