SERVICE MANUAL SUPPLEMENT
2022 Session Service Manual
1
Contents
Safety 1
Required adjustments for 27.5" wheels 2
Idler pulley 3
Rocker pivot 5
Adjust the geometry 6
Main pivot 7
Dérailleur hanger 8
Active Braking Pivot 9
Shock mounts 10
Adjust the progression 11
Frame guards 12
Cabling 13
Specications 14
Suspension 15
Safety
WARNING
Alwaystightenhardwaretothespeciedtorque.
Over-tightening hardware could deform or break the
hardware or components. Under-tightening hardware
could cause hardware or components to become loose.
Either situation could damage the bicycle and result in
injury to the rider.
WARNING
All reused-fasteners with pre-applied threadlocker must
be cleaned with isopropyl alcohol and have new thread-
locker(Loctite243orequivalent)appliedbeforere-as-
sembly. If threadlocker is not applied, the fasteners may
loosen which could damage the bicycle and result in
injury to the rider.
2022 Session Service Manual
2
Required adjustments for 27.5"wheels
The Session can accommodate:
• 27.5" front and rear wheels
• 29" front wheel and 27.5" rear wheel
When using 27.5" front and rear wheels an extended headset cup must be installed, and the rocker pivot Mino Link set to the
high position. See the Adjust the geometry section on page 6 for information about adjusting the Mino Link.
Install the extended headset cup
1
Item Description Part Number
1 Extended headset cup W5251089
Tools
• Headset cup removal tool
• Grease
1. Use the headset cup removal tool to remove the
existing cup.
2. Apply grease to the lower head tube bearing
bore.
3. Press the extended headset cup into the headset.
2022 Session Service Manual
3
Idler pulley
The idler pulley and spacers can be repositioned to align the idler pulley with the chainring. For instructions, refer to the
Adjust the position of the idler pulley section on page 4.
3
2
1
4
5
6
7
8
2
Item Description Quantity in
Assembly
Part Number Torque (Nm)
1 Idler pulley 1 W1042533 —
2 Washer 2 W5251170 —
3 Idler guard bolts 2 W1052364 1
4Idler guard 2 W1052385 —
5 Spacer,black,grooved,4.5mm 1 W5251169 —
6 Spacer, 0.5mm 1 W5265886 —
7 Spacer, grey, 3.5mm 1 W5251168 —
8 Idler bolt 1 W1051961 17
2022 Session Service Manual
4
Idler pulley (continued)

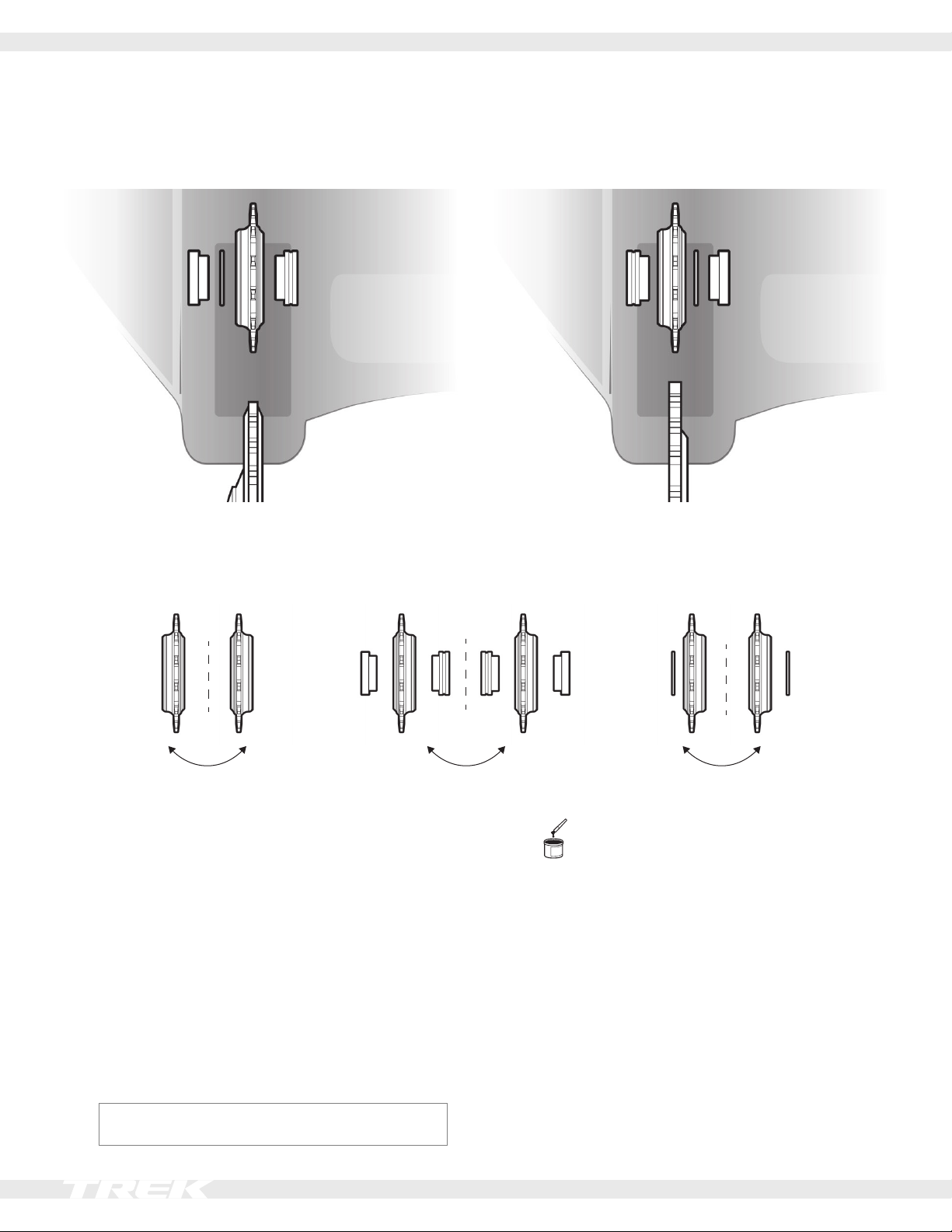

Typical idler pulley and chainring alignment
With a SRAM chainring With a Shimano chainring
Adjust the position of the idler pulley
Different chainrings or slight tolerance differences in chainrings may require the idler pulley and spacers to be repositioned to
align the pulley with the chainring. To achieve alignment, do one or a combination of the following:
Flip the idler pulley. Position the 3.5mm and 4.5mm
spacers on either side of the idler pulley.
Position the 0.5mm spacer on
either side of the idler pulley.
Tools
• 6mm hex tool
• Torque wrench with 6mm hex bit
• Grease
1. Inspect the current installation to determine the
distance the idler pulley must be shifted to align with
the chainring.
2. Removetheidlerbolt(8).
3. Removetheidlerpulley(1)andspacers(5,6and7)
from the chainstay.
4. Reassemble the components, using the options
shown in the three illustrations above, to shift the
position of the idler.
Notice: When repositioning the components, all
spacersmustbeusedinthenalconguration.
5. Applygreasetotheshoulderoftheidlerbolt(8).
6. Place the assembled components into position in the
chainstay.
7. Installtheidlerbolt(8)fromthedrivesideintothe
frame.
8. Torquetheidlerbolt(8)to17Nm.
2022 Session Service Manual
5
Rocker pivot
5
6
76
5
4
3
2
8
1
2
3
4
Item Description Quantity in
Assembly
Part Number Torque (Nm)
1 Rocker axle 1W1042544 —
2 Bearing 2 W302025" —
3 Spacer 2 W440921 —
4Bolt 4W1051959 17
5 Mino link bearing 2 W275322 —
6 Spacer 2 W529969 —
7 Mino Link bearing 2 W529223 —
8 Pinch bolt 2 W5256244 5
Tools
• Bearing press
• 4mmand5mmhexwrenches
• Torquewrenchwith4mmand5mmhexbits
IMPORTANT: For proper alignment of the rocker plates,
the shock must be installed and torqued, and the Mino
Link bolts installed and torqued, before the pinch bolts are
torqued.
Rocker pivot
1. Pressinthedrivesidebearing(2).
2. Apply grease to the shoulder of the drive side of
therockeraxle(1).
3. Inserttherockeraxle(1)intotheframefromthenon-
drive side.
4. Apply grease to the shoulder of the non-drive
sideoftherockeraxle(1).
5. Installthenon-drivesidebearing(2)overtheaxle.
Press the bearing in from the non-drive side.
6. Installaspacer(3)overthebearing.
7. Position the rocker plate so it aligns with the shoul-
ders of the axle.
8. Applygreasetotheshoulderofthebolt(4).
9. Install the bolt into the rocker plate. Tighten, but do
not torque the bolt.
10. Repeat steps 1–9 on the other side.
Mino Link chip
1. PresstheMinoLinkbearings(5)intotherocker
plates.
2. Position the seatstay between the rocker plates.
3. Positionaspacer(6)betweentheseatstaytaband
the rocker plate. Repeat this step with the other spac-
er on the other side.
Tip: Balancethespacer(6)againstthebearingby
partiallyinsertingthebolt(4).
4. InserttheMinoLinkchips(7)intothenotchesonthe
seatstays.
5. Insertthebolts(4)intotheMinoLinkbearings(5)on
the rocker plates.
6. Tighten,butdonottorquethebolts(4).
Pinch bolts
1. Install,butdonottightenthepinchbolts(8).
Torque all bolts
1. Torquethebolts(4)to17Nm.
2. Torquethepinchbolts(8)to5Nm.
2022 Session Service Manual
6
Adjust the geometry
FliptherockerpivotMinoLinkchiptochangethebike’sgeometrytotyourridingstyleortheterrain.FlippingtheMinoLink
chip from the high to the low position slackens the geometry by moving the head tube angle back 0.5° and lowering the bot-
tom bracket up to 9mm.
Mino Link high Mino Link low
Position the chip with the Mino Link logo to the back Position the chip with the Mino Link logo to the front
• Creates a steeper head tube angle
• Pulls in the front fork for quicker steering
• Raises the bottom bracket for improved climbing
Use this position when using 27.5"wheels or a 29"wheel
up front and a 27.5"wheel in the back.
• Creates a slacker head tube angle
• Pushes out the front fork for slower steering that is
more stable at high speed
• Lowers the bottom bracket for more stability
Tools
• 5mm hex tool
1. With the bike on the ground, loosen and remove one Mino Link chip.
2. Loosen and remove the other Mino Link chip.
3. Position the bike:
Mino Link high: Lift the bike by the seat tube. This
will pull the rear triangle up and forward.
Mino Link low: With the chips removed, gravity will
pull the rear triangle down and back.
4. Place one Mino Link chip into the desired position.
Slightly tighten the Mino Link bolt.
5. Install the other Mino Link chip into the same posi-
tion. Slightly tighten the Mino Link bolt.
6. TorquebothMinoLinkboltsto17Nm.
2022 Session Service Manual
7
Main pivot
1
2
3
4
3
2
5
Item Description Quantity in
Assembly
Part Number Torque (Nm)
1 Axle 1 5256639 30
2 Spacer 2 W440921 —
3 Bearing 2 W302025" —
4Sleeve 1 5256639 —
5 Nut 1W584134 —
Tools
• Bearing press
• 8mm hex tool
• Torque wrench with 8mm hex bit
• Grease
1. Pressinthedrivesidebearing(3).
2. Insertthesleeve(4)fromthenon-driveside.
3. Pressinthenon-drivesidebearing(3).
Tip: The sleeve and bearing must be properly aligned to
allow the axle to pass through. To aid in alignment, use the
bearing press to hold the sleeve in position while pressing
in the bearing.
4. Installonespacer(2)overthenon-drivesidebearing(3).
5. Applygreasetotheshoulderoftheaxle(1).
6. Inserttheaxle(1)fromthenon-driveside.
7. Installtheotherspacer(2)overthedrivesidebearing.
8. Installthenut(5).
9. Torquetheaxleto30Nm.
2022 Session Service Manual
8
Dérailleur hanger
1
2
Item Description Quantity in
Assembly
Part Number Torque (Nm)
1 Dérailleur hanger 1W583423 —
2 Hanger bolt, left-handed thread 1 25
Washer, 25mm 1
Tools
• 8mm hex tool
• Torquewrench(left-handthread)with8mmhexbit
This bicycle frame is designed to use a Universal Derailleur
Hanger(UDH).
NOTICE: The thru axle must be compatible with a UDH
and must be M12x1.0 with a 12.7mm thread.
NOTICE: Thewasherisframe-specic.Installonlythe
washer compatible with your frame.
WARNING
Do not apply grease to the derailleur hanger or bolt.
Apply grease to only the thru axle.
1. Insert the hanger on the inside of the driveside
chainstay.
2. Install the washer on the derailleur hanger bolt.
3. Insert the bolt into the frame.
4. Make sure the hanger is positioned as shown below.
5. Torquethehangerboltto25Nm.
NOTICE: Do not over-tighten. Over-tightening the bolt
could cause the hanger to break.
For additional information about the UDH, refer to the
SRAM user manual at www.sram.com.
2022 Session Service Manual
9
Active Braking Pivot
1
345
4
2
Item Description Quantity in
Assembly
Part Number Torque (Nm)
1 Thru axle 1 W598581 10
2 Dropout axle 1 W5251141 15
3 Retaining ring 1 W5251279 —
4Bearing 2W583424 —
5 Non-drivesidedropout 1W583419 —
Tools
• Bearing press
• 8mm hex tool
• Torquewrench(left-handthread)with8mmhexbit
• Cassette lockring
• Grease
1. Pressinthedrivesidebearing(4).
2. Pressinthenon-drivesidebearing(4).
3. Placetheretainingring(3)overthenon-driveside
bearing.
4. Applygreasetothenon-drivesidedropout(5).
5. Installthenon-drivesidedropout(5).
6. Applygreasetothedropoutaxle(2).
7. Insertthedropoutaxle(2)intotheoutsideofthe
non-drive side.
8. Applygreasetothethreadsofthethruaxle(1),
and a lighter amount of grease to the shaft of
thethruaxle(1).
9. Insert the thru axle into the dropout.
10. Torquethethruaxleto10Nm.
