2023 Farley

Alloy 5, 7 and 9

SERVICE MANUAL

2023 Farley 5, 7 and 9

Safety

WARNING

Tighten hardware properly

Always tighten hardware to the specied torque.

Over-tightening hardware could deform or break the

hardware or components. Under-tightening hardware

could cause hardware or components to become loose.

Either situation could damage the bicycle and result in

injury to the rider.

WARNING

Re-apply threadlocker

All reused-fasteners with a pre-applied threadlocker

must be cleaned with isopropyl alcohol and have new

threadlocker applied before re-assembly. If a threadlock-

er is not applied, the fasteners may loosen, which could

damage the bicycle and result in injury to the rider.

Legend

Apply grease

Do not apply grease

Apply threadlocker

Nm Torque

Hex tool

Torx tool

Drift

Zip tie

Contents

2023 Farley 5, 7, and 9

Speciﬁcations

Chainline (1x only)

76.5mm

Chainring (1x only)

Minimum: 30T

Maximum: 32T

Rear brake mount

Minimum: 160mm

Maximum: 180mm

Maximum tire sizes

26” wheels: 26" x 5.0"

27.5”wheels: 4.5" on 100mm rims

29” wheels: 3.0" is possible, but requires a custom wheel

with a 197mm rear hub

Notice: Measurements of actual tires may vary. Always

verify there is sufcient clearance between the tire and

the frame. Improper tire size could damage the bicycle

frame. Trek recommends 6mm clearance above and on

both sides of the tire.

Water bottle t

Small frame: one water bottle, down tube only.

Water bottles can also be mounted to the underside of the

downtube and to the fork legs.

Bottom bracket

BSA100

Seat post

WARNING

Always follow the seatpost manufacturer’s minimum

insertion recommendation. Failure to follow the recom-

mendation could cause damage to the seatpost and

result in injury to the rider.

1 Maximum

insertion

Small 205mm

Medium 235mm

Large 250mm

Extra-large 270mm

2Seat tube inside diameter 31.6mm

3Seat tube post clamp outer diameter 36.2mm

Front and rear

dropouts

Frame mounts —

Farley 5 and Farley 9

Rear rack —

installation

Specications

Routing Frame mounts —

Farley 7

Front rack Fork

Frame guards Rear rack — parts Frame bag, rack bag

and mudguard

2023 Farley 5, 7 and 9

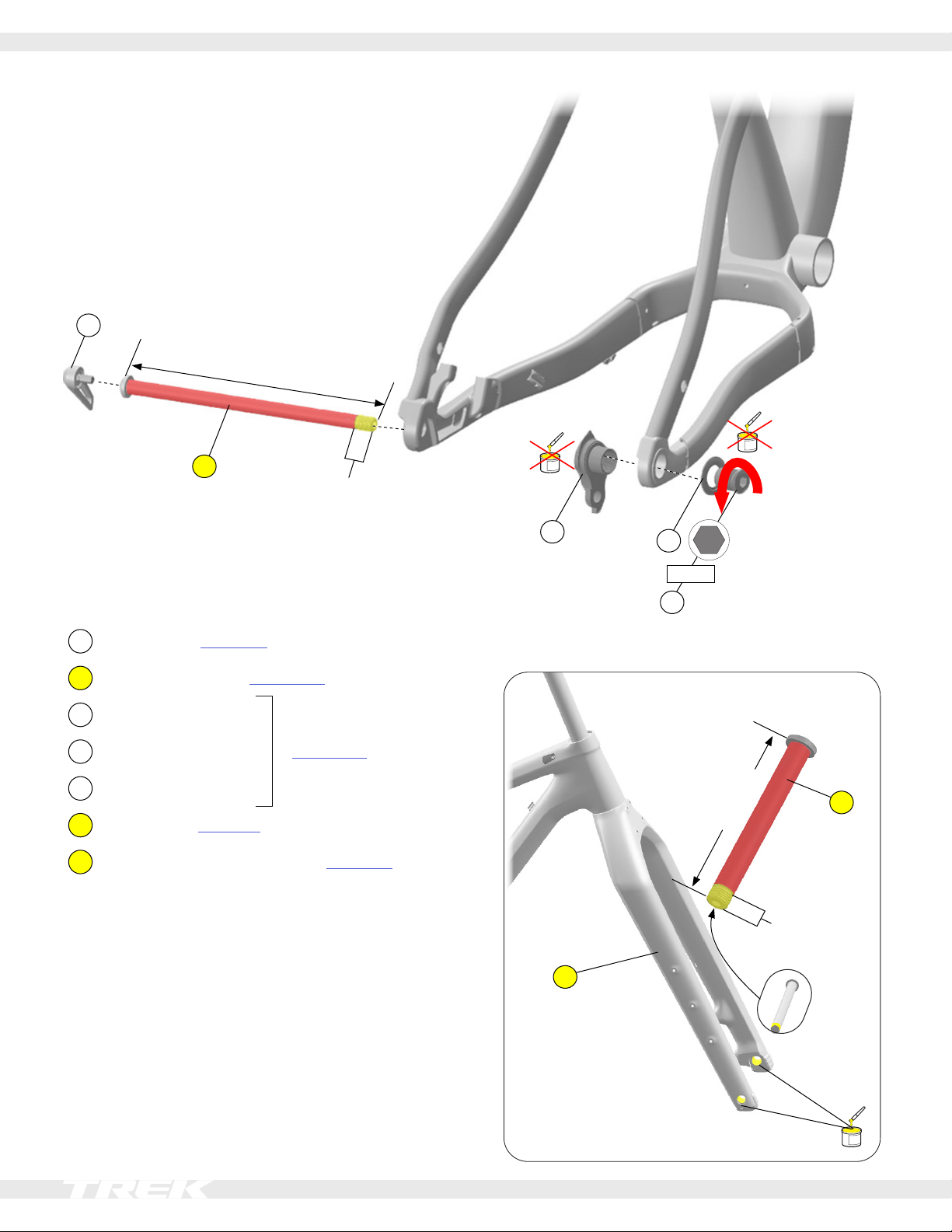

Front and rear dropouts

223 mm

22 mm

25 Nm

NOTICE: Thread must

be at least 12.7 mm

1Switch lever — W573860

2Thru axle, 12 x 223 — W5279557

3Dérailleur hanger

— W5271425

4Washer

5Bolt (left-hand thread)

6Carbon fork — 5311796

7Front thru axle, 15 x 198.5 mm — W565810

Front dropout (Farley 5 and 9)

198.5 mm

8 mm

2023 Farley 5, 7 and 9

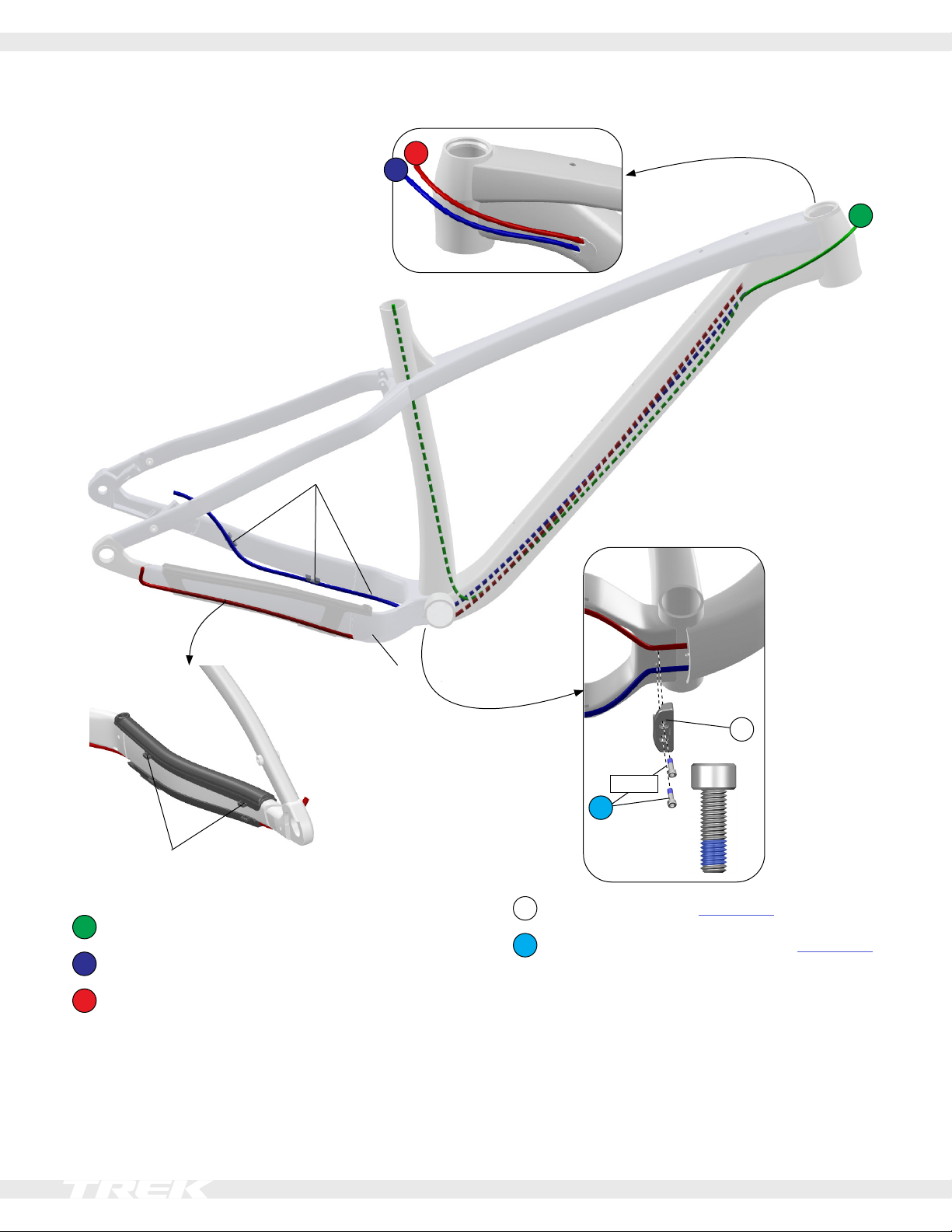

Routing



2 Nm



1Dropper post housing

2Rear brake hose

3Rear derailleur housing

4External cable guide — W5287833

5Socket head screws, steel, M5 x 16 — W5252789

Zip ties

2023 Farley 5, 7 and 9

Frame guards



Align holes in the guard with

the holes in the frame.

Farley 5 and 9 only.

1.5 Nm

2 Nm

1 Chainstay guard

Match the original part number found on the inside

of the guard, with the correct replacement part

(shown below).

Original part Order this part

5287832 W5287832

5306502 W5306502

2Socket head screw, steel, M5 x 16 — W5271148

3Downtube adhesive guard

Small frame — W5291271

Medium frame — W5290126

Large frame — W5291149

Extra large frame — W5291216

4Fork dropout bumper, driveside

— 5312674

5Fork dropout bumper, non-driveside

6Screws, M4 x 12 mm

Zip tie

Adhesive guard 3

Use isopropyl alcohol to clean the frame surface where

the guard is attached. Wait for the alcohol to dry before

applying the guards.

Notice: Do not clean the entire frame with isopropyl

alcohol. Isopropyl alcohol could damage the paint.

2023 Farley 5, 7 and 9

Frame mounts — Farley 5 and Farley 9

5 Nm

See page 10 for bag and mudguard informa-

tion.

Mounts for:

3, 4, or 5.

Mounts for:

3, 4, or 5.

Mounts for:

4or 5.

3 kg (max

load per

side

Mounts for:

4or 6.

1Carbon fork — 5311796

2Screws, stainless steel, M5 x 16 mm — W5252789

3Thumb screws — 5281893

4Water bottle nutsert plugs — W308963

5Water bottle bolts, steel, M5 x 0.8 mm — W598484

6Rack Bolts, M6 x 16 mm, with washers — W582658

2023 Farley 5, 7 and 9

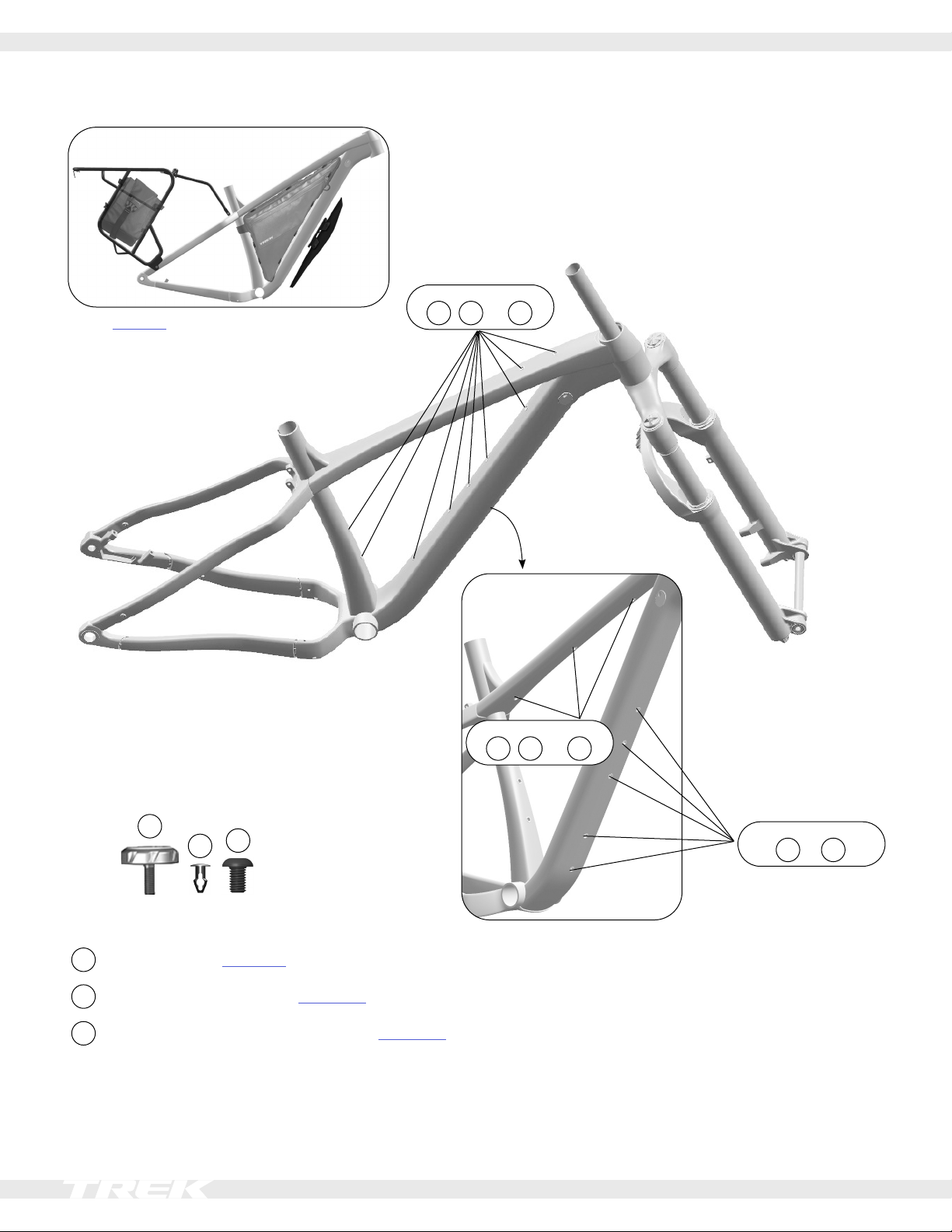

Frame mounts — Farley 7

See page 10 for bag and mudguard information.

Mounts for

1, 2, or 3.

Mounts for:

1, 2, or 3.

Mounts for:

2or 3.

1Thumb screws — 5281893

2Water bottle nutsert plugs — W308963

3Water bottle bolts, steel, M5 x 0.8 mm — W598484

2023 Farley 5, 7 and 9

Rear rack — parts

M5x16 M5x25

5.2 Nm

1.5 Nm

3 Nm

M5x10

1 Rear rack — 44355

Search trekbikes.com to nd the colour-matched part for your bike.

2Strut nuts

— 423544

3Struts, one set. Matte black.

Includes strut caps — 5314713

4Socket head screws, steel, M5 x 16 mm — W5252789

5Socket head screws, steel, M5 x 25 mm — W5252787

6Bolts, stainless steel, M5 x 10 mm — W5288087

7Rear light bracket (black only) — 5314712

2023 Farley 5, 7 and 9

Rear rack — installation

Large or extra-large frames only: If adding or replacing a

rack, use a hacksaw to cut two lengths from each strut to

create clearance for the tyre.

1. Place the strut mounts over the rack. Slide the struts

through the strut nuts. Then, slightly tighten the strut

nuts to hold in the struts in place.

2. Install the strut caps on the struts.

3. Loosely attach the rack to the seat stay.

M5x25

4. Loosely attach the rack to the seat stay bridge.

M5x16

5. Adjust the rack to the desired angle. You may need to

further loosen the strut nuts.

6. Torque all bolts.

3 Nm

5.2 Nm 5.2 Nm

2023 Farley 5, 7 and 9

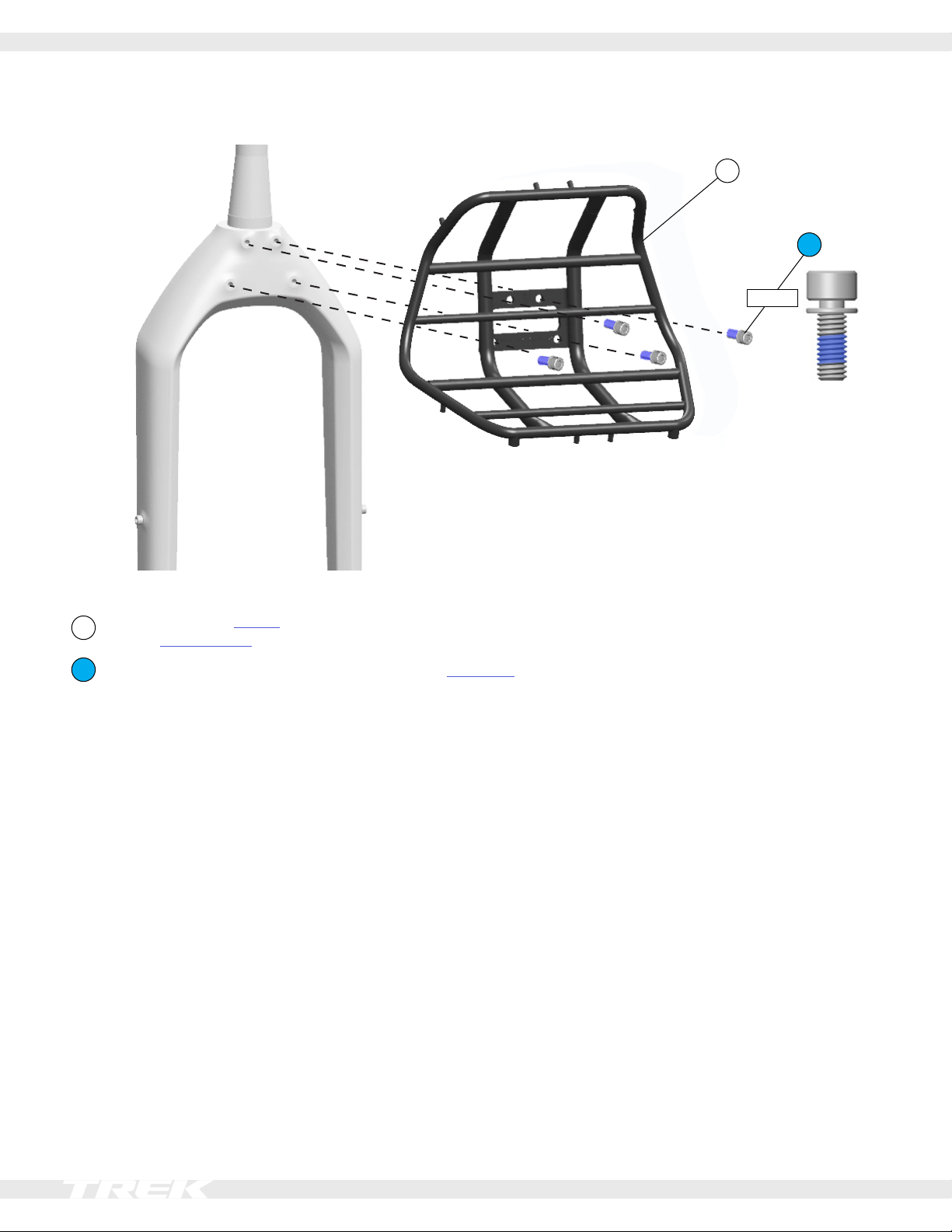

Front rack

6 Nm

1 Farley front rack — 44354

Search trekbikes.com to nd the colour-matched part for your bike.

2Bolts, stainless steel, M6 x 16 mm, with washers — W582658
