TPI SP1000 Manual de usuario

SP1000 CO2 Smart Probe

Test Products International, Inc.

Test the TPI Advantage

Visit www.testproductsintl.com

Uses NDIR CO2 sensor for accuracy

Connects to smart phone and uses the

TPI Smart Probe App

Perform ambient CO2 level checks

Up to 6 SP1000 smart probes can connect

to a single mobile device (most devices)

3 Year Limited Warranty

TABLE OF CONTENTS

A. Introduction............................................................... 1

B. Safety Considerations................................................ 1

C. Specifications............................................................. 1

D. Instrument Overview.................................................. 2

E. Taking a Measurement................................................ 3

F. Additional App Features.............................................. 4

G. Drop Down Menu........................................................ 5

H. Entering Company and Customer Information............ 5

I. Performing Ambient Air Tests...................................... 6

J. Maintenance................................................................. 7

K. Trouble Shooting.......................................................... 7

L. Accessories.................................................................. 7

M. Warranty...................................................................... 8

N. Replacing Batteries...................................................... 8

A. INTRODUCTION

1. Congratulations: Thank you for purchasing TPI products. The SP1000

is easy to use and built to last. It is backed by a 3 year limited warranty.

2. Product Description: The SP1000 is an ambient CO2 “Smart Probe”. It

connects to your mobile device and uses the TPI Smart Probe App to

display temperature readings. Data can be exported to a CSV file as

well.

B. SAFETY CONSIDERATIONS

1. Never attach the SP1000 to a hot surface.

2. Never breath directly into the SP1000 while performing measurements.

Doing so will skew the actual ambient reading.

3. Do not expose the unit to damp environments for extended periods of

time.

C. SPECIFICATIONS

D. INSTRUMENT OVERVIEW

1. Sensing area.

2. SP341 status LED indicator.

Orange and blinking = Bluetooth not connected

Green and blinking = Bluetooth connected

Blinking Red with either of the above = Low battery

3. Power Key. Press and hold to turn the instrument on.

Press and hold to turn the instrument off.

4. Built-in magnet. Attach to

metal surfaces for hands free

operation. Ensure surface is

not hot.

5. Serial number location. Last

three digits are the product

identification number and

marked in bold. Use this num-

ber to distinguish between

models when several SP1000’s

are connected to a phone or

tablet.

6. Screw to open battery com-

partment. Turn the screw

counter clockwise until it is

just above the compartment

door. Lift on the screw to open

the compartment.

E. TAKING AMEASUREMENT

1. Download and install the TPI

Smart Probe App onto your

mobile device. Run the App. The

“Main-Real Time” screen will be

displayed.

The App will say “No Devices”

until a smart probe has been

connected.

2. Press and hold the SP1000

On/Off key down until it turns on.

The LED indicator will initially be

orange and blink.

The SP1000 will auto connect to

your mobile device. The LED

indicator will turn Green and

blink to indicate a link has been

established. The App will display

the model and ID number of the

smart probe connected.

If the SP1000 does not auto con-

nect tap refresh on the App.

Refresh

This also clears any data

accumulated.

Displays the measured CO2

in ppm.

3. Tapping the list icon allows

optional functions to be

accessed. These include

Show/Hide, Unit, and Zeroing

Sensors.

Show/Hide : Allows a device

to be seen or hidden. Useful

when multiple devices are

connected.

Unit : Select unit of meas-

ure. PPM is the only unit

available.

Zeroing Sensors: This does

not work with the SP1000.

This function works with

other smart probe models.

F. ADDITIONAL APP FEATURES

1. Tapping “Graph” switches the

display to graph mode. The tem-

perature will be displayed as a

line graph.

If multiple SP1000’s are being

used, each will have a different

color in the App.

2. Tapping “Data” switches the dis-

play to show the measured data

in a list format.

Each reading in the list will be

dated and time stamped.

Tap “Data”.

The measurement data is

shown in a list with a date

and time stamp.

Tapping the Refresh icon

clears this data.

Tap the mail icon.

Test data will be exported in

a CSV file via email.

Company Name : Test Products Intl

Company Address : 9615 SW Allen Blvd

Customer Name : Sample Customer

Customer Address : 1111 Sample Way

Building Name : Bldg 3

Building Address : 2222 Sample Ave

Date Time SP1000-008(ppm)

5/9/2018 13:30:42 601

5/9/2018 13:30:40 599

5/9/2018 13:30:38 597

5/9/2018 13:30:36 595

5/9/2018 13:30:34 593

5/9/2018 13:30:32 590

5/9/2018 13:30:30 589

5/9/2018 13:30:28 587

4. Exported data in the CSV file dis-

play with the date and time

stamp.

If a company and customer name

has been entered they will be

exported too. See page 5 for set-

ting up the customer and compa-

ny name.

Tap “Graph”.

Each SP1000 is displayed in

a different color in the line

graph.

3. Tapping the mail icon enables

test data to be exported in a CSV

file via email.

H. ENTERING COMPANY AND CUSTOMER INFORMATION

1. Tap the Drop Down Menu icon to access additional features.

2. Select “Company Info” to enter your information to show up on

the CSV file report. You can enter your company name, address,

and email.

3. Select “Customer Info” to enter the information of the customer

the tests are being performed for. You can enter the customer

name, address, and email. You can also enter the building infor-

mation in cases where the tests are being performed some-

where off-site from the customer.

The Smart Probe App allows you to enter your company information and the customer

information who the test is being performed for. This information will be exported in the

CSV file (see page 4).

G. DROP DOWN MENU

1. Tap the Drop Down Menu icon to access additional features.

Main - Real Time: Tapping this returns you to the main screen.

Select Application: Tapping this pulls up sub applications for

variious smart probes. These include Temperature differential

(SP341), Air Volume Calulation (SP565), and Tightness Test

(SP620). Note: There are no sub applications for the SP1000.

Company Info: Allows you to enter your information to show up

on the CSV file report. You can enter your company name,

address, and email.

Customer Info: Allows you to enter the information of the cus-

tomer the tests are being performed for. You can enter the cus-

tomer name, address, and email. You can also enter the building

information in cases where the tests are being performed some-

where off-site from the customer.

Exit: Closes the Smart Probe App.

The Smart Probe App has a Drop Down menu allowing access to additional app features.

1. Start the app on your smart device.

2. Turn the SP1000 on. If multiple SP1000’s are being used

turn each one on after one has connected to the smart

device.

3. Move from room to room with the SP1000 allowing the

readings to stabilize in each area. Take care not to breath

directly into the sensor area. Doing so will cause the read-

ings to rise and be inaccurate.

Another option is to leave the SP1000 in an area on a table

face up or use the magnet on the back to attach it to

something metal. This will prevent any chance of breathing

into the sensor area and skewing the readings.

4. The measurement data can be exported in a CSV file for

report generation.

I. PERFORMING AMBIENT AIR TESTS

J. MAINTENANCE

1. Clean the surface of the instrument with a damp cloth.

2. Replace the three AAA batteries when the low battery indicator appears.

K. TROUBLE SHOOTING

Symptom Probable Cause

CO2 seems inaccurate. •Low battery.

•Make sure not to breath into the

sensor area during tests.

•Ensure connection with phone is

working.

SP1000 does not turn on. •Dead or low batteries.

•Not holding down power switch

until unit turns on.

•Defective POWER ON switch.

CO2 reads high all the time. •Make sure not to breath into the

sensor during tests.

L. ACCESSORIES

Included Accessories

Part Number Description

A1000SP Soft pouch

Optional Accessories

Part Number Description

A925 Carrying case for 4 smart

probes

A926 Carrying case for 1 or 2

smart probes

Test Products International offers a variety of K-Type thermocouple probes for many

applications. Visit www.testproductsintl.com for additional information.

This product is warranted to the purchaser against defects in material and workmanship for three years from the

date of purchase.

Covered by Warranty: Repair parts and labor; or replacement of the product at company’s option. Normal trans-

portation charges to the purchaser are also covered.

Not Covered by Warranty: Damages to the product which are the result of abuse, improper use or maintenance are

not covered. Any other expense, consequential damages, incidental damages, or incidental expenses including dam-

ages to property are not covered. Transportation expenses to the company are not covered.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limita-

tions or exclusions may not apply to you.

To Obtain Warranty Performance: Include with the product: your name, address, phone number, written descrip-

tion of the problem and proof of purchase date. Carefully package and return to:

TPI, Inc. TPI Canada TPI, Europe Ltd..

9615 SW Allen Blvd. 342 Bronte Rd. S., Unit 6 Longley House, International Drive

Beaverton, OR 97005 Milton, Ontario L9T 5B7 Southgate Crawley

USA Canada West Sussex RH10 6AQ England

503-520-9197 905-693-8558 44(0) 1293 530196

www.testproductsintl.com www.tpicanada.com www.tpieurope.com

Implied Warranties: Any implied warranties including implied warranties of merchantability and fitness for a par-

ticular purpose, are limited in duration to three years from date of purchase. To the extent any provision of this war-

ranty is prohibited by federal or state law and cannot be preempted, it shall not be applicable. This warranty gives

you specific legal rights, and you may also have other rights which vary from state to state.

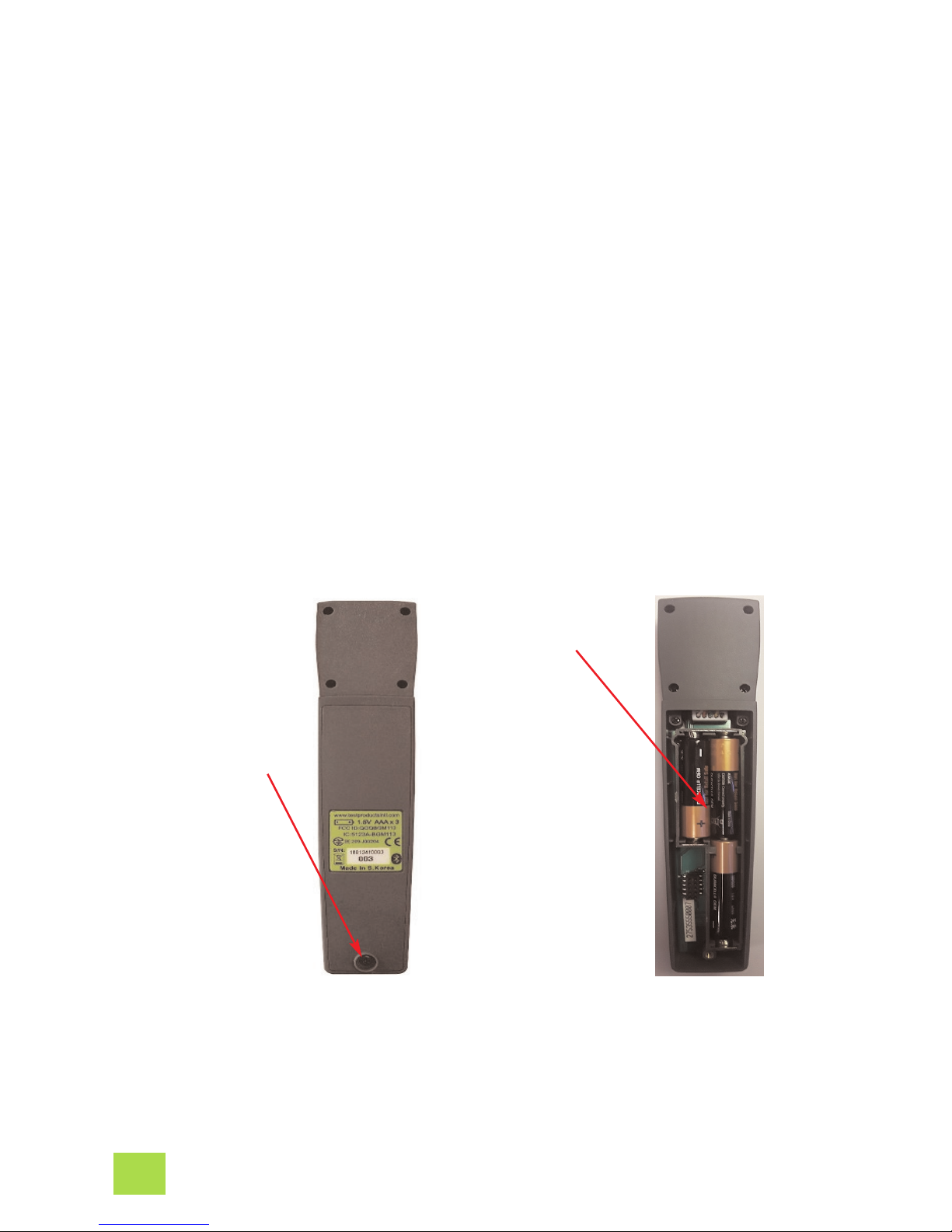

N. REPLACING BATTERIES

1. Turn the battery

compartment screw

counter clockwise

until it is just above

the compartment

door. Lift on the

screw to open the

compartment.

2. Replace the three

AAA batteries.

3. Re-install the battery cover and tighten the

screw by turning it clockwise.

M. WARRANTY
