Installation Guide

Business Networking Solution

Gigabit Uplink Unmanaged Switch

TL-SL1226/TL-SL1351



Specifications are subject to change without notice. is a registered trademark

of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks of their

respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make

any derivative such as translation, transformation, or adaptation without permission from TP-LINK

http://www.tp-link.com



This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case

the user will be required to correct the interference at his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

This device may not cause harmful interference.1)

This device must accept any interference received, including interference that may cause2)

undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment.



This is a Class A product. In a domestic environment, this product may cause radio interference, in

which case the user may be required to take adequate measures.



This Installation Guide is also available in PDF on our website. To obtain the latest

documentation and prodcut information, please visit the official website:

http://www.tp-link.com



This Installation Guide describes the hardware characteristics, installation methods

and the points that should be attended to during installation. This Installation

Guide is structured as follows:

Chapter 1 Introduction. This chapter describes the external components of

the switch.

Chapter 2 Installation. This chapter illustrates how to install the switch.

Chapter 3 Lightning Protection. This chapter illustrates how to prevent

lightning damage.

Chapter 4 Connection. This chapter illustrates how to do the physical connec-

tion of the switch.

Appendix A Hardware Specifications.

Appendix B Technical Support.



This Installation Guide is for:

Network Engineer

Network Administrator



Due to the similarity in structure of TL-SL1226/TL-SL1351 Gigabit Uplink

Unmanaged Switch series, in this Installation Guide we take TL-SL1351 as an

example to illustrate Chapter 2 Installation, Chapter 3 Lightning Protection and

Chapter 4 Connection.

This Guide uses the specific formats to highlight special messages. The following

table lists the notice icons that are used throughout this guide.

Remind to be careful. A caution indicates a potential which may result in

device damage.

Remind to take notice. The note contains the helpful information for a

better use of the product.

Related Document

III





Contents

Chapter 1 Introduction ——————————— 01

1.1 Product Overview...................................................................01

1.2 Features......................................................................................01

1.3 Appearence...............................................................................02

Chapter 2 Installation ———————————— 04

2.1 Package Contents ...................................................................04

2.2 Safety Precautions ..................................................................04

2.3 Installation Tools......................................................................06

2.4 Product Installation................................................................07

Chapter 3 Lightning Protection ———————— 09

3.1 Cabling Reasonably................................................................09

3.2 Connect to Ground.................................................................11

3.3 Equipotential Bonding..........................................................12

3.4 Use Lightning Arrester..........................................................13

Chapter 4 Connection ——————————— 15

4.1 Ethernet Port ............................................................................15

4.2 SFP Port ......................................................................................15

4.3 Verify Installation ....................................................................15

4.4 Power On....................................................................................16

4.5 Initialization ..............................................................................16

Appendix A Hardware Specications —————— 17

Appendix B Technical Support ————————— 18

Gigabit Uplink Unmanaged Switch





TL-SL1226/TL-SL1351 Gigabit Uplink Unmanaged Switch provides you with a high-

performance, low-cost, easy-to-use, seamless and standard upgrade to boost your

old network to 1000Mbps. Increase the speed of your network server and backbone

connections, making Gigabit connection to a server or uplinking a network necessarily.

The TP-LINK TL-SL1226/TL-SL1351 Gigabit Uplink Unmanaged Switch features a non-

blocking switching architecture that forwards and filters packets at full wire-speed for

maximum throughput. The switch supports MAC address auto-learning and auto-aging,

IEEE802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.

It is compatible with all 10Mbps, 100Mbps and 1000Mbps Ethernet devices because it is

standard-based.

The TL-SL1226/TL-SL1351 Gigabit Uplink Unmanaged Switch is plug-and-play and no

configuration is required. Auto MDI/MDIX cable detection on all ports eliminates the

need for crossover cable or Uplink port. Each port can be used as general port or

Uplink port, and any port can be simply plugged into a server, a hub, a router or a

switch, using the straight cable or crossover cable. Diagnostic LEDs which display link

status and activity allow you to quickly detect and correct problems on the network.



Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z (for TL-SL1351 only)

standards

24/48 10/100Mbps Auto-Sense RJ45 ports supporting Auto-MDI/MDIX

2/2 10/100/1000Mbps Auto-Sense RJ45 ports supporting Auto-MDI/MDIX

1 SFP(Small Form Pluggable) module interface (For TL-SL1351 only)

Supports Auto MDI / MDIX cable detection on all ports to eliminate the need for

crossover cable or Uplink port

Non-blocking switching architecture that forwards and filters packets at full wire

-speed for maximum throughput

Supports MAC address auto-learning and auto-aging

Supports IEEE802.3x flow control for full-duplex mode and backpressure for half-

duplex transfer mode

LED indicators for monitoring power, link, activity, speed

Internal power supply

Introduction

Gigabit Uplink Unmanaged Switch



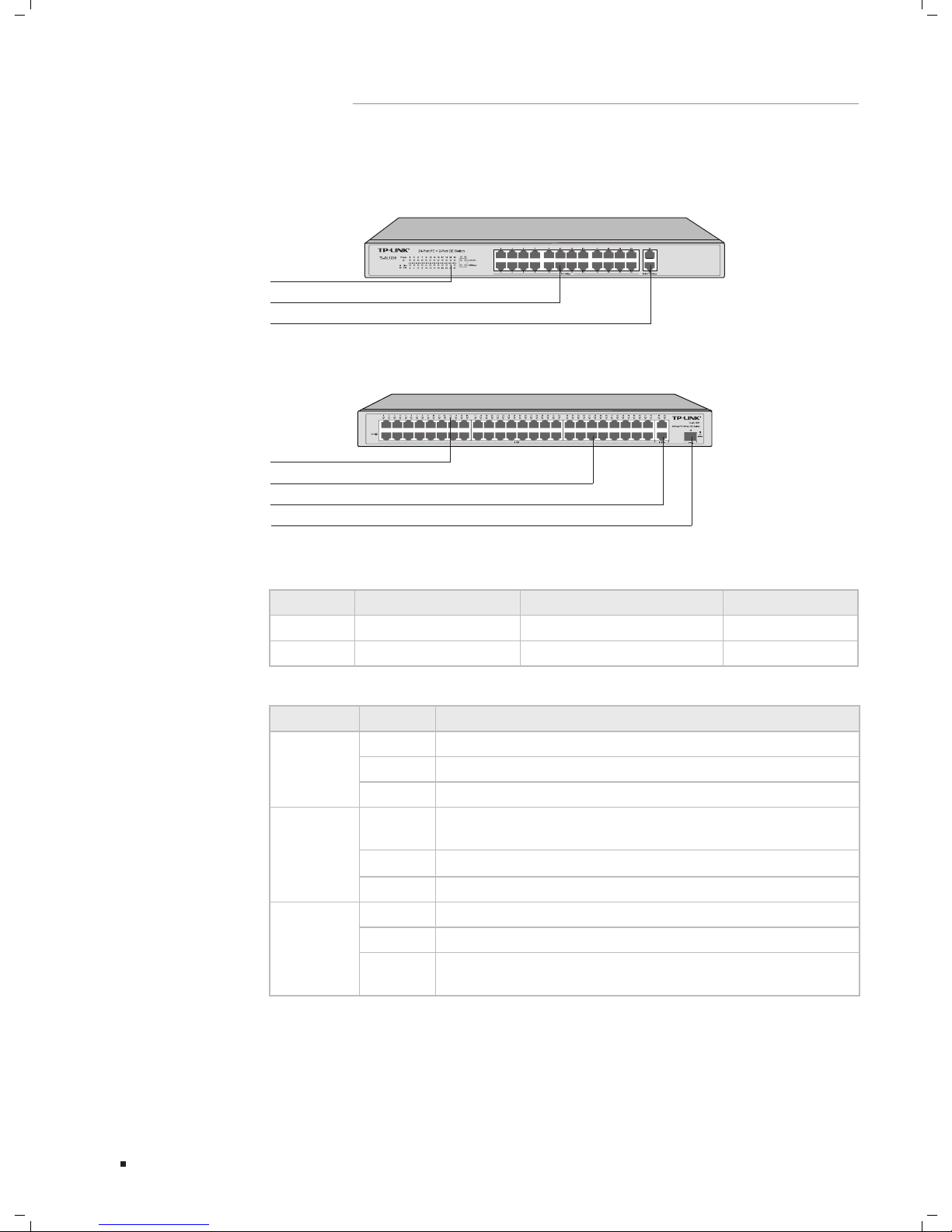

Front Panel

■

The front panel of TL-SL1226 is shown as the following figure.

LEDs

10/100Mbps RJ45 Port

10/100/1000Mbps RJ45 Port

Figure 1-1 Front Panel of TL-SL1226

The front panel of TL-SL1351 is shown as the following figure.

SFP Port

LEDs

10/100Mbps RJ45 Port

10/100/1000Mbps RJ45 Port

Figure 1-2 Front Panel of TL-SL1351

Port Feature

Model 10/100Mbps RJ45 Port 10/100/1000Mbps RJ45 Port SFP Port

TL-SL1226 24 2 -

TL-SL1351 48 2 1

LEDs

LED Status Indication

Power/

PWR

On The switch is powered on

Flashing Power supply is abnormal

Off The switch is powered off or power supply is abnormal

Link/Act

On A device is connected to the corresponding port, but no data

is being transmitted or received

Flashing Data is being transmitted or received

Off No device is connected to the corresponding port

1000Mbps

On The corresponding port is running at 1000Mbps

Flashing Data is being transmitted or received

Off There is no device linked to the corresponding port or the

port is running at 10Mbps or 100Mbps

10/100Mbps Port

Designed to connect to the device with a bandwidth of 10Mbps or 100Mbps.

Introduction

Gigabit Uplink Unmanaged Switch

Introduction

10/100/1000Mbps Port

Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or

1000Mbps. Each has a corresponding 1000Mbps LED.

SFP Port (for TL-SL1351 Only)

Designed to install the SFP module. TL-SL1351 features one individual SFP port.

■ Rear Panel

The rear panel of TL-SL1226 is shown as the following figure.

Grounding Terminal

Power Socket

Figure 1-3 Rear Panel of TL-SL1226

The rear panel of TL-SL1351 is shown as the following figure.

Grounding Terminal

Power Socket

Figure 1-4 Rear Panel of TL-SL1351

Grounding Terminal

The switch already comes with lightning protection mechanism. You can also ground

the switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable.

For detailed information, please refer to Chapter 3 Lightning Protection.

Power Socket

Connect the female connector of the power cord here, and the male connector to

the AC power outlet. Please make sure the voltage of the power supply meets the

requirement of the input voltage (100-240V~ 50/60Hz).

Caution: Please use the provided power cord.

Gigabit Uplink Unmanaged Switch



 

Make sure that the package contains the following items. If any of the listed items is

damaged or missing, please contact your distributor.

One Switch One Power Cord This Installation Guide

Two mounting brackets and the

ttings

 

To avoid any device damage and bodily injury caused by improper use, please observe

the following rules.

Safety Precautions

■

Keep the power off during the installation.

■

Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good

■

skin contact and is well grounded.

Use only the power cord provided with the switch.

■

Make sure that the supply voltage matches the specifications indicated on the rear

■

panel of the switch.

Ensure the vent hole is well ventilated and unblocked.

■

Do not open or remove the cover of the switch.

■

Before cleaning the device, cut off the power supply. Do not clean it by the waterish

■

cloth, and never use any other liquid cleaning method.

Installation

Gigabit Uplink Unmanaged Switch

Site Requirements

■

To ensure normal operation and long service life of the device, please install it in an

environment that meets the requirements described in the following subsection.

Temperature/Humidity

ȭ

ȭ

Please keep a proper temperature and humidity in the equipment room. Too high/low

humidity may lead to bad insulation, electricity leakage, mechanical property changes

and corrosions. Too high temperature may accelerate aging of the insulation materials

and can thus significantly shorten the service life of the device. For normal temperature

and humidity of the device, please check the following table.

Environment Temperature Humidity

Operating 0℃~ 40℃10% ~ 90%RH Non-condensing

Storage -40℃~ 70℃5% ~ 90%RH Non-condensing

Clearness

The dust accumulated on the switch can be absorbed by static electricity and result

in poor contact of metal contact points. Some measures have been taken for the

device to prevent static electricity, but too strong static electricity can cause deadly

damage to the electronic elements on the internal circuit board. To avoid the effect of

static electricity on the operation of the switch, please attach much importance to the

following items:

Dust the device regularly, and keep the indoor air clean.

■

Keep the device well grounded and ensure static electricity has been transferred.

■

Electromagnetic Interference

Electronic elements including capacitance and inductance on the device can be affected

by external interferences, such as conducted emission by capacitance coupling,

inductance coupling, and impedance coupling. To decrease the interferences, please

make sure to take the following measures:

Use the power supply that can effectively filter interference from the power grid.

■

Keep the device far from high-frequency, strong-current devices, such as radio

■

transmitting station.

Use electromagnetic shielding when necessary.

■

Installation

Gigabit Uplink Unmanaged Switch

Lightening Protection

Extremely high voltage currents can be produced instantly when lightning occurs and the air

in the electric discharge path can be instantly heated up to 20,000℃. As this instant current

is strong enough to damage electronic devices, more effective lightning protection measures

should be taken.

Ensure the rack and device are well earthed.

■

Make sure the power socket has a good contact with the ground.

■

Keep a reasonable cabling system and avoid induced lightning.

■

Use the signal SPD (Surge Protective Device) when wiring outdoor.

■

Note: For detailed lightning protection measures, please refer to Chapter 3

Lightning Protection.

Installation Site

S

When installing the device on a rack or a flat workbench, please note the following

items:

The rack or workbench is flat and stable, and sturdy enough to support the weight

■

of 5.5kg at least.

The rack or workbench has a good ventilation system. The equipment room is well

■

ventilated.

The rack is well grounded. Keep the power socket less than 1.5 meters away from

■

the device.

 

Phillips screwdriver

■

ESD-preventive wrist wrap

■

Cables

■

Note: These tools are not provided with our product. If needed, please self purchase

them.

Installation

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de TP-Link

TP-Link

TP-Link JetStream T1500G-8T Manual de instrucciones de instalación

TP-Link

TP-Link JetStream L2 Manual de usuario

TP-Link

TP-Link TL-SX3008F Manual de usuario

TP-Link

TP-Link TL-SG1008P Manual de usuario

TP-Link

TP-Link TL-SG1210MP Manual de usuario

TP-Link

TP-Link JetStream T1500G-10MPS Guía de inicio rápido

TP-Link

TP-Link TL-SG108 Manual de usuario

TP-Link

TP-Link JetStream TL-SL3452 Manual de usuario

TP-Link

TP-Link TL-SG116E Manual de usuario

TP-Link

TP-Link TL-SG3210 Manual de instrucciones

TP-Link

TP-Link tapo S505 Manual de usuario

TP-Link

TP-Link TL-SG1016D Manual de usuario

TP-Link

TP-Link JetStream L2 Lite TL-SG3210 Manual de usuario

TP-Link

TP-Link TL-SG1048 Manual de usuario

TP-Link

TP-Link JetStream TL-SG2008 Manual de usuario

TP-Link

TP-Link JetStream TL-SG3424 Manual de usuario

TP-Link

TP-Link JetStream T1600G-52TS Manual de usuario

TP-Link

TP-Link TL-SG105E Manual de usuario

TP-Link

TP-Link JetStream TL-SL5428E Manual de usuario

TP-Link

TP-Link JetStream T2600G-28TS Manual de usuario

TP-Link

TP-Link JetStream T2600G-28TS Manual de usuario

TP-Link

TP-Link TL-SG108 Manual de usuario

TP-Link

TP-Link TL-SX3016F Manual de usuario

TP-Link

TP-Link JetStream TL-SL3452 Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
