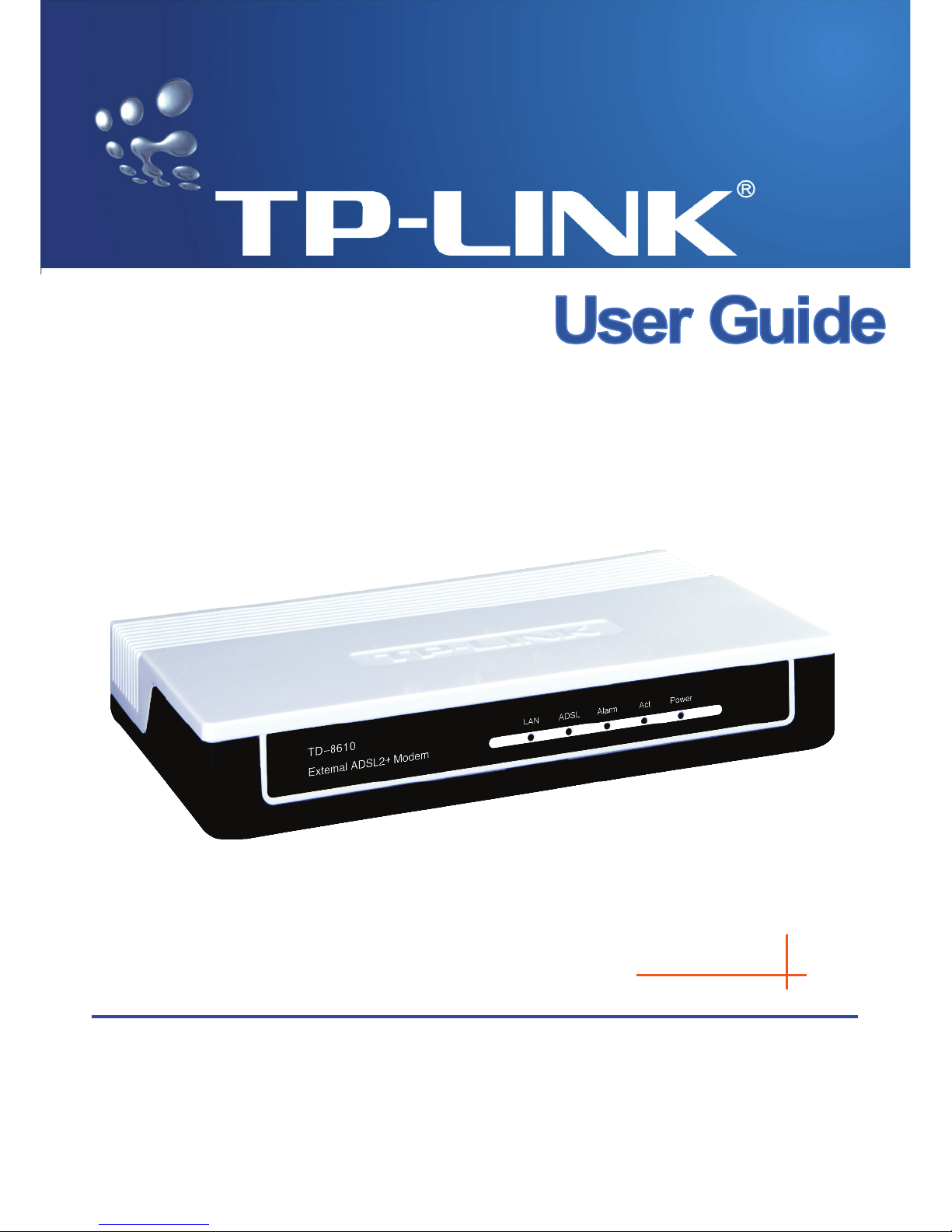

TP-Link TD-8610 Manual de usuario
TD-8610/TD-8610B
External ADSL2+ MODEM
Rev: 1.0.2
1910010011
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered
trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are
trademarks or registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to
make any derivative such as translation, transformation, or adaptation without permission
from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2008 TP-LINK TECHNOLOGIES
CO., LTD.
All rights reserved.
http://www.tp-link.com
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
•Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference
that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
Package Contents
The following contents should be found in your package:
¾One TD-8610/TD-8610B External ADSL2+ MODEM
¾One AC power Adapter for TD-8610/TD-8610B External ADSL2+ MODEM
¾One RJ45 cable
¾Two RJ11 cable
¾One ADSL splitter (only available for TD-8610)
¾One Resource CD for TD-8610/TD-8610B External ADSL2+ MODEM, including:
•This User Guide
•Other Helpful Information
)Note:
Make sure that the package contains the above items. If any of the listed items are
damaged or missing, please contact with your distributor.
CONTENTS
Chapter 1. Product Overview ....................................................................1
1.1 Product main specification .............................................................................1
1.2 Supporting protocol ........................................................................................1
1.3 Transmit data-rate ..........................................................................................1
1.4 ATM property..................................................................................................2
1.5 System support ..............................................................................................2
1.6 Working environment .....................................................................................2
1.7 Electric parameter ..........................................................................................2
Chapter 2. Hardware Installation Guide....................................................3
2.1 System requirement .......................................................................................3
2.2 LED explanation .............................................................................................3
2.3 Rear-panel......................................................................................................4
2.4 Hardware installation procedures...................................................................4
Chapter 3. How to use................................................................................6
3.1 Computer Configuration .................................................................................6
3.2 Login...............................................................................................................7
3.3 Setup ..............................................................................................................8
3.4 Software Dial ..................................................................................................9
Appendix A: Default Configuration ............................................................10
TD-8610/8610B External ADSL MODEM
1
Chapter 1. Product Overview
With the excellent design of circuit and high quality production, we guarantee ADSL2+ MODEM a
high performance, very good stability and easy to use.
TD-8610/TD-8610B is a complete plug-and-play solution. With standard Ethernet interface, it can
be directly connected to any 10M/100M Ethernet devices, support Auto-MDIX.
TD-8610/TD-8610B not only use html (web mode through Ethernet port) to configure the MODEM
but also use external utility software too. You can download it from our website
(http://www.tp-link.com).
1.1 Product main specification
¾High speed and asymmetry data transmit mode, adapt to wide-band internet access
¾Point to point connection, provide safe and exclusive bandwidth
¾Support All ADSL industrial standards
¾Advanced DMT modulation and demodulation
¾Firmware upgradeable
¾Compatible with all mainstream DSLAM (CO)
¾Real-time Configuration and device monitoring
¾Quick response semi-conductive surge protect circuit, provides reliable ESD and
surge-protect function
1.2 Supporting protocol
- G.992.1 (G.dmt) - Annex A/B
- G.992.2 (G.lite) - Annex A/B
- ANSI T1.413
- G.992.3 (ADSL2) - Annex A/B compliant
- G.992.5 (ADSL2+) Annex A/B compliant
- ADSL dual latency (fast path and interleaved path)
- I.432 ATM physical layer compliant
-Supports RFC2516 (PPPoE) *
- Supports RFC1483 (EoA) ( Bridged)
)Note:
“*”Need third-party software.
1.3 Transmit data-rate
¾Max download data-rate: 24Mbps
TD-8610/8610B External ADSL MODEM
2
¾Max upload data-rate: 1Mbps
¾Max line length: 6Km
1.4 ATM property
¾AAL0, AAL5, OAM, RM, and raw cell types supported
¾Direct hardware support for 4 Receive VCs, with additional RX VCs and TX VCs supported in
software
¾Full 24-bit Virtual Path Identifier (VPI) and Virtual Circuit Identifier (VCI)
1.5 System support
¾Support PVC
¾Support IEEE 802.3、IEEE 802.3u
¾Support 10Base-T/100BASE-TX full-duplex or half duplex Ethernet
¾Support Auto-MDIX
1.6 Working environment
¾Operating temperature: 0 ~40℃℃
¾Storage temperature: -40 ~70℃℃
¾Humidity: 10%～90%
1.7 Electric parameter
¾Adaptor power Output: 9VAC/0.8A，50Hz or 60 Hz
¾Power consumption: 4W Maximum
TD-8610/8610B External ADSL MODEM
3
Chapter 2. Hardware Installation Guide
2.1 System requirement
Confirm your computer has been installed with networking interface card (NIC) before connecting
ADSL MODEM to your computer, with operating system supporting the TCP/IP protocol.
2.2 LED explanation
The panel of ADSL MODEM includes one power button, one power indicator (RED) and four
function indicators (GREEN), and these five indicators are explained as chart 1-1:
Name Status Indication
Power On
Off
Power OK
Power fail
Act
On
Off
There is data transmitting or receiving on WAN
port
No data transmitting or receiving on WAN port
Alarm
On
Off
There is a mistake when ADSL is transmitting
data or receiving data
ADSL normal
ADSL
Slow flash
Quick flash
On
Off
Self-detecting when power up
The LINE port is sending or receiving ADSL data
The LINE port has connected to ISP’s network
The LINE port is disconnected
LAN
On
Off
Flash
LAN port is normal
Connection on LAN port is abnormal
Data is transmitting or receiving on LAN port
Chart 1-1
TD-8610/8610B External ADSL MODEM
4
2.3 Rear-panel
¾ON/OFF: Turn on/off the ADSL modem’s power.
¾Power (9VAC/0.8A input): please do not use any unknown power adaptor, otherwise that
may cause damage to your ADSL MODEM.
¾RESET (reset default): When the device is working, please press the reset button of the
Modem, keep the reset button pressed down for more than five seconds and then wait for the
router to reboot.
¾LAN: Connect with your computer’s NIC.
¾LINE (WAN): Connect to the MODEM of Splitter or connect to the telephone line.
2.4 Hardware installation procedures
First Step: Connect the MODEM of Splitter with the LINE port of the TD-8610/TD-8610B ADSL2+
MODEM by telephone line. While you need to use a telephone, please attach telephone line into
the phone of Splitter.
Second Step: Connect category 5 cable with RJ45 jacks to ADSL MODEM’s LAN port and your
computer’s NIC.
Third Step: Link power adapter into the power jack of ADSL MODEM. Please note the range of
voltage of power adapter should be within AC 220～230V, 50Hz, which will make the MODEM
under normal operation.
Last Step: Check the line connection to see if everything is ready. Then power up.
TD-8610/8610B External ADSL MODEM
5
Figure 2-1
