Introduction

The following document will enable all technicians and Fitment Centres to successfully install the

TomTom LINK 510 device.

This document will provide the reader with a step by step guide on how to install and connect

the device on TomTom WEBFLEET.

Installation Guide

The following components will be in the LINK 510 box.

A Yellow LED - connection status indicator.

B Green LED - system status indicator.

C Connector (SMB) for optional external GSM antenna.

D Service/Update Mini-USB-cable connector.

E Power cable connector.

F Reset button.

G IO-Cable connector.

H Connector (SMB) for optional external GPS antenna.

Power Cable

Tracker Connect PTY LTD

TomTom Installation

Guide

TomTom LINK 510

Issue: 1.1

TSU-TTH-BTN-12-354-LINK 510 Installation Guide

Date: 17 October 2012

Author: Yolandie Viljoen

Page: 4

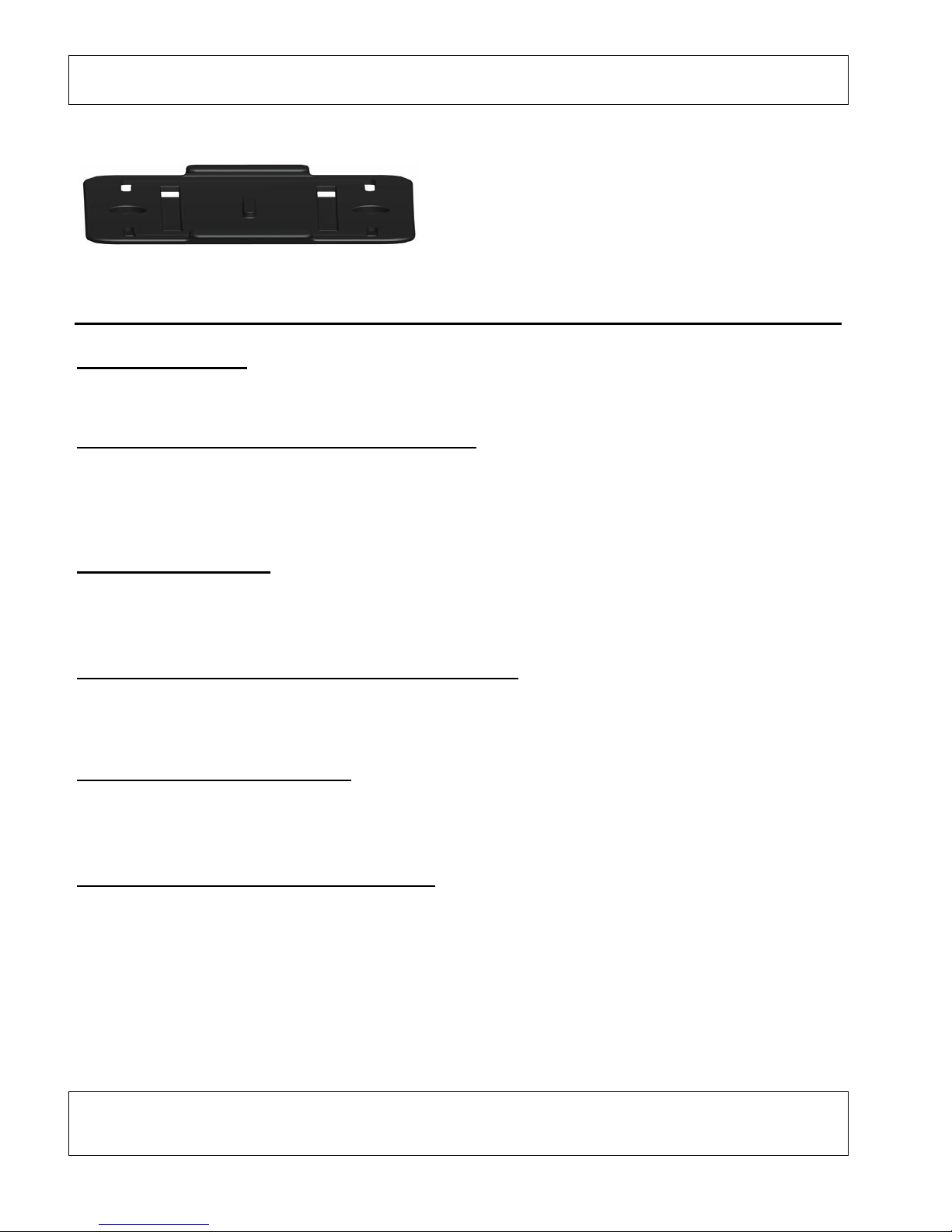

Holder

2 cable ties, 2 adhesive strips, 2 self-tapping screws and a cleaning tissue.

Specifications

The LINK 510 has the following functions and specifications:

Improved GPRS and GPS performance

• Better availability in areas with low field strength

• Two optional antennas (GSM and GPS)

• Due to a new design, one of the major causes of GPRS and/or GPS loss has been resolved

Bluetooth stability

• Improved Bluetooth stability thanks the latest Bluetooth technology and antenna re-design

• Less connection problems between the LINK 510 and ecoPLUS / PND / Remote LINK

More robust power supply and connectors

• No more loss of data due to automatic resets of the device

• Less RMAs due to more robust connectors

Additional in- and outputs

• 2x digital inputs

• 1 digital output

FMS (Fleet Management Systems)

The LINK can receive data through additional input wires to provide:

Fuel consumption per trip

Fuel level

Odometer

Speed

RPM

Tracker Connect PTY LTD

TomTom Installation

Guide

TomTom LINK 510

Issue: 1.1

TSU-TTH-BTN-12-354-LINK 510 Installation Guide

Date: 17 October 2012

Author: Yolandie Viljoen

Page: 5

PTO

The following technical specifications are applicable:

Dimensions Body: 121 x 56.5 x 21.5 mm

Body with Holder: 121 x 68 x 25.5 mm

Weight Body: 88 g

Holder: 12 g

Material Body and holder: Injection moulded plastic PC/ABS

Protection class IP 20

Supply voltage 12 V / 24 V (min. 9 V to max. 30 V

Current consumption

At 14 V: typically < 50 mA

At 28 V: typically < 30 mA

Standby: typically < 1 mA

During data transmission

14V < 150 mA

28V < 100 mA

Fuse protection Operating voltage* 9 - 30 V to be fused with max. 10A

Ignition to be fused with max. 10A

Internally fused with 2A, fuse is not resettable or replaceable, fuse must be replaced by

TomTom Business Solutions only

Temperature Operation: -30 °C to +70 °C

Storage: -40 °C to +80 °C

GSM Integrated GSM antenna and GSM module

Dualband GSM 900/1800

GPS Integrated GPS antenna and GPS receiver

BluetoothTM Integrated BluetoothTM (class 2) for connection to navigation device

Ignition input To be connected to the ignition clamp to switch on/off device together with

ignition

Digital inputs 2 inputs switchable to supply voltage

Digital output 1 output switchable to ground (open drain)

CANbus CAN H, CAN L26

GPS antenna connector for external GPS antenna(optional accessory)

SMB (male) - (antenna - female)

Supply voltage range 3.3 V

Minimum antenna gain at 3 V: 20 dB

Maximum antenna gain: 40 dB

Maximum noise rating: 1.5 dB

GSM antenna connector for external GSM antenna (optional accessory)

SMB (male) - (antenna - female), for use with GSM antenna from TomTom Business

Solutions only.

Tracker Connect PTY LTD

TomTom Installation

Guide

TomTom LINK 510

Issue: 1.1

TSU-TTH-BTN-12-354-LINK 510 Installation Guide

Date: 17 October 2012

Author: Yolandie Viljoen

Page: 6

Connection Overview

NB: Make sure this wire is fused with max. 10A.

Tracker Connect PTY LTD

TomTom Installation

Guide

TomTom LINK 510

Issue: 1.1

TSU-TTH-BTN-12-354-LINK 510 Installation Guide

Date: 17 October 2012

Author: Yolandie Viljoen

Page: 7

TomTom LINK 510 Installation Procedure

Before starting the installation of your TomTom LINK 510 make sure you have the following

things:

The Activation Code

The TomTom Link 510

The PRO 7100 with firmware version 10.537 or higher

A possible location for the unit has to be obtained.

The 510 unit must not be installed into any moving parts of the vehicle.

The 510 unit must not be able move on its own.

The TomTom LINK 510 unit must installed in line of site

The areas located in the vehicle can now, carefully, be disassembled.

(NB: Procedures of Installation Technical Bulletins must be applied)

The TomTom LINK 510 system is installed independently into vehicles and must not

be linked up to other Tracker systems. Technicians must ensure that the same location

and electrical supply circuits are not used to affect installations on vehicles fitted with

multiple Tracker products.

First you need to choose the correct position in which to install your LINK 510.

Take the following into consideration:

Do not expose the LINK 510 to direct sunlight and/or high temperature for long

periods to ensure proper operation.

To ensure GPS reception using the integrated GPS receiver, the top of the device must

not be obstructed by metal items. For more flexibility with regards to installation we

recommend using the external GPS antenna from TomTom Business Solutions.

To ensure GSM/GPRS reception using the integrated GSM/GPRS antenna, the LINK 510

must not be placed on or surrounded by metal items such as the vehicle’s coachwork

closer than 5 cm and the top side must not be obstructed by metal items. For more

flexibility with regards to installation we recommend using the external GSM antenna

from TomTom Business Solutions

Tracker Connect PTY LTD

TomTom Installation

Guide

TomTom LINK 510

Issue: 1.1

TSU-TTH-BTN-12-354-LINK 510 Installation Guide

Date: 17 October 2012

Author: Yolandie Viljoen

Page: 8

NB: A Top side of the LINK 510 must not be obstructed by metal items.

B Keep minimum distance of 5 cm to metal items.

The electric supply circuitry can now be identified and obtained.

Must be a permanent 12V or 24V power source that never losses power at any

stage during the installation life of the TU.

Must be a charging power source that exceeds 13.1V in a12V-Vehicle and 26V in

a 24V-Vehicle.

The positive (Red) wire from the plug can now be connected to the obtained

power supply circuit.

NB: First connect the wires then insert the plug into the LINK 510. If you have

inserted the plug into the LINK 510 first, you must connect the GND wire before you

connect the PWR+ wire and the IGN wire.

NB: If you need to disconnect the wires while the 3-pin plug is plugged in the LINK

510 make sure you disconnect the GND wire last.

A suitable ignition source must be identified and obtained:

Ignition supply- must be an applied ignition circuit that must be a permanent and

an unregulated charging circuit. (Care must be taken not to mistake ignition for

accessory)

The ignition (Black) wire from the plug can now be connected to the obtained

ignition supply circuit.

A suitable earth point (negative source) must be identified obtained.

Must be a permanent and reliable negative source.

The negative (Brown) wire from the plug can now be connected to the obtained

negative earth stud.

The input wire (green/blue) must be connected to an earth stud if not used for

detecting other digital inputs

Tracker Connect PTY LTD

TomTom Installation

Guide

TomTom LINK 510

Issue: 1.1

TSU-TTH-BTN-12-354-LINK 510 Installation Guide

Date: 17 October 2012

Author: Yolandie Viljoen

Page: 9

The TomTom LINK 510 unit harness can be routed towards the unit and camouflaged

according to the vehicles electrical harness, using Tracker consumables to ensure a

close match.

Insert the 4-pin Molex plug into the power cable connector.

The TomTom LINK 510 unit can now be securely installed onto a flat surface a

secreted installation location of the vehicle.

To conduct a test, please refer to TomTom LINK 510 testing procedures.

After a successful test you can now close the TomTom LINK 510 with the plastic seal

NB:Once you have closed the TomTom LINK 510 with the plastic seal, the device

cannot be opened again without damaging the seal.

The vehicle can now carefully and correctly be re-assembled and the installation of the

system concluded.

Testing Operation

The following

Power or Ignition test

Before testing the connection to power and to the ignition make sure you have carried out the

steps described in the previous chapters.

Please check all connections to the LINK 510 (wires, fuses etc.).

Turn off the ignition. The green LED must be off and then flash on every 3 seconds.

Turn on the ignition. The green LED must be on and then go off every 3 seconds.

If the device is already activated, see Activating the LINK 510 on page 11, the green LED

must be on all the time.

NB: If the LED does not perform accordingly see Diagnostics

GPRS reception test

For this test, you may need to move the vehicle to a location with a clear view of the sky,

to make sure that you have adequate GPS and GPRS reception.

For this test put the LINK 510 in the position where you want to fix it

Turn on the ignition.

Monitor the yellow LED. It must be on and go off every 3 seconds.

Tracker Connect PTY LTD

TomTom Installation

Guide

TomTom LINK 510

Issue: 1.1

TSU-TTH-BTN-12-354-LINK 510 Installation Guide

Date: 17 October 2012

Author: Yolandie Viljoen

Page: 10

NB: As soon as the device has established a connection to WEBFLEET the yellow LED

stays on all the time. If the LED keeps flashing for longer than 10 minutes, see

Diagnostics.

Diagnostics

Take note of the following diagnostics:

GREEN LED mode

OFF Unit is in standby mode or is not connected to power.

• Switch on ignition.

• Check if the device is properly connected to power.

OFF and short ON every 3sec Ignition off.

Rapidly flashing No operating system and/or no application available or application

failed.

• Install latest firmware application using the

TomTom Business Solutions Firmware Update

ON and short OFF every 3sec Ignition on. Application is running, device is not

activated.

• Activate device

ON Application is running, device is activated.

YELLOW LED mode

OFF Not connected - No GSM coverage.

• Check if device is connected to power, see

Connecting to power

Switch on ignition.

• Move the vehicle as you may be in a GSM dead spot.

OFF and short ON every 3sec Not connected - Correct GSM operator not available.

• Check WEBFLEET subscription for GSM network roaming support.

• Move the vehicle as you may be in a GSM dead spot.

Otros manuales para LINK 510

Tabla de contenidos

Otros manuales de GPS de TomTom

TomTom

TomTom MyTomTom Manual de usuario

TomTom

TomTom RIDER Manual de usuario

TomTom

TomTom GO 740 Live Manual de usuario

TomTom

TomTom Eclipse AVN2210p Manual de usuario

TomTom

TomTom GO Camper Manual de usuario

TomTom

TomTom One XLS Manual de usuario

TomTom

TomTom LINK 300 Manual de usuario

TomTom

TomTom GO 720 - Automotive GPS Receiver Manual de usuario

TomTom

TomTom ONE Car GPS Receiver Manual de usuario

TomTom

TomTom Rider 400 Manual de usuario

TomTom

TomTom VIA Manual de usuario

TomTom

TomTom Blue&Me- Manual de usuario

TomTom

TomTom NAVIGATION SYSTEM Manual de usuario

TomTom

TomTom GO Manual de usuario

TomTom

TomTom GO Manual de usuario

TomTom

TomTom Traffic Receiver Manual de usuario

TomTom

TomTom ECLIPSE Manual de usuario

TomTom

TomTom ONE/XL Manual de usuario

TomTom

TomTom GO PROFESSIONAL Series Manual de usuario

TomTom

TomTom RIDER Manual de usuario

TomTom

TomTom TNS400 Manual de usuario

TomTom

TomTom 1N01.081 Manual de usuario

TomTom

TomTom navigation module Manual de usuario

TomTom

TomTom RIDER 2nd Edition Manual de usuario

Manuales populares de GPS de otras marcas

Raven

Raven Cruizer II Manual

Hama

Hama 53118 Manual de usuario

Garmin

Garmin SOUNDER 125 Manual de usuario

Garmin

Garmin DEZL 580 Manual de usuario

Jigabot

Jigabot EX Manual de usuario

Pointer

Pointer Cellocator CelloTrack XT LTE Guía de instalación

Queclink

Queclink GV55LITE Manual de usuario

Voxson

Voxson Voxtrack GPS500 Manual de instrucciones

Garmin

Garmin ECHOMAP PLUS Manual de usuario

Starcom Systems

Starcom Systems Kylos Compact Manual de usuario

Garmin

Garmin 15 H Series Manual de usuario

Cobra

Cobra Marine MC 600Ci Manual de usuario

Cellocator

Cellocator CelloTrack T Manual de usuario

Enfora

Enfora Mini-MT GSM2228UG001 Manual de usuario

Magellan

Magellan eXplorist 100 Manual de usuario

LTE

LTE G50B Manual de usuario

Garmin

Garmin DEZL OTR500 Manual de usuario

SkyGolf

SkyGolf SkyCaddie SG1 Manual de usuario
