Theben TIMEGUARD PDFM361AB Manual

Presence Detector With

Model: PDFM361AB

(1 Channel)

Model: PDFM362AB

(2 Channel)

I n s t a llation & Ope r ating Instruction s

Optional Absence Detection

360º Flush Mount PIR

1. General Information

These instructions should be read carefully and retained for

further reference and maintenance.

Timeguard reserve the right to alter these instructions

at any time. Up to date instructions will always be available

for download at www.timeguard.com

2. Safety

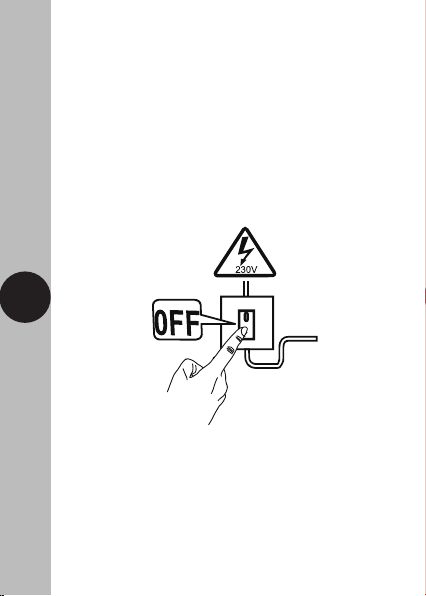

• Before installation or maintenance, ensure the mains supply

to the PIR is switched off and the circuit supply fuses are

removed or the circuit breaker turned off.

• It is recommended that a qualified electrician is consulted or

used for the installation of this PIR and install in accordance

with the current IEE wiring and Building Regulations.

• Check that the total load on the circuit including when this

PIR is fitted does not exceed the rating of the circuit

cable, fuse or circuit breaker.

• To clean use a clean dry cloth only. Do not use liquid cleaners.

3. Technical Specifications

• Class Protection: Class 2

Note:

• IP Rating: IP20

• Operating Temperature: -20˚to 40˚C

• PIR Detection Range: up to 8m at a 2.5m

• Mains Suppply: 220-240V AC 50Hz

mounting height

• Dectection Angle: 360˚

• Time ON Adjustment: 30sec - 30min

60 Minutes with optional

remote control IR10AB

• (LUX) level adjustment: 10 - 2000

• Manual Override: Yes

• Load 1 for Lighting: 2200W Incandescent

2200W Halogen

1200VA/140uF Fluorescent

800VA/600W LED

• Load 2 for HVAC: Voltage free contacts:

Max 5A for 230V AC

or 30V DC (resistive)

73W Motor

• Modes: Presence / Absence

• CE Compliant

• EC Directives: Conforms to the latest

directiives

• Construction: Polycarbonate

• Dimensions (H x W x D): 105mm x 105mm x 67mm

• PIR Ceiling Projection: 23.5mm

Note: Only PDFM362AB

supports 2 channel.

Note: Absence mode can only be triggered via using the IR10AB

remote control. (Sold Separately). A push switch is required for

absence mode to work on the PIR.

If a 2 channal surface PIR is required, model number PDSMSB

(Surface Mount Box), along with PDFM362AB

(2 Channel Flush Mount PIR) can be combined to work as a

2 channel surface mount PIR. The flush and surface base plates

are hot swapable. PDSMSB (Sold Separately)

4. Selecting a location

• The PIR has a number of detection zones at various horizontal

and vertical angles as shown below.

• A moving human body or object needs to cross one of these

zones to activate the sensor. The optimum height for this is

between 2m - 2.5m mouting height. Careful positioning of

the luminaire is required to ensure the best performance from

the PIR and the appointed approach path.

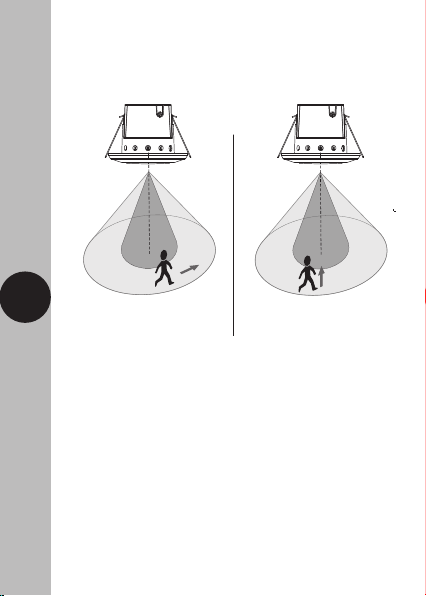

Effective Approach Path

(ACROSS)

Ineffective Approach Path

(TOWARDS)

• Avoid positioning the PIR near any sources of heat in

and around the detection area such as extractor fans,

tumble dryers or boiler exhauhsts etc. This would also include

other light sources such as secuirty lights.

•Reflective surfaces (i.e. pools of water, white painted walls,

overhanging branches and other types of foliage) may cause

false activation under heightened weather conditions.

•During extreme weather conditions the PIR may exhibit

unusual behaviour if placed in sight of a window. Once

normal weather resumes, the PIR will carryout normal

operations.

5. Installtion

• Ensure the mains supply is switched off and the circuit

supply fuses are removed or the circuit breaker turned off.

•An isolating switch should be installed to enable the power

to be switched ON and OFF to the PIR. This allows the

unit to be easily switched OFF for maintenance purposes.

•Mark the position of the 68mm diameter hole cut out,

taking care to avoid ceiling joists and other obstructions

within the position the hole cut out will be placed.

•Drill a pilot hole to take the centre shaft of the hole cutter.

•Use the hole cutter to cut the required hole.

•Pass the 230V 50Hz mains supply and load cables through

the hole and prepare for termination

• Unscrew the side on door entry access points on the base

plate of the PIR and open it. Locate the terminal connections

and terminate the cables into the terminal block ensuring

that the correct polarity is observed and that all bare

conductors are sleeved. (See Section 6. Connection Diagram)

•When wiring is complete, close the door entry access points

to clamp the cable securely into place. Tighten the screws

to the door entry points and ensure not to over tighten.

Door entry point for

terminal access

Swing motion

door entry

Cable clamp built into the

door entry access point

• Fit the PIR into the hole cut out previously cut until the springs

flcik out and secure the body to the ceiling.

ø68mm

6. Connection Diagram

C2 C1

LN N

P/S

Channel

1 Load

Push

Button

Channel 2 Load

Volt Free Input

LN N

P/S

Channel

1 Load

Push

Button

230V AC 50Hz Mains Supply

Live (Brown or Red) to L

Neutral (Blue or Black to N

PDFM361AB: Wiring Configuration

Load

Switched Live

(Brown or Red) to

Neutral (Blue or Black to N

PDFM361AB

PDFM362AB

Channel 1: 230V AC 50Hz Only

Live (Brown or Red) to L

Neutral (Blue or Black to N

Channel 2: Volt Free Input to C1

(5-230V AC 50Hz or 5-30V DC

5A MAX) or 73W Motor

PDFM362AB: Wiring Configuration

Load

Switched Live Channel 1

(Brown or Red) to

Switched Live Channel 2

Volt Free Output to C2

(Terminal C2 will refelct the

supply from terminal C1)

Supply (Mains + Volt Free)

7.Commisioning and Operation

• Restore the power from the mains supply breaker or

isolating switch and test for the correct operation.

• Adjust the time dial (fully anti-clockwise), and the Lux

dial should be set to the sun symbol for daylight/night

operation for the purpose of the walk test.

• Allow the PIR to settle down if the attched load is switched

on, this is called warm up mode and can take several minutes

to switch off as long as there is nothing detected in the pickup

area.

• Once the unit is in the OFF position walk across the

detection area, when the PIR is triggered and the load will

turn ON for the minimum set amount of time.

• Once you are happy with the pickup area of the PIR you

can set the Lux dial in the anticlockwise direction to trigger

when dusk is approaching. (This may be best performed in

real time in the evening subject to the users preferance).

• You can also adjust the time dial which will vary the

timeout peroids of the PIR once the pickup area is vacated

of any movement.

Walk Test Procedure

8.Switching from Presence to

to Absence mode

• The PIR will come pre-set to presence mode as standard, if

you require an absence detector continue following this

section. Note that a IR10AB remote will be required to

change modes. Otherwise you can skip to section 9.

• To switch the PIR from presence to absence mode, press the

lock/unlock button and you will see 2 flashes from the LED

receiver of the PIR, this indicates that the PIR is unlocked and

ready to receive further instructions from the remote control.

Next press the Semi Auto button on the IR10AB remote

control. The LED receiver light will flash once for up to 2

seconds and dissapear, this indicates that the PIR is now in

Semi Auto (absence mode).

• When the PIR set to absence mode, the unit will not switch

on automatically when someone walks in the detection area.

• The person in the room must press the retractable push

button for the light to switch on. From this point onwards as

long as detection in the area has constant movement, the

PIR will continue to keep the luminaire or attached load

swtiched on, until the subject has moved out of the detection

area and the time delay function takes over.

• For example if set to 10 minutes the PIR will begin to

countdown from this value once nothing is in the detection

area. If a subject is detected the time delay will reset.

Switching From Presence To Absence Mode:

Switching From Absence To Presence Mode:

• To switch the PIR from absence to presence mode, press the

lock/unlock button and you will see 2 flashes from the LED

receiver of the PIR. Next press the Auto button on the

IR10AB remote control. The LED receiver light will flash

twice and dissapear, this indicates that the PIR is now in

Auto (presence mode). There will be up to a 1 minute delay

in changing modes where the PIR will not switch.

Problem Cause/Solution

The luminaire does

not switch on when

in the detection area.

Bulb faulty or missing.

Nearby light sources causing interference.

Redirect the PIR or light source if possible.

9. Troubleshooting Guide

9.Optional Remote Control

• The IR10AB is an optional remote control that is sold

separately. If absence detection is required the IR10AB will

be needed to change modes over.

• LUX control adjustment.

(Auto mode only).

• Time delay adjustment

(up to 60 minutes

Auto mode only).

• Independant channel control

(PDFM362AB only).

• Sensitiveity control.

• Manual override ON/OFF

(10 hours).

• Learn mode: Set for a specific

Lux level.

• Lock/Unlock PIR settings.

• Semi Auto mode: Absence

• Auto mode: Presence

• Pulse mode
