TLV751-EVM Evaluation Module

User's Guide

SBVU057–December 2019

TLV751-EVM Evaluation Module

Figure 1. TLV751-EVM Evaluation Module

This user’s guide describes the operational use of the TLV751-EVM evaluation module (EVM) as a

reference design for engineering demonstration and evaluation of the TLV75101DSQ, a dual, high-

accuracy, adjustable linear regulator (LDO). Included in this user’s guide are setup and operating

instructions, thermal and layout guidelines, a printed circuit board (PCB) layout, a schematic diagram, and

a bill of materials (BOM).

Throughout this document, the terms demonstration kit,evaluation board, and evaluation module are

synonymous with the TLV751-EVM.

Table 1 lists the related documentation available through the Texas Instruments web site at www.ti.com.

Table 1. Related Documentation

DEVICE LITERATURE NUMBER

TLV751 SBVS385

www.ti.com

2SBVU057–December 2019

Submit Documentation Feedback

TLV751-EVM Evaluation Module

Contents

1 Introduction ................................................................................................................... 3

1.1 Before You Begin................................................................................................... 3

2 EVM Setup.................................................................................................................... 4

2.1 Inputs/Outputs Connectors and Jumper Descriptions ......................................................... 4

2.2 Soldering Guidelines ............................................................................................... 5

2.3 Equipment Connection............................................................................................. 6

3 Operation ..................................................................................................................... 6

4 PCB Layout................................................................................................................... 7

5 Schematic..................................................................................................................... 9

6 Bill of Materials ............................................................................................................. 10

List of Figures

1 TLV751-EVM Evaluation Module.......................................................................................... 1

2 Assembly Layer.............................................................................................................. 7

3 Top Layer Routing........................................................................................................... 7

4 First Middle Layer............................................................................................................ 7

5 Second Middle Layer........................................................................................................ 7

6 Bottom Layer Routing....................................................................................................... 7

7 TLV751-EVM Schematic.................................................................................................... 9

List of Tables

1 Related Documentation..................................................................................................... 1

2 TLV751-EVM BOM ........................................................................................................ 10

Trademarks

All trademarks are the property of their respective owners.

www.ti.com

Introduction

SBVU057–December 2019

TLV751-EVM Evaluation Module

1 Introduction

Texas Instruments' TLV751-EVM helps design engineers evaluate the operation and performance of the

TLV751 family of linear regulators for possible use in their own circuit application. This particular EVM

configuration contains a single high-accuracy, small size, dual-input linear regulator for a wide range of

applications. The regulator is capable of delivering up to 500 mA to the load for each input channel with

low VIN to VOUT dropout voltage. For stability, use a minimum derated capacitance of 0.47-µF (or larger)

output capacitor for each output channel.

1.1 Before You Begin

The following warnings and cautions are noted for the safety of anyone using or working close to the

TLV751-EVM. Observe all safety precautions.

Warning Warning Hot surface. Contact may cause burns. Do not touch.

CAUTION

The circuit module can be damaged by overtemperature. To avoid damage,

monitor the temperature during evaluation and provide cooling, as needed, for

your system environment.

CAUTION

Some power supplies can be damaged by application of external voltages. If

you are using more than one power supply, check your equipment

requirements and use blocking diodes or other isolation techniques, as needed,

to prevent damage to your equipment.

CAUTION

The circuit module is not a finished product or electrical appliance. The module

does not contain current or voltage thresholds for circuit protection. It must be

used by qualified personnel with additional equipment for evaluation only.

EVM Setup

www.ti.com

4SBVU057–December 2019

Submit Documentation Feedback

TLV751-EVM Evaluation Module

2 EVM Setup

This section describes how to properly connect and set up the TLV751-EVM, including the jumpers and

connectors on the EVM board.

2.1 Inputs/Outputs Connectors and Jumper Descriptions

2.1.1 J1 – OUT1_S

Regulated output voltage one sense

2.1.2 J2 – IN1

Input power supply one voltage connector. Twist together the positive input lead and ground return lead

from the input power supply one, and keep them as short as possible to minimize input inductance.

2.1.3 J3 – OUT1

Regulated output voltage one connector

2.1.4 J4 – IN1_S

Input voltage one sense

2.1.5 J5 –GND

Input supply one ground return connector

2.1.6 J6 – GND

Regulated output voltage one ground return connector

2.1.7 J7 – IN2

Input power supply two voltage connector. Twist together the positive input lead and ground return lead

from the input power supply two, and keep them as short as possible to minimize input inductance.

2.1.8 J8 – OUT2

Regulated output voltage two connector

2.1.9 J9 – IN2_S

Input voltage two sense

2.1.10 J10 – GND

Input supply two ground return connector

2.1.11 J11 – EN1

Output voltage one enable. To enable output voltage one, connect a jumper to short VIN1 to EN1.

2.1.12 J12 – GND

Regulated output voltage two ground return connector

2.1.13 J13 – OUT2_S

Regulated output voltage two sense

www.ti.com

EVM Setup

SBVU057–December 2019

TLV751-EVM Evaluation Module

2.1.14 J14 – EN2

Output voltage two enable. To enable output voltage two, connect a jumper to short VIN2 to EN2.

2.1.15 J15 – OUT1 Set

For convenience, the EVM is prepopulated with four resistor divider options. Place a shunt on J15 next to

the schematic label of your desired output voltage one.

2.1.16 J16 – OUT2 Set

For convenience, the EVM is prepopulated with four resistor divider options. Place a shunt on J15 next to

the schematic label of your desired output voltage two.

2.1.17 J17 – Test Hookup

Intended for test purposes only

2.1.18 TP1 – OUT1_S

Regulated output voltage one test point

2.1.19 TP2 – IN1_S

Input voltage one test point

2.1.20 TP3 – OUT2_S

Regulated output voltage two test point

2.1.21 TP4 – IN2_S

Input voltage two test point

2.1.22 TP5 – EN1

Output voltage one enable test point

2.1.23 TP6 – EN2

Output voltage two enable test point

2.1.24 TP7 – GND

Ground test point

2.1.25 TP8 – GND

Ground test point

2.1.26 TP9 – GND

Ground test point

2.1.27 TP10 – GND

Ground test point

2.2 Soldering Guidelines

To avoid damaging the integrated circuit (IC), use a hot-air system for any solder rework to modify the

EVM for the purpose of repair or other application reasons.

EVM Setup

www.ti.com

6SBVU057–December 2019

Submit Documentation Feedback

TLV751-EVM Evaluation Module

2.3 Equipment Connection

Connect the equipment as shown in the following steps:

1. Set the input power supplies one and two up to 6 V (max), and turn them off.

2. Connect the GND leads of both supplies together.

3. Connect the positive voltage lead from the input power supply one to IN1 at the J2 connector of the

EVM.

4. Connect the ground lead from the input power supplies one and two to GND at the J5 connector of the

EVM.

5. Connect the positive voltage lead from the input power supply two to IN2 at the J7 connector of the

EVM.

6. Connect the ground lead from the input power supplies one and two to GND at the J10 connector of

the EVM.

7. Connect a 0-A to 500-mA load between OUT1 and GND.

8. Connect a 0-A to 500-mA load between OUT2 and GND.

9. Disable output voltage one by floating J11.

10. Disable output voltage two by floating J14.

3 Operation

Operate the equipment using the following steps:

1. Turn on the power supplies.

2. Enable the outputs by jumping J11 (the EN1 pin) to VIN1 and J14 (the EN2 pin) to VIN2.

3. Vary the respective loads and input voltages, as necessary, for test purposes.

www.ti.com

PCB Layout

SBVU057–December 2019

TLV751-EVM Evaluation Module

4 PCB Layout

Figure 2 to Figure 6 illustrate the PCB layout for this EVM.

Figure 2. Assembly Layer Figure 3. Top Layer Routing

Figure 4. First Middle Layer Figure 5. Second Middle Layer

PCB Layout

www.ti.com

8SBVU057–December 2019

Submit Documentation Feedback

TLV751-EVM Evaluation Module

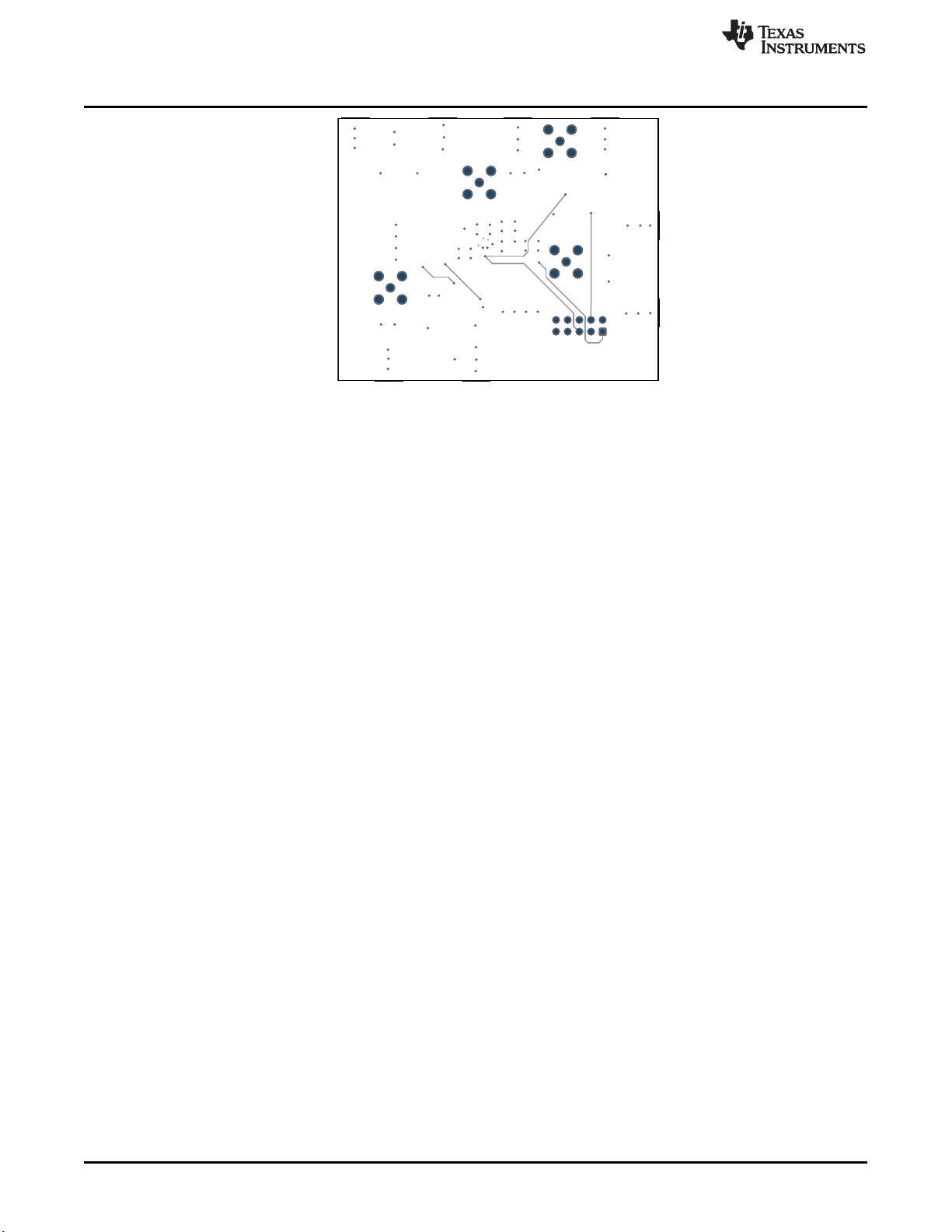

Figure 6. Bottom Layer Routing

www.ti.com

Schematic

SBVU057–December 2019

TLV751-EVM Evaluation Module

5 Schematic

Figure 7 shows this schematic for the EVM.

Figure 7. TLV751-EVM Schematic

Bill of Materials

www.ti.com

10 SBVU057–December 2019

Submit Documentation Feedback

TLV751-EVM Evaluation Module

6 Bill of Materials

Table 2 shows the BOM for this EVM.

(1) These assemblies are ESD sensitive, observe ESD precautions.

(2) These assemblies must be clean and free from flux and all contaminants. Use of no-clean flux is not acceptable.

(3) These assemblies must comply with workmanship standards IPC-A-610 Class 2.

(4) Unless otherwise noted in the Alternate Part Number or Alternate Manufacturer columns, all parts can be substituted with equivalents.

Table 2. TLV751-EVM BOM(1)(2)(3)(4)

DESIGNATOR QTY VALUE DESCRIPTION PACKAGE REFERENCE PART NUMBER MANUFACTURER ALTERNATE

PART

NUMBER

ALTERNATE

MANUFACTURER

!PCB1 1 Printed Circuit Board LP032 Any

C3, C4, C9, C10 4 1 µF CAP, CERM, 1 µF, 50 V, ±10%, X7R, 0805 0805 08055C105KAT2A AVX

J2, J3, J7, J8 4 Standard Banana Jack, Insulated, Red 6091 6091 Keystone

J5, J6, J10, J12 4 Standard Banana Jack, Insulated, Black 6092 6092 Keystone

J11, J14 2 Header, 2.54 mm, 2x1, Tin, SMT Header, 2.54 mm, 2x1, SMT TSM-102-03-T-SV Samtec

J15, J16 2 Header, 2.54 mm, 4x2, Gold, SMT Header, 2.54 mm, 4x2, SMT 61000821121 Wurth Elektronik

LBL1 1 Thermal Transfer Printable Labels, 0.650" W x 0.200" H - 10 000

per roll PCB Label 0.650 x 0.200 inch THT-14-423-10 Brady

R1, R2 2 48.7 k RES, 48.7 k, 1%, 0.125 W, AEC-Q200 Grade 0, 0805 0805 CRCW080548K7FKEA Vishay-Dale

R3, R5, R9, R12 4 13.7 k RES, 13.7 k, 1%, 0.125 W, AEC-Q200 Grade 0, 0805 0805 CRCW080513K7FKEA Vishay-Dale

R4, R8 2 21.5 k RES, 21.5 k, 1%, 0.125 W, AEC-Q200 Grade 0, 0805 0805 CRCW080521K5FKEA Vishay-Dale

R6, R10 2 9.76 k RES, 9.76 k, 1%, 0.125 W, AEC-Q200 Grade 0, 0805 0805 CRCW08059K76FKEA Vishay-Dale

R7, R11 2 6.04 k RES, 6.04 k, 1%, 0.125 W, AEC-Q200 Grade 0, 0805 0805 CRCW08056K04FKEA Vishay-Dale

SH-J1, SH-J2, SH-J3,

SH-J4 4 1x2 Shunt, 100 mil, Gold plated, Black Shunt SNT-100-BK-G Samtec 969102-0000-

DA 3M

TP1, TP2, TP3, TP4,

TP5, TP6, TP7, TP8,

TP9, TP10 10 Test Point, Compact, SMT Testpoint_Keystone_Compact 5016 Keystone

U1 1 Dual, 500-mA, high-accuracy, adjustable-LDO in a small size

package, DSQ0010A (WSON-10) DSQ0010A TLV751DSQ Texas Instruments Texas Instruments

C1, C2, C5, C6, C7,

C8, C11, C12 0 1 µF CAP, CERM, 1 µF, 50 V, ±10%, X7R, 0805 0805 08055C105KAT2A AVX

FID1, FID2, FID3 0 Fiducial mark. There is nothing to buy or mount. N/A N/A N/A

J1, J4, J9, J13 0 SMA Straight Jack, Gold, 50 Ω, TH SMA Straight Jack, TH 901-144-8RFX Amphenol RF

J17 0 Header, 2.54 mm, 5x2, Gold, TH Header, 2.54 mm, 5x2, TH 61301021121 Wurth Elektronik

Otros manuales para TLV751-EVM

Tabla de contenidos

Otros manuales de Placa madre de Texas Instruments

Texas Instruments

Texas Instruments MCT8315Z Manual de usuario

Texas Instruments

Texas Instruments EVM430-FR6043 Manual de usuario

Texas Instruments

Texas Instruments TUSB1002EVM Manual de usuario

Texas Instruments

Texas Instruments SWIFT TPS54350EVM-235 Manual de usuario

Texas Instruments

Texas Instruments TIC12400 Manual de usuario

Texas Instruments

Texas Instruments ADC DJ 00SE Series Manual de usuario

Texas Instruments

Texas Instruments Stellaris LM3S9B90 Manual

Texas Instruments

Texas Instruments BOOSTXL-DRV8320RS Manual de usuario

Texas Instruments

Texas Instruments TRF37T05EVM Manual de usuario

Texas Instruments

Texas Instruments C5535 DSPShield Guía rápida de usuario

Texas Instruments

Texas Instruments ADS794x EVM Series Manual de usuario

Texas Instruments

Texas Instruments AMC131M03EVM Manual de usuario

Texas Instruments

Texas Instruments TPS65084x EVM Manual de usuario

Texas Instruments

Texas Instruments TPD1E10B06-Q1 Manual de usuario

Texas Instruments

Texas Instruments MSP430FR58 Series Manual de usuario

Texas Instruments

Texas Instruments BQ24702/03 EVM Manual de usuario

Texas Instruments

Texas Instruments Stellaris LM3S2965 Manual de usuario

Texas Instruments

Texas Instruments DRV5011-5012EVM Manual de usuario

Texas Instruments

Texas Instruments MSP430FR57 Series Manual de usuario

Texas Instruments

Texas Instruments TPD2E1B06DRLEVM Manual de usuario

Texas Instruments

Texas Instruments TMP104EVM Manual de usuario

Texas Instruments

Texas Instruments TPA6304-Q1 Manual de usuario

Texas Instruments

Texas Instruments BQ24392EVM Manual de usuario

Texas Instruments

Texas Instruments LMX1906-SP Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
