User’s Guide

INA234EVM and INA236EVM

ABSTRACT

This user’s guide describes the characteristics, operation, and use of the INA234 and INA236 evaluation

modules (EVMs). These EVMs are designed to evaluate the performance of the INA234 and INA236.

Throughout this document, the terms evaluation board, evaluation module, and EVM are synonymous with

the INA234EVM and INA236EVM. This document includes a schematic, reference printed circuit board (PCB)

layouts, and a complete bill of materials (BOM).

www.ti.com

SBOU264A – MAY 2021 – REVISED FEBRUARY 2022

Submit Document Feedback

INA234EVM and INA236EVM 1

Table of Contents

1 Trademarks..............................................................................................................................................................................2

2 Overview..................................................................................................................................................................................3

2.1 Kit Contents........................................................................................................................................................................3

2.2 Related Documentation From Texas Instruments.............................................................................................................. 4

3 Hardware................................................................................................................................................................................. 4

3.1 Features............................................................................................................................................................................. 4

4 Operation.................................................................................................................................................................................5

4.1 Quick Start Setup............................................................................................................................................................... 5

4.2 EVM Operation...................................................................................................................................................................5

5 Circuitry................................................................................................................................................................................. 15

5.1 Current Sensing IC...........................................................................................................................................................15

5.2 Input Signal Path..............................................................................................................................................................15

5.3 Digital Circuitry................................................................................................................................................................. 15

6 Schematics, PCB Layout, and Bill of Materials................................................................................................................. 16

6.1 Schematics.......................................................................................................................................................................16

6.2 PCB Layout...................................................................................................................................................................... 18

6.3 Bill of Materials.................................................................................................................................................................19

7 Revision History................................................................................................................................................................... 20

1 Trademarks

All trademarks are the property of their respective owners.

Table of Contents www.ti.com

2INA234EVM and INA236EVM SBOU264A – MAY 2021 – REVISED FEBRUARY 2022

Submit Document Feedback

2 Overview

The INA234 and INA236 devices are digital power monitors with integrated 16-bit (INA236) and 12-bit (INA234)

delta-sigma ADCs specifically designed for current-sensing applications. The devices can measure a selectable

full-scale differential input of ±81.92 mV or ±20.48 mV across the shunt with common-mode voltage support

from –0.3 V to +42 V (–0.3 V to +28 V for INA234). The built-in digital accumulation calculates average power

and current if calibration register is programmed. The INA234 and INA236 devices also have built-in diagnostics

to indicate system health accessible through a digital output pin, ALERT. The output can be interfaced with a

multitude of microcontrollers (MCUs) with a standard I2C interface.

Table 2-1. Device Summary

PRODUCT

DIGITAL

PROTOCOL

ADC

RESOLUTION

MAX GAIN

ERROR

MAX OFFSET

VOLTAGE

INA234 I2C 16-bit 1% ±100 µV

INA236 I2C 12-bit 0.2% ±10 µV

2.1 Kit Contents

Table 2-2 lists the contents of the EVM kit. Contact the nearest Texas Instruments Product Information Center if

any component is missing.

Table 2-2. Kit Contents

ITEM QUANTITY

INA234EVM OR INA236EVM board 1

Note that this EVM requires the TI Sensor Control Board (SCB), which is sold separately.

www.ti.com Overview

SBOU264A – MAY 2021 – REVISED FEBRUARY 2022

Submit Document Feedback

INA234EVM and INA236EVM 3

2.2 Related Documentation From Texas Instruments

This user's guide is available from the TI website under literature number SBOU241. Any letter appended to the

literature number corresponds to the document revision that is current at the time of the writing of this document.

Newer revisions are available from www.ti.com or the Texas Instruments' Literature Response Center at (800)

477-8924 or the Product Information Center at (972) 644-5580. When ordering, identify the document by both

title and literature number. Table 2-3 lists documentation related to the EVM. Click the links in Table 2-3 for

further information. The device name links to the product web folder on www.ti.com. The literature number links

to the document PDF.

Table 2-3. Related Documentation

DOCUMENT TITLE

DOCUMENT LITERATURE

NUMBER

INA234 data sheet SBOS844

INA236 data sheet SBOSA81

3 Hardware

The EVM is an easy-to-use platform for evaluating the main features and performance of the INA234 or INA236.

The EVM supports current measurements up to 10 amps, and includes a graphical user interface (GUI) used to

read and write device registers as well as view and save results data.

The EVM is intended to provide basic functional evaluation of the devices. The layout is not intended to be a

model for the target circuit, nor is it laid out for electromagnetic compatibility (EMC) testing. The EVM consists

of two printed circuit boards (PCBs). The larger PCB is referred to as the EVM, and has either the INA234 or

INA236 installed. The smaller PCB is referred to as the SCB Controller, and is used to interface the EVM with

the GUI.

3.1 Features

• GUI support to read and write device registers as well as view and save results data

• EVM detached from SCB for custom use cases

• Conveniently powered from a common micro-USB connector through the SCB

Overview www.ti.com

4INA234EVM and INA236EVM SBOU264A – MAY 2021 – REVISED FEBRUARY 2022

Submit Document Feedback

4 Operation

4.1 Quick Start Setup

The following instructions describe how to set up and use the EVM.

1. Purchase an SCB if you do not already have one.

2. Download this driver and install it as an administrator: https://www.ti.com/lit/zip/sbac253.

3. Attach the EVM to the SCB Controller as shown in Figure 4-1.

a. Refer to Figure 4-2 when connecting multiple EVMs of the same type together.

4. Connect the EVM to a PC using the provided USB cable.

a. Insert the micro USB cable into the SCB Controller onboard USB receptacle J2.

b. Plug the other end of the USB cable into a PC.

5. Access the GUI from this link in either Chrome or Firefox: https://dev.ti.com/gallery/info/3907820/

INA234_236EVM_GUI/ver/1.0.0/.

6. Connect the GND reference of the external system to the GND node of the EVM (pin 1 of J1).

7. Provide a differential input voltage signal to the IN+ and IN– nodes by connecting the signal leads to J1 pin 5

or 6 and J1 pin 3 or 4 on the EVM as explained in Section 4.2.2.

4.2 EVM Operation

To use the EVM with the SCB Controller (sold separately), connect the EVM as shown in Figure 4-1.

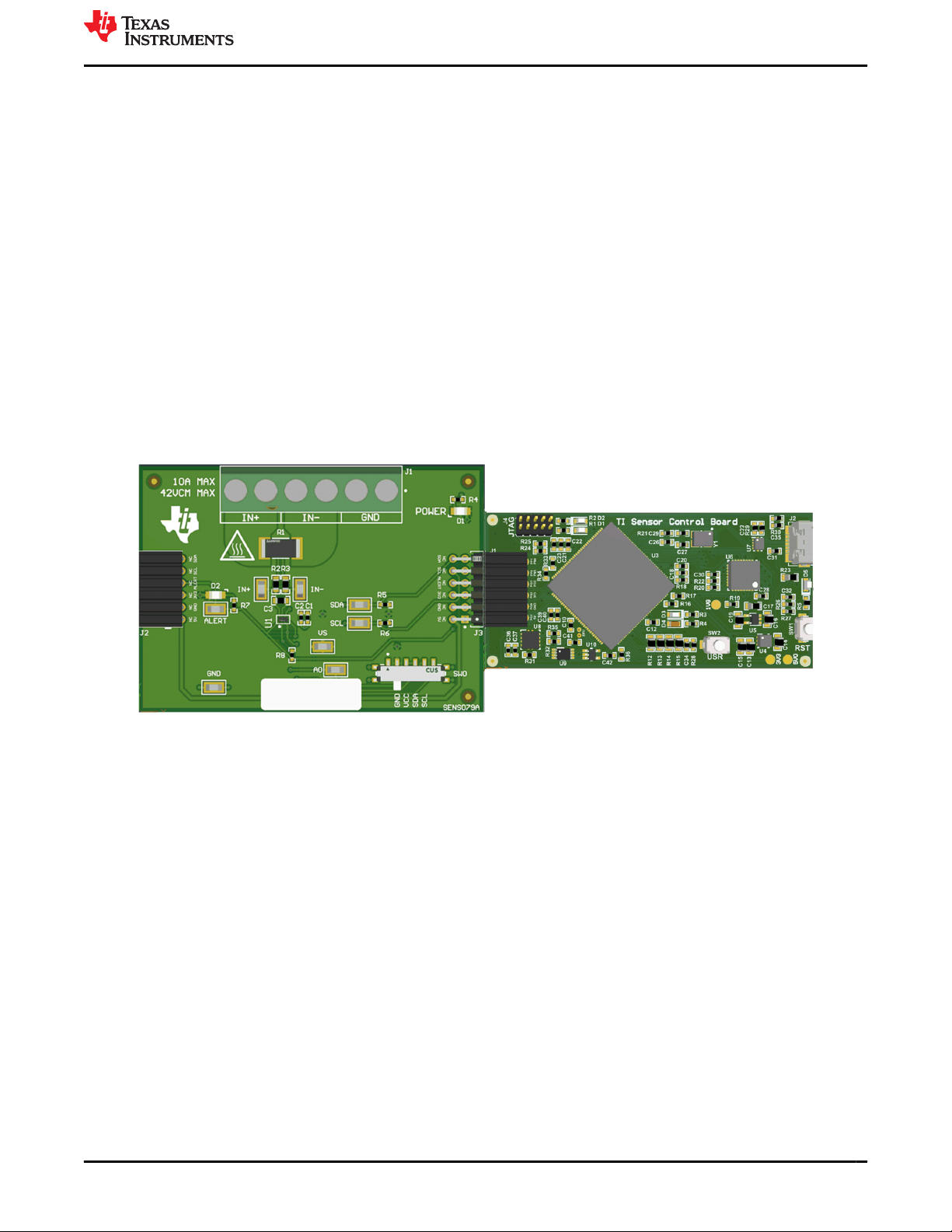

Figure 4-1. EVM Connected to SCB Controller

If using multiple EVMs, connect them as shown in Figure 4-2. Make sure to use a different chip address for each

device. The GUI only supports one EVM/device type at a time.

www.ti.com Operation

SBOU264A – MAY 2021 – REVISED FEBRUARY 2022

Submit Document Feedback

INA234EVM and INA236EVM 5

Figure 4-2. Multiple EVMs Connected to SCB Controller

4.2.1 Setup

4.2.1.1 Driver Installation

Download and install this driver: https://www.ti.com/lit/zip/sbac253. This is a one-time step per computer. Unzip

the folder and run the .exe file with administrator privileges.

4.2.1.2 Firmware

Firmware updates will be pushed through the GUI (requires previous driver to be installed). Downloaded offline

GUIs will only update the SCB Controller with the latest firmware available at the time of download. To check for

the latest GUI or Firmware updates, launch the GUI from the web browser.

4.2.1.2.1 Firmware Debug

If the firmware must be manually reinstalled for any reason, follow these steps to reinstall the firmware. Make

sure the EVM is connected to the SCB.

1. First, see if the GUI can program the firmware manually.

a. Plug in the SCB controller to the PC.

b. Launch the GUI.

c. It is possible that the MCU has already entered DFU mode. If so, the GUI may notify you and try to

update the firmware to the latest version.

d. If it does not update automatically, go to File > Program Device...

2. If that does not work (or if the Program Device button is grayed out), manually configure the MCU on the

SCB Controller to be in Device Firmware Update (DFU) Mode. This can be done through either of the below

methods with the SCB Controller powered on:

a. Through software:

• For safety, turn off and disconnect all load sources and external voltages.

• Send the command 'bsl' on the SCB's USB Serial (COM) port.

b. Though hardware:

• While shorting the two test points labeled "DFU" (shown in Figure 4-3) with a pair of tweezers (or

wire), press and release the RESET button.

Operation www.ti.com

6INA234EVM and INA236EVM SBOU264A – MAY 2021 – REVISED FEBRUARY 2022

Submit Document Feedback

Figure 4-3. Test Points Used to Enter DFU Mode Manually

With the MCU in DFU mode, the firmware can now be uploaded through the method outlined in Step 1.

4.2.1.3 GUI Setup and Usage

The GUI can be accessed from this link in either Chrome or Firefox: https://dev.ti.com/gallery/info/3907820/

INA234_236EVM_GUI/ver/1.0.0/.

4.2.1.3.1 Initial Setup

To set up the GUI the first time:

1. Make sure that the previously mentioned driver was installed successfully to ensure that everything works

properly and that the GUI can update the EVM firmware, if necessary.

2. Check to make sure the EVM/SCB Controller unit is plugged into the PC, then go to the previously-provided

GUI link.

3. Click the GUI Composer application (Figure 4-4) to launch the GUI from the web browser.

Figure 4-4. GUI Composer Application

www.ti.com Operation

SBOU264A – MAY 2021 – REVISED FEBRUARY 2022

Submit Document Feedback

INA234EVM and INA236EVM 7

a. Follow the prompts to download the TI Cloud Agent and browser extension shown in Figure 4-5 for the

first-time GUI Composer setup These prompts will appear after you close the README.md dialog.

Figure 4-5. TI Cloud Agent

4. Optionally, click the icon in the GUI Composer application (Figure 4-4) and follow the prompts to

download the GUI for offline use.

4.2.1.3.2 GUI Operation

To operate the GUI, follow these steps:

1. Connect to and launch the GUI as described in Section 4.2.1.3.1.

2. Check to make sure that the EVM connected to the GUI, then close the README.md file page to initiate the

connection. If successful, the Hardware Connected message should be visible near the bottom-left corner

of the GUI as in Figure 4-6.

Figure 4-6. Hardware Connected

a. A green indicator with the device type and the text DEVICE CONNECTED should also be visible near

the top-left of the GUI window, as shown in Figure 4-7.

Figure 4-7. Device Connected

b. If Hardware Connected and DEVICE CONNECTED do not show in the GUI, check the different

hardware COM ports under Options >> Serial Port, as shown in Figure 4-8.

Figure 4-8. Change Serial Port

c. If the hardware still does not connect, make sure you are using the correct GUI/EVM combination.

Operation www.ti.com

8INA234EVM and INA236EVM SBOU264A – MAY 2021 – REVISED FEBRUARY 2022

Submit Document Feedback

i. If you are using the correct GUI/EVM combination, you may need to reprogram the firmware of the

SCB, as described in Firmware Debug.

3. Click the (registers) icon on the left menu to view and edit the device register map.

a. From this page, you can read and write register settings on the EVM. For questions about a register or

4. Click the (plots) icon on the left menu to go to the plots page. Under the plots page, you can view and

collect results data over time. The plots page will look similar the one shown in Figure 4-9, depending on the

connected device.

Figure 4-9. GUI Plots Page

a. Below is a description of how to use the buttons and settings at the top of the plots page and next to

each plot:

i. Check the Results to collect/show box on the left to collect data from specific register values. If

a results register is unselected, then the plot below will not show the data and the EVM will not

try to read this value during the collect cycle. If you disable one of these settings while the EVM is

collecting data, then the plot will not show, but data will still be collected and the plot will update in

the background.

ii. Set the Number of EVMs drop-down menu to the number of EVMs currently in use. See Figure

4-2 to see how to attach multiple EVMs together. Use the onboard switch(es) to select a different

address for each EVM. The GUI only supports one EVM/device type at a time.

1. Set the switch settings for each connected EVM. EVM 1 will automatically populate with the

lowest addressed device unless a setting has already been selected.

2. Click the LINK TO REGMAP button to set the regmap of the desired EVM. Use this button to

change settings for each connected device through the register map. Functionally, this button

sets the default read/write address in the MCU and then reads all register values back to update

the register map. Note that if data is being collected at a high frequency, then this may cause a

minor delay in the collection data. For optimal performance, set device settings before you start

collecting data.

www.ti.com Operation

SBOU264A – MAY 2021 – REVISED FEBRUARY 2022

Submit Document Feedback

INA234EVM and INA236EVM 9

iii. Click the COLLECT DATA button to start data collection.

1. In this mode, the MCU reads and sends the selected result values for each device over a USB

BULK channel. All results from one device are read before moving on to the next device. All

result values from all EVMs together are considered one "sample set".

2. The Delay between samples shows the delay between the start of each sample set. A delay

of 0 corresponds to "as fast as possible". If the delay used is shorter than the amount of time it

takes to read all results from all EVMs, the setting would be the same as a delay of 0. Note, the

registers are read when the firmware is ready to read them, optionally based on the delay timer.

It does not take into account conversion time or averaging. Although you can read and write to

other registers through the register map page while collecting data, it is possible that this adds a

delay to the data being collected.

3. Click the CLEAR ALL PLOTS button to clear the data from all plots together. This can be done

individually for each plot. Similarly, you can check the #Samples all: box to change the number

of samples shown in each plot. This can also be done individually per plot.

4. Click the SAVE PLOT button next to each plot to save the data in a spreadsheet.

Operation www.ti.com

10 INA234EVM and INA236EVM SBOU264A – MAY 2021 – REVISED FEBRUARY 2022

Submit Document Feedback

Otros manuales para INA234EVM

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de computadora de Texas Instruments

Texas Instruments

Texas Instruments TPA6141A2 Manual de usuario

Texas Instruments

Texas Instruments TAS5066PAG Manual de usuario

Texas Instruments

Texas Instruments CC1000PP Manual de usuario

Texas Instruments

Texas Instruments DUAL SOCKET PC CARD CONTROLLER PCI1520... Manual de usuario

Texas Instruments

Texas Instruments CC3100 SimpleLink Manual de usuario

Texas Instruments

Texas Instruments DS10 Instrucciones de funcionamiento

Texas Instruments

Texas Instruments CC3100 SimpleLink Manual de usuario

Texas Instruments

Texas Instruments AM1808 Manual de usuario

Texas Instruments

Texas Instruments TMS320DM646x Manual de usuario

Texas Instruments

Texas Instruments DLPLCRC910EVM Manual de usuario

Texas Instruments

Texas Instruments Sub-1 GHz Sensor-to-Cloud Linux E14 Kit Manual de usuario

Texas Instruments

Texas Instruments TUSB2E11 Manual de usuario

Texas Instruments

Texas Instruments TPS65941515-Q1 Manual de usuario

Texas Instruments

Texas Instruments EV2300 Manual de usuario

Texas Instruments

Texas Instruments SimpleLink Wi-Fi CC3 20 Series Manual de usuario

Texas Instruments

Texas Instruments TI-Nspire CX Manual de usuario

Texas Instruments

Texas Instruments PGA2500EVMV2 Manual de usuario

Texas Instruments

Texas Instruments TPS7H4003EVM Manual de usuario

Texas Instruments

Texas Instruments LMG342XEVM-04X Manual de usuario

Texas Instruments

Texas Instruments MSP-EXP430F5438 Manual de usuario

Texas Instruments

Texas Instruments OMAP5912 Manual de usuario

Texas Instruments

Texas Instruments DEM-DAI1802 Manual de usuario

Texas Instruments

Texas Instruments bq2416063EVM Manual de usuario

Texas Instruments

Texas Instruments bq27220 Manual del producto

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
