Terex Genie S-80 XC Series Manual de usuario
Operator's Manual
Serial Number Range
S
®-80 XC™
CE
S
®-85 XC™
with
Maintenance
Information
Original Instructions
Second Edition
First Printing
Part No. 1311085GT
Operator's Manual Second Edition • First Printing
S
®
-80 XC
™
• S
®
-85 XC
™
Part No. 1311085GT
Front Matter
Manufacturer:
Terex Global GmbH
Bleicheplatz 2
Schaffhausen, 8200
Switzerland
EU Authorized representative:
Genie Industries B.V.
Boekerman 5
4751 XK OUD GASTEL
The Netherlands
UK Authorized representative:
Genie UK Limited
The Maltings
Wharf Road
Grantham
NG31 6BH
UK
Contents
Introduction ........................................................... 1
Symbol and Hazard Pictorials Definitions............. 5
General Safety ...................................................... 8
Personal Safety................................................... 11
Work Area Safety................................................ 12
Legend ................................................................ 22
Controls............................................................... 23
Inspections.......................................................... 31
Operating Instructions......................................... 46
Transport and Lifting Instructions ....................... 62
Maintenance ....................................................... 65
Specifications...................................................... 69
Copyright © 2017 by Terex Corporation
Second Edition: First Printing, December 2021
Genie and "S" are registered trademarks of Terex South
Dakota, Inc. in the U.S.A. and many other countries.
"XC" is a trademark of Terex South Dakota, Inc.
Complies with EC Directive 2006/42/EC
See EC Declaration of Conformity
Supply of Machinery (Safety) Regulations 2008
Second Edition • First Printing Operator's Manual
Introduction
Part No. 1311085GT S
®
-80 XC
™
• S
®
-85 XC
™
1
Introduction
About this manual
Genie appreciates your choice of our machine for
your application. Our number one priority is user
safety, which is best achieved by our joint efforts.
This book is an operation and daily maintenance
manual for the user or operator of a Genie
machine.
This manual should be considered a permanent
part of your machine and should remain with the
machine at all times. If you have any questions,
contact Genie.

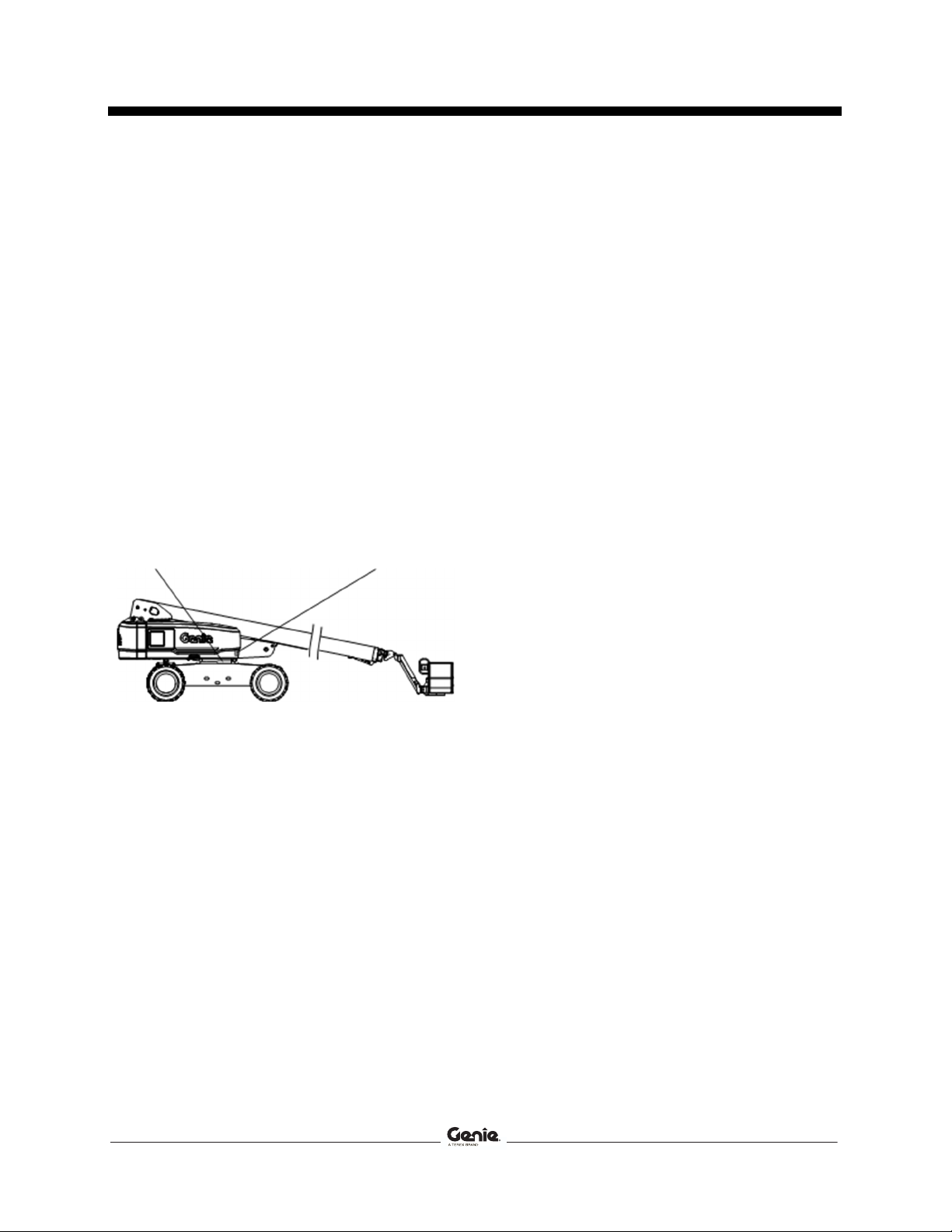

Product Identification
The machine serial number is located on the serial
label.
Serial number stamped
on chassis
Serial label
(located under cover)
Intended Use and Familiarization
Guide
The intended use of this machine is to lift
personnel, including tools, and materials to an
aerial work site. Before operating the machine, it’s
the operator’s responsibility to read and
understand this familiarization guide.
Each person must be trained to operate a
Mobile Elevating Work Platform (MEWP).
Familiarization with the MEWP must be given
to each person who is authorized, competent
and trained.
Only trained and authorized personnel should
be permitted to operate the machine.
The operator is responsible to read,
understand, and obey the manufacturer’s
instructions and safety rules provided in the
Operator’s Manual.
The Operator’s Manual is located in the
manual storage container, at the platform.
Operator's Manual Second Edition • First Printing
Introduction
2 S
®
-80 XC
™
• S
®
-85 XC
™
Part No. 1311085GT
Platform controls symbology and related
machine movement:
Platform level
Platform rotate
Jib boom up/down
Boom up/down
Boom extend/retract
Turntable rotate
Drive forward/reverse
Steer right/left
Ground controls symbology and related
machine movement:
Platform level, jib boom
up/down, boom
extend/retract,and boom
up/down
Turntable rotate and
platform rotate
Sequential functions and movement:
Drive and steer.
Interlocked functions:
Elevated drive speed.
Elevated drive in an off-level condition.
Drive enable when the boom is rotated past the
non-steer wheels.
All platform and ground controls.
Limitations of use:
The intended use of this machine is to lift
personnel, including tools, and materials to an
aerial work site.
Do not elevate the platform unless the machine
is on firm level ground.
Stability enhancing means:
Foam filled tires (if equipped).
Restricted operating envelope:
1,000 lbs/454 kg platform capacity.
Second Edition • First Printing Operator's Manual
Introduction
Part No. 1311085GT S®-80 XC™• S®-85 XC™3
Bulletin Distribution and
Compliance
Safety of product users is of paramount
importance to Genie. Various bulletins are used by
Genie to communicate important safety and
product information to dealers and machine
owners.
The information contained in the bulletins is tied to
specific machines using the machine model and
serial number.
Distribution of bulletins is based on the most
current owner on record along with their
associated dealer, so it is important to register
your machine and keep your contact information
up to date.
To ensure safety of personnel and the reliable
continued operation of your machine, be sure to
comply with the action indicated in a respective
bulletin.
To view any open bulletins for your machine, visit
us on the web at www.genielift.com.
Contacting the Manufacturer
At times it may be necessary to contact Genie.
When you do, be ready to supply the model
number and serial number of your machine, along
with your name and contact information. At
minimum, Genie should be contacted for:
Accident reporting
Questions regarding product applications and
safety
Standards and regulatory compliance information
Current owner updates, such as changes in
machine ownership or changes in your contact
information. See Transfer of Ownership, below.
Transfer of Machine Ownership
Taking a few minutes to update owner information
will ensure that you receive important safety,
maintenance and operating information that
applies to your machine.
Please register your machine by visiting us on the
web at www.genielift.com or by calling us toll free
at 1-800-536-1800.
Operator's Manual Second Edition • First Printing
Introduction
4 S
®
-80 XC
™
• S
®
-85 XC
™
Part No. 1311085GT
Danger
Failure to obey the instructions and
safety rules in this manual will result
in death or serious injury.
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator’s
manual.
1 Avoid hazardous situations.
Know and understand the safety rules
before going on to the next section.
2 Always perform a pre-operation inspection.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
You read, understand and obey the
manufacturer’s instructions and safety rules—
safety and operator’s manuals and machine
decals.
You read, understand and obey employer’s
safety rules and worksite regulations.
You read, understand and obey all applicable
governmental regulations.
You are properly trained to safely operate the
machine.
Safety Sign Maintenance
Replace any missing or damaged safety signs.
Keep operator safety in mind at all times. Use mild
soap and water to clean safety signs. Do not use
solvent-based cleaners because they may
damage the safety sign material.
Hazard Classification
Decals on this machine use symbols, color coding,
and signal words to identify the following:
Safety alert symbol—used to alert
you to potential personal injury
hazards. Obey all safety
messages that follow this symbol
to avoid possible injury or death.
Indicates a hazardous situation
which, if not avoided, will result in
death or serious injury.
Indicates a hazardous situation
which, if not avoided, could result
in death or serious injury.
Indicates a hazardous situation
which, if not avoided, could result
in minor or moderate injury.
Indicates a property damage
message.
Second Edition • First Printing Operator's Manual
Symbol and Hazard Pictorials Definitions
Part No. 1311085GT S
®
-80 XC
™
• S
®
-85 XC
™
5
Symbol and Hazard Pic torials Definiti ons
Fire hazard Explosion hazard Explosion hazard Do not use ether or
other high energy
starting aids on
machines equipped
with glow plugs.
No smoking.
No flame.
Stop engine.
Fire extinguisher No smoking Explosion hazard Electrocution hazard Maintain required
clearance
Tip-over hazard Tip-over hazard Tip-over hazard Tip-over hazard Tire specifications
Operator's Manual Second Edition • First Printing
Symbol and Hazard Pictorials Definitions
6 S
®
-80 XC
™
• S
®
-85 XC
™
Part No. 1311085GT
Wheel load Wind speed Maximum capacity Manual force Weight of welder
reduces capacity
Tie-down point Lifting point Platform tie-down
instructions
Lifting and tie down
instructions
Lanyard anchorage
points
Corrosive acid. Color coded direction
arrows
Runaway hazard Collision hazard Overhead obstruction
Second Edition • First Printing Operator's Manual
Symbol and Hazard Pictorials Definitions
Part No. 1311085GT S
®
-80 XC
™
• S
®
-85 XC
™
7
Electrocution hazard Avoid contact Disconnect battery Voltage rating for
power to platform
Pressure rating for air
line to platform
Crush hazard Support the platform
or boom during
maintenance
Read the service
manual
Explosion hazard Relieve all pressure
Recovery procedure if tilt alarm sounds while
elevated.
Platform downhill:
1 Retract boom.
2 Lower boom.
Platform uphill:
1 Lower boom.
2 Retract boom.
Read the operator’s
manual
Emergency lowering Access by trained and
authorized personnel
only
Operator's Manual Second Edition • First Printing
General Safety
8 S
®
-80 XC
™
• S
®
-85 XC
™
Part No. 1311085GT
GeneralSafety
Otros manuales para Genie S-80 XC Series
1
Este manual sirve para los siguientes modelos
3
Tabla de contenidos
Otros manuales de Sistema de elevación de Terex
Terex
Terex Genie Z-60 DC Manual de usuario
Terex
Terex Genie Lift Tools Expo Installer Z-45/25 Manual de usuario
Terex
Terex Genie Z-51/30J Manual de instalación y funcionamiento
Terex
Terex Z3413-9461 Manual de instalación y funcionamiento
Terex
Terex Genie IWP Series Manual de usuario
Terex
Terex Genie Z-34/22 IC Manual de usuario
Terex
Terex GS32MT-101 Manual de usuario
Terex
Terex Genie Superlift Advantage SL-5 Guía de inicio rápido
Terex
Terex S-60 J Manual de usuario
Terex
Terex SX135D-101 Manual de usuario
Terex
Terex Genie SX-105 XC Manual de usuario
Terex
Terex Genie SX -180 Manual de instalación y funcionamiento
Terex
Terex MAC 25-4 SL Manual de usuario
Terex
Terex HP-32 Manual de usuario
Terex
Terex Z-30/20N Manual de usuario
Terex
Terex Genie GR-12 Manual de usuario
Terex
Terex Genie QS-12R Manual de usuario
Terex
Terex Genie GR Series Manual de usuario
Terex
Terex Genie Z-45/25J Bi-Energy Manual de instalación y funcionamiento
Terex
Terex Genie S-100 Manual de usuario
Manuales populares de Sistema de elevación de otras marcas
morse
morse 82H-124 Manual de usuario
Braun
Braun NL955 Series Manual de usuario
haacon
haacon 1889.10 Manual de usuario
Protekt
Protekt AT 252 Manual de usuario
R. Beck Maschinenbau
R. Beck Maschinenbau HS 600 Manual de usuario
Nova Technology International, LLC
Nova Technology International, LLC NAS Series Manual de usuario
Genie
Genie Z-60/34 Manual de usuario
Screen Technics
Screen Technics INTERFIT Vertical Up Lift Manual de usuario
Mortuary Lift
Mortuary Lift ULTIMATE 1000 Manual de usuario
Custom Equipment
Custom Equipment Hy-Brid 3 Series Manual de programación
Custom Equipment
Custom Equipment Hy-Brid Lifts 2 Series Manual de programación
Hy-Brid Lifts
Hy-Brid Lifts HB-P3.6 Manual de programación
