Teleorigin RB800 Manual de usuario
1
Contents
1. Overview............................................................................................................................4
2. References.........................................................................................................................5
3.Product variants..................................................................................................................6
4. Package.............................................................................................................................7
4.1 Box......................................................................................................................................... 7
5. Co plete package contents..............................................................................................8
6. General presentation.........................................................................................................9
6.1 Product pictures ....................................................................................................................9
6.2 External connections............................................................................................................10
6.2.1 Antenna connector.........................................................................................................10
6.2.2 Me ory slot................................................................................................................... 10
6.2.3 USB Interface.................................................................................................................11
6.2.4 RS-232 Interface (EIA574)............................................................................................11
6.2.5 D-Sub HD 15-pin connector...........................................................................................12
6.2.6 Power supply connector................................................................................................13
6.2.7 SIM card holder............................................................................................................. 14
6.3 Product sticker.................................................................................................................... 14
7. Basic features and services.............................................................................................15
8. Using the ode .............................................................................................................16
8.1 Setting up the ode ...........................................................................................................16
8.2 Mounting the ode ...........................................................................................................17
8.2.1 On DIN bus.................................................................................................................... 17
8.2.2 On the wall.....................................................................................................................18
8.3 Checking the co unication with the ode .....................................................................18
8.4 Status of the ode (LEDs)................................................................................................19
8.5 Disabling and enabling echo function...................................................................................19
8.6 Verifying the strength of received signal...............................................................................20
8.7 PIN code status...................................................................................................................20
8.8 Network registration..............................................................................................................21
8.8.1 GSM network registration..............................................................................................21
8.9 GPRS network registration...................................................................................................22
8.10 AT co ands su ary.....................................................................................................23
9. Troubleshooting................................................................................................................24
9.1 No connection/co unication with the ode ....................................................................24
2
9.2 Receiving ERROR essage................................................................................................24
9.3 Receiving NO CARRIER essage.......................................................................................25
10. Technical characteristics................................................................................................26
10.1 Mechanical characteristic...................................................................................................26
10.2 Housing description (di ensioning diagra )......................................................................26
11. Electrical characteristic...................................................................................................27
11.1 Power supply...................................................................................................................... 27
11.2 RF characteristics...............................................................................................................27
11.3 External antenna.................................................................................................................28
11.4 Environ ental characteristic...............................................................................................28
12. Python Script Interpreter................................................................................................29
13. AT Reference anual.....................................................................................................31
14. Safety reco endations...............................................................................................44
14.1 General Safety....................................................................................................................44
14.2 Care and Maintenance.......................................................................................................44
14.3 Responsibility..................................................................................................................... 44
15. Accessories....................................................................................................................45
15.1 Accessories critical for using ode ..................................................................................45
15.2 Additional accessories........................................................................................................46
16. Confor ity Assess ent Issues......................................................................................47
17. Safety Reco endations..............................................................................................48
18. List of Acrony s.............................................................................................................49
19. On-line support...............................................................................................................51
3
1. Overview
The RB800 Ter inal is the co plete ode solution for wireless 2 applications.
Based on the Telit GL865 or UL865 odule, it is available as quad or dual-band version
and offers high level GSM/GPRS/UMTS features in co pact alu iniu housing with all
the standardized interfaces. Together with its s all size and wide supply voltage range,
akes it easy to integrate into all kinds of achines.
The RB800 ter inal enabling voice, high speed data trans ission, SMS and fax
co unication is a universal solution for all low-volu e M2M and obile data applications
including etering, traffic syste s, transportation and logistics, security, vending
achines, and facility anage ent.
Device can be controlled by standard AT co ands or by custo er's application inside
(e bedded Python Script Interpreter), thus aking it the s allest, co plete SMT platfor
for 2 solutions.
This docu ent contains full RB800 ode description and gives infor ation about
installation and using it.
4
2. References
[1] Telit_AT_Co ands_Reference_Guide.pdf
[2] Telit_HE910_UE910_UL865_AT_Co ands_Reference_Guide.pdf
[3] Telit_GL865-DUAL_QUAD_Product_Description.pdf
[4] Telit_UL865_Product_Description.pdf
[5] Telit_Easy_Script_Python_1.5.2.pdf
[6] Telit_Easy_Script_Python_2.7.pdf
[7] http://www.telit.co /en/products/u ts.php?p_id=14&p_ac=show&p=145
[8] http://www.python.org/
5
3. Product variants
Product variants, codes and description are listed below.
Exa ple:
RB800U.X.2.X.X.3 – UMTS ode with RS232 interface, 2 x SIM holder, with DIN rail
ounting kit
6
RB800 . . . . .
X - GL865 Quad (standard)
D - GL865 Dual
U - UL865 EUD
Ur - UL865 EUR
XM -
DM -
UM -
X - standard
IO -
X - 1SIM
2 - 2SIM
X - RS232
2 - RS232+RS485
X - standard
X - standard:
3 -
Special Sof tweare
Special Option
GL865 Quad+MicroSD
GL865 Dual+MicroSD
UL865+MicroSD
option GPIO
- power supply
- antenna
- wall ount kit
Standard + DIN rail ounting kit
4. Package
4.1 Bo
Original box of the product is shown in the picture below.
You can find product sticker on the box. It atches ode s sticker that is placed on the
device. This proves that your ode is original product. More infor ation about stickers
in Product sticker.
7

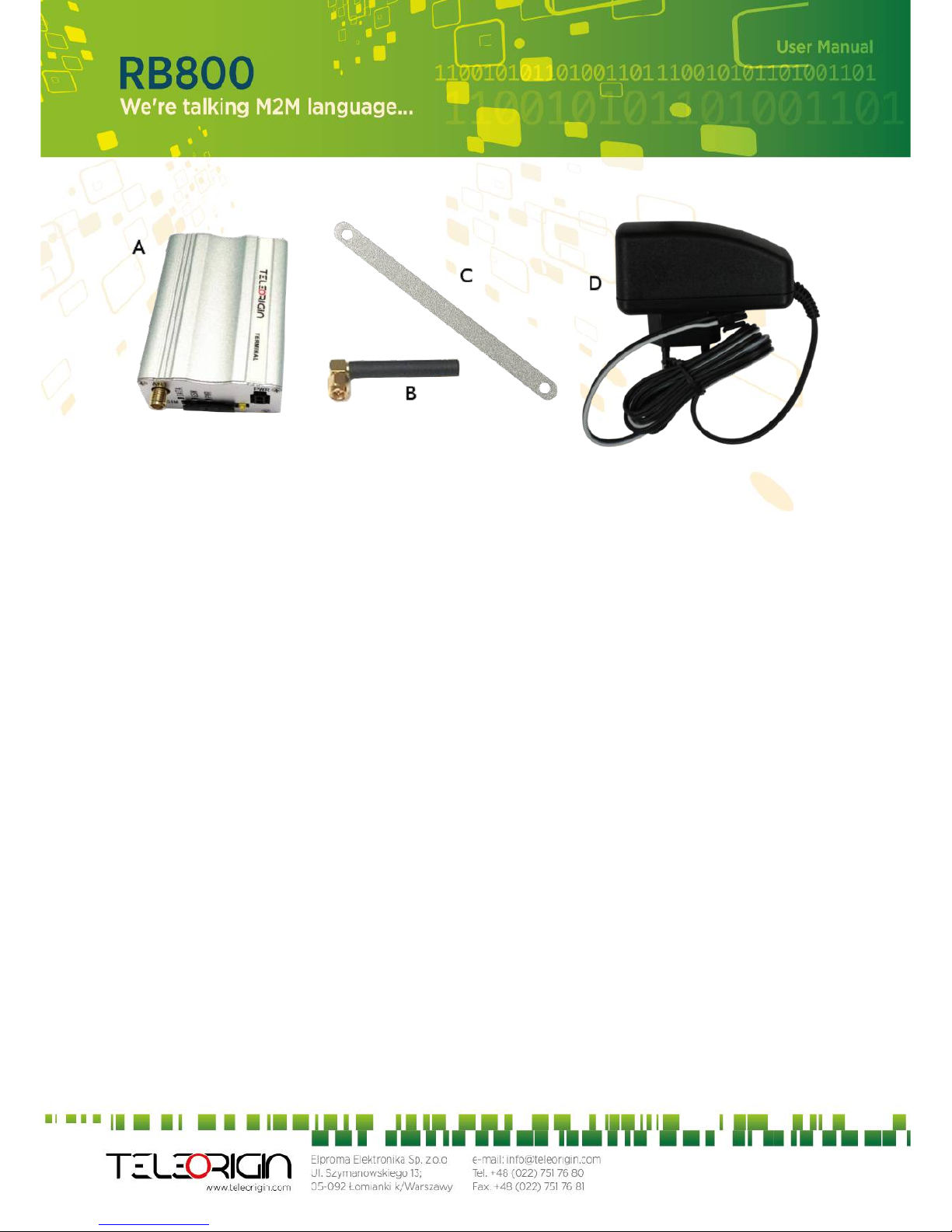

5. Complete package contents
Co plete package contains:
RB800 ter inal (ite A)
GSM antenna (via SMA) (ite B)
wall handle (ite C)
power adaptor (ite D)
8
6. General presentation
6.1 Product pictures
9
SMA
connector
Extractable
SIM card
holder
SIM card
holder
ejector
Power
supply
EIA574 (RS- 3 )
DE9 D-sub socket
USB
DATA
GSM
PWR
LED's
6.2 E ternal connections
6.2.1 Antenna connector
SMA antenna input is used to connect external GSM antenna. To establish connection
with GSM network an external antenna ust be used. Type of antenna depends on GSM
coverage. In good circu stances (level of received signal is high) use antenna which is
attached in the package. If range of GSM is low or none, an outdoor or indoor (for instance
in place where GSM range is sufficient) antenna should be used.
Note: If there is no antenna connected to SMA connector, the connection with GSM
network is impossible.
6.2.2 Memory slot
RB800 can be optionally equipped with e ory card slot to store all the easured
data. The slot type is icroSD. Me ory card can be controlled only by Python script using
special AT co ands which is sends through SER2 interface, see chapter Python Script
Interpreter and AT Reference manual.
10
