User Manual
tekmarNet®Thermostat 532
Zoning
532
_
U
02/15
Replaces: New
Outdoor
F
Away
WWSD
MINMAX
Heat On
Off
Mode
F
Floor
Room
© 2015 532_U - 02/15
2 of 4
A Watts Water Technologies Company
This brochure will provide you with the information you need to benefit the most from
your tekmar thermostat. Please visit www.tekmarControls.com for more detailed
information on this or any other tekmar product.
Display Symbols
This thermostat will display symbols on its screen in order to indicate what mode it
is in, what temperature it is operating at, or what equipment it is trying to turn on.
This section describes each of those symbols.
User Interface
HEAT ON
Heat is turned on.
MODE OFF
The heating system is off.
SUN
Operating at the occupied
(day) temperature.
MOON
Operating at the unoccupied
(night) temperature.
MIN
Flashes when adjusting
temperature and the floor
is at or below the floor
minimum temperature.
WARNING SYMBOL
Indicates an error is present.
WWSD
Warm Weather Shut Down.
SCENE AWAY
Operating at Away
temperature.
tekmarNet®
Communication is present.
MAX
Flashes when adjusting
temperature and the floor
has reached the floor
maximum temperature.
The information contained herein is not intended to replace the full product installation
and safety information available or the experience of a trained product installer.
You are required to thoroughly read all installation instructions and product safety
information before beginning the installation of this product.
© 2015 532_U - 02/15
3 of 4
A Watts Water Technologies Company

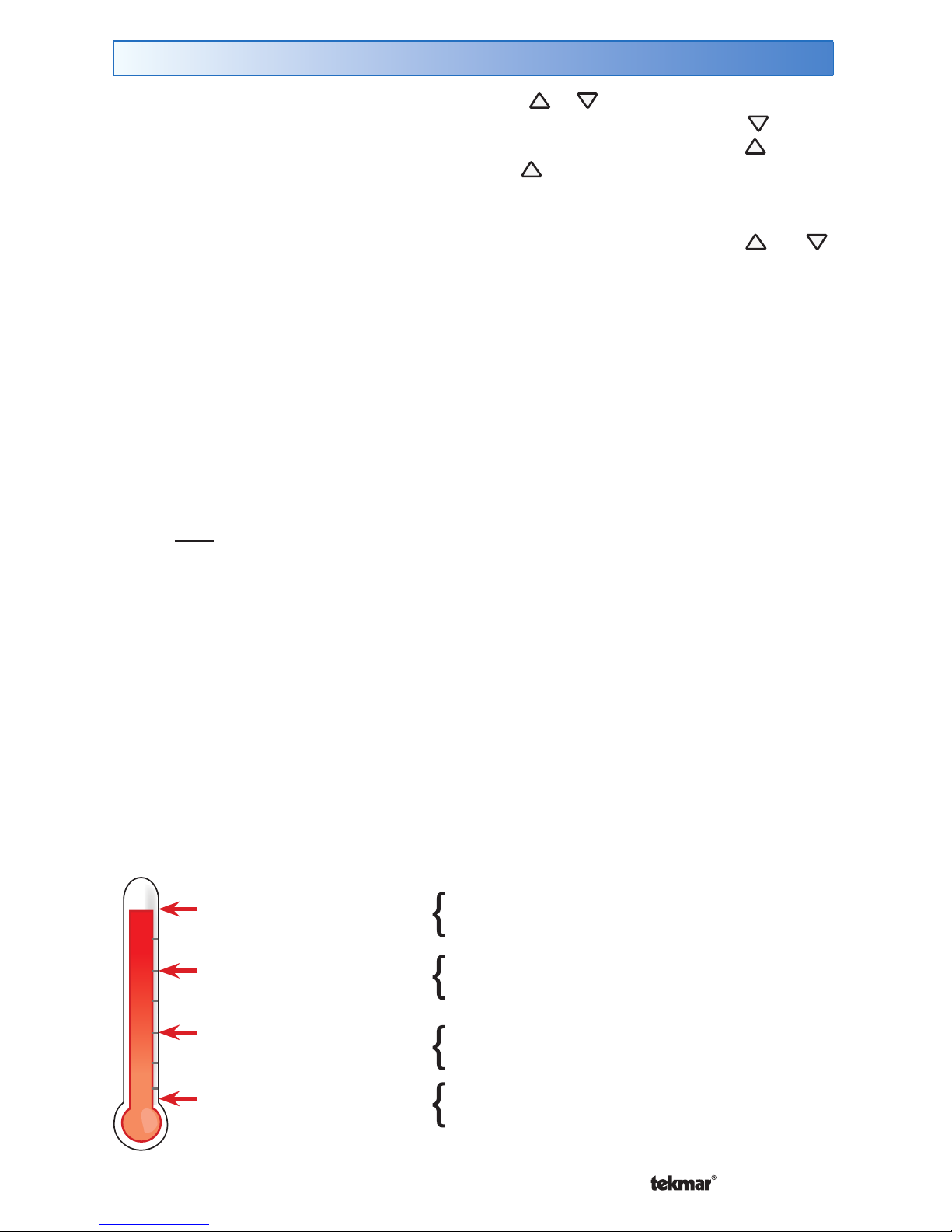

Setting The Temperature
90°F (32°C)
Feels hot to the touch
80 to 85°F (26 to 30°C)
Feels warm to the touch
70°F (21°C)
Feels cool to the touch
40 to 45°F (5 to 7°C)
Feels cold to the touch
Suggested maximum for all floor
types other than wood.
Bathrooms and kitchens. Suggested
maximum for wood floors.
Rooms with large windows preventing
under heating in the evening.
Freeze protection for garages.
To change the heat temperature setting, push the
or
button to select a preferred
temperature setting.
The floor and air heating can be shut off by holding the
button
until Set Room is Off. To resume heating when the Mode is Off, press the
button
to navigate to the Mode setting, then press the
button to select Mode Heat. The
thermostat will resume heating at the last previously set temperature.
The thermostat can operate on a programmable schedule. To change the temperatures
for the other time periods, enter the Settings menu by pressing both the
and
buttons together.
The thermostat can operate the heating system based on either an air or floor
sensor or a combination of both the air and floor temperature sensors together.
Air Temperature Only
-----------------------------------------------
-----------------------------------------------
If there is only an air temperature sensor (no floor sensor), the thermostat operates
to control your desired air temperature.
Floor Temperature Only
--------------------------------------------
--------------------------------------------
If the air sensor has been disabled, the thermostat will only maintain floor temperature
and ignore air temperature. This operation is recommended for areas such as
bathrooms to ensure that tile floors are warm to the touch.
Floor and Air Temperature
-----------------------------------------
-----------------------------------------
If the air sensor is turned on and a floor sensor is connected, the thermostat will
maintain the desired air temperature as well as a minimum floor temperature.
This operation is recommended for areas with large windows that allow the sun to
shine into a room and keep it warm without the need for heating. This can allow
the floors to cool off during the afternoon. When the sun goes down, it can take
a long time for the floors to get warm again. This may cause the room to cool off
too much in the early evening. A floor minimum setting can help with this condition
by maintaining a floor minimum temperature. Keep in mind the floor minimum
temperature will override the air temperature, and if set too high, may overheat
the room.
This operation is also recommended for rooms with hardwood floors. Setting floor
minimum and maximum temperatures is a way of enhancing the comfort of the
living space while protecting floor coverings.
All specifications are subject
to change without notice
4 of 4 532_U - 02/15.
Product design, software and literature are Copyright ©2015 by tekmar Control Systems Ltd.,
A Watts Water Technologies Company. Head Office: 5100 Silver Star Road, Vernon, B.C.
Canada V1B 3K4, 250-545-7749, Fax. 250-545-0650
Web Site
: www.tekmarControls.com
More Information
This User Brochure contains standard information on how to make adjustments
to an installed product. More detailed information can be found in this product’s
Installation and Operation Manual (532_D) at www.tekmarControls.com
Settings
• Press and hold down both the and buttons for 3 seconds to change from
one step to the next.
• Release both buttons once the step has been reached.
• Press the
or the
button to change the setting, if available.
• Press and hold down both the
and
buttons for 3 seconds to go to the
next step, OR
• After 15 seconds of no button activity, the display returns to normal operation.
MODE
Select heat or off.
SET ROOM
Set the room temperature while in the occupied time period. Available when a
room sensor is connected.
SET ROOM
Set the room temperature while in the unoccupied time period. Available when a
room sensor is connected and a schedule or scenes are selected.
SET ROOM AWAY
Set the room temperature while in the away scene. Available when a room sensor
is connected and a schedule or scenes are selected.
SET FLOOR
Set the floor temperature while in the occupied time period. Available when an
auxiliary floor sensor is connected.
SET FLOOR
Set the floor temperature while in the unoccupied time period. Available when an
auxiliary floor sensor is connected and the schedule or scenes switch settings are on.
LIGHT
Select when the display backlight should operate. Auto operates the backlight for
30 seconds after a keystroke.
UNITS
Select the temperature units.
TYPE AND SOFTWARE VERSION
Device Type number. Hold the button to view the software version.
ADDRESS
The tekmarNet®address is shown in the large number field.
