TDK J Series JBW Manual de usuario

(1/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

AC Input

Single Output, General-Purpose, UL/C-UL/TÜV Approved

J Series JBW(10 to 150W)

FEATURES

• Compact and low price.

• Wide input voltage range.

• Safety standards approved.

• Corresponds to products with CE marking.

• Full lineup of output power 10 to 150W

• Open frame

• Meets conducted noise standard FCC Class B.

• Warranty period: 3 years

• Specific bromine inflammable materials (PBDPEs, PBBs) are

not included in use.

• It is a product conforming to RoHS directive.

APPLICATIONS

Measuring equipment, robotics, automation equipment, informa-

tion processing equipment, security systems, amusement equip-

ment, etc.

SAFETY STANDARDS

UL60950-1, CSA C22.2 No.60950-1(C-UL), EN60950-1(TÜV),

approved.

EMC REGULATIONS

• FCC Class-B, VCCI Class-B, EN-55011-B and EN55022-B

meet.

• Harmonic current requirement EN61000-3-2 meet(50 to 150W).

PRODUCT IDENTIFICATION

(1)Series name

(2)Rated output voltage

(3)Rated output current(R: Decimal point)

PART NUMBERS AND RATINGS

• 3.3 and 48V models(75 to 150W type) are made to order.

Conformity to RoHS Directive

JBW 05 – 2R0

(1) (2) (3)

Output voltage

(V)

10W Type 15W Type 30W Type 50W Type

Current(A) Part No. Current(A) Part No. Current(A) Part No. Current(A) Part No.

5 2 JBW05-2R0 3 JBW05-3R0 6 JBW05-6R0 10 JBW05-10R

12 0.9 JBW12-0R9 1.3 JBW12-1R3 2.5 JBW12-2R5 4.3 JBW12-4R3

15 0.7 JBW15-0R7 1 JBW15-1R0 2 JBW15-2R0 3.5 JBW15-3R5

24 0.5 JBW24-0R5 0.7 JBW24-0R7 1.3 JBW24-1R3 2.1 JBW24-2R1

Output voltage

(V)

75W Type 100W Type 150W Type

Current(A) Part No. Current(A) Part No. Current(A) Part No.

5 15 JBW05-15R 20 JBW05-20R 30 JBW05-30R

12 6.3 JBW12-6R3 8.5 JBW12-8R5 12.5 JBW12-12R

15 5.0 JBW15-5R0 6.7 JBW15-6R7 10 JBW15-10R

24 3.2 JBW24-3R2 4.3 JBW24-4R3 6.3 JBW24-6R3

48 —— —— 3.2JBW48-3R2

• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific

bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.

(2/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

JBW10W Type

SPECIFICATIONS AND STANDARDS

∗Current rating(maximum output current) is determined for –10 to +50°C. Derating is required when used outside this temperature range.

• Optional input, output cable kits are available at a separate price.

Part No. JBW05-2R0 JBW12-0R9 JBW15-0R7 JBW24-0R5

Rated output voltage and current∗5V • 2A 12V • 0.9A 15V • 0.7A 24V • 0.5A

Maximum output power W 10 10.8 10.5 12

Input conditions

Input voltage Eac/Edc V 85 to 265[Rating: 100 to 240]/110 to 370

Input frequency Hz 47 to 440[Rating: 50 to 60](Single phase)

Input current A 0.25typ./0.35max. [AC.100V]0.15typ./0.25max.[AC.240V]

Fuse rating A 2[AC.250V, built-in]

Surge current A 15typ.(20max.)[AC.100V]30typ.(40max.)[AC.240V] 1st surge current, cold start, reset after 1s minimum.

Leakage current mA 0.1typ./0.75max.[AC.100V, 60Hz]0.15typ./0.75max.[AC.240V, 60Hz]

Power factor 0.6typ./0.45typ.[AC.100/240V]

Efficiency % 71typ.[AC.100V] 78typ.[AC.100V] 79typ.[AC.100V] 82typ.[AC.100V]

% 71typ.[AC.240V] 79typ.[AC.240V] 80typ.[AC.240V] 83typ.[AC.240V]

Output characteristics

Output voltage Edc V 5 12 15 24

Voltage variable range Edc V Fixed Fixed Fixed Fixed

Maximum output current A 2 0.9 0.7 0.5

MinimumoutputcurrentA0000

Overvoltage threshold Edc V 5.75min. 13.8min. 17.25min. 27.6min.

Overcurrent threshold A 2.5min. 1.12min. 0.87min. 0.62min.

Voltage

stability

Source effect % 0.4max.[Within the input voltage range]

Load effect % 0.8max.[0 to 100% load]

Temperature effect % 1max.[Ambient temperature: –10 to +50°C]

Drift(Time effect) % 0.4max.[25°C, input and output ratings, after input voltage ON for 30min to 8h]

Recovery % ±4max.[50 to 100% sudden load change]

Ripple Ep-p mV 80max. 120max. 120max. 120max.

Ripple noise Ep-p mV 120max. 150max. 150max. 150max.

Start up time ms 700max.(200typ.)/700max.(200typ.) [AC.100/240V]

Hold up time ms 15typ/140typ [AC.100/240V]

Auxiliary functions

Indicator display No

Overvoltage protection Zenor diode clamp method, output may latch up depending on the condition.

Overcurrent protection Fold back type, automatic recovery.

Remote ON-OFF No

Remote sensing No

Parallel operation Impossible

Series operation Inpossible

Output voltage external variable function No

Standards

Safety standards UL60950-1, CSA C22.2 No.60950-1(C-UL), EN60950-1(TÜV) approved.

Noise terminal voltage FCC-B, VCCI-B, EN55011-B, EN55022-B meet.

Input harmonics current requirement No

Constructions

External dimensions mm 21×36×95[H×W×L]

Weight g 50max.

Mounting method Can be attached to 1 side.

Case material No(PWB Material: CEM3)

(3/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

JBW10W Type

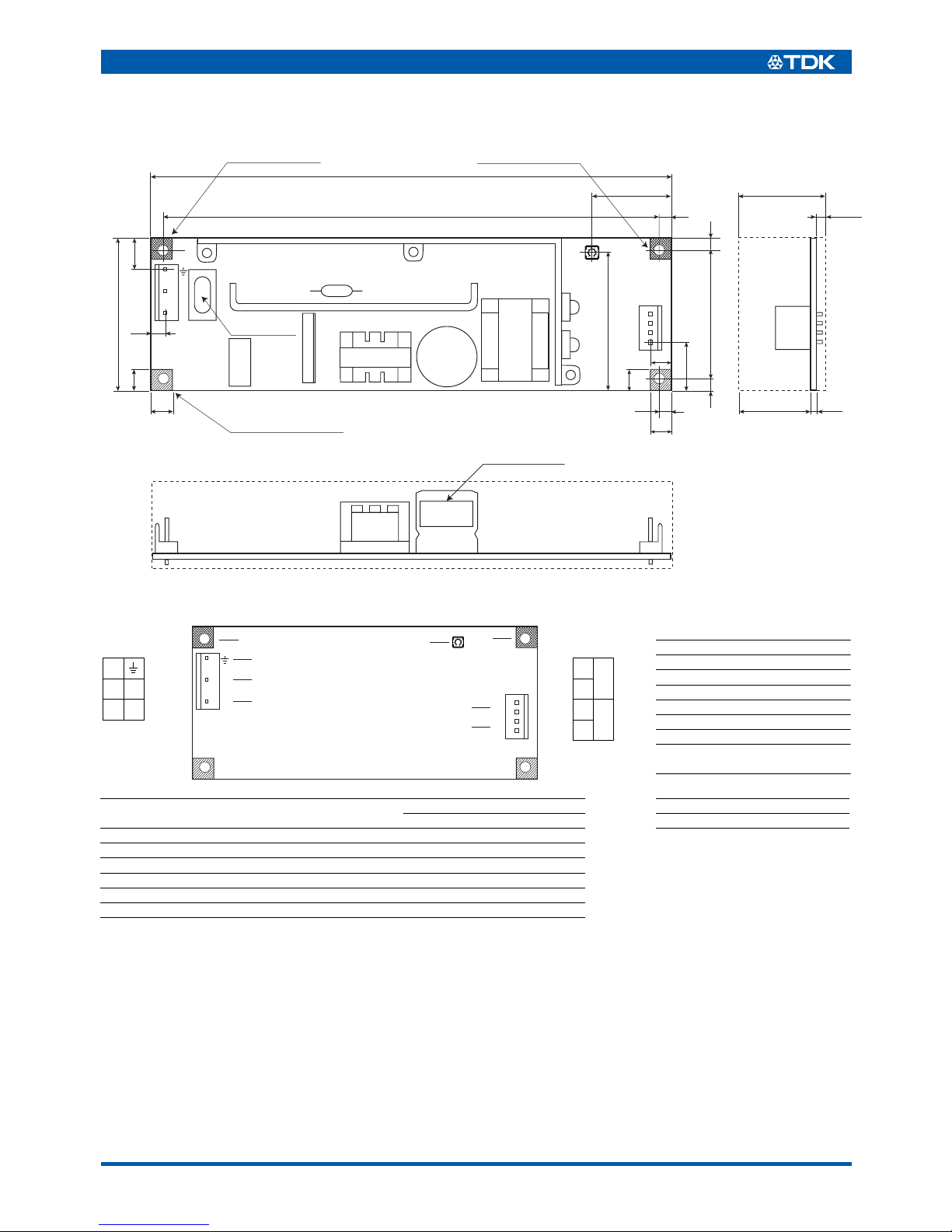

SHAPES AND DIMENSIONS

TERMINAL DESIGNATION

Connector made by Power supply side

connector

Cable Side Option Part No.

Housing Terminal Set 4EU20G054

Japan Solderless Terminal Co., Ltd.

Input Connector(TB1) VH Series B3P5-VH-B VHR-5N SVH-21T-P1.1

Output Connector(TB2) XH Series B4B-XH-2 XHP-4 SXH-001T-P0.6

LCE

Input Connector(TB1) P101 Series P101-05-2/4 H101-05 T101

Output Connector(TB2) P221 Series P221-04 H221-04 T221-01

3.5

29±0.5

17.3

3.8 16.4 1.6

3max.

88±0.5

3.5

710

5.2

GND Pad

Solder Side

2-ø3.4Mounting holes

TB1 TB2

JBW05-2R0

TDK

Ser. No. LABEL

Area For Spacer(ø6.0max.)

Dimensions in mm

±1mm : without specified dimensions

Terminal No. Designations

1 Input terminal(L)

2 Input terminal(N)

3 Frame ground terminal(G)

4 Ground pad

5 Output terminal(–)

6 Output terminal(+)

TB2

–

TB1

(4/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

JBW15W Type

SPECIFICATIONS AND STANDARDS

∗Current rating(maximum output current) is determined for –10 to +50°C. Derating is required when used outside this temperature range.

• Optional input, output cable kits are available at a separate price.

Part No. JBW05-3R0 JBW12-1R3 JBW15-1R0 JAW24-0R7

Rated output voltage and current∗5V • 3A 12V • 1.3A 15V • 1.0A 24V • 0.7A

Maximum output power W 15 15.6 15 16.8

Input conditions

Input voltage Eac/Edc V 85 to 265[Rating: 100 to 240]/110 to 370

Input frequency Hz 47 to 440[Rating: 50 to 60](Single phase)

Input current A 0.36typ./0.43max.[AC.100V]0.2typ./0.24max.[AC.240V]

Fuse rating A 2[AC.250V, built-in]

Surge current A 15typ./19.5max.[AC.100V]30typ./41max.[AC.240V] 1st surge current, cold start, reset after 1s minimum.

Leakage current mA 0.2typ./0.75max.[AC.100V, 60Hz]0.3typ./0.75max.[AC.240V, 60Hz]

Power factor 0.6typ./0.45typ.[AC.100/240V]

Efficiency % 72typ.[AC.100V] 76typ.[AC.100V] 76typ.[AC.100V] 78typ.[AC.100V]

% 72typ.[AC.240V] 74typ.[AC.240V] 74typ.[AC.240V] 76typ.[AC.240V]

Output characteristics

Output voltage Edc V 5 12 15 24

Voltage variable range Edc V Fixed Fixed Fixed Fixed

Maximum output current A 3 1.3 1 0.7

MinimumoutputcurrentA0000

Overvoltage threshold Edc V 5.75min. 13.8min. 17.25min. 27.6min.

Overcurrent threshold A 3.15min. 1.37min. 1.05min. 0.74min.

Voltage

stability

Source effect % 0.4max.[Within the input voltage range]

Load effect % 0.8max.[0 to 100% load]

Temperature effect % 1max.[Ambient temperature: –10 to +50°C]

Drift(Time effect) % 0.4max.[25°C, input and output ratings, after input voltage ON for 30min to 8h]

Recovery % ±4max.[50 to 100% sudden load change]

Ripple Ep-p mV 80max. 120max. 120max. 120max.

Ripple noise Ep-p mV 120max. 150max. 150max. 150max.

Start up time ms 200max.(25typ.)/100max.(25typ.)[AC.100/240V] 200max.(40typ.)/100max.(40typ.)[AC.100/240V]

Hold up time ms 13typ./150typ. [AC.100/240V]

Auxiliary functions

Indicator display No

Overvoltage protection Zenor diode clamp method, output may latch up depending on the condition.

Overcurrent protection Rectangular type, automatic recovery.

Remote ON-OFF No

Remote sensing No

Parallel operation Impossible

Series operation Impossible

Output voltage external variable function No

Standards

Safety standards UL60950-1, CSA C22.2 No.60950-1(C-UL), EN60950-1(TÜV) approved.

Noise terminal voltage FCC-B, VCCI-B, EN55011-B, EN55022-B meet.

Input harmonics current requirement No

Constructions

External dimensions mm 22.6×50×95[H×W×L]

Weight g 80max.

Mounting method Can be attached to 1 side.

Case material No(PWB Material: CEM3)

(5/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

JBW15W Type

SHAPES AND DIMENSIONS

TERMINAL DESIGNATION

Connector made by Power supply side

connector

Cable Side Option Part No.

Housing Terminal Set 4EU20G054

Japan Solderless Terminal Co., Ltd.

Input Connector(TB1) VH Series B3P5-VH-B VHR-5N SVH-21T-P1.1

Output Connector(TB3) XH Series B4B-XH-2 XHP-4 SXH-001T-P0.6

LCE

Input Connector(TB1) P101 Series P101-05-2/4 H101-05 T101

Output Connector(TB3) P221 Series P221-04 H221-04 T221-01

NTB3

TB1

1.6

18.5

3max.

22.6

Solder Side

3.4Mounting holes

43±0.5

3.5

3.8

88±0.5

23.7

5.2

GND Pad

Solder Side 3 Places

Ser. No. LABEL

JBW05-3R0

TDK

Area For Spacer (

6.0max.)

Dimensions in mm

±1mm : without specified dimensions

TB3

–

TB1

Terminal No. Designations

1 Input terminal(L)

2 Input terminal(N)

3 Frame ground terminal(G)

4 Ground pad

5 Output terminal(–)

6 Output terminal(+)

(6/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

JBW30W Type

SPECIFICATIONS AND STANDARDS

∗Current rating(maximum output current) is determined for –10 to +50°C. Derating is required when used outside this temperature range.

• Optional input, output cable kits are available at a separate price.

Part No. JBW05-6R0 JBW12-2R5 JBW15-2R0 JAW24-1R3

Rated output voltage and current∗5V • 6A 12V • 2.5A 15V • 2A 24V • 1.3A

Maximum output power W 30 30 30 31.2

Input conditions

Input voltage Eac/Edc V 85 to 265[Rating: 100 to 240]/110 to 370

Input frequency Hz 47 to 440[Rating: 50 to 60](Single phase)

Input current A 0.65typ./0.86max.[AC.100V]0.35typ./0.48max.[AC.240V]

Fuse rating A 2[AC.250V, built-in]

Surge current A 15typ./30max.[AC.100V]30typ./60max.[AC.240V] 1st surge current, cold start, reset after 1s minimum.

Leakage current mA 0.35typ./0.75max.[AC.100V, 60Hz]0.5typ./0.75max.[AC.240V, 60Hz]

Power factor 0.6typ./0.45typ.[AC.100/240V]

Efficiency % 75typ.[AC.100V] 78typ.[AC.100V] 79typ.[AC.100V] 80typ.[AC.100V]

% 77typ.[AC.240V] 79typ.[AC.240V] 80typ.[AC.240V] 81typ.[AC.240V]

Output characteristics

Output voltage Edc V 5 12 15 24

Voltage variable range Edc V Fixed Fixed Fixed Fixed

Maximum output current A 6 2.5 2 1.3

MinimumoutputcurrentA0000

Overvoltage threshold Edc V 5.6min. 13.3min. 16.6min. 26.5min.

Overcurrent threshold A 6.3min. 2.7min. 2.1min. 1.4min.

Voltage

stability

Source effect % 0.4max.[Within the input voltage range]

Load effect % 0.8max.[0 to 100% load]

Temperature effect % 2max.[Ambient temperature: –10 to +50°C]

Drift(Time effect) % 0.4max.[25°C, input and output ratings, after input voltage ON for 30min to 8h]

Recovery % ±4max.[50 to 100% sudden load change]

Ripple Ep-p mV 80max. 120max. 120max. 120max.

Ripple noise Ep-p mV 120max. 150max. 150max. 150max.

Start up time ms 650max.(350typ.)/320max.(130typ.)[AC.100/240V]

Hold up time ms 20typ./160typ.[AC.100/240V]

Auxiliary functions

Indicator display No

Overvoltage protection Voltage shut-down type.

Overcurrent protection Rectangular type(Winker operation), automatic recovery.

Remote ON-OFF No

Remote sensing No

Parallel operation Impossible

Series operation Impossible

Output voltage external variable function No

Standards

Safety standards UL60950-1, CSA C22.2 No.60950-1(C-UL), EN60950-1(TÜV) approved.

Noise terminal voltage FCC-B, VCCI-B, EN55011-B, EN55022-B meet.

Input harmonics current requirement No

Constructions

External dimensions mm 26×55×122[H×W×L]

Weight g 150max.

Mounting method Can be attached to 1 side.

Case material No(PWB Material: CEM3)

(7/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

JBW30W Type

SHAPES AND DIMENSIONS

TERMINAL DESIGNATION

Connector made by Power supply side

connector

Cable Side Option Part No.

Housing Terminal Set 4EU20G057

Japan Solderless Terminal Co., Ltd.

Input Connector(TB1) VH Series B3P5-VH-B VHR-5N SVH-21T-P1.1

Output Connector(TB2) VH Series B4P-VH-B VHR-4N SVH-21T-P1.1

LCE

Input Connector(TB1) P101 Series P101-05-2/4 H101-05 T101

Output Connector(TB2) P101 Series P101-04 H101-04 T101

3max.

21.4 1.6

6.6

6.5

122

112±0.5

45±0.5

3.4Mounting holes

GND Pad 2 Places

Solder Side

Solder Side 2 Places

Ser. No. LABEL

JBW05-6R0

TDK

TB1

TB2

Area For Spacer (

6.0max.)

Dimensions in mm

±1mm : without specified dimensions

TB2

–

TB1

Terminal No. Designations

1 Input terminal(L)

2 Input terminal(N)

3 Frame ground terminal(G)

4 Ground pad

5 Output terminal(–)

6 Output terminal(+)

(8/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

JBW50W Type

SPECIFICATIONS AND STANDARDS

∗1Current rating(maximum output current) is determined for –10 to +50°C. Derating is required when used outside this temperature range.

∗2Please note that the deterioration of parts is occasionally caused when operating for a long time(over 10 minutes) with the voltage below the range of the

input voltage.

• Optional input, output cable kits are available at a separate price.

Part No. JBW05-10R JBW12-4R3 JBW15-3R5 JBW24-2R1

Rated output voltage and current∗15V • 10A 12V • 4.3A 15V • 3.5A 24V • 2.1A

Maximum output power W 50 51.6 52.5 50.4

Input conditions

Input voltage Eac/Edc∗2V 85 to 265[Rating: 100 to 240]/120 to 375

Input frequency Hz 47 to 66[Rating: 50 to 60](Single phase)

Input current A 0.7typ./0.88max. [AC.100V]0.35typ./0.5max.[AC.240V]

Fuse rating A 3.15[AC.250V, built-in]

Surge current A 15typ.(30max.)[AC.100V]40typ.(60max.)[AC.240V] cold start

Leakage current mA 0.35typ./0.75max.[AC.100V, 60Hz]0.5typ./0.75max.[AC.240V, 60Hz]

Power factor 0.99typ./0.93typ.[AC.100/240V]

Efficiency % 77typ.[AC.100V] 80typ.[AC.100V] 80typ.[AC.100V] 81typ.[AC.100V]

% 79typ.[AC.240V] 81typ.[AC.240V] 81typ.[AC.240V] 83typ.[AC.240V]

Output characteristics

Output voltage Edc V 5 12 15 24

Voltage variable range Edc V 4.5 to 5.5 10.8 to 13.2 13.5 to 16.5 21.6 to 26.4

Maximum output current A 10 4.3 3.5 2.1

MinimumoutputcurrentA0000

Overvoltage threshold Edc V 5.75 to 6.9 13.8 to 16.8 17.2 to 21 27.6 to 33.6

Overcurrent threshold A 10.5min. 5.4min. 4.4min. 2.7min.

Voltage

stability

Source effect % 0.4max.[Within the input voltage range]

Load effect % 0.8max.[0 to 100% load]

Temperature effect % 1max.[Ambient temperature: –10 to +50°C]

Drift(Time effect) % 0.4max.[25°C, input and output ratings, after input voltage ON for 30min to 8h]

Recovery % ±4max.[50 to 100% sudden load change]

Ripple Ep-p mV 80max. 120max. 120max. 120max.

Ripple noise Ep-p mV 120max. 150max. 150max. 150max.

Start up time ms 500max.(400typ.)/500max.(400typ.) [AC.100/240V]

Hold up time ms 20typ./20typ. [AC.100/240V]

Auxiliary functions

Indicator display No

Overvoltage protection Voltage shut-down type.

Overcurrent protection Rectangular type, automatic recovery.

Remote ON-OFF No

Remote sensing No

Parallel operation Impossible

Series operation Possible

Output voltage external variable function No

Standards

Safety standards UL60950-1, CSA C22.2 No.60950-1(C-UL), EN60950-1(TÜV) approved.

Noise terminal voltage FCC-B, VCCI-B, EN55011-B, EN55022-B meet.

Input harmonics current requirement EN61000-3-2 meet.

Constructions

External dimensions mm 26×55×190[H×W×L]

Weight g 220max.

Mounting method Can be attached to 1 side.

Case material No(PWB Material: CEM3)

(9/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

JBW50W Type

SHAPES AND DIMENSIONS

TERMINAL DESIGNATION

Connector made by Power supply side

connector

Cable Side Option Part No.

Housing Terminal Set 4EU20G057

Japan Solderless Terminal Co., Ltd.

Input Connector(TB1) VH Series B3P5-VH-B VHR-5N SVH-21T-P1.1

Output Connector(TB2) VH Series B4P-VH-B VHR-4N SVH-21T-P1.1

LCE

Input Connector(TB1) P101 Series P101-05-2/4 H101-05 T101

Output Connector(TB2) P101 Series P101-04 H101-04 T101

Solder Side 2 Places

Ser. No. LABEL

Area For Spacer (ø6max.)

NTB2

TB1

12.18

5.5

180±0.5

190

7.1

517.2

47.7

45±0.5

3max.

35.7

1.621.4

GND Pad 2 Places

Solder Side

4-ø4 Mounting holes

JBW05-10R

TDK

RATING LABEL

Dimensions in mm

±1mm : without specified dimensions

7TB2

–

TB1

P2 N

P1 L

Terminal No. Designations

1 Input terminal(L)

2 Input terminal(N)

3 Frame ground terminal(G)

4 Ground pad

5 Output terminal(–)

6 Output terminal(+)

7Output voltage variable

volume

(10/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

JBW75W Type

SPECIFICATIONS AND STANDARDS

Part No. JBW05-15R JBW12-6R3 JBW15-5R0 JBW24-3R2

Rated output voltage and current 5V • 15A 12V • 6.3A 15V • 5.0A 24V • 3.2A

Maximum output power W 75 75.6 75 76.8

Input conditions

Input voltage Eac/Edc V 85 to 265[Rating: 100-240]/120 to 370

Input frequency Hz 47 to 66

Input current A 1.6/0.8max.[100-240V]

Fuse rating A 3.15

Surge current A 30/60max.[100-240V]

Leakage current mA 0.75/0.75max.[AC.100V(DENAN)/240V(UL, IEC)]

Power factor 0.99/0.95typ.[100-240V]

Efficiency % 75/77typ.

[100-240V]

78/80typ.

[100-240V]

79/81typ.

[100-240V]

82/84typ.

[100-240V]

Output characteristics

Output voltage Edc V 5 12 15 24

Voltage variable range Edc V 4.5 to 5.5 10.8 to 13.2 13.5 to 16.5 21.6 to 26.4

Maximum output current A 15 6.3 5.0 3.2(Peak4.2)

Overvoltage threshold Edc V 5.75 to 6.9 13.8 to 16.8 17.2 to 21 27.6 to 33.6

Overcurrent threshold A 15.8min. 6.6min. 5.2min. 4.4min.

Voltage

stability

Source effect % 0.4max.[Within the input voltage range]

Load effect % 0.8max.[0 to 100% load]

Temperature effect % 1max.[Ambient temperature: –10 to +60°C]

Drift(Time effect) % 0.4max.[25°C, input and output ratings, after input voltage ON for 30min to 8h]

Recovery % ±4max.[50 to 100% sudden load change]

Ripple Ep-p mV 80 120 120 120

Ripple noise Ep-p mV 120 150 150 150

Start up time ms 500max.(400typ.)/250max.(200typ.)[AC.100/240V]

Hold up time ms 20typ.[100-240V]

Auxiliary functions

Indicator display No

Overvoltage protection Voltage shut-down type(Latch).

Overcurrent protection Rectangular type, automatic recovery.

Remote ON-OFF No

Remote sensing No

Standards

Safety standards UL60950-1, CSA C22.2 No.60950-1(C-UL), EN60950-1(TÜV) approved.

Noise terminal voltage FCC-B, VCCI-B, EN55011-B, EN55022-B meet.

Input harmonics current requirement EN61000-3-2

CE marking Planned compliance.

Constructions

External dimensions mm 32×55×222[H×W×L]

Weight g 290max.

Mounting method Can be attached to 1 side.

Case material CEM3

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de computadora de TDK

TDK

TDK HHM Series HHM1564A Manual de usuario

TDK

TDK HHM Series HHM1522B1 Manual de usuario

TDK

TDK DEA Series Manual de usuario

TDK

TDK Belleta iEA Series Manual de usuario

TDK

TDK HHM Series HHM1711E1 Manual de usuario

TDK

TDK DEA Series DEA165850LT-1197B2 Manual de usuario

TDK

TDK HHM Series HHM1791A1 Manual de usuario

TDK

TDK Metamere iAA Series Guía de referencia

TDK

TDK Supereta Series DC/DC Manual de usuario

TDK

TDK Supereta iQN48006A350V Manual de usuario

TDK

TDK DEA Series DEA205375BT-2054A1 Manual de usuario

TDK

TDK DEA Series DEA202495BT-1242B2 Manual de usuario

TDK

TDK DEA Series DEA252450BT-7012D1 Manual de usuario

TDK

TDK HHM Series HHM2411 Manual de usuario

TDK

TDK HHM Series HHM1763B2 Manual de usuario

TDK

TDK DEA Series DEA162500LT-1217A1 Manual de usuario

TDK

TDK TFS Series TFSB10052450-1003A1 Manual de usuario

TDK

TDK HHM Series HHM2202SA1 Manual de usuario

TDK

TDK Varistors(SMD) AVF16 Series Manual de usuario

TDK

TDK Dualeta iQA Series Manual de usuario

TDK

TDK SLF Series SLF12565 Manual de usuario

TDK

TDK HHM Series HHM2409 Manual de usuario

TDK

TDK HHM Series HHM1518A3 Manual de usuario

TDK

TDK WiMAX HHM Series HHM1715E1 Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
