Synology DiskStation DS2419+ Manual
Synology DiskStation DS2419+
Hardware Installation Guide
Table of Contents
Chapter 1: Before You Start
Package Contents 3
Synology DiskStation at a Glance 4
Safety Instructions 5
Chapter 2: Hardware Setup
Tools and Parts for Drive Installation 6
Install Drives 6
Start Up Your DiskStation 9
Add a RAM Module on DiskStation 10
Add a Network Interface Card 13
Replace System Fan 16
Chapter 3: Install DSM on DiskStation
Install DSM with Web Assistant 17
Learn More 17
Appendix A: Specications
Appendix B: LED Indicator Table
Synology_HIG_DS2419+_20180419
2
Thank you for purchasing this Synology product! Before setting up your new DiskStation, please check the
package contents to verify that you have received the items below. Also, make sure to read the safety instructions
carefully to avoid harming yourself or damaging your DiskStation.
Package Contents
Main unit x 1 AC power cord x 1
RJ-45 LAN cable x 2
Screws for 2.5” drives x 52
Drive tray key x 2
Before You Start 1
Chapter
3
3
4Chapter 1: Before You Start
Synology DiskStation at a Glance
No. Article Name Location Description
1 Status Indicator
Front Panel
Displays the status of the system. For more information, see "Appendix B:
LED Indicator Table".
2 Alert Indicator Displays warnings regarding fan or temperature. For more information, see
"Appendix B: LED Indicator Table".
3 Power Button
1. Press to power on the DiskStation.
2. To power o the DiskStation, press and hold until you hear a beep sound
and the Power LED starts blinking.
4 LAN Indicator Displays the status of the network connection. For more information, see
"Appendix B: LED Indicator Table".
5 Drive Status Indicator Displays the status of the installed drive. For more information, see "Appendix
B: LED Indicator Table".
6 Drive Tray Install drives (hard disk drives or solid state drives) here.
7 Drive Tray Lock Lock or unlock drive trays.
8 Power Port
Back Panel
Connect the AC power cord here.
9 Fan Disposes of excess heat and cools the system. If the fan malfunctions, the
DiskStation will emit a beeping sound.
10 PCI Express
Expansion Slot Supports one PCIe x8 slot (x4 link) add-on card.
11 USB 3.0 Port Connect external drives or other USB devices to the DiskStation here.
12 RESET Button
1. Press and hold until you hear a beep sound to restore the default IP
address, DNS server, and password for the admin account.
2. Press and hold until you hear a beep sound, then press and hold again
until you hear three beep sounds to return the DiskStation to “Not Installed”
status so that DiskStation Manager (DSM) can be reinstalled.
13 Console Port This port is used for manufacturing use only.
14 Expansion Port Connect Synology Expansion Unit1to the DiskStation here.
15 LAN Port Connect network cables here.
1For more information about Synology Expansion Unit supported by your DiskStation, please visit www.synology.com.
5Chapter 1: Before You Start
Safety Instructions
Keep away from direct sunlight and away from chemicals. Make sure the environment does not
experience abrupt changes in temperature or humidity.
Place the product right side up at all times.
Do not place near any liquids.
Before cleaning, unplug the power cord. Wipe with damp paper towels. Do not use chemical or
aerosol cleaners.
To prevent the unit from falling over, do not place on carts or any unstable surfaces.
The power cord must plug in to the correct supply voltage. Make sure that the supplied AC voltage is
correct and stable.
To remove all electrical current from the device, ensure that all power cords are disconnected from
the power source.
Risk of explosion if battery is replaced with an incorrect type. Dispose of used batteries appropriately.
Tools and Parts for Drive Installation
• A screwdriver (only for 2.5” drives)
• At least one 3.5” or 2.5” SATA drive (please visit www.synology.com for compatible drive models.)
Warning: If you install a drive that contains data, the system will format the drive and erase all existing data. Please
back up any important data before installation.
Install Drives
1 Press the right part of the drive tray to pop out the handle.
2 Pull the drive tray handle in the direction as indicated below to remove the drive tray.
Hardware Setup
6
2
Chapter
7Chapter 2: Hardware Setup
3 Load drives in the drive trays.
• For 3.5” drives: Remove the fastening panels from the sides of the drive tray. Place the drive in the drive
tray. Then insert the fastening panels to secure the drive in place.
• For 2.5” drives: Remove the fastening panels from the sides of the drive tray and store them in a safe
place. Place the drive in the blue area (shown below) of the drive tray. Turn the tray upside down and tighten
the screws to secure the drive in place.
4 Insert the loaded drive tray into the empty drive bay.
Note: Make sure the tray is pushed in all the way. Otherwise, the drive might not be able to function properly.
5 Press the handle in ush with the front panel to hold the drive tray in place.
8Chapter 2: Hardware Setup
6 Insert the drive tray key into the drive tray lock, turn the key clockwise (to the “-” position) to lock the handle of
the drive tray, and then remove the key.
7 Repeat the steps above to assemble the other drives you have prepared.
8 Drives are numbered as shown below.
Note: If you want to create a RAID volume, we recommended that all installed drives are of the same size to make the
best use of drive capacity.
9Chapter 2: Hardware Setup
Start Up Your DiskStation
1 Use the LAN cable to connect the DiskStation to your switch, router or hub.
2 Connect one end of the AC power cord to the power port of the DiskStation, and the other to the power outlet.
3 Press the power button.
Congratulations! Your DiskStation is now online and detectable from a network computer.
10 Chapter 2: Hardware Setup
Add a RAM Module on DiskStation
The optional Synology DDR4 RAM module is designed for DiskStation memory expansion. Follow the steps
below to install, check, or remove a RAM module on your DiskStation.
To install the RAM module:
1 Press and hold the power button until you hear a beep sound to shut down your DiskStation. Disconnect all
cables from your DiskStation to prevent any possible damage.

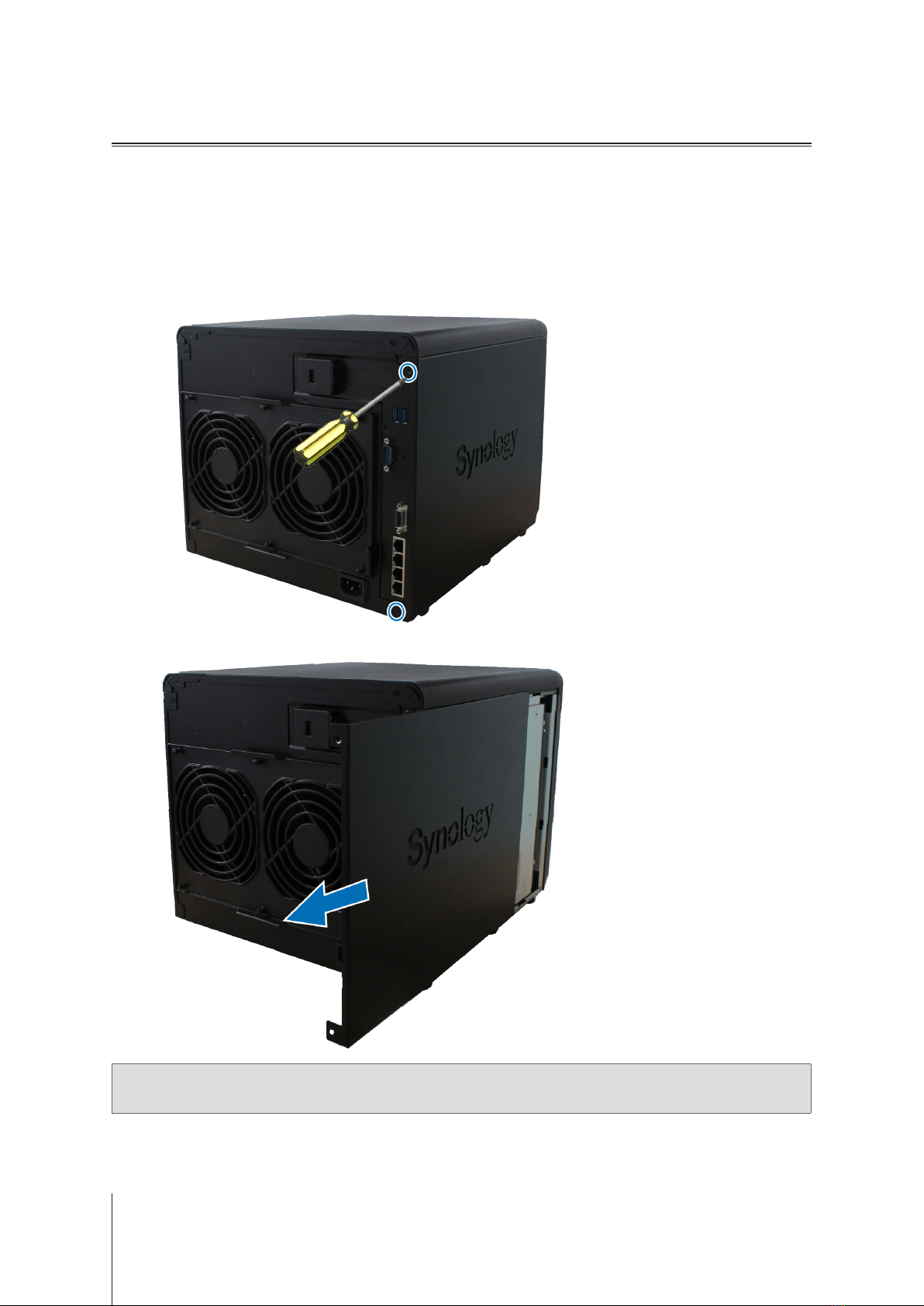

2 Remove the side panel:
a Remove the 2 screws on the back of DiskStation.
b Pull the side panel. Place the side panel to the side.
Note: When you remove the case, you expose sensitive internal components. Avoid touching anything other than the
memory assembly when you remove or add memory.
