Synology DiskStation Series Manual de usuario

RAM Module

Quick Installation Guide

This RAM module is designed for Synology

DiskStation memory expansion. Follow the steps

below for installation.

Add a RAM Module on Synology DiskStation

1 Shut down your Synology DiskStation. Disconnect all

cables connected to Synology DiskStation to prevent

any possible damages.

2 Remove the 5 screws that secure the top case. Lift

off the case and place it to the side.

Important: When you remove the case, you expose

sensitive internal components. Avoid touching anything

other than the memory assembly when you remove or

add memory.

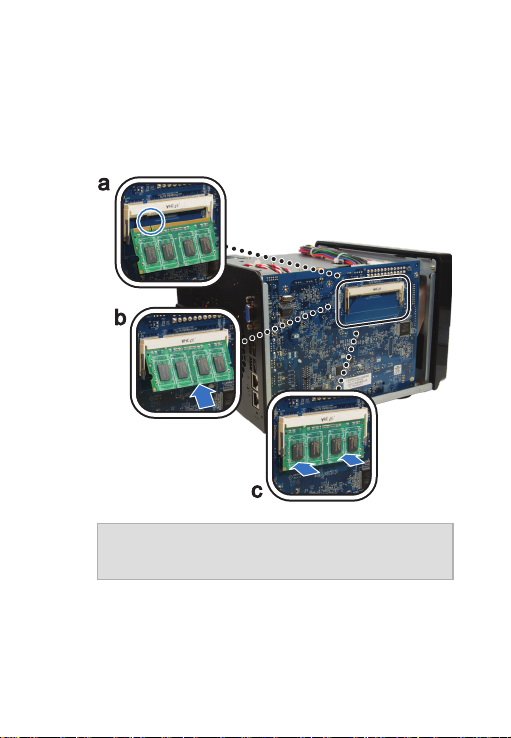

3 Insert the new memory module in the slot:

a Align the notch on the gold edge of the module with

the notch in the lower memory slot.

b Tilt the card and push the memory into the slot.

Make sure the module is pushed in all the way.

c Use two ngers with rm, even pressure to push

down on the memory module. You should hear a

click when the memory is inserted correctly.

Important: Hold the memory module by its edges, and

do not touch the gold connectors.

4 Replace the top case. Replace and tighten the 5

screws you removed in step 2.

Make Sure Synology DiskStation

Recognizes the New Memory Capacity

After installing the memory module on your Synology

DiskStation, it’s recommended that you check

whether the server recognizes the new memory.

To check Synology DiskStation’s memory:

1 Start up your Synology DiskStation.

2 Log in to Synology DiskStation Manager.

3 Check Total Physical Memory in Information >

Status.

If your Synology DiskStation doesn’t recognize the

memory or doesn’t start up correctly, conrm that the

memory is installed correctly.

Remove a RAM Module from Synology

DiskStation

1 Follow step 1 and 2 of the “Add a RAM Module on

Synology DiskStation” section to remove the case of

Synology DiskStation.

2 Push the levers on the sides of the memory module

in an outward direction to release the module from

the memory card slot.

Before removing it, make sure you see the half-circle

notches. If you don’t, try pushing the levers outward

again.

3 Hold the memory module by its notches and remove

it from the slot.

4 Replace the top case. Replace and tighten the 5

screws you removed in step 1.

For more information

or technical support,

please visit:

www.synology.com

SYNOLOGY INC.

www.synology.com

Copyright © 2010 Synology Inc. All rights reserved. Synology,

the Synology logo, and other names of Synology Products are

proprietary marks or registered trademarks of Synology Inc.

RAM01052010

Printed in Taiwan

P/N: 15-06D010040
