Synology FlashStation FS3600 Manual

Hardware Installation Guide

Synology NAS FS3600

Table of Contents

Chapter 1: Before You Start

Package Contents 3

Synology FS3600 at a Glance 4

Hardware Specication 5

Optional Accessories 6

Safety Instructions 8

Chapter 2: Hardware Setup

Tools and Parts for Component Installation 9

Install Drives 9

Install Memory Modules 11

Install PCle Add-in Cards 13

Install and Remove Rail Kits 15

Expansion Unit Deployment and Topology 18

Start up Your Synology NAS 19

LED Indicator Table 20

Chapter 3: System Maintenance

Replace System Fan 21

Replace Power Supply Unit (PSU) 23

Initial Troubleshooting Guide 23

Chapter 4: Install DSM on Synology NAS

Install DSM with Web Assistant 24

Learn More 24

Synology_HIG_FS3600_20190812

Synology NAS FS3600 is an enterprise server consisting of both system hardware and the software operating

system, DiskStation Manager (DSM). This manual will guide you through all conguration aspects of your

FS3600, including the hardware components, setup procedures, system maintenance, and initial troubleshooting

instructions.

Note: All images below are for illustrative purposes only, and may di󰀨er from the actual product.

Package Contents

Main unit x 1 AC power cord x 2

Screws for 2.5” drives x 100

Before You Start 1

Chapter

4Chapter 1: Before You Start

Synology FS3600 at a Glance

81110

15 1614

No. Article Name Location Description

1 Power Button and Indicator

Front

1. Press to power on your FS3600.

2. To power o󰀨 the FS3600, press and hold until you hear a beep sound

and the Power LED starts blinking.

2 Status Indicator Displays the status of the system. For more information, see "LED

Indicator Table".

3 Alert Indicator Displays warnings regarding fan or temperature. For more information,

see "LED Indicator Table".

4 Beep O󰀨 Button Press to deactivate the beeping sound that is emitted when a malfunction

occurs.

5 Drive Status Indicator Displays the status of drives. For more information, see "LED Indicator

Table".

6 Drive Tray Install drives (hard disk drives or solid state drives) here.

7 Rail Kit Release Tab Push in and hold to release your FS3600 from the rail kit lock.1

8 Power Port

Back

Connect power cords here.

9 PSU Indicator and Beep O󰀨

Button

1. Displays the status of the power supply unit (PSU). For more

information, see "LED Indicator Table".

2. Press to deactivate the beeping sound that is emitted when a

malfunction occurs.

10 PSU Fan Disposes of excess heat and cools the PSU.

11 Console Port This port is reserved for manufacturing use only.

12 PCI Express Expansion Slot Supports one PCIe x8 add-on network interface card.

13 SAS OUT Port Connect Synology Expansion Unit to the SAS OUT port on the right side.2

14 1GbE LAN Port Connect RJ-45 network cables here.

15 10GBase-T LAN Port Connect RJ-45 network cables here.

16 USB 3.0 Port Connect external drives, USB printers, or other USB devices to your

FS3600 here.

17 RESET Button

1. Press and hold until you hear a beep sound to restore the default IP

address, DNS server, and password for the admin account.

2. Press and hold until you hear a beep sound, then press and hold

again until you hear three beep sounds to return the FS3600 to “Not

Installed” status so that DiskStation Manager (DSM) can be reinstalled.

1For more information about the rail kit installation, please refer to the Quick Installation Guide that comes with the rail kit.

2For more information about Synology Expansion Unit supported by your Synology NAS, please visit www.synology.com.

5Chapter 1: Before You Start

Hardware Specication

Item FS3600

Internal Drive 2.5" SAS drive (SSD and HDD) or SATA SSD x 24

Maximum Internal Raw

Capacity 92.16 TB (24 x 3.84 TB SSD)

External Device Port • USB 3.0 x 2

• SAS OUT x 1

LAN Port • 1GbE (RJ-45) x 4

• 10GBase-T (RJ-45) x 2

PCIe Slot Gen3 x8 slot (x8 link) x 1

Size (H x W x D) (mm) • 88 x 482 x 724 (with server ears)

• 88 x 430.5 x 692

Weight (kg) 14.9

Supported Client • Windows 7 onwards

•macOS 10.12 onwards

File System • Internal: Btrfs, ext4

• External: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT1

Supported RAID Type • Basic • JBOD • RAID 0 • RAID 1

• RAID 5 • RAID 6 • RAID 10 • Synology RAID F1

Agency Certication • FCC Class A • CE Class A • BSMI Class A

• VCCI • EAC • RCM • RoHS Compliant

HDD Hibernation Yes

Scheduled Power On/O󰀨 Yes

Wake on LAN Yes

Language Localization

Environment Requirement

• Line voltage: 100V to 240V AC

• Frequency: 50/60 Hz

•Operating Temperature: 32 to 95˚F (0 to 35˚C)

•Storage Temperature: -5 to 140˚F (-20 to 60˚C)

• Relative Humidity: 5% to 95%RH

Note: Model specications are subject to change without notice. Please refer to www.synology.com for the latest information.

1Support for exFAT can be enabled by purchasing and downloading exFAT Access in Package Center.

6Chapter 1: Before You Start

Optional Accessories

With Synology accessories, you can customize your Synology NAS to t di󰀨erent business environments without

worrying about compatibility and stability. Visit www.synology.com/compatibility for more information.

• Memory Module

Model Name Picture Description

D4RD-2666-16G 16GB DDR4-2666 ECC

Registered DIMM

D4RD-2666-32G 32GB DDR4-2666 ECC

Registered DIMM

Note: It is required to use D4RD-2666-16G with identical memory modules of the same capacity and frequency.

• PCIe Add-in Card

Model Name Picture Description

E10G18-T2 Dual-port, 10GbE RJ-45

Network Interface Card

E10G18-T1 Single-port, 10GbE RJ-45

Network Interface Card

E10G17-F2 Dual-port, 10GbE SFP+ Network

Interface Card

7Chapter 1: Before You Start

• Expansion Unit

Model Name Picture Description

RX1217sas

2U 12-bay Rackmount type

expansion unit, compatible with

3.5”/2.5” SAS/SATA drives

RX2417sas

2U 24-bay Rackmount type

expansion unit, compatible with

2.5” SAS/SATA drives

• Rail Kit

Model Name Picture Description

RKS1317 Sliding rail solutions

• Spare Part

Model Name Picture Description

Disk Tray (Type R1) 2.5" Drive Tray

FAN 80*80*32_6 System Fan Module

PSU 500W-RP

Module_2 Redundant PSU Module

PSU 500W-RP SET_2 Redundant PSU Set (Cage x 1, PSU

Module x 2)

8Chapter 1: Before You Start

Safety Instructions

Keep away from direct sunlight and away from chemicals. Make sure the environment does not

experience abrupt changes in temperature or humidity.

Place the product right side up at all times.

Do not place near any liquids.

Before cleaning, unplug the power cord. Wipe with damp paper towels. Do not use chemical or

aerosol cleaners.

To prevent the unit from falling over, do not place on carts or any unstable surfaces.

The power cord must plug in to the correct supply voltage. Make sure that the supplied AC voltage is

correct and stable.

To remove all electrical current from the device, ensure that all power cords are disconnected from

the power source.

Risk of explosion if battery is replaced with an incorrect type. Dispose of used batteries appropriately.

Tools and Parts for Component Installation

Please prepare the tools and parts below before setting up your Synology NAS:

• A screwdriver

• At least one 2.5” SSD (SAS/SATA) or HDD (SAS only) (please visit www.synology.com/compatibility for

compatible drive models).

Warning: If you install a drive that contains data, the system will format the drive and erase all existing data. Please

back up any important data before installation.

• Rail mounting kit (please see the Optional Accessories section to nd out the suitable rail kit for cabinet

installation)

Warning: We suggest mounting your Synology NAS on a cabinet before installing any drives since the heavy weight

will increase the installation di󰀩culty.

Install Drives

Please follow the steps below for drive installation:

1 Open the drive tray.

a Find the small button located on the bottom side of the drive tray handle. Press the button down, and the

drive tray handle will pop out.

b Pull the drive tray handle out as illustrated above.

2 Place the drive in the drive tray. Tighten screws into the four spots indicated below to secure the drive.

Hardware Setup

Chapter

10 Chapter 2: Hardware Setup

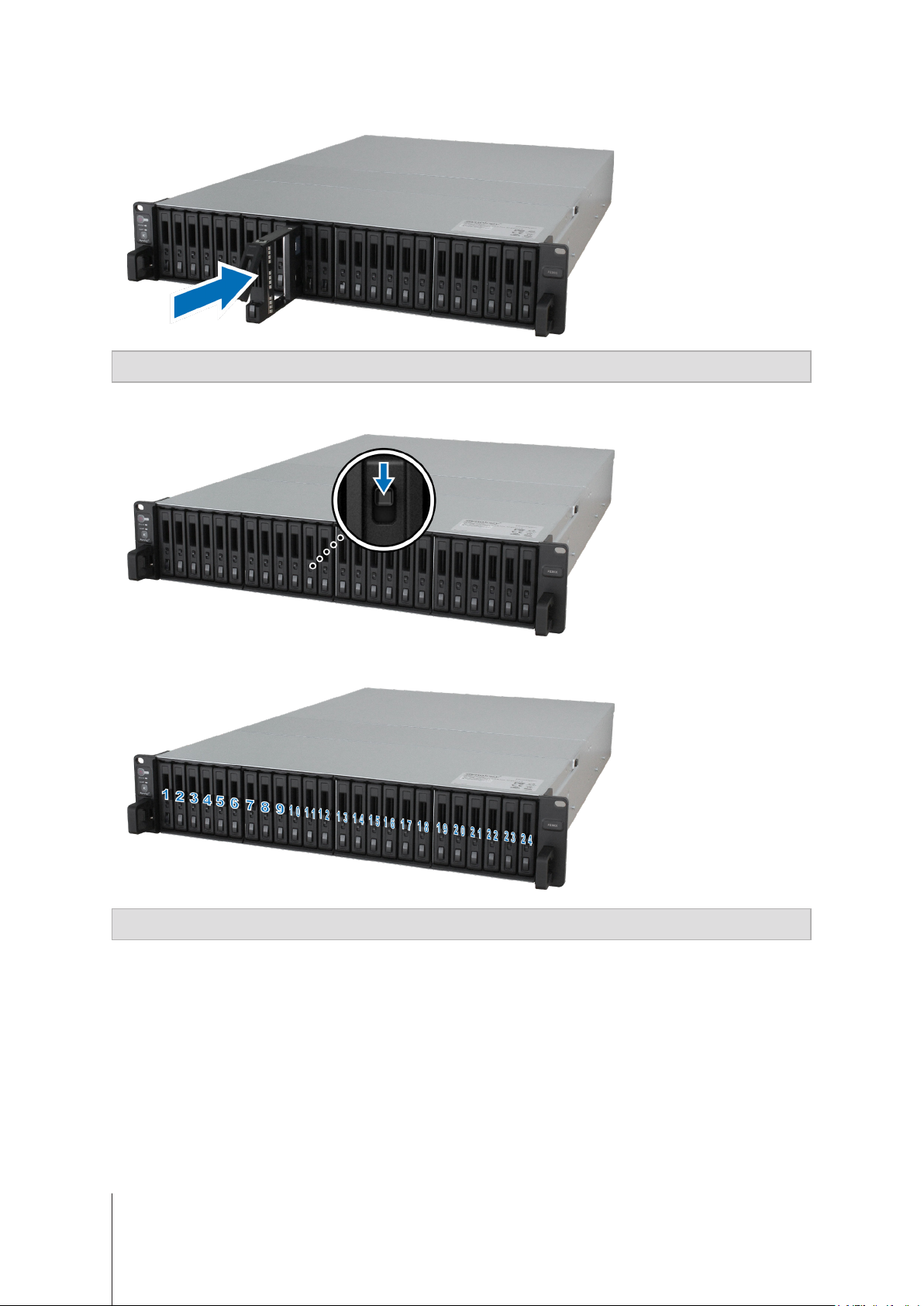

3 Insert the loaded drive tray into the empty drive bay.

Note: Make sure the tray is pushed in all the way. Otherwise, the drive might not be able to function properly.

4 Push the handle inward to secure the drive tray.

5 Push the switch on the drive tray handle to the bottom to lock the drive tray.

6 Repeat the steps above to assemble the other drives you have prepared.

7 Drives are numbered as shown below.

Note: We suggest installing drives of the same size to optimize drive capacity usage when creating RAID volumes.
