Sylvac S Dial WORK Manual de usuario

INSTRUCTIONS

MODE D’EMPLOI

BEDIENUNGSANLEITUNG

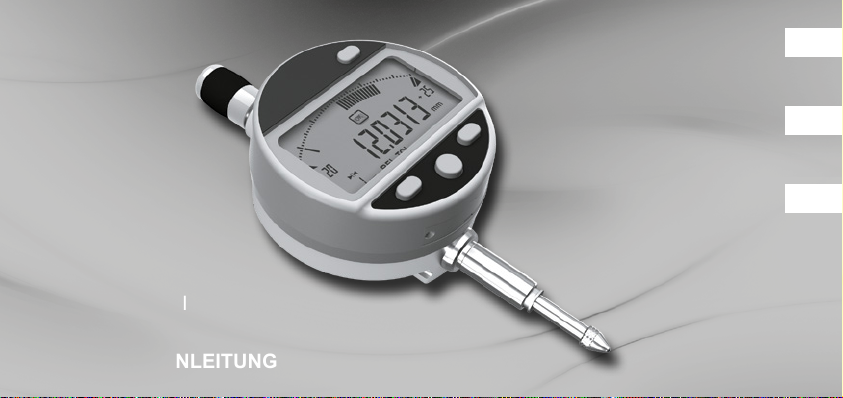

CBG DIAL GAUGE

COMPARATEUR CBG

CBG MESSUHR

Installing and replacing the battery

(or Power cable)

Mise en place et remplacement de la

batterie (ou câble Power)

Einbau und Austausch von Batterie

(oder Netzkabel)

No. 0 No. 0 (0,4x2,5mm)

Battery / batterie / batterie : lithium 3V, type CR2032

7.5

(4x) M2

L 3.5mm

Diagram for rear xings

Schéma de xation arrière

Schema für die Befestigung hinten

+2 56

MIN MAX PRESET

TO L

0...

MIN PRESET

µm TO L

thou

+2 56

MIN MAX PRESET

TO L

0...

22 23

1512 14

13 27 28

Description

1. MODE button

2. CLEAR button

3. “Favourite” button

4. Preset Master button

5. Clamping shaft Ø8 or 3/8”

6. Contact point Ø2/M2.5 or 4-48-UNF

7. Lifting cap

8. Slot for Proximity cable

9. Slot for battery or Power Cable

10. Low battery

11. + /- Indicator

12. Keypad lock

13. 6-digit display

14. Hold measured value

15. Send data

16. Measurement units mm/INCH

17. Preset mode

18. Analogue scale

19. Lower limit exceeded

20. Upper limit exceeded

21. Tolerance indicators

22. Analogue scale lower limit

23. Analogue scale upper limit

24. Active REF (1-4)

25. Tolerance mode indicator

26. Int-Ext indicator for MIN function (CBG mode)

27. Multiplier

28.

Bluetooth

®connection

29. Int-Ext indicator for MAX function (see chap. 12.1)

CLEAR

MODE

PRESET

MASTER

E1 . Operating features of the instrument

- The instrument has two operating modes: First level functions (direct access) and Second level functions. In

addition to the conguration functions, available access to display tolerances settings (see chaps. 3 and 4)

- The «favourite» key gives direct access to the function used most often (see chap. 8)

- Sets a Preset value, reset the MIN, veries a selection, and controls switching o󰀨 the instrument. By default,

SIS mode enables automatic switch-o󰀨 with no loss of origin (see chap. 10).

- Preset the origin to the master (>2s, see chapter 9)

- Personalising the functions

It is possible to activate or de-activate certain functions of the instrument via RS232 (see chap. 12)

- Data transmission parameters

4800Bds, 7 bits, even parity, 2 stop bits

2. Start

Press a button. (For a

Bluetooth

®connection, see chap 7.)

MODE

PRESET

-000.000mm

PrE mm

MODE

TOL

OFF

TOL

toL mm

MACOnbt mm mm

OFF rESEt

MODE

CLEAR

rEF4rEF1

rEF

MODE

CLEAR

3. First level functions

Each short press on gives direct access to the First level functions:

Inputting a Preset value (see chap. 6)

Tolerance display (inputting tolerance limits, see chap. 5)

Bluetooth

®(depending on model). Enable / disable, reset

Bluetooth

®module or display its MAC address.

Choice of reference (REF1 to REF4)

Note:

- It is possible to assign a di󰀨erent preset value to each of

the 4 References. Similarly, di󰀨erent tolerance limits can be

assigned to References REF1 to 4.

MODE MODE

MODE

0.01

0.001rES mm

MODE

Auto mm

MAn

OFF mm

InchIN

MM mm

Unitmm

CLEAR

SIMPLE PAIr HId

bt.CFG +

CLEAR

E4. Second level functions

Prolonged pressure (>2s) on gives access to the Second level functions. Then, each short press on

accesses the required function:

MODE

SET

-0.001

+0.001

dirmm

MODE

SET

0.001

0.01

rES mm

MODE

SET

OFF

TOL

toL mm

MODE

SET

nor

dELtA

MINMAX

MAX

Min

MIN

ModE

MODE

Units selection (mm or Inch)

Choice of resolution 0.01 0.001 depending on version)

Automatic switch-o󰀨 mode

MAn = de-activated, Auto = active (after 10 min.)

Bluetooth

® prole selection (depending on model, see chap. 7

for details). The + sign indicates the currently active prole.

CLEAR

..................... Input the nominal value

(see chap. 6)

..................... Input the lower tolerance limit

(see chap. 6)

..................... Input the upper tolerance limit

(see chap. 6)

5. Inputting (or modifying) tolerance limits

The tolerance limits are dened by introducing lower and upper intervals, compared to the nominal rating.

Note 1 :

- If no tolerance limits have been

dened by the user, the instrument

will only display the tolerance

limit indicators but will not turn on

the indicator lights (red - green -

yellow).

Note 2 :

- Depending on the case, we can cross the indicators (red and yellow) by reversing the order of the tolerance limit input.

(lower limit > upper limit)

MODE

CLEAR

MINMAX

PRESET

µm

TO L

thou

E6. Entering a numeric value

To enter or modify a numeric value (Preset, nominal ratings, tolerance intervals):

Increase of the selected digit

Selection of the next digit

Save the value
