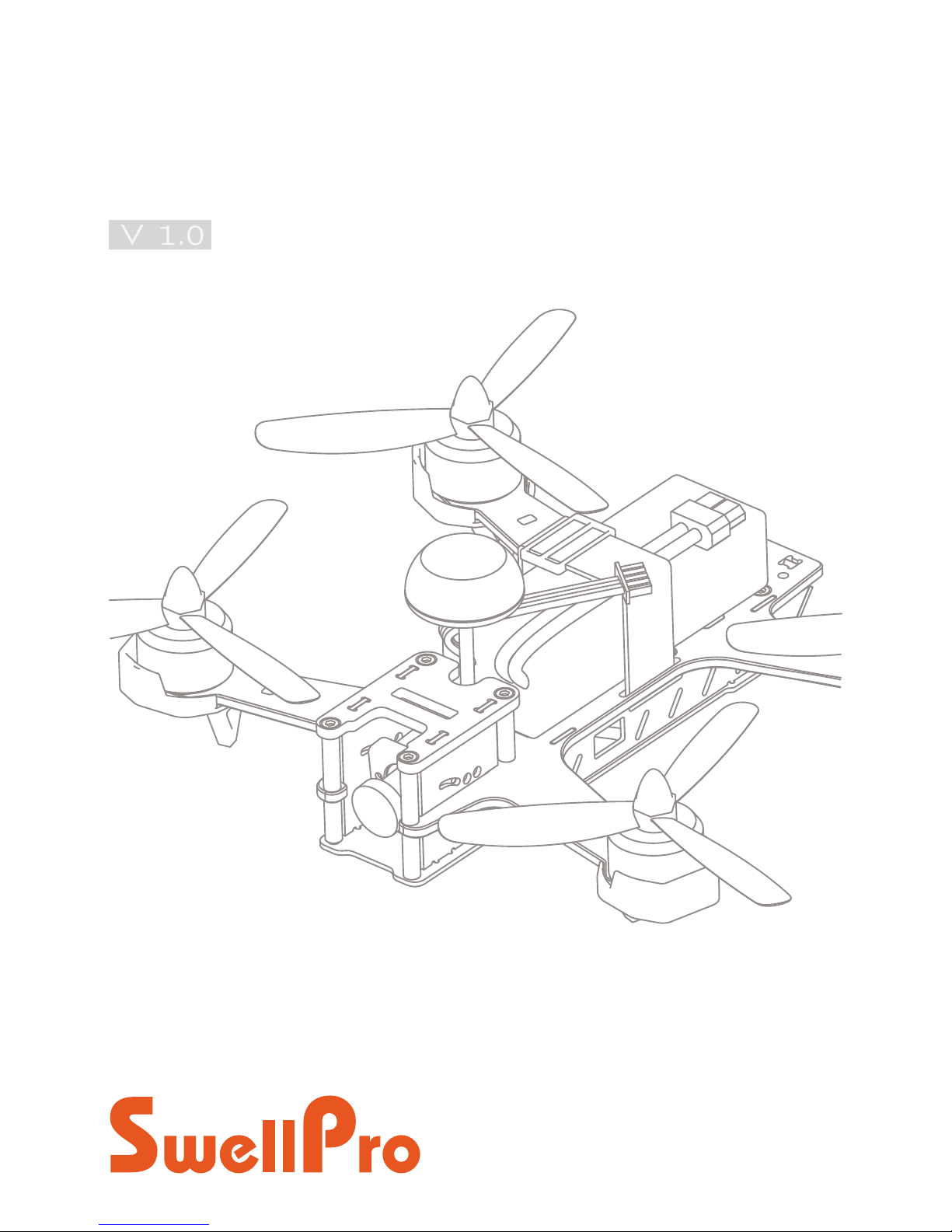

SWIFT 2 Racing drone
User Manual
www.swellpro.com
V 1.0
Do not blink, because it’s fast!
INDEX
-1-
1. Get to know your aircraft.................................................... 3
2. Get to know your remote controller ........................... 4
3. Specification ................................................................................ 6
4. Attention before flight .......................................................... 8
5. Charge the battery.................................................................. 8
6. Prepare the drone ................................................................... 9
7. Ready for flight ........................................................................ 11
8. Operation instruction .......................................................... 13
9. End flight ..................................................................................... 16
10. Additional Instruction ....................................................... 17
11. Instruction for balance changer .............................. 24
Swift User Manuzal
SWIFT 2 Racing drone
-2-
1. Do not blink, because it’s fast!
2. Unprecedented modular design and highly integrated design.
3. Championship level racing power system.
4. Compatible with different types of blades.
5. 3S 2600mah Lipo battery.
6. 120° wide angle FPV camera lens.
7. 800TVL/F2.5 aperture.
8. Ruggedness and anti-drop ability.
9. Professional protection design.
10. Much more convenient to DIY.
11. The most considerate radio controller.
12. 5.8G real time video transmitter.
13. Quick exchangeable 5.8G clover antenna.
14. Build in buzzer to help find your drone easily.
15. Three flight modes meet the needs of junior and senior pilot.
16. The top quality ESC enhances the power and reduces maintenance.
17. Comes with elegant and adjustable rear flight indication lights, they can beturned
ON / OFF on the radio controller.
18. Turn ON / OFF OSD data from controller. Easily adjust the PID parameter on theradio
controller.
19. Lock/unlock the motor by switch. This is very convenient and protects the droneand
prevents accidents.
20. Compact package design.
A professional, ready to fly, compact but aggressive
andyet elegant racing drone!
12
3
3
2
4
4
55
6
7
8
10
11 12 13
9
9
-3-
Swift User Manual
1. Get to know your aircraft
1. Camera
2. Propeller(CW)
3. Propeller(CCW)
4. Clockwise motor
5. Counterclockwise motor
6. Li-Po Battery
7. Power port
8. Mushroom antenna
9. Reciever antennas
10. Tail light
11. Transmitter monitor
12. Transmitter control switch
13. USB Ports
Swift User Manual
2. Get to know your Remote Controller
-4-
Light ON / Light OFF Stablize / Intermediate / Advanced
Wave wheel switch (No function) Wave wheel switch (No function)
OSD ON / OSD OFFLock Motor / Unlock Motor
Left Joystick Right Joystick
Power Power
Alarm
Battery cover
PS/2 (No function)
USB
Alarm
Touch screen
Attention: The factory default of the remote controller is the left hand setting, Please make a special
note if you need the right hand setting remote controller, because customization setting is needed.
Swift User Manual
-5-
AdvancedStablize Intermediate
The Swift 2 features 3 useful flight modes,
STABILIZE/INTERMEDIATE / ADVANCED(RATE) Flight modes are
selected by SWC.
（Select the appropiate mode according to your flight skills）
STABILIZE Flight mode: the main flight controller system comes with stabilization
function,its operation is relatively stable, it can not roll, it is suitable for beginners.
INTERMEDIATE flight mode: the main flight controller system comes with partial stabiliza-
tion function,its operation is relatively flexible, it can roll.
ADVANCED Flight Mode: the main flight controller system without stabilization
function,its operation is very flexible, it can roll.
Swift User Manual
3. Specification
-6-
Aircraft
Main carbon frame: 3.5mm 3K altra strong carbon fiber frame
Propeller: #5045 3blades
Axis Diameter：220mm
Overall (L x W x H)：183 x 216 x 85mm
Weight: 378g (Battery excluded)
Flight Controller: F3 enhanced version
OSD: Integrated
Brushless Motor: #2205 2300KV
Brushless ESC: 25A
Battery： 3S 2600 mAh LiPo (Weight: 214g)
Transmitter： 5.8G 40CH, Digital Channel
Selector
Flight Time： 12~15 mins ( 2600mAh)
Max Flight Speed: 150km/h
Max Flight Distance： 1000m
Working Temperature： -10C°~ 40C°
Swift User Manual
-7-
Remote Controller
Net Weight： 435g (Battery Excluded)
Frequency Channel： 2405 ~ 2475HMZ
Remote Control Distance： 1.0 KM
Receiver Sensitivity（1%PER）：-105dbm
Working Current： 120 mA
Battery： 7.4V-11.1V
Channel： 10
Camera
Horizontal Resolution： 800TVL
System Commitee： PAL/NTSC
Power input： 5V
FOV: 120 Degree
Aperture: F2.5
Transmitter
Transmitter： 5.8G Wireless Image Transmission
Channels： 40CH
Power： 25mW、200mW、400mW
Swift User Manual
-8-
4. Attention before flight
5. Charge the battery
The Swift is recomended for pilots, 15 years or older, with RC hobby experience.
Only fly the Swift in dry weather, with low wind, please do not fly in rain or heavy
foggy conditions.
Always choose large open fields for flying. Check local LAW and ordinances for
legal flying areas.
Always keep at least 10 feet distance to the aircraft, to avoid injury from high-speed
propellers on the ground or while flying.
Do not fly close to high-voltage power lines, cellphone towers, or radio towers, as
these may disrupt your control signal.
ALWAYS check local laws BEFORE flying. NEVER fly over crowds, concerts or sports
stadiums.
Connect the power-cable to the wall-outlet, the E3 charger accept voltage from 100v
to 240v .When correctly powred the charger LED will be flashing green.
Insert the LiPo battery balance plug into the E3 charger.
During charging the LED will be flashing GREEN and display power.
When charging is completed, the charger will display a solid BLUE LED.
Attention:
1. When the 4 LED lights flashes at the same time, there maybe something wrong with
charger or battery,so please stop charging.
2. Please refer to Page XX for details of E3 balance charger.
Swift User Manual
-9-
Airplane Head
Propeller(CW)
5045R( )
Propeller(CW)
5045R( )
Propeller(CW)
5045R( )
Propeller(CW)
5045R( )
6. Prepare the drone
Install propellers
Attention:
Fix the clockwise propeller onto the clockwise motor according to the direction of blue
arrow,and fix the counter clockwise propeller onto the counterclockwise motor
according to the direction of orange arrow.
Tighten the propellers manually and make sure the propeller is installed in proper way
and fastened.
Install prop by hand and tighten by holding the motor with the included wrench.You
can also use the wrench to help remove broken props in case of a crash.
First, install the mushroom to the mounting
brackets as show.Next, push into the Video
Transmitter, Finally tighten the rotating
collar with the included wrench.
