Swann SecuraView Manual de usuario

Av Security Monitoring Kit

CAMERA

SECURAVIEW MONITOR

Technical Support: [email protected]

SecuraView

AV SECURITY MONITORING KIT

USER’S GUIDE

SECURITY

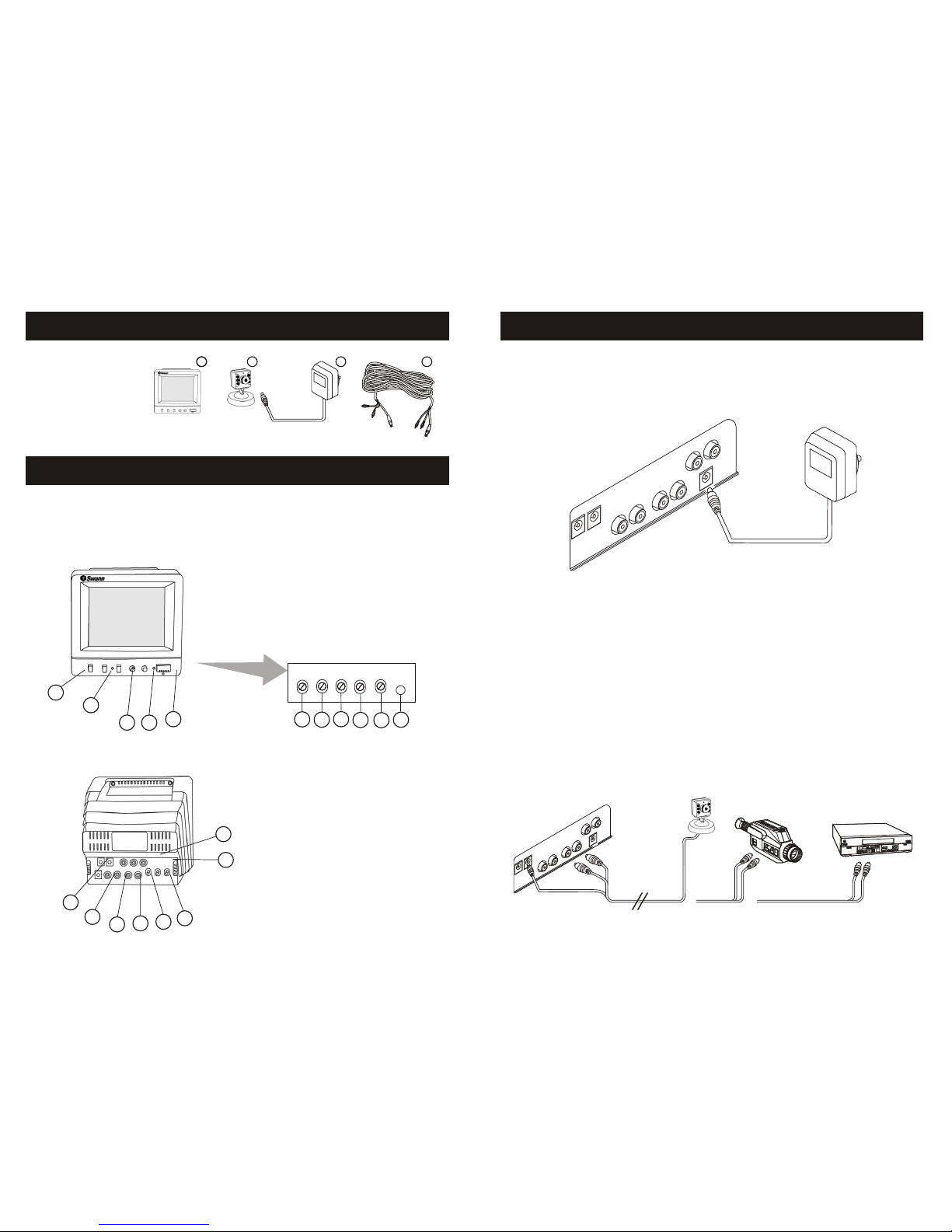

Connecting Diagram - standard

Connecting Diagram - alternative

www.swann.com.au

YELLOW

VCR, TV or MONITOR

OUT

VIDEO

AUDIO

VIDEO IN

AUDIO IN

3 4

WHITE BLACK

POWER

ADAPTOR

CAMERA

While the Secura View Monitor is designed for use with the Secura Cam Security Camera, you

can still use Secura View with almost any device capable of displaying video e.g. Camcorder,

VCR, VCD, DVD, Video

SecuraView AC/DC Power adaptor

Make sure you use only the 15Volt DC power supply that was supplied with your SecuraView

unit. Use of any unauthorised power supplies may void your warranty.

Connecting to SecuraView Monitor / Camera / VCR

Connect the White connector of the supplied extension cable from the White connector on

the camera to either of the Audio in sockets on the back of the SecuraView Monitor.

Connect your Camera or VCR’s Video Out and Audio Out to the Video In and Audio In

of the SecuraView Monitor to playback video onto your SecuraView, or connect the Video

out and Audio out from the SecuraView to the VCR or Camcorder to record the

Connect the Yellow connector of the supplied extension cable from the Yellow connector on

the camera to either of the Video in sockets on the back of the SecuraView Monitor.

Connect the Black connector of the supplied extension cable from the Red connector on the

camera to the DC 2 x 12V out on the back of the SecuraView Monitor.

1. Power On/Off

2. Channel 1 indicator

3. Channel 2 indicator

4. Auto channel scan indicator

5. Channel Select Button

A. Volume dial

B. Channel time pause

C. Vertical Hold dial

D. Contrast dial

E. Brightness dial

F. 50/60Hz selector

1. DC output x2 for cameras

5. Audio

7. Audio Out ocket

8. Video Out

Video In RCA Female Socket (Channel 2)

Audio In RCA Female Socket (Channel 2)

Video In RCA Female Socket (Channel 1)

In RCA Female Socket (Channel 1)

DC Power In Socket

RCA Female S

RCA Female Socket

Front View

Side panel controls

Rear View

11 2 3 4

15V Power

Supply

PLAY

REC

ONON

OFF

FRONTLOADING

TwinSpeed8DayTimer

Package contents... SecuraView Operation...

SecuraView features...

1. SecuraView Monitor

2. SecuraCam Camera

3. 15V Power Supply

4. 18m/60ft A/V cable

5. This Instruction Sheet

If any of these items are missing, please contact your retailer.
