Swann Enforcer PRO-4KMQB Manual de usuario

Enforcer™ Bullet

Security Camera

1080p Full HD for DVRs

Instruction Manual

Security Made Smarter

Introduction

Congratulations on the purchase of your Swann En-

forcer Bullet Security Camera.

• 1080p Full HD video with sensor spotlight plus

red & blue flashing lights

• Microphone to stream live & record audio

• True Detect™ Heat & Motion sensing for reli-

able alerts

• Powerful Night2Day™ color night vision

• Works in rain & snow all year round

• Reliable BNC cable connection

Important instructions

1. Make sure the camera is fixed correctly and stable

if fastened in place.

2. Only use the supplied power adapter (12V) and

power splitter (if supplied).

3. Do not operate if wires and terminals are exposed.

Please note: Have a look at the camera location tips

included with your DVR, to select the best location for

your camera (the camera location tips provided here

are for general purpose only).

Please read: All jurisdictions have specific laws and

regulations relating to the use of cameras. Before

using any camera for any purpose, it is the buyer’s

responsibility to be aware of all applicable laws and

regulations that prohibit or limit the use of cameras.

For instructions on how to configure your camera

for motion detection, changing image settings,

and other functions available, please consult the

manual for your DVR. Go to support.swann.com,

search for your model, then download.

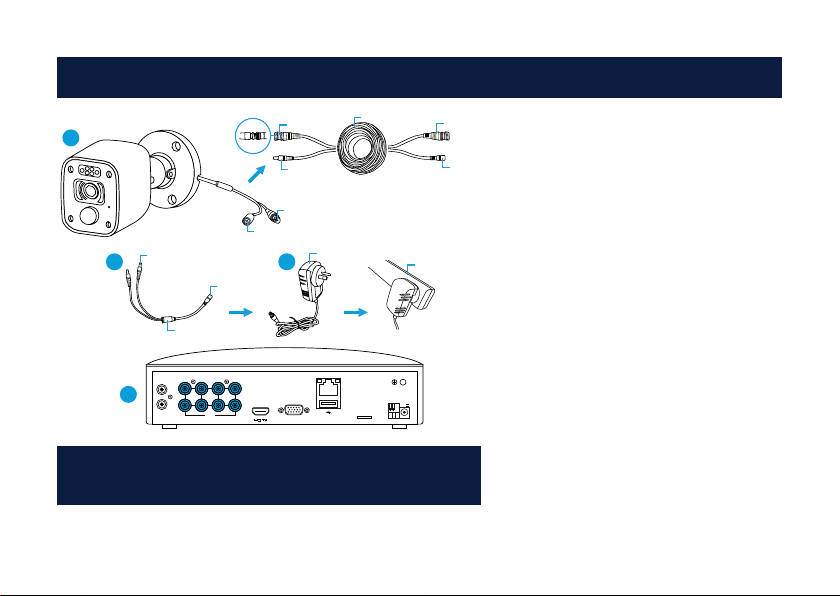

Connecting the Camera2

1. Connect the video output and pow-

er input connections on the camera to

the corresponding connections on the

supplied video & power cable.

2. Connect the supplied power split-

ter to the power input on the video &

power cable (repeat this step if multi-

ple cameras are included).

3. Connect the supplied power adapt-

er to the other end of the power split-

ter then connect the power adapter to

a spare wall socket.

4. Connect the video output on the

video & power cable to an available

camera input on your DVR. Twist the

connection to lock it in place.

For single camera packs, connect the supplied power adapter

directly to the power input on the video & power cable.

2 3

Twist to lock

connectors

Video Input

Video & Power Cable

Connect this to your DVR

Power Splitter

connects here

Power Output

Power Adapter

connects here

Power Splitter

Power Adapter

Video & Power Cable

connects here

Connect to a spare

power outlet

Power Input

Video Output

+ -+ -

12V12V

RS485RS485

LANLAN

1357

2 4 6 8

VIDEO

INPUT

VIDEO

INPUT

AUDIO

INPUT

AUDIO

INPUT

AUDIO

OUTPUT

AUDIO

OUTPUT

VGAVGA MicroSDMicroSD

The camera can be mounted onto a flat surface using the screws and wall plugs provided. The surface must

have sufficient strength to hold the camera (the camera illustrated is for instructional purposes only).

→ Position the camera in the location you want to mount it, and mark the screw holes on the surface to

position the screws (a mounting template has been included). Then, using the appropriate screws for the

surface you’re fixing the camera to, secure the camera in place.

→ If you’re mounting to a wooden surface, then screw the camera directly to the surface.

→ If you’re mounting to a masonry surface (bricks, concrete or similar), then you’ll need to use wall plugs.

Mounting the Camera3

Aiming the camera

1. Loosen both screws (use a Phillips head screwdriver) to ad-

just the camera’s orientation. This enables you to rotate the

camera so no matter what direction it is facing, your images

will be the right way up. Tighten each screw to secure in place.

2. Loosen the screw to tilt the camera up or down. Tighten the

screw to secure in place.

3. To pan the camera left or right, loosen the screw and position

accordingly. Tighten the screw to secure in place.

1. Take into consideration what you want to monitor

and where you’ll get the best view of it.

2. How you’re going to connect the camera to your

monitoring system; remember that cables and con-

nections should be kept out of the weather.

3. How to keep the camera out of harm’s way. It’s

recommended to mount your camera at an elevated

position.

4. Place your camera as close to the area of inter-

est as practicable. The best position is from about

13ft/4m above looking slightly down, keeping in mind

the details you are looking for.

5. Although the sky looks nice when you look at the

live view from your camera, it is an unlikely direction

for an offender to approach. Make sure your camera

has minimal sky in it as the light in daylight can make

the foreground of the image darker.

6. Think about the most likely way a potential offend-

er may approach your home, use your camera to give

you the best coverage of these areas.

7. The camera’s casing is resistant to different weath-

er conditions and tampering. It would take an over-

whelming event to damage the housing.

8. Even though the camera is weather and water-

resistant, prolonged exposure to adverse weather

conditions such as sunlight or excessive moisture,

may eventually damage the internal components of

the camera and adversely affect its performance.

9. Run cables inside a wall cavity or other protected

enclosure, and ensure that all wiring and connectors

are insulated and protected from moisture.

10. Don’t put your cable near live electrical wiring. AC

electricity generates radio “noise” which can inter-

fere with the signal from your camera.

Camera Location Tips4

M1080MQBREV1E | © Swann 2022

Helpdesk & Resources

Security Made Smarter

Visit Swann Support Center at support.swann.com. You can register

your product for dedicated customer support, download guides, find

answers to commonly asked questions, and more.

Product Registration Customer Support

Product Manuals Frequently Asked Questions

Support Community
