Backplane User's Guide

The information in this User’s Manual has been carefully reviewed and is believed to be accurate.

The vendor assumes no responsibility for any inaccuracies that may be contained in this document,

makes no commitment to update or to keep current the information in this manual, or to notify any

person or organization of the updates. Please Note: For the most up-to-date version of

this manual, please see our web site at www.supermicro.com.

SUPERMICRO COMPUTER reserves the right to make changes to the product described in this

manual at any time and without notice. This product, including software, if any, and documenta-

tion may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any

medium or machine without prior written consent.

IN NO EVENT WILL SUPERMICRO COMPUTER BE LIABLE FOR DIRECT, INDIRECT, SPECIAL,

INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE

OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, THE VENDOR SHALL NOT HAVE

LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE

PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING

OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa

Clara County in the State of California, USA. The State of California, County of Santa Clara shall

be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all

claims will not exceed the price paid for the hardware product.

Manual Revision 1.0b

Release Date: June 15, 2007

Unless you request and receive written permission from SUPER MICRO COMPUTER, you may not

copy or otherwise reproduce/distribute any part of this document.

Information in this document is subject to change without notice. Other products and companies

referred to herein are trademarks or registered trademarks of their respective companies or mark

holders.

Printed in the United States of America

iii

Safety Information and Technical Speciﬁcations

Table of Contents

Chapter 1: Safety Guidelines

1-1 ESD Safety Guidelines ....................................................................................... 1-1

1-2 General Safety Guidelines .................................................................................. 1-1

1-3 An Important Note to Users ................................................................................ 1-1

Chapter 2: Jumper Settings and Pin Deﬁnitions

2-1 Front Connectors and Jumpers .......................................................................... 2-1

2-2 Front Connector Pin Deﬁnitions.......................................................................... 2-2

2-3 Front Jumper Locations and Pin Deﬁnitions....................................................... 2-5

2-4Rear Connectors and LED Indicators .............................................................. 2-11

Backplane User's Guide

ContactingSuperMicro

Headquarters

Address: SuperMicro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: +1 (408) 503-8000

Fax: +1 (408) 503-8008

Email: marketing@supermicro.com (General Information)

support@supermicro.com (Technical Support)

Web Site: www.supermicro.com

Europe

Address: SuperMicro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: +31 (0) 73-6400390

Fax: +31 (0) 73-6416525

Email: sales@supermicro.nl (General Information)

support@supermicro.nl (Technical Support)

rma@supermicro.nl (Customer Support)

Asia-Paciﬁc

Address: SuperMicro, Taiwan

4F, No. 232-1, Liancheng Rd.

Chung-Ho 235, Taipei County

Taiwan, R.O.C.

Tel: +886-(2) 8226-3990

Fax: +886-(2) 8226-3991

Web Site: www.supermicro.com.tw

Technical Support:

Email:support@supermicro.com.tw

Tel: 886-2-8228-1366,ext.132 or 139

1-1

Safety Information and Technical Speciﬁcations

Chapter 1:

Safety Guidelines

To avoid personal injury and property damage, carefully follow all the safety steps

listed below when accessing your system or handling the components.

1-1 ESD SafetyGuidelines

Electric Static Discharge (ESD) can damage electronic components. To prevent dam-

age to your system, it is important to handle it very carefully. The following measures

are generally sufﬁcient to protect your equipment from ESD.

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing a component from the antistatic

bag.

• Handle the RAID card by its edges only; do not touch its components, peripheral

chips, memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the card and peripherals back into their antistatic bags when not in use.

1-2 General SafetyGuidelines

• Always disconnect power cables before installing or removing any components

from the computer, including the backplane.

• Disconnect the power cable before installing or removing any cables from the

backplane.

• Make sure that the backplane is securely and properly installed on the mother-

board to prevent damage to the system due to power shortage.

1-3 AnImportant Note to Users

• All images and layouts shown in this user's guide are based upon the latest

PCBRevision available at the time of publishing. The card you have received

may or may not look exactly the same as the graphics shown in this manual.

1-2

Backplane User's Guide

Notes

2-1

Safety Information and Technical Speciﬁcations

Chapter 2:

Jumper Settings and Pin Deﬁnitions

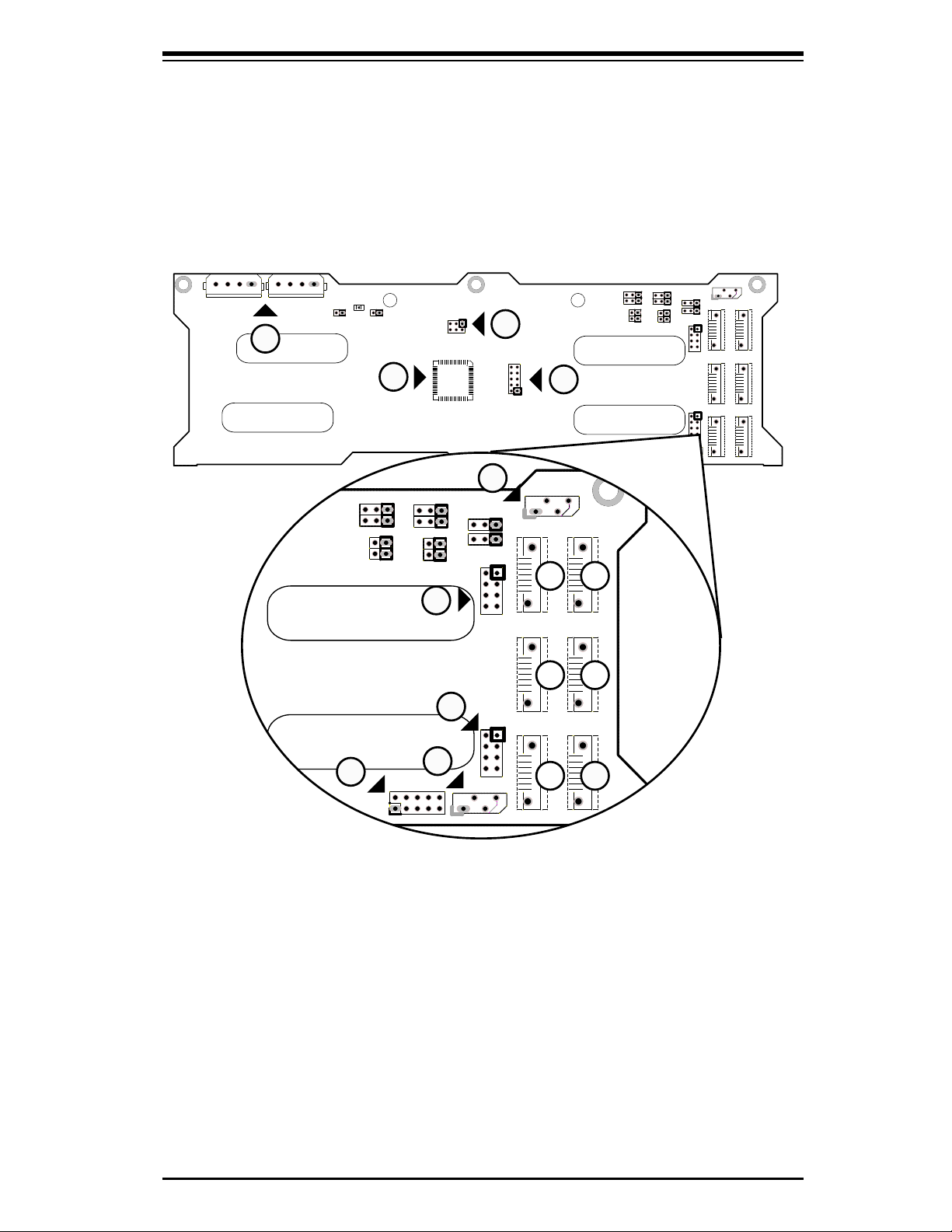

2-1 Front Connectors and Jumpers

Front Connectors

1. Power Connectors (4-pin): JP10,

and JP13

2. Upgrade Connectors: JP46

3. Chip MG 9072

4. JTAG: JP47

5. I2C Connector #2 JP45

6. I2C Connector #1 JP44

7. SideBand Connector #2 JP52

8. SideBand Connector #1 JP51

9. ACT_IN: JP26

10. SAS Port #0 J5

11. SAS Port #1 J6

12. SAS Port #2 J7

13. SAS Port #3 J8

14. SAS Port #4 J10

15. SAS Port #5 J12

JP10

JP13

JP18

JP26

JP36

JP42

JP43

JP33

J5 J10

J12

U40

JP29

JP52

JP51

JP40

JP50

JP37

JP34

JP41

JP38

JP47

JP46

JP45

JP44

JP26

JP36

JP38

JP42

JP43

JP33

J5 J10

J12

JP52

JP51

JP40

JP50

JP37

JP34

JP41

JP38

JP45

JP44

1213

2-2

Backplane User's Guide

2-2 Front Connector and Pin Deﬁnitions

#3. MG9072 Chip

The MG9072 is an enclosure management

chip that supports the SES-2 controller and

SES-2 protocols.

Backplane

Main Power

4-Pin Connector

(JP10 and JP13)

Pin# Deﬁnition

1 +12V

2 and 3 Ground

4 +5V

#1. Backplane Main Power Connectors

The 4-pin connectors, designated JP10, and

JP13, provide power to the backplane. See

the table on the right for pin deﬁnitions.

#2. Upgrade Connectors

The Upgrade connector, designated JP46,

is used for manufacturer diagnostic pur-

poses. This connector should used by a

certiﬁed and experienced technician.

#4. JTAG Connector

The JTAG connector, designated JP47, is

used for manufacturer diagnostic purposes.

This connector should used by a certiﬁed

and experienced technician.

2-3

Safety Information and Technical Speciﬁcations

#7/#8 Sideband Headers

The sideband headers are designated JP51

and JP52. For SES-2 to work properly, you

must connect an 8-pin sideband cable. See

the table to the right for pin deﬁnitions.

Sideband Headers

(JP51 and JP52)

Pin # Deﬁnition Pin # Deﬁnition

2 Backplane

Addressing

(SB5)

1 Controller

ID (SB6)

4 Reset (SB4) 3 GND (SB2)

6 GND (SB3) 5 SDA (SB1)

8 Backplane

ID (SB7)

7 SCL (SB0)

10 No Connec-

tion

9 No Connec-

tion

#5/#6 I2C Connectors

The I2C Connectors, designated JP44 and

JP45 are used to monitor HDD activity and

status. See the table on the right for pin

deﬁnitions.

I2C Connector

Pin Deﬁnitions

(JP44 and JP45)

Pin# Deﬁnition

1 Data

2 Ground

3 Clock

4 No Connection

SAS Activity LED Header

Pin Deﬁnitions (JP26)

Pin # Deﬁnition Pin # Deﬁnition

1 ACT IN#0 6 ACT IN#4

2 ACT IN#1 7 ACT IN#5

3 ACT IN#2 8 ACT IN#6

4 ACT IN#3 9 ACT IN#7

5 Ground 10 Empty

#9. Activity LED Header

The activity LED header, designated JP26,

is used to indicate the activity status of

each SAS drive. The Activity LED Header is

located on the front panel. For the Activity

LED Header to work properly, connect using

a10-pin LED cable.

#10-#15. SAS Ports

The SAS ports are used to connect the SAS

drive cables. The six ports are designated

#0 - #5. Each port is also compatible with

SATA drives.

2-4

Backplane User's Guide

2-3 Front Jumper Locations and Pin Deﬁnitions

Explanation of Jumpers

To modify the operation of the backplane,

jumpers can be used to choose between

optional settings. Jumpers create shorts

between two pins to change the function

of the connector. Pin 1 is identiﬁed with

a square solder pad on the printed circuit

board. Note: On two pin jumpers, "Closed"

means the jumper is on and "Open" means

the jumper is off the pins.

Connector

Pins

Jumper

Setting

3 2 1

JP10

JP13

JP18

JP26

JP36

JP42

JP43

JP33

J5 J10

J12

U40

JP29

JP52

JP51

JP40

JP50

JP37

JP34

JP41

JP38

JP47

JP46

JP45

JP44

JP36

JP42

JP43

JP33

JP52

JP40

JP50

JP37

JP34

JP41

JP38

JP18

JP29

Tabla de contenidos

Otros manuales de Hardware de computadora de Supero

Supero

Supero AOC-1UIPMI-B Manual de usuario

Supero

Supero SAS 933TQ Manual de usuario

Supero

Supero SAS-837A BACKPLANE Manual de usuario

Supero

Supero AOC-USAS-S4ir Manual de usuario

Supero

Supero CSE-SATA-813L Manual de usuario

Supero

Supero SAS 808TQ Manual de usuario

Supero

Supero BPN-EXP-847DR1EL1 Manual de usuario

Supero

Supero X10DGO-T Manual de usuario

Supero

Supero Supero SAS2-847EL BACKPLANE Manual de usuario

Supero

Supero AOC-SIMLC-HTC Manual de usuario

Supero

Supero Supero SMT IPMI Manual de usuario

Supero

Supero AOC-SIMLC Manual de usuario

Supero

Supero Supero SAS-825TQ Manual de usuario

Supero

Supero AOC-SGP-i4 Manual de usuario

Supero

Supero BPN-SAS3-827HQ Backplane Manual de usuario

Supero

Supero Supero SAS-846A Manual de usuario

Supero

Supero SAS 828TQ BACKPLANE Manual de usuario

Supero

Supero AOC-UG-i4 Manual de usuario

Supero

Supero BPN-SAS3-217HD Backplane Manual de usuario

Supero

Supero BPN-SAS2-216EL1 Manual de usuario

Supero

Supero CSE-PTJBOD-CB3 Manual de usuario

Supero

Supero SAS-216EL1/EL2 Manual de usuario

Supero

Supero AOC-USAS-L4i Manual de usuario

Supero

Supero Supero SAS-846EL Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
