Supermicro SAS-827HD Manual de usuario

Rev. 1.0

SAS-827HD Backplane

USER'S GUIDE

JF4

53 1

62 55

28 27

JF3

62 55

28 27

JF2

62 55

28 27

JF1

53 1

62 55

28 27

3348

U21

JF6

JF5

16 1

12 22

3444

J21

JP36

JP35

JPI2C1

JPW3

JPW2 1

JPW1

F16 Y2

JP55

JP54

JP57

JP56

DESIGNED IN USA

F23

F24

F25

F26

F36

C121

C269

C200

C203

C119

C197

C198

C201

+C3

C44

C45

+C84

C85

R128

R132

JP71

JP70

JP69

BAR CODE

UPGRADE#B

UPGRADE#A

JF6-B

JF5-A

MB-B

MB-A

JP36:

OPEN:DEFAULT

CLOSE:ANYPOWER BUTTON

JP35:

OPEN:DEFAULT

CLOSE:LEDTEST

TOPS

SPI

DEBUG

FAN4

FAN3

FAN2 FAN1

REV 1.00

SAS827HD

SUPER ®

SAS-827HD Backplane User’s Guide

Manual Revision 1.0

Release Date: September 9, 2010

The information in this User’s Manual has been carefully reviewed and is believed to be accurate.

The vendor assumes no responsibility for any inaccuracies that may be contained in this document,

makes no commitment to update or to keep current the information in this manual, or to notify any

person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product

described in this manual at any time and without notice. This product, including software and

documentation, is the property of Supermicro and/or its licensors, and is supplied only under a

license. Any use or reproduction of this product is not allowed, except as expressly permitted by

the terms of said license.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,

SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO

USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY

HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE

COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH

HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa

Clara County in the State of California, USA. The State of California, County of Santa Clara shall

be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all

claims will not exceed the price paid for the hardware product.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate

warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate

Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”

WARNING: Handling of lead solder materials used in this

product may expose you to lead, a chemical known to

the State of California to cause birth defects and other

reproductive harm.

Unless you request and receive written permission from Super Micro Computer, Inc., you may not

copy any part of this document.

Information in this document is subject to change without notice. Other products and companies

referred to herein are trademarks or registered trademarks of their respective companies or mark

holders.

Printed in the United States of America

Preface

iii

Table of Contents

Contacting Supermicro.......................................................................................iv

Returning Merchandise for Service.....................................................................v

Chapter 1 SAS-827HD Safety Guidelines

1-1 ESD Safety Guidelines ................................................................................... 1-1

1-2 General Safety Guidelines .............................................................................. 1-1

1-3 An Important Note to Users ............................................................................ 1-2

1-4 Introduction to the SAS-827HD Backplane..................................................... 1-2

Chapter 2 Connectors, Jumpers and LEDs

2-1 Front Connectors ............................................................................................ 2-1

Front Connectors ............................................................................................ 2-1

Explanation of Jumpers .................................................................................. 2-3

2-2 Front LED Indicator......................................................................................... 2-4

2-3 Rear Connectors and LED Indicators............................................................. 2-4

2-4 SAS Ports........................................................................................................ 2-6

SAS-827HD Backplane User’s Guide

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: +1 (408) 503-8000

Fax: +1 (408) 503-8008

Email: [email protected] (General Information)

[email protected] (Technical Support)

Web Site: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: +31 (0) 73-6400390

Fax: +31 (0) 73-6416525

Email: [email protected] (General Information)

[email protected] (Technical Support)

[email protected] (Customer Support)

Asia-Pacic

Address: Super Micro Computer, Inc.

4F, No. 232-1, Liancheng Rd.

Chung-Ho 235, Taipei County

Taiwan, R.O.C.

Tel: +886-(2) 8226-3990

Fax: +886-(2) 8226-3991

Web Site: www.supermicro.com.tw

Technical Support:

Email: [email protected]

Tel: 886-2-8226-1900

Preface

Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required be-

fore any warranty service will be rendered. You can obtain service by calling your

vendor for a Returned Merchandise Authorization (RMA) number. When returning

to the manufacturer, the RMA number should be prominently displayed on the

outside of the shipping carton, and mailed prepaid or hand-carried. Shipping and

handling charges will be applied for all orders that must be mailed when service

is complete.

For faster service, RMA authorizations may be requested online (http://www.super-

micro.com/support/rma/).

Whenever possible, repack the backplane in the original Supermicro box, using the

original packaging materials. If these are no longer available, be sure to pack the

backplane in an anti-static bag and inside the box. Make sure that there is enough

packaging material surrounding the backplane so that it does not become damaged

during shipping.

This warranty only covers normal consumer use and does not cover damages in-

curred in shipping or from failure due to the alteration, misuse, abuse or improper

maintenance of products.

Duringthewarrantyperiod,contactyourdistributorrstforanyproductproblems.

SAS-827HD Backplane User’s Guide

Notes

1-1

Chapter 1: Safety Guidelines

Chapter 1

SAS-827HD Safety Guidelines

To avoid personal injury and property damage, carefully follow all the safety steps

listed below when accessing your system or handling the components.

1-1 ESD Safety Guidelines

Electrostatic Discharge (ESD) can damage electronic components. To prevent dam-

age to your system, it is important to handle it very carefully. The following measures

are generally sufcient to protect your equipment from ESD.

Use a grounded wrist strap designed to prevent static discharge.•

Touch a grounded metal object before removing a component from the antistatic•

bag.

Handle the backplane by its edges only; do not touch its components, peripheral•

chips, memory modules or gold contacts.

When handling chips or modules, avoid touching their pins.•

Put the card and peripherals back into their antistatic bags when not in use.•

1-2 General Safety Guidelines

Always disconnect power cables before installing or removing any components•

from the computer, including the SAS-827HD backplane.

Disconnect the power cable before installing or removing any cables from the•

SAS-827HD backplane.

Make sure that the SAS-827HD backplane is securely and properly installed on•

the motherboard to prevent damage to the system due to power shortage.

1-2

SAS-827HD Backplane User's Guide

1-3 An Important Note to Users

All images and layouts shown in this user's guide are based upon the latest PCB

Revision available at the time of publishing. The card you have received may or

may not look exactly the same as the graphics shown in this manual.

1-4 Introduction to the SAS-827HD Backplane

The SAS-827HD backplane has been designed to utilize the most up-to-date tech-

nology available, providing your system with reliable, high-quality performance.

ThismanualreectsSAS-827HDRevision1.00,themostcurrentreleaseavailable

at the time of publication. Always refer to the Supermicro Web site at www.supermi-

cro.comforthelatestupdates,compatiblepartsandsupportedcongurations.

2-1

Chapter 2: Connectors, Jumpers and LEDs

JF4

53 1

62 55

28 27

JF3

62 55

28 27

JF2

62 55

28 27

JF1

53 1

62 55

28 27

3348

U21

JF6

JF5

16 1

12 22

3444

J21

JP36

JP35

JPI2C1

JPW3

JPW2 1

JPW1

F16 Y2

JP55

JP54

JP57

JP56

DESIGNED IN USA

F23

F24

F25

F26

F36

C121

C269

C200

C203

C119

C197

C198

C201

+C3

C44

C45

+C84

C85

R128

R132

JP71

JP70

JP69

BAR CODE

UPGRADE#B

UPGRADE#A

JF6-B

JF5-A

MB-B

MB-A

JP36:

OPEN:DEFAULT

CLOSE:ANYPOWER BUTTON

JP35:

OPEN:DEFAULT

CLOSE:LEDTEST

TOPS

SPI

DEBUG

FAN4

FAN3

FAN2 FAN1

REV 1.00

SAS827HD

Chapter 2

Connectors, Jumpers and LEDs

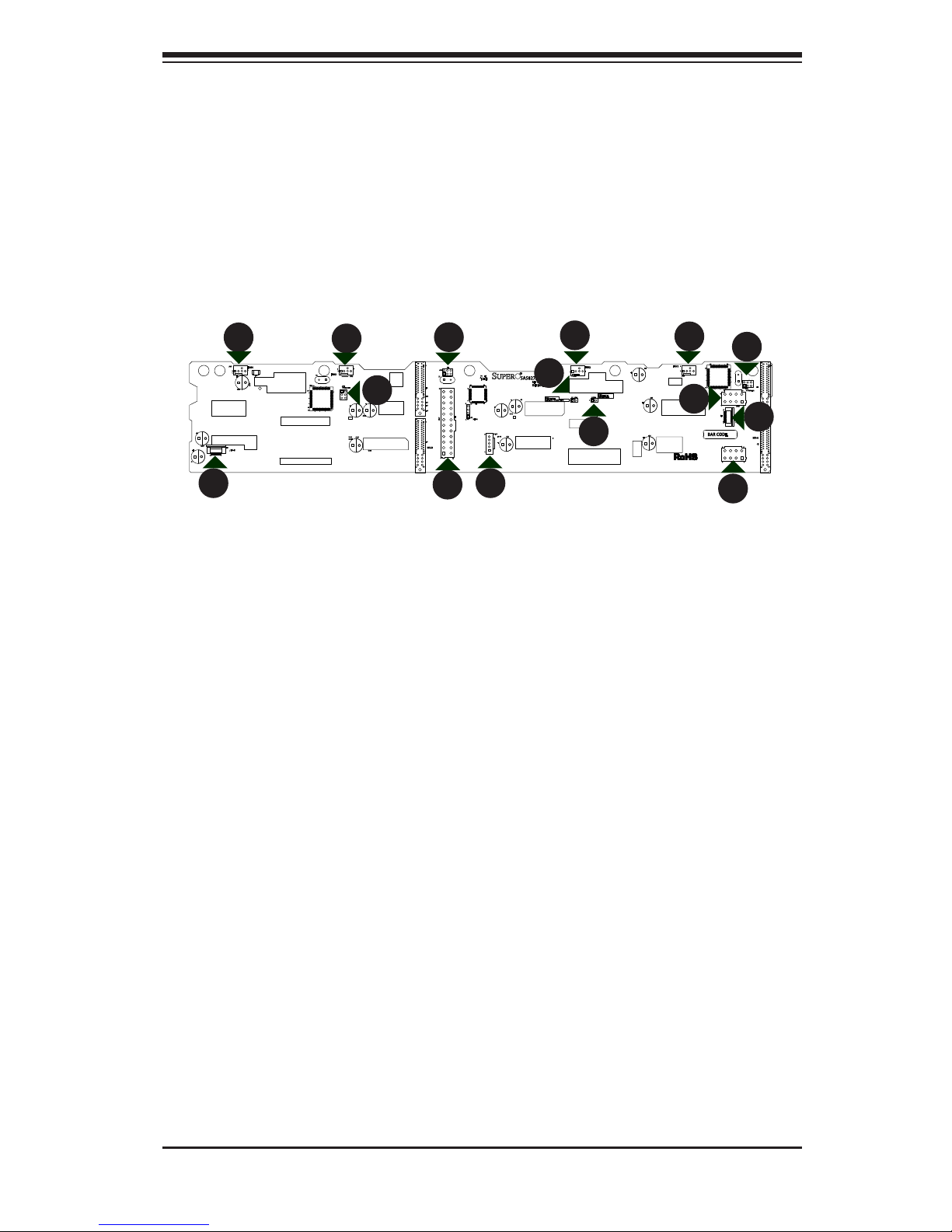

2-1 Front Connectors

Power Connector: JPI1. 2C1

Fan1 Connector JP542.

Fan2 Connector: JP553.

Fan3 Connector: JP564.

Fan4 Connector: JP575.

Front Panel Connector: JF5-A6.

Front Panel Connector: JF6-B7.

Power Connector: JPW18.

Power Connector: JPW29.

Power Connector: JPW310.

Upgrade-A: JP7011.

Upgrade -B: JP7112.

SPI: JP6913.

Power Button Settings: JP3614.

LED Test: JP3515.

12 1

Figure 2-1: Front Connectors

2-2

SAS-827HD Backplane User's Guide

JF4

53 1

62 55

28 27

JF3

62 55

28 27

JF2

62 55

28 27

JF1

53 1

62 55

28 27

3348

U21

JF6

JF5

16 1

12 22

3444

J21

JP36

JP35

JPI2C1

JPW3

JPW2 1

JPW1

F16 Y2

JP55

JP54

JP57

JP56

DESIGNEDIN USA

F23

F24

F25

F26

F36

C121

C269

C200

C203

C119

C197

C198

C201

+C3

C44

C45

+C84

C85

R128

R132

JP71

JP70

JP69

BAR CODE

UPGRADE#B

UPGRADE#A

JF6-B

JF5-A

MB-B

MB-A

JP36:

OPEN:DEFAULT

CLOSE:ANYPOWERBUTTON

JP35:

OPEN:DEFAULT

CLOSE:LEDTEST

TOPS

SPI

DEBUG

FAN4

FAN3

FAN2 FAN1

REV1.00

SAS827HD

2. - 5. Chassis Fan Connectors

These connectors, designated FAN1, FAN2,

FAN3 and FAN4 supply power to the chassis

cooling fans.

8. - 10. Power Connectors

These connectors, designated JPW1, JPW2

and JPW3 supply power to the two mother-

board nodes in the chassis.

FAN4 FAN3 FAN2 FAN1

Cables

SAS-827HD

System Fans

Figure 2-2: Default Conguration - Fans Connected Directly to the Backplane

14. Power Button Settings

This jumper is designated JP36 and con-

trols the power button functionality.

Open:Default,multiple power buttonfunctionality

Closed: Single power button functionality

15. LED Test

This jumper is designated JP35 and it is used

to test the LEDs. Open is the default setting,

closed is the LED test setting.

11. - 12. Upgrade Connectors

These connectors are designated JP70 and

JP71 and are for manufacturing purposes

only.

13. SPI Connector

This connector is designated JP69.

1. Power Supply Connector

The 5-pin connector, designated JPI2C1 pro-

vides power to the SMBUS and power control

signals.

Tabla de contenidos

Otros manuales de Hardware de computadora de Supermicro

Supermicro

Supermicro X13SAN-H Manual de usuario

Supermicro

Supermicro Supero SAS-743TQ Manual de usuario

Supermicro

Supermicro AOC-AG-i4S Manual de usuario

Supermicro

Supermicro AOC-A100G-b2CM Manual de usuario

Supermicro

Supermicro AOC-SLG3-2H8M2 Manual de usuario

Supermicro

Supermicro SuperWorkstation SYS-531A-IL Manual de usuario

Supermicro

Supermicro SuperBlade SBI-420P-4T2N Manual de usuario

Supermicro

Supermicro AOC-UIBQ-m1 Manual de usuario

Supermicro

Supermicro SuperServer SYS-510T-WTR Manual de usuario

Supermicro

Supermicro Supero SAS-827B Manual de usuario

Supermicro

Supermicro AOC-URG4N4-b2XT Manual de usuario

Supermicro

Supermicro SC721TQ-250B Manual de usuario

Supermicro

Supermicro SAS-837A Manual de usuario

Supermicro

Supermicro SuperStorage SSG-1129P-ACR10N4L Manual de usuario

Supermicro

Supermicro BPN-SAS3-F424-A2N2A Manual de usuario

Supermicro

Supermicro B2SS1-CPU Manual de usuario

Supermicro

Supermicro AOC-SLG4-4E4T Manual de usuario

Supermicro

Supermicro AOC-A25G-i2SM Manual de usuario

Supermicro

Supermicro H13SST-G Manual de usuario

Supermicro

Supermicro SC846 JBOD Series Manual de usuario

Supermicro

Supermicro X11DPFF-SN Manual de usuario

Supermicro

Supermicro X12DPG-AR Manual de usuario

Supermicro

Supermicro AOC-SMG3-2H8M2-BW Manual de usuario

Supermicro

Supermicro AOC-R1UG-IBQ Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
