Sub-Zero BI-36R Guía

SUB-ZERO DESIGN GUIDE

REVISED 7/2016

TABLE OF CONTENTS

3BUILT-IN REFRIGERATION

40 PRO 48 REFRIGERATION

46 INTEGRATED REFRIGERATION

56 WINE STORAGE

88 UNDERCOUNTER REFRIGERATION

98 SUB-ZERO WARRANTIES

Features and specications are subject to change at any

time without notice. Visit subzero.com/specs for the most

up-to-date information.

Throughout this guide, dimensions may vary by ± 1/8"(3).

Dimensions in parentheses are millimeters unless otherwise

specied.

Sub-Zero Customer Care 800.222.7820

UNDERCOUNTER WINE INTEGRATED PRO 48 BUILT-IN

BUILT-IN REFRIGERATION

Built-In Refrigeration

For the built-in line, Sub-Zero designers and engineers took

a fresh look at everything, inside and out. Exterior rene-

ments include redesigned grilles and lower-prole hinges.

Inside, new technology in food preservation makes the built-

in line nothing short of revolutionary.

BUILT-IN MODELS

BI-36R BI-36RG BI-36F BI-30U BI-30UG BI-36U(ID) BI-36UG

BI-36UFD(ID) BI-42UFD(ID) BI-36S BI-42S(ID) BI-42SD BI-48S(ID) BI-48S

subzero.com/specs

BUILT-IN PRO 48 INTEGRATED WINE UNDERCOUNTER

BUILT-IN REFRIGERATION

Specications

INTERIOR CAPACITY—CU FT (L)

ALL REFRIGERATOR | ALL FREEZER REFR FRZR

BI-36R 23.5 (665)

BI-36RG 23.4 (663)

BI-36F 22.7 (643)

OVER-AND-UNDER REFR FRZR

BI-30U 13.2 (374) 4.2 (119)

BI-30UG 13.1 (371) 4.2 (119)

BI-36U(ID) 16.4 (464) 5.3 (150)

BI-36UG 16.3 (462) 5.3 (150)

BI-36UFD(ID) 15.7 (445) 5.3 (150)

BI-42UFD(ID) 18.3 (518) 6.4 (181)

SIDE-BY-SIDE REFR FRZR

BI-36S 12.4 (351) 8.2 (232)

BI-42S 16.3 (462) 8.0 (227)

BI-42SID 15.8 (447) 7.9 (224)

BI-42SD 16.0 (453) 7.9 (224)

BI-48S 19.1 (541) 9.8 (278)

BI-48SID 18.6 (527) 9.6 (272)

BI-48SD 18.8 (532) 9.6 (272)

Sub-Zero Customer Care 800.222.7820

Built-In Design Options

FRAMED

For the classic Sub-Zero look, choose framed custom

door panels that contrast with the stainless steel full-length

handles and louvered grille (shown). The framed applica-

tion is an overlay model with framed design features. Panel,

grille and handle options are available.

Panels |Custom panels, stainless steel or white enamel.

Grille |Classic louvered grille insert or solid custom panel

for 84" (standard), 83" or 88" overall unit height. Dual wide

grille for dual installations.

Handles |Full-length standard or extended.

OVERLAY

Custom overlay door panels can be combined with unique

handle hardware for design exibility. Shown with pro

handle option to complement Wolf ranges. Customize with

panel, grille and handle options.

Panels |Custom panels or stainless steel.

Grille |Solid custom panel or pro louvered grille for 84"

(standard), 83" or 88" overall unit height. Dual wide grille for

dual installations.

Handles |Custom, tubular or pro handles.

BUILT-IN REFRIGERATION

Overlay.

Framed.

UNDERCOUNTER WINE INTEGRATED PRO 48 BUILT-IN

subzero.com/specs

Built-In Design Options

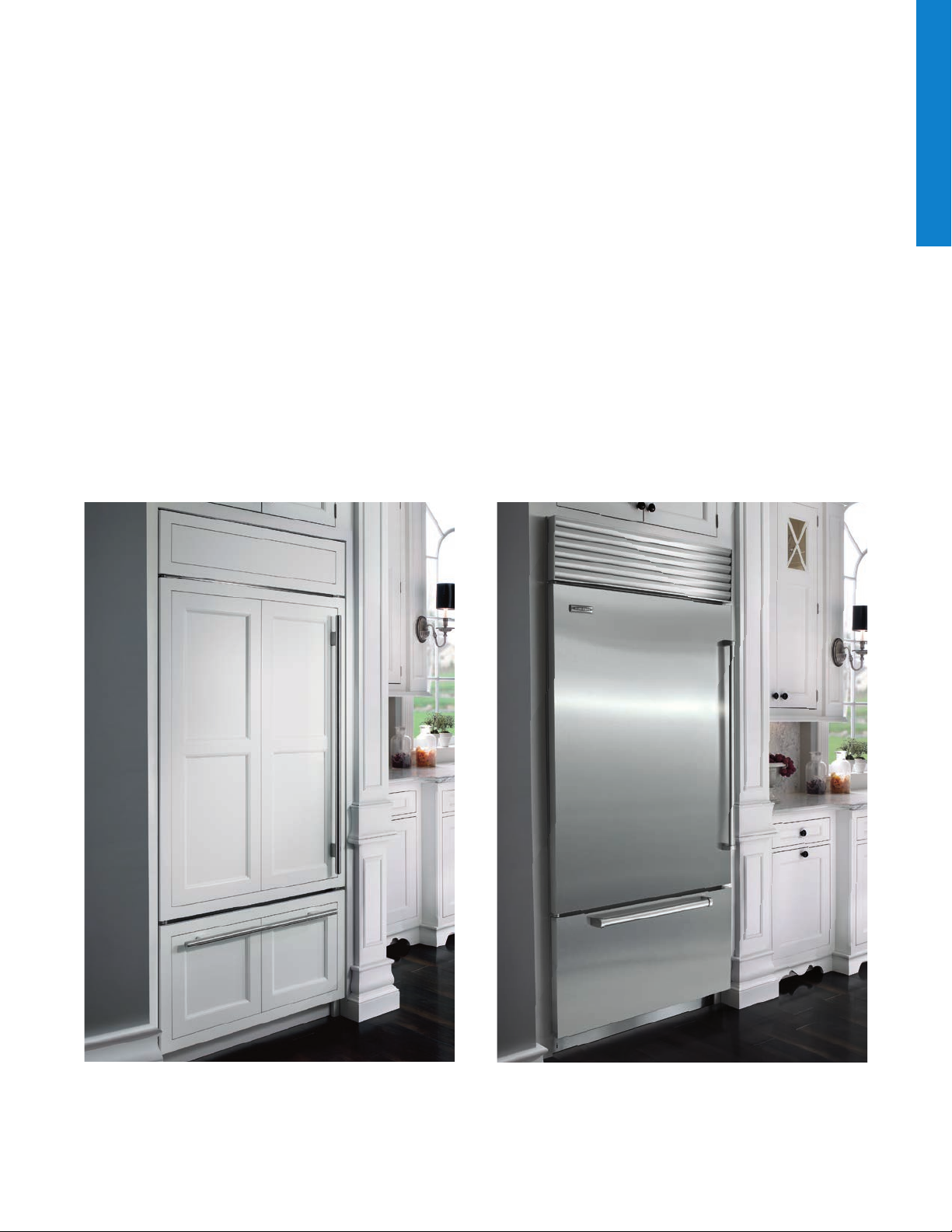

FLUSH INSET

The ush inset design option allows for ush door and grille

panels and custom handle hardware. Shown with tubular

handle option to match Wolf built-in ovens. The ush inset

application is an overlay model with ush inset panels. Cus-

tomize with panel, grille and handle options.

Panels |Custom panels or stainless steel.

Grille |Solid custom panel or pro louvered grille for 84"

(standard), 83" or 88" overall unit height. Dual wide grille for

dual installations.

Handles |Custom, tubular or pro handles.

STAINLESS STEEL

For a professional look, classic stainless steel models

require no customization. To complement the look of Wolf

ranges, choose the pro handle option (shown). Grille and

handle options are available.

Grille |Pro louvered grille for 84" (standard), 83" or 88"

overall unit height. Dual wide grille for dual installations.

Handles |Tubular or pro handles.

BUILT-IN REFRIGERATION

Flush inset.

Stainless steel.

BUILT-IN PRO 48 INTEGRATED WINE UNDERCOUNTER

Sub-Zero Customer Care 800.222.7820

Overall Dimensions

ALL REFRIGERATOR | ALL FREEZER

Model BI-36R, BI-36RG, BI-36F.

BUILT-IN REFRIGERATION

36" (914)

84"

(2134)

4" (102)

733/4"

(1873)

237/8"

(606)

371/4"

(946)

141/8"

(359)

237/8" (606)

23/8" (60)

HEIGHT DIMENSIONS ±

1/2" (13)

263/16" (665) Overall dimensions are based on stainless steel models.

For ush inset applications, add 1/2"(13) to door clearance

dimensions.

UNDERCOUNTER WINE INTEGRATED PRO 48 BUILT-IN

subzero.com/specs

BUILT-IN REFRIGERATION

Overall Dimensions

OVER-AND-UNDER

Model BI-30U, BI-30UG.

30" (762)

84"

(2134)

4" (102)

503/4"

(1289)

23"

(584)

237/8"

(606)

235/8"

(600) 311/4"

(796)

121/8"

(308)

263/16" (665)

237/8" (606)

23/8" (60)

HEIGHT DIMENSIONS ±

1/2"

(13)

Model BI-36U(ID), BI-36UG.

36" (914)

84"

(2134)

4" (102)

503/4"

(1289)

23"

(584)

237/8"

(606)

235/8"

(600) 371/4"

(946)

237/8" (606)

23/8" (60)

HEIGHT DIMENSIONS ±

1/2"

(13)

263/16" (665)

141/8"

(359)

BUILT-IN PRO 48 INTEGRATED WINE UNDERCOUNTER

Sub-Zero Customer Care 800.222.7820

BUILT-IN REFRIGERATION

Overall Dimensions

OVER-AND-UNDER

Model BI-36UFD(ID).

36" (914)

84"

(2134)

4" (102)

503/4"

(1289)

23"

(584)

237/8"

(606)

235/8"

(600)

191/2"

(495)

(203)

237/8" (606)

HEIGHT DIMENSIONS ±

1/2"

(13)

23/8" (60)

263/16" (665)

Model BI-42UFD(ID).

42" (1067)

84"

(2134)

4" (102)

503/4"

(1289)

23"

(584)

237/8"

(606)

221/4"

(565)

(229)

237/8" (606)

HEIGHT DIMENSIONS ±

1/2" (13)

23/8" (60)

263/16" (665)

235/8"

(600)

UNDERCOUNTER WINE INTEGRATED PRO 48 BUILT-IN
