Framed cabinet applications present you with different

questions to address. Take the time to review the specifics

of these illustrations as they will help form the basis for

your design.

These arenotmeant to bethe onlyalternatives,butaresug-

gestions from designers around the country.

Reveals between cabinets and the Sub-Zero 700 Series

units are 1/4-inch in all instances and drawer and door pan-

els can vary based on information we supplied on earlier

pages.

Study these illustrations in detail.Rest assured the Sub-Zero

units are compatible with framed cabinet installations.

IMPORTANT NOTE: Refer to the full-scale illustrations at

the end of this section for specifics on panels and door

openings.

SUB-ZERO

UNIT

ADOOR PANEL

CABINET

DOOR

CABINET

FRAME

DOOR PANEL

CABINET

DOOR

CABINET

FRAME

DOOR PANEL

CABINET

DOOR

CABINET

FRAME

SUB-ZERO

UNIT

SUB-ZERO

UNIT

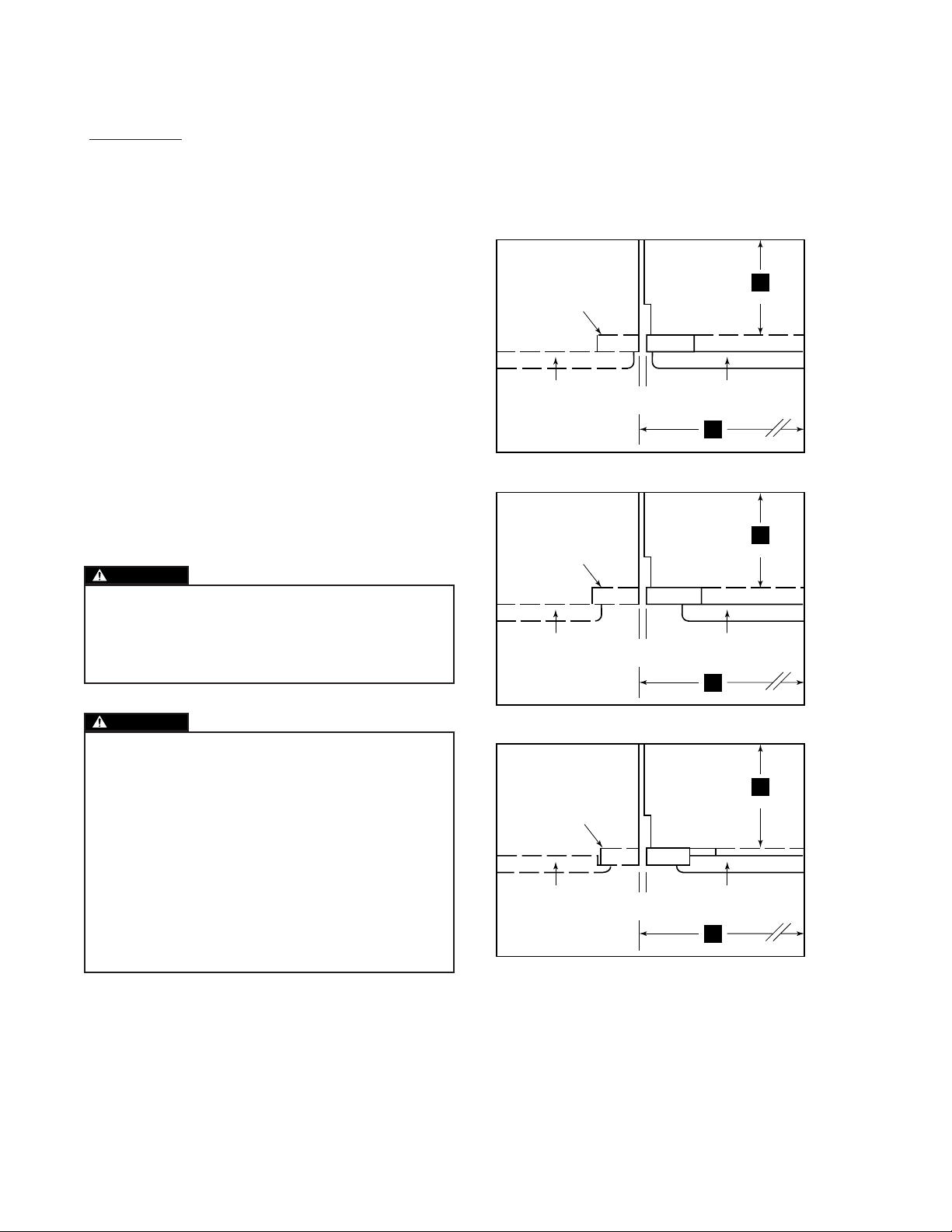

FRAMED CABINETRY – COMMON APPLICATIONS

(TOP VIEWS)

A-ALL REVEALS ARE 1/8 INCH (3MM)

(686)

TO WALL

(610)

(686)

TO WALL

(610)

(686)

TO WALL

(610)

TRADITIONAL FRAME – FULL OVERLAY

TRADITIONAL FRAME – STANDARD OVERLAY

TRADITIONAL FRAME – 3/8" OFFSET

CAUTION

As the reveal between cabinets and the 700 Series unit

decreases, the potential exists for severe finger pinch-

ing or crushing if a hand or fingers are placed in the

opening when the door is closing.

CAUTION

When 5/8-inch or larger panels are used and a reveal

less than 1/4-inch is maintained, the door panels may

cause damage to the Sub-Zero unit when the door is

open at the maximum 105˚ stop. You should use the

built-in 90˚ stop to prevent damage.

SPECIAL NOTE: In an installation where you are plac-

ing two 700 Series tall units next to one another and

providing a minimum 1/8-inch reveal, refer to illustra-

tion 8, you cannot assume the panel width is 265/8

inches as shown on the top.The panels will need to be

263/4inches to ensure a consistent reveal.

FRAMED CABINET APPLICATIONS

Illus. 7

700

SERIES

IMPORTANT NOTE: The height of a cabinet door can

exceed 451/4inches with little problem. However, you do

not want to go smaller than this height. See the following

pages.For the bottom drawer,the maximum panel height is

169/16 inches.It is critical to keep a minimum of a 4-inch toe

kick area free of panel to allow the unit to function effi-

ciently.

FRAMED CABINETRY

(BEADED INSET APPLICATION)

FRONT VIEW SIDE VIEW

27(686)

1(38) 1

1(38)

(38)

1413

(1213)

4(102)

24(610)

(2624)

*34

(876)

80**

(2032)

NOTE: SHADED AREA

INDICATES STATIONARY

STYLES AND RAILS.

A-ALL REVEALS ARE 1/4 INCH (6MM)

B-DRAWER RAILS ARE ATTACHED TO DRAWER FRONTS

C-BOTTOM RAIL MUST BE REMOVEABLE

(102)

TOP VIEW

A A

DOOR PANEL

CABINET DOOR TO WALL

SUB-ZERO

UNIT

(686)

(610)

*DIMENSIONS MAY VARY

**SEE PAGE 27 FOR DETAILED ILLUSTRATION

13 7

(342)

(376)

IMPORTANT NOTE: Refer to the full-scale illustrations at

the end of this section for specifics on panels and door

openings.

Illus. 6

INSTALLATION OF TALL UNIT

(DOOR CLOSED)

TOP VIEW – FULL SCALE

FRAMED CABINETRY

(105°MAXIMUM DOOR OPENING)

TOP VIEW-1/4 SCALE

MIN.

(3)

PANEL

SIDE MOLDING AND

INSTALLATION HARDWARE

PROVIDED BY SUB-ZERO

LINE OF INTERFERENCE

AT MAXIMUM DOOR OPENING

MOUNTING BRACKET SCREW

(19)

TO BACK

TALL/BASE

UNIT

FLUSH

FURNITURE

FINISH

LINE OF INTERFERENCE

WALL

(610)

SUB-ZERO DOOR

WALL

(610)

LINE OF INTERFERENCE

SUB-ZERO

DOOR

PANEL WEIGHT LIMITS:

Door – 40 lbs.

Drawer – 12 lbs. each

257

8(657) APPLIANCE DOOR WIDTH

Illus. 13

DOOR PANEL HEIGHT

Door panels can grow beyond the 80-inch height to

accommodate any size of door as long as you stay

below the recommended door panel weight limit of

40 pounds.

Illustration 10 shows how the panel may grow and

what you need to consider doing to finish the area in

back of the door panel.

IMPORTANT NOTE: The valance you use to finish the

area behind the door panel must stay behind the front

plane of the finished molding as noted in illustration

10.

KICKPLATE CLEARANCE

Illustration 11 details the area below the lower draw-

er area where the operating mechanical equipment of

the Sub-Zero 700 Series unit is housed.

IMPORTANT NOTE:You must keep a minimum space

of four inches clear below the bottom edge of the

lower drawer panel, so the unit can be properly vent-

ed. In addition, any decorative base molding must be

removable for possible servicing and cleaning of the

condenser.

451

UPPER VALANCE DETAIL

(1150)

BOTTOM

DOOR

PANEL

FLOOR

(6)

2(38)

TO WALL

VALANCE BY OTHERS

(CHECK CENTER SPREAD

OF THIS MANUAL FOR

CLEARANCE OF DOOR

PANEL EXCEEDING 80" HIGH)

ANY DECORATIVE VALANCE

CANNOT EXTEND BEYOND

THE FRONT OF THIS PLANE.

REMOVABLE MOLDING

BY SUB-ZERO

TOP HINGE

(610)

*FINISHED HEIGHT OF 80-INCHES IS TO TOP OF SUB-ZERO MOLDING

80*

(2032)

KICKPLATE DETAIL

10 9

(268)

16 9

(420)

PANEL

(254)

A) 4

(102)

OPTIONAL

(67) 4

(102)

911

(246)

(13)

FLOOR

TO WALL

(610)

BASE MOLDING MUST

BE REMOVABLE

Illus. 10

Illus. 11

DUAL INSTALLATIONS

Optional components are necessary for the installa-

tion of two or more 700 Series units, where there is

two inches or less of space between the units.

Contact your Sub-Zero distributor for the proper com-

ponents and instructions. Note that panel sizes will

change, refer to illustration below.

265

8(676)

4(19) PANEL

APPLIANCE

DOOR WIDTH CABINETRY

OR SIDE

PANEL

CABINETRY

OR SIDE

PANEL

SUB-ZERO

UNIT

TO BACK

OF UNIT

257

8(657)

(686)

263

4(679)

4(19) PANEL 3

4(19) PANEL

DOOR

CABINETRY

OR SIDE

PANEL

CABINETRY

OR SIDE

PANEL

SUB-ZERO

UNIT

DOOR

SUB-ZERO

UNIT

263

4(679)

54(1372)

PANEL WIDTH DIMENSIONS

SINGLE UNIT

TWO UNITS SIDE BY SIDE

(610)

TO BACK

OF UNIT

(610)

25"

25" 25"

25"

8(3)

REVEAL

MIN.

8(3)

REVEAL

MIN.

8(3)

REVEAL

MIN.

8(3)

REVEAL

MIN.

8(3)

REVEAL

MIN.

*SUBTRACT PANEL WIDTH FROM CABINETRY OPENING TO DETERMINE ACTUAL WIDTH OF REVEAL

Illus. 8
