Integrated Features

FEATURE PG

1Product Rating Plate 2

2Electronic Control Panel and Display 5

3Freshness Cards (column models) 6

4Door Shelves 6

5Dairy Compartment 6

6Glass Shelves 6

7Deli Drawer 7

8Refrigerator Drawers 7

9Storage Drawers 8

10 Crisper Cover 8

11 Automatic Ice Maker 9

12 Ice Container 8

13 Condenser (behind kickplate) 13

INTEGRATED FEATURES

Column all refrigerator.

Tall combination.

Drawer all refrigerator.

subzero.com

ELECTRONIC CONTROLS

Control Panel

FUNCTION

COLDER

WARMER

Adjusts temperature in one-degree increments.

Combination units have separate temperature con-

trols for refrigerator and freezer. Temperatures are

preset at 38°F (3°C) and 0°F (-18°C).

ICE Turns power to ice maker on or off. Use to disable

ice maker during extended vacations.

ALARM Activates or deactivates door/drawer alarm. An

audible chime indicates door/drawer has been left

ajar for more than 30 seconds.

POWER Turns unit on or off. When power is off, ‘OFF’ will

appear in control panel display. Turning power off at

the control panel eliminates the need to unplug or

turn power off at the circuit breaker during service

or extended vacations.

Control panel and display (model 700TCI shown).

Display

INDICATOR

SERVICE Illuminates or ashes when electronic control

system has detected a temperature or ice maker

problem, or if the condenser needs to be cleaned.

ICE Illuminates when ice maker system is activated.

Illuminates when door alarm is activated.

Sub-Zero Customer Care 800.222.7820

Refrigerator Storage

DOOR SHELVES

To remove a door shelf or the dairy compartment, lift from

the bottom and slide out. To reinstall, place in the desired

position and slide the shelf down onto the guides. Refer to

the illustration below.

IMPORTANT NOTE: If door opening is limited to 90°, door

shelves may need to be removed before removing a storage

drawer or glass shelf.

GLASS SHELVES

To remove or adjust a glass shelf, tilt up, then lift up and out.

To reposition, insert shelf in the tracks along the back wall,

then lower the front until it locks into position. Refer to the

illustration below.

The stationary glass shelf at the bottom of the compartment

should be placed with beveled edge facing front. Rear sup-

port legs space the shelf away from the back wall to ensure

proper air ow through the unit.

IMPORTANT NOTE: Use care when handling glass shelves to

prevent breakage or scratching the interior.

CAUTION

Glass shelves should warm to room temperature before

immersing in warm water.

Keeping Food At Its Best

This Sub-Zero features a unique dual refrigeration system

to keep food fresher longer.

With the Sub-Zero dual refrigeration system, individual

refrigerator and freezer systems have been designed to

maintain accurate, consistent temperatures and proper

humidity levels for longer food life expectancy. Dual refrig-

eration eliminates transfer of fresh food odors to frozen food

and ice and does not freeze the moisture out of the air in

the fresh food section.

STORAGE

Door shelf removal.

Glass shelf removal.

subzero.com

Refrigerator Storage

DELI DRAWER AND SHELF

Models 700TR, 700TCI and 736TR |To remove the deli

drawer and shelf assembly, tilt up, then lift up and out. To

reposition, insert assembly in the tracks along the back wall,

then lower the front until it locks into position. Refer to the

illustration below.

CRISPER

Model 736TCI |To remove the crisper, lift the glass shelf

off side supports, then remove crisper bin from support

assembly. To reinstall, place crisper bin into assembly then

reinstall glass shelf. Refer to the illustration below.

REFRIGERATOR DRAWERS

Model IC-27R |To remove, pull the refrigerator drawer

forward until it stops. Lift the front of the drawer slightly,

then pull forward. To reinstall, push drawer slides in. Align

the drawer with slides and push back until it stops. Press

down on the front of the drawer to engage the slides. Refer

to the illustration below.

If door opening is limited to 90°, the shallow door shelves

must be removed before removing a drawer.

To remove a drawer divider, pull straight up. To reinstall,

align tabs on the divider with notches in the drawer and

slide down.

STORAGE

Refrigerator drawer removal.

Deli drawer and shelf removal.

Crisper removal.

Sub-Zero Customer Care 800.222.7820

Storage Drawers

CRISPER COVER

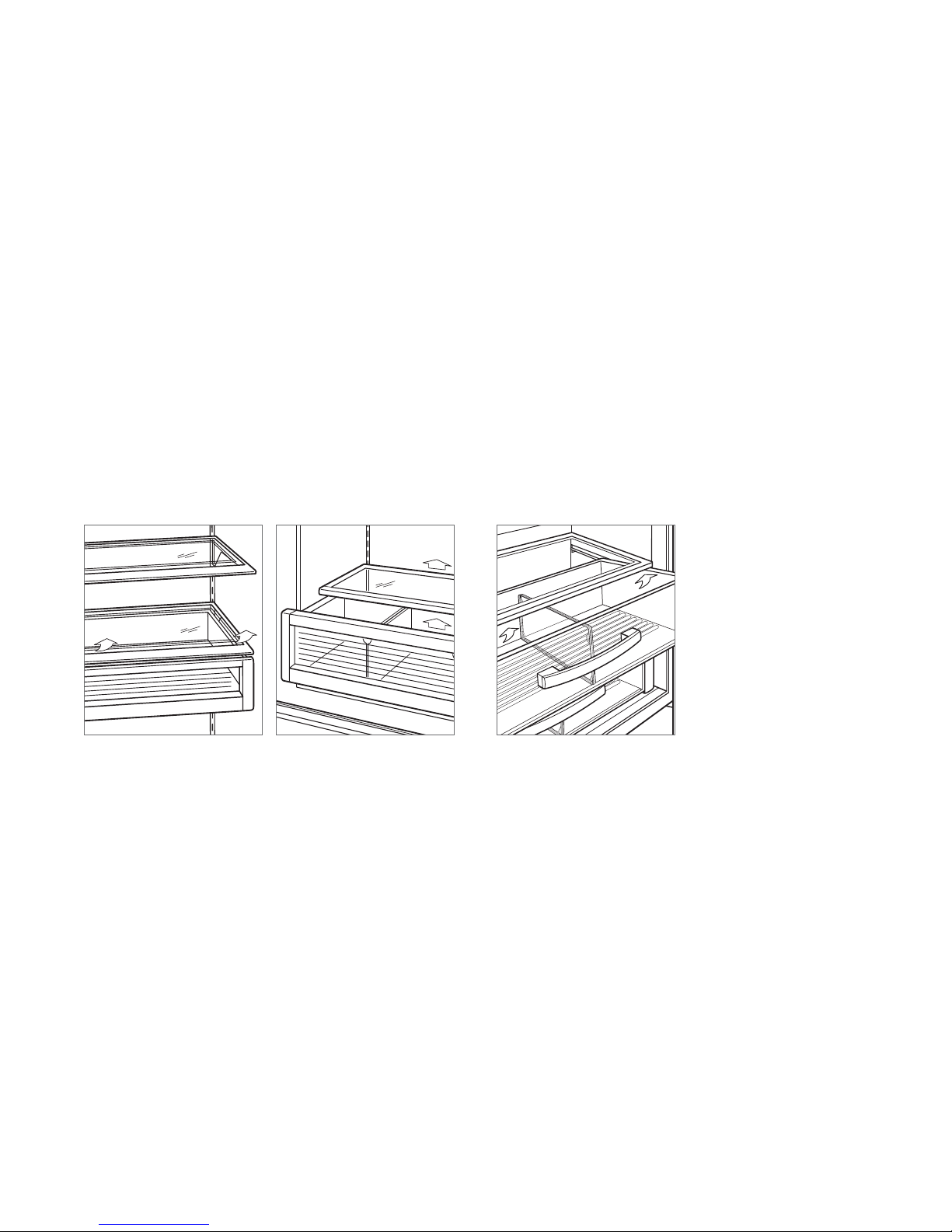

Tall and drawer |To remove the crisper cover, pull the

refrigerator storage drawer forward until it stops. Lift the

front of the crisper cover and pull it up and out. Refer to the

illustration below.

DRAWER DIVIDER

Upper storage drawer |To remove the divider, pull it for-

ward and release the back edge from notches in the drawer.

Lift up and out. Reverse to reinstall. Refer to the illustration

below.

Lower storage drawer |For models with an ice maker, the

divider is not removable. For models without an ice maker,

the center divider can be removed by extracting three

screws located on the back of the drawer.

Crisper cover.

Drawer divider.

STORAGE

Freezer Storage

FREEZER DRAWERS

Column |To remove, pull the freezer drawer forward until

it stops. Pull the two metal clips located behind the bottom

two corners of the drawer forward, then lift up and out. To

reinstall, push drawer slides in. Align the drawer with slides

and push back until it stops. Press down on the front of the

drawer to engage slides. Refer to the illustration below.

If door opening is limited to 90°, the shallow door shelves

must be removed before removing a drawer.

ICE CONTAINER

Column |To remove the ice container, pull the top freezer

drawer forward until it stops and lift container out.

Tall and drawer |To remove the ice container, pull the

lower storage drawer forward until it stops and lift container

out.

TA B

Freezer drawer removal.

subzero.com

Storage Drawers

DRAWER REMOVAL

To remove, pull the storage drawer forward until it stops.

Lift the front of the drawer slightly and pull straight out. To

reinstall, place drawer onto the slides, then align the holes at

the front of the drawer with the pegs on the slides. Refer to

the illustration below.

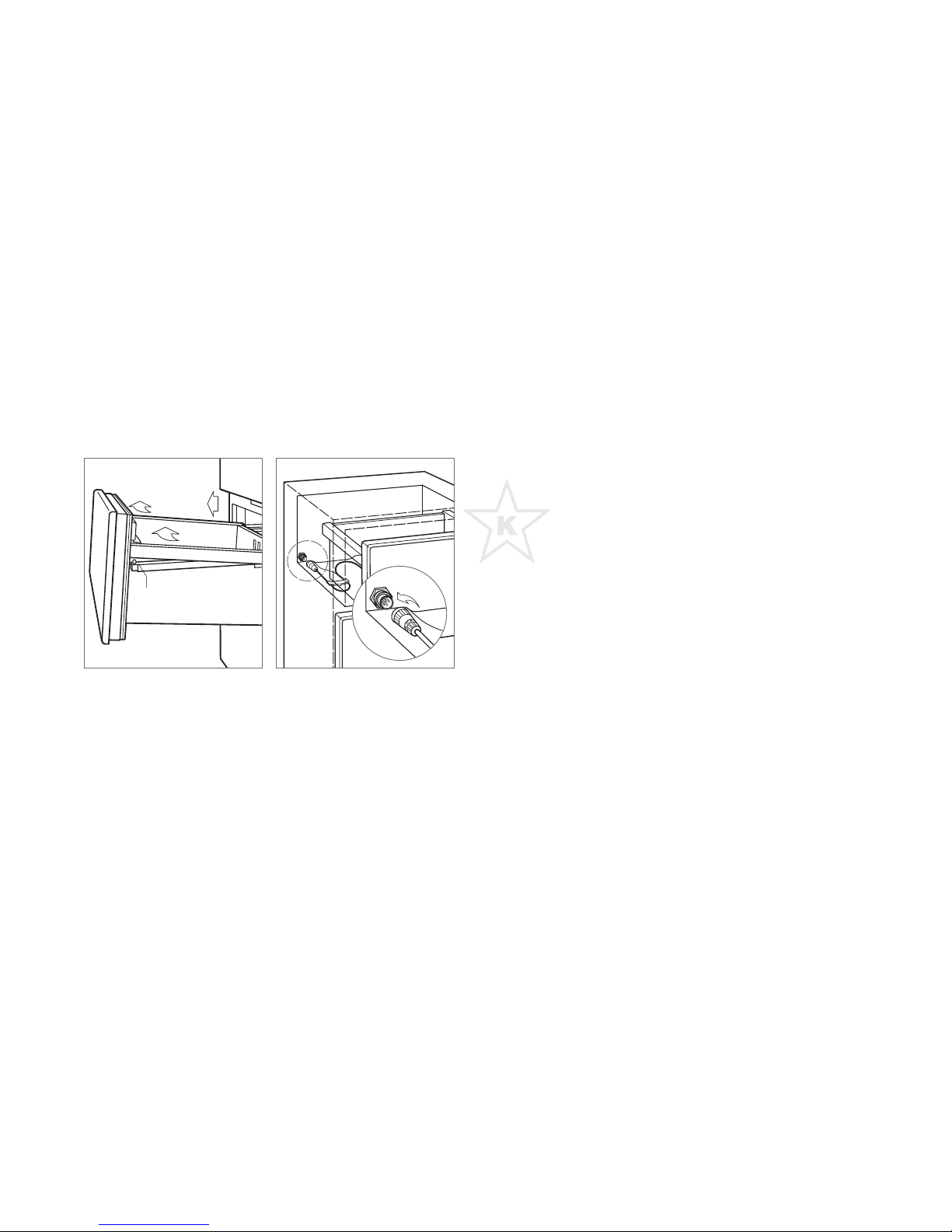

For drawer models, the upper drawer has a control cable

that must be disconnected before removing the drawer.

Refer to the illustration below.

PEG

Storage drawer removal.

Control cable (drawer models).

OPERATION

Ice Maker Operation

To initiate ice production, touch ICE on the control panel. To

deactivate, touch ICE again. After initial start-up, discard the

rst few batches of ice. The ice may contain impurities from

new plumbing connections.

The ice maker will cycle (eight cubes) every two hours. If ice

is not used regularly it may fuse together. To avoid, discard

ice and allow ice maker to replenish.

For column models, the ice maker must be turned off at the

control panel when the ice container is removed. For tall and

drawer models, the ice maker is deactivated when the ice

container is removed. Ice production will resume when the

container is reinstalled.

Sabbath

This appliance is certied by Star-K to meet strict religious

regulations in conjunction with specic instructions found

on www.star-k.org.

Column and tall models may require a wire harness kit to ini-

tiate Sabbath mode. The kit is available through your autho-

rized Sub-Zero dealer. For local dealer information, visit the

nd a showroom section of our website, subzero.com.

To initiate Sabbath mode, while the unit is on, touch POWER

on the control panel. ‘OFF’ appears in the control panel dis-

play. Touch and hold POWER for 10 seconds until the lights

turn off, indicating Sabbath mode has been initiated. Lights,

ice maker (if applicable) and door alarm will be disabled. To

return to normal operating conditions, touch POWER.

Sub-Zero Customer Care 800.222.7820

OPERATION

Interior Lighting

WARNING

Turn power off at the control panel before replacing light

bulbs. Wear protective gloves when handling bulbs.

OVERHEAD LIGHTING

Column and tall |Overhead lighting uses 40-watt bulbs.

To access bulbs, remove the light shield by releasing the

locking clip from each side of the light shield. Hold the

bottom of the shield then slide back until the slots are

aligned with the wall studs. To reinstall, align slots with

studs then slide forward. Once in position, rotate locking

clips back into position. Refer to the illustrations below.

REFRIGERATOR DRAWER LIGHTING

Column |Drawer lighting uses 40-watt bulbs. To access

bulbs, remove the drawer and glass shelf, then slide light

shield up to remove. To reinstall light shield, place over

bulbs then slide down into position. Reinstall drawer and

glass shelf. Refer to the illustration below.

STORAGE DRAWER LIGHTING

Tall and drawer |Drawer lighting uses a 25-watt bulb. The

bulb is recessed into the top of each drawer compartment.

To access the bulb, pull the drawer forward until it stops or

remove completely by lifting up and out. Refer to the illus-

tration below.

LOCKING CLIPLIGHT

SHIELD

LOCKING CLIPLIGHT

SHIELD

Overhead lighting—column.

Overhead lighting—tall.

RECESSED BULB

Refrigerator drawer lighting.

Storage drawer lighting.

Otros manuales para INTEGRATED REFRIGERATION

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Refrigerador de Sub-Zero

Sub-Zero

Sub-Zero Built-In Refrigeration Manual del propietario

Sub-Zero

Sub-Zero IT-36RID Manual de usuario

Sub-Zero

Sub-Zero 600 Series BI-30U Manual de usuario

Sub-Zero

Sub-Zero Designer Series Manual de usuario

Sub-Zero

Sub-Zero 542 Manual de usuario

Sub-Zero

Sub-Zero 650 Manual de usuario

Sub-Zero

Sub-Zero Wolf BI Series Manual de usuario

Sub-Zero

Sub-Zero Integrated Series Manual de usuario

Sub-Zero

Sub-Zero 600 Series BI-48S Manual de usuario

Sub-Zero

Sub-Zero 500 Series Guía de configuración rápida

Sub-Zero

Sub-Zero INTEGRATED REFRIGERATION Manual de usuario

Sub-Zero

Sub-Zero UC-24C(I) Manual de usuario

Sub-Zero

Sub-Zero IC-27R Manual de usuario

Sub-Zero

Sub-Zero UC-24R Manual de usuario

Sub-Zero

Sub-Zero BI-48S/S/TH Manual de usuario

Sub-Zero

Sub-Zero 736TR Manual de usuario

Sub-Zero

Sub-Zero ICBBI-48SD Manual de usuario

Sub-Zero

Sub-Zero ICBDEC2450FI/R Manual de usuario

Sub-Zero

Sub-Zero ICBBI-36R Manual de usuario

Sub-Zero

Sub-Zero ICB736TCI Manual del propietario

Sub-Zero

Sub-Zero ID-24RO Manual de usuario

Sub-Zero

Sub-Zero UC24CLH Manual de usuario

$Sub-Zero \601RG Manual de usuario$

Sub-Zero

Sub-Zero \601RG Manual de usuario

Sub-Zero

Sub-Zero Sub-Zero PRO series Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
