StarTech.com VS123HD Manual de usuario

Manual Revision: 01/15/2013

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

VS123HD

3 Port HDMI® Auto Switch

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction ............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements .............................................................................................................................. 1

Hardware Installation ............................................................................4

Hardware Operation ..............................................................................4

Specications ..........................................................................................5

Technical Support ..................................................................................6

Warranty Information ............................................................................6

Instruction Manual

Introduction

The VS123HD 3-port HDMI® Auto Switch features three prioritized HDMI input ports.

If the active HDMI source is turned o, disconnected, or otherwise lost, the switch

automatically selects the next available HDMI signal as the priority output, ensuring

the display is always receiving a signal.

The automatic switch includes an IR Remote Control, so you’ll be able to share an HD

projector or display between three HDMI audio/video sources, with the option to

manually control the switch from a distance or through the easy-to-use front panel

toggle button.

Ideal for High-Denition applications, this 3-in/1-out HDMI switch supports true

High-Denition 1080p resolutions (WUXGA/1920x1200 from PC/computer) as well as

7.1 Surround Sound audio, ensuring the best possible multimedia experience from

connected devices.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Packaging Contents

• 1x 3 Port High Speed HDMI® Auto Switch

• 1x Remote Control

• 1x IR Extender Cable

• 1x Instruction Manual

System Requirements

• Video source devices (i.e. computer, Blu-ray Player)

• HDMI® enabled display device (i.e. television, projector)

• HDMI cables for Desired Number of input devices (up to 3)

Instruction Manual

VS123HD 3 Port High Speed HDMI® Auto Switch

1. HDMI® Input Port #1

2. HDMI® Input Port #2

3. HDMI® Input Port #3

4. Select Button (Toggles between Ports)

5. HDMI® Output Dongle Cable

6. Power LED

7. Active Port LED Indicators

321

Instruction Manual

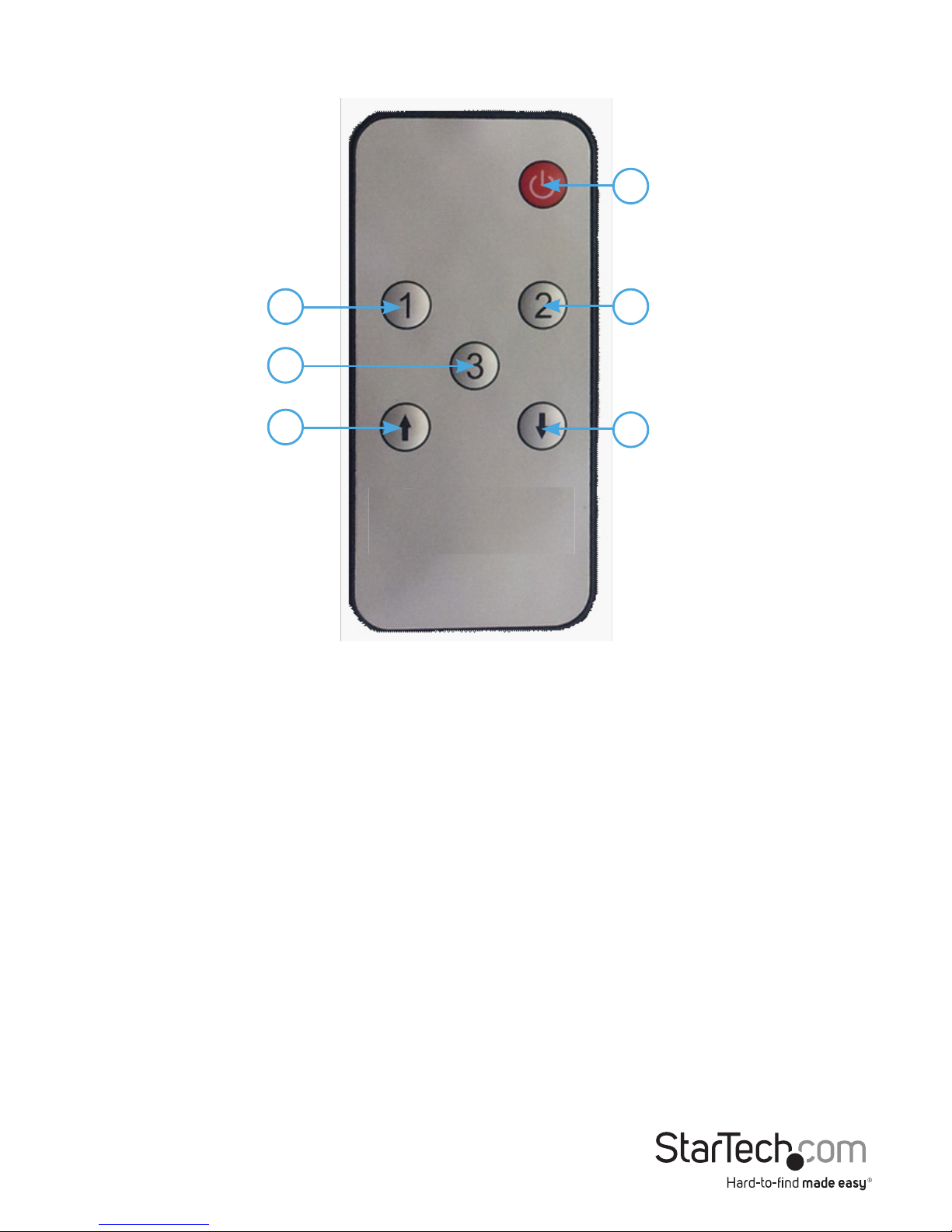

Remote Control

1. Switch to Port 1

2. Switch to Port 2

3. Switch to Port 3

4. Power On/O

5. Switch to Port Above

6. Switch to Port Below

Instruction Manual

Hardware Installation

1. Connect the “HDMI® Output Dongle Cable” attached to the VS123HD, to an HDMI®

enabled display device (i.e. television, projector).

2. Connect an HDMI® cable (not included) from each desired input device (up to 3)

to the HDMI® Input Ports video source device (i.e. computer, Blu-ray Player) to the

Video Input Ports.

NOTE: This device features 3 prioritized HDMI® input ports. If the active HDMI®

source is turned o, disconnected, or otherwise lost, the switch will automatically

select the next available HDMI® signal as the priority output. As a result it is a good

idea to prioritize the devices connected based on frequency of use. The device used

the most should be connected to HDMI® Input Port #3, while the device used the

most would be connected to HDMI® Input Port #3.

3. Turn on the display device, followed by the video source devices.

Hardware Operation

1. Auto Switch Port Selection

Using the Auto switch feature, you can automatically switch between video sources

simply by turning o and on the devices connected to the prioritized ports.

For example: If you typically watch TV through your Cable or Satellite set top box,

but sometimes watch movies on your Blu-ray player. You can connect your set top

box to Port #3, and your Blu-ray player to Port#2. When the Blu-ray player is turned

on to watch a movie the VS123HD will automatically switch to the Blu-ray player.

When the movie is over, simply turn o your Blu-ray player and the VS123HD will

automatically switch back to your set top box.

2. Manual Port Selection

a. Press the “Switch Button” to switch between input devices from 1 to 3.

b. The Active Port LED Indicator will light as video sources are toggled. Discontinue

switching when the desired video source device is displayed on the HDMI® enabled

display device.

3. Remote Control Port Selection

a. Press the desired 1 - 3 key on the remote control that corresponds with the

number above the Active Port LED Indicator.

b. The selected Active Port LED Indicator will light, and the desired video source

device will be displayed on the HDMI® enabled display device.

c. Use the button to power on/o the VS721MULTI.

NOTE: The arrow buttons on the remote can also be used to switch the Active Port

LED Indicator to the adjacent up or down video source device.

Instruction Manual

Specications

Ports 3

AV Input 3x HDMI®

AV Output 1x HDMI®

Interface HDMI®

Audio Yes

Industry Standards High Speed HDMI®, HDCP

Max Distance 10m/33ft

Max Resolution 1080p / 1920x1200

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old and

new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need

to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to

the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and

to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.
